Audison SR 5.600 Amplifier | 1010 W total power | 4 x 115 W + 1 x 550 W @ 2ohm | D-class

Product Overview

Audison SR 5.600 series 5-channel amplifier with crossover and great power packed into ultra-compact dimensions ( 75 W x 4 + 330 W x 1  4Ω)SR line, perfected by taking full advantage of the latest amplification devices. After numerous listening tests with professionals and enthusiasts, the Audison research and development team decided to adopt a new class D technology called ADT (Audison D-Class Technology) for this line of amplifiers, which has made it possible to considerably reduce their size, totally preserving the audio performance that characterizes every Audison design.

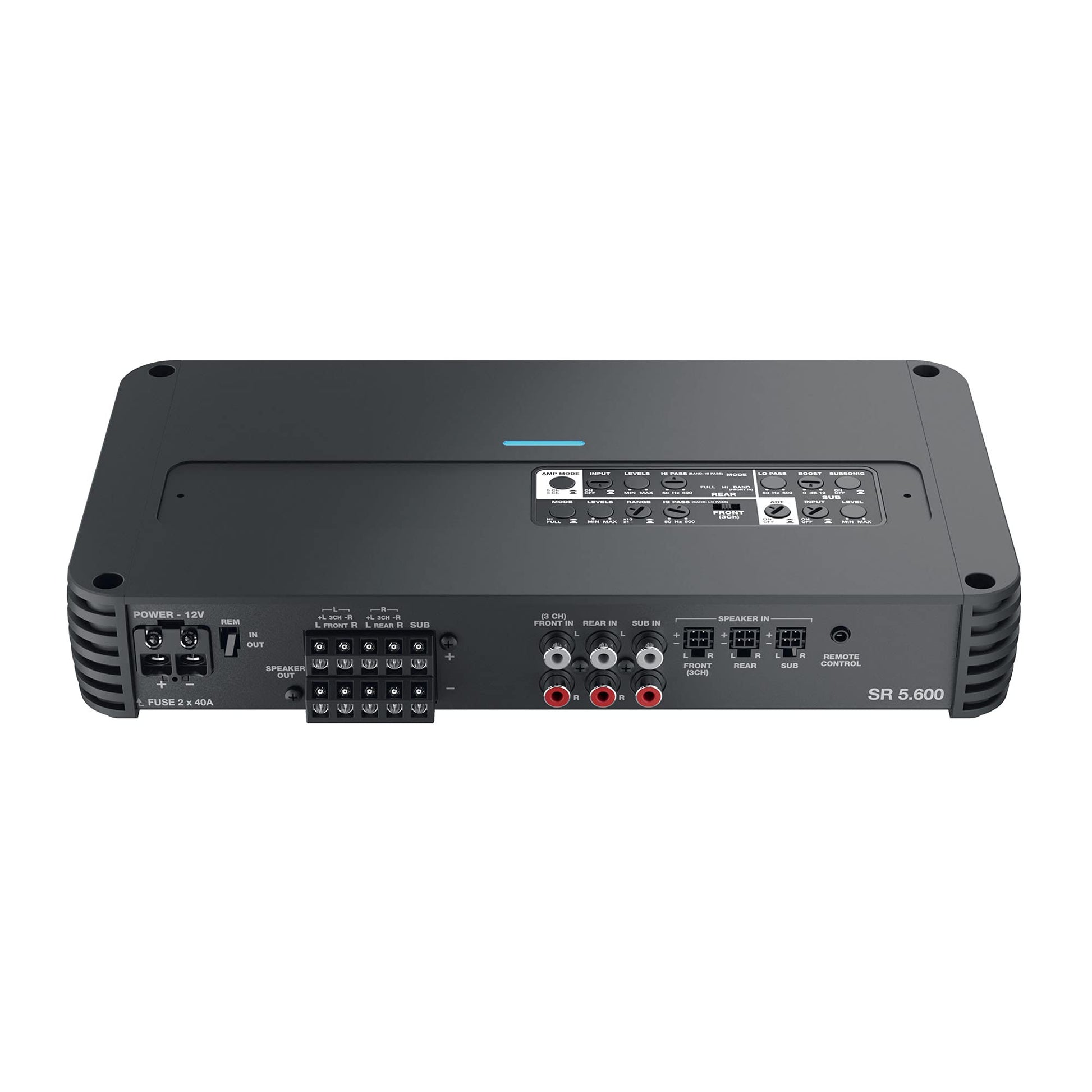

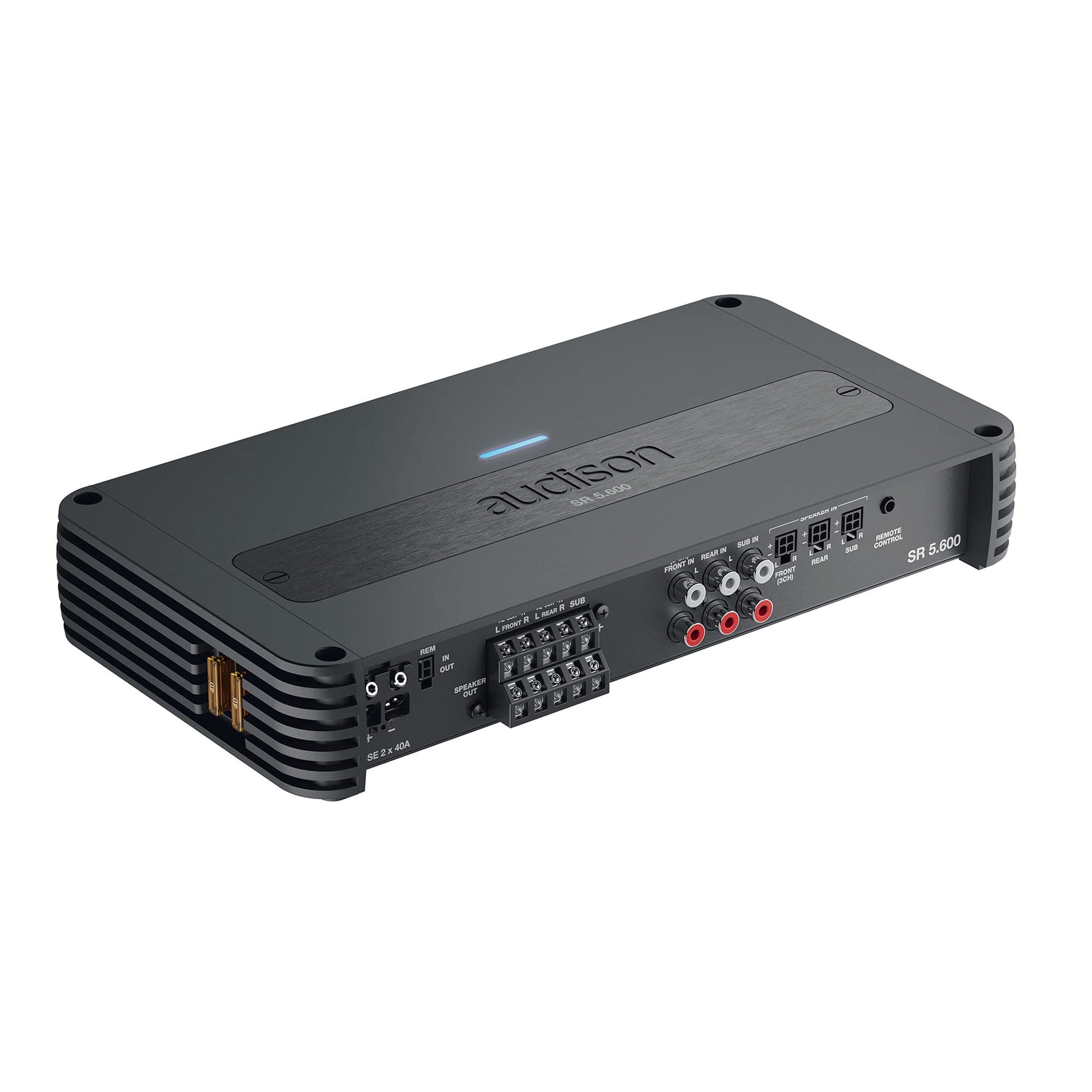

As far as the electronic design is concerned, every aesthetic and functional detail of the Audison SR 5.600 has been taken care of, resulting in a compact amplifier made of extruded aluminum with rounded corners, which facilitates the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, there is no need for internal cooling fans, which often cause noise and dust accumulation.

In keeping with tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any kind of audio system configuration. The controls, protected by a satin-finished aluminum panel, are located on the top panel of the amplifier, so that they can be easily reached from above, even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded.

Optional remote control: VCR-S1 offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.

Audison USS: Thanks to the integration of Audison USS (Universal Speakers Simulator) technology in the high level inputs, the SR amplifiers can also be conveniently connected to OEM sources equipped with the 'speaker load detection' function, which monitors the presence of a low impedance load enabling the audio outputs.

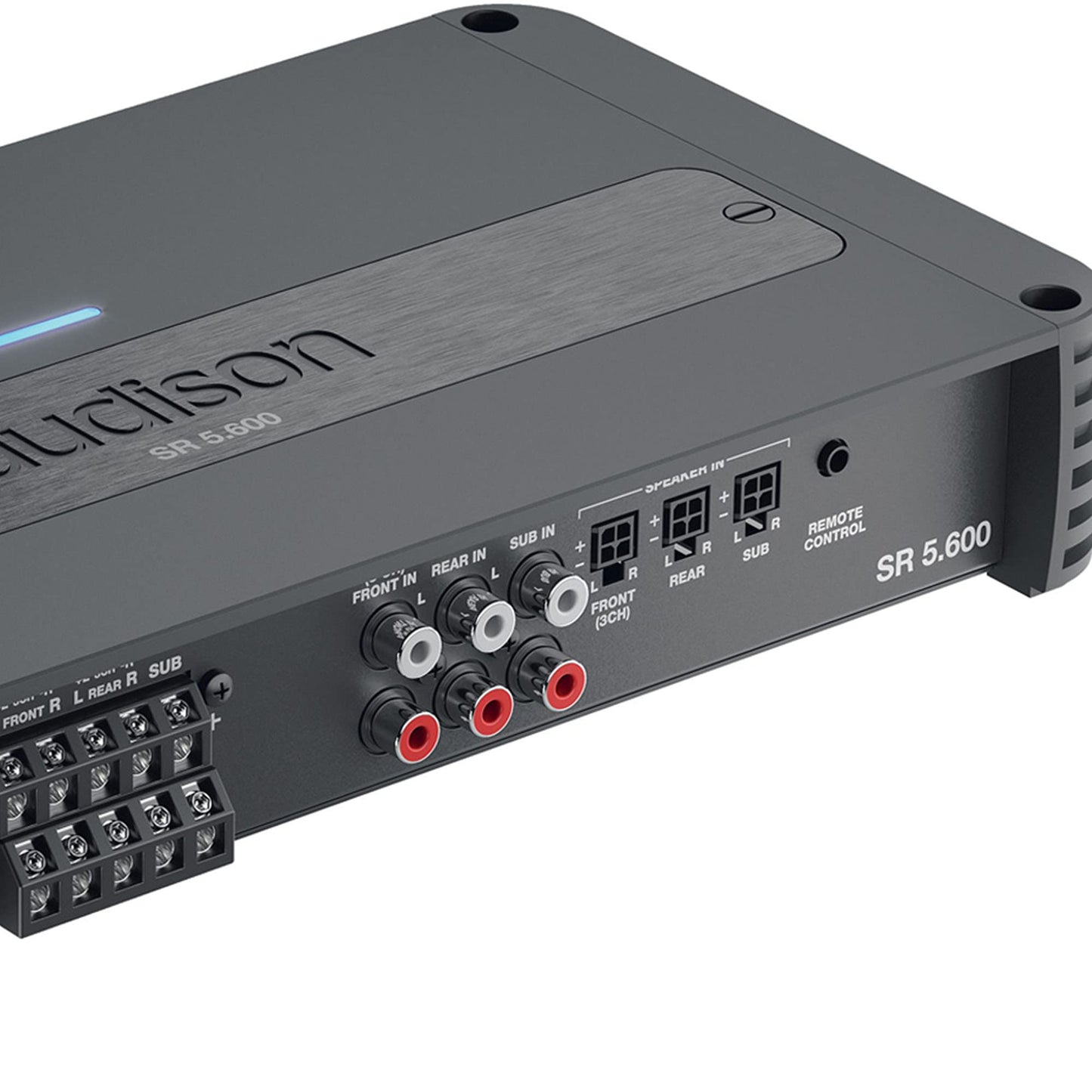

Audison SR 5.600 allows multiple connectivity. All models have balanced high-level inputs for connecting to the OEM headunit speaker output and a low-level RCA for after-market speakers. When using the high-level input, the ART (Automatic Remote On/Off) function can be enabled to control the amplifiers' power-up with the headunit's power button. In addition, there is a remote IN / OUT socket to allow control of multiple amplifiers in cascade that turn on when needed. Through the PRE-OUT signal using the Speaker-IN socket it is possible to interface the amplifier with OEM sources that only have amplified outputs, allowing for system expansion.

Amplifier Tech Data

Channels	5
Class	D-Class
Hi Level Input	Yes
Low Level Input	Yes
Digital Input	No
Power supply voltage / fuse	11 ÷ 15 VDC
Operating power supply voltage	6.5 ÷17 VDC / 2 x 25A
Idling current	2.2 A
Idling current when off	0.04 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power	44 A
Remote OUT	6.5 ÷ 15 VDC (150 mA)
Remote IN	6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)	1.5 ÷ 7 VDC

Amplifier Stage

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power	0.02 %
Bandwidth A	10 Hz ÷ 35 kHz; 10Hz ÷ 500Hz
S/N ratio A	105 dBA
Damping factor A	100
Input sensitivity Pre-In	0.2 ÷ 5 VRMS
Input sensitivity Speaker-In	0.8 ÷ 20 VRMS
Total Power RMS	1010 W
Minimum load impedance	5Ch: 2Ω 3Ch: 4Ω + 4Ω + 2Ω
Output Power (RMS) @14.4 VDC, 1% THD	5Ch 75 W x 4 + 330 W x 1 (4Ω) 5Ch 115 W x 4 + 550 W x 1 (2Ω) 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω) 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
Adjustable Crossover	Yes

CEA Specifications

Output power @ 4Ω, 1% THD+N, 14.4 V	Output power @ 4Ω, 1% THD+N, 14.4 V: 75 W x 4 Ch + 300 W x 1 Ch
SN ratio (ref. 1W output)	SN ratio (ref. 1W output): 75 W: 84 dBA – 300 W: 75 dBA

Inputs

Input Type	Pre-In / Speaker-In
Filters Outputs	-
Filter Pass A	Front Ch Filters: Full - Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct. (x1) - Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct. (x10)
Filter Pass B	Rear Ch Filters: Full Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct
Filter Pass C	Rear Ch Filters: Full Band-pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct.
Channel Mono	Rear Ch Filters: Full 50 ÷ 5 kHz (Lo) @ 12 dB/Oct.
Inputs/Outputs Sub CH	Lo-pass: 50 ÷ 500 Hz @ 24 dB/Oct
Inputs/Outputs Phase	-
Inputs/Outputs Bass Boost	(0 ÷12) dB
Inputs/Outputs Subsonic	25 Hz @ 24 dB/Oct
Remote Sub Volume	(-20 ÷ 6) dB

Other

Weight

2.42 kg

Dimensions

Dimension A	294 mm
Dimension B	264 mm
Dimension C	155 mm
Dimension D	135 mm
Dimension E	47.5 mm
