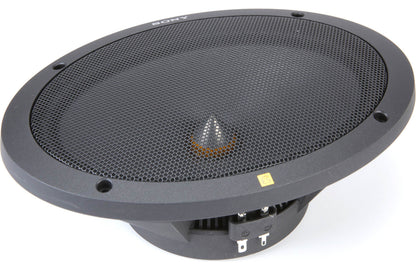

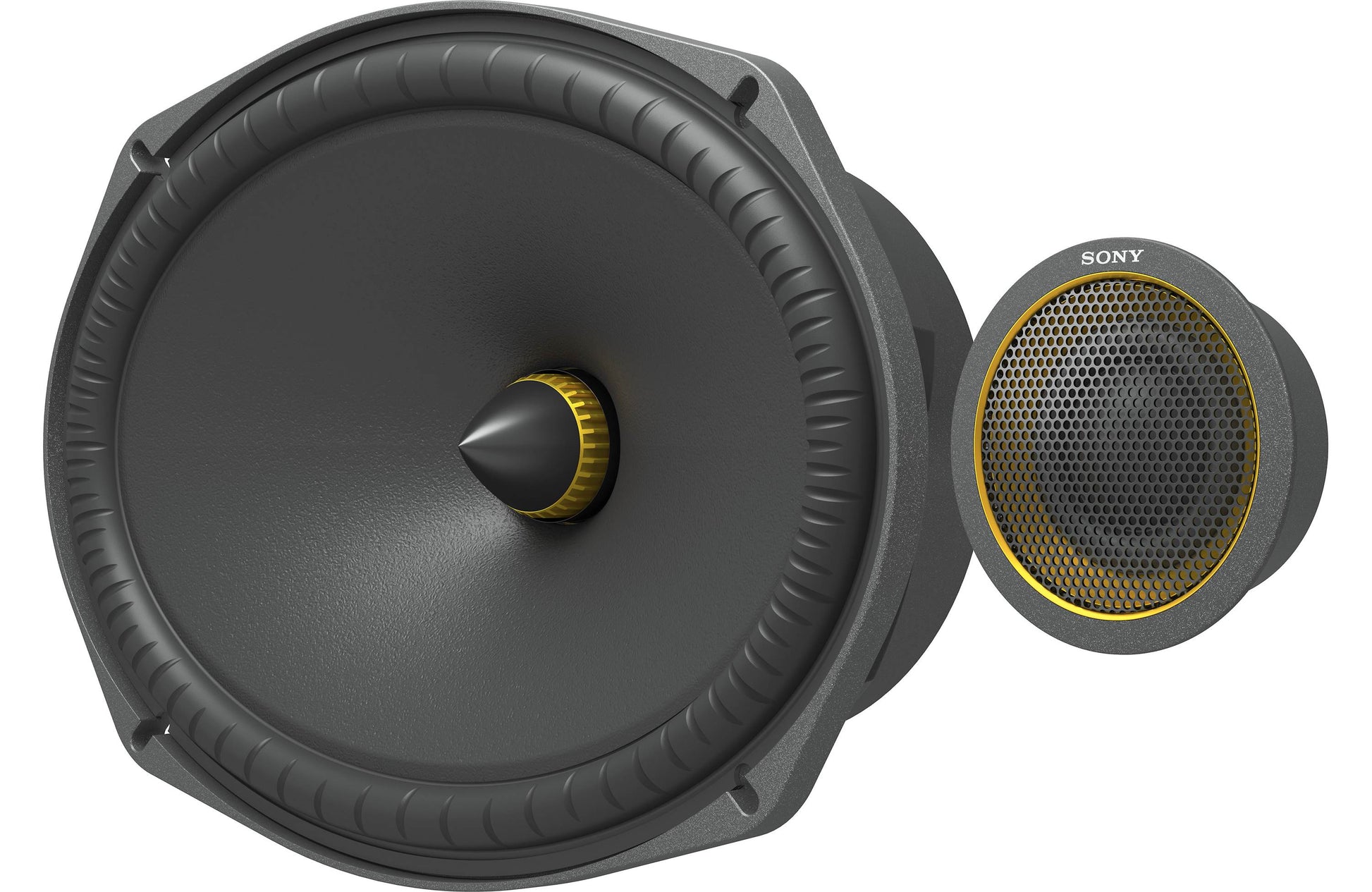

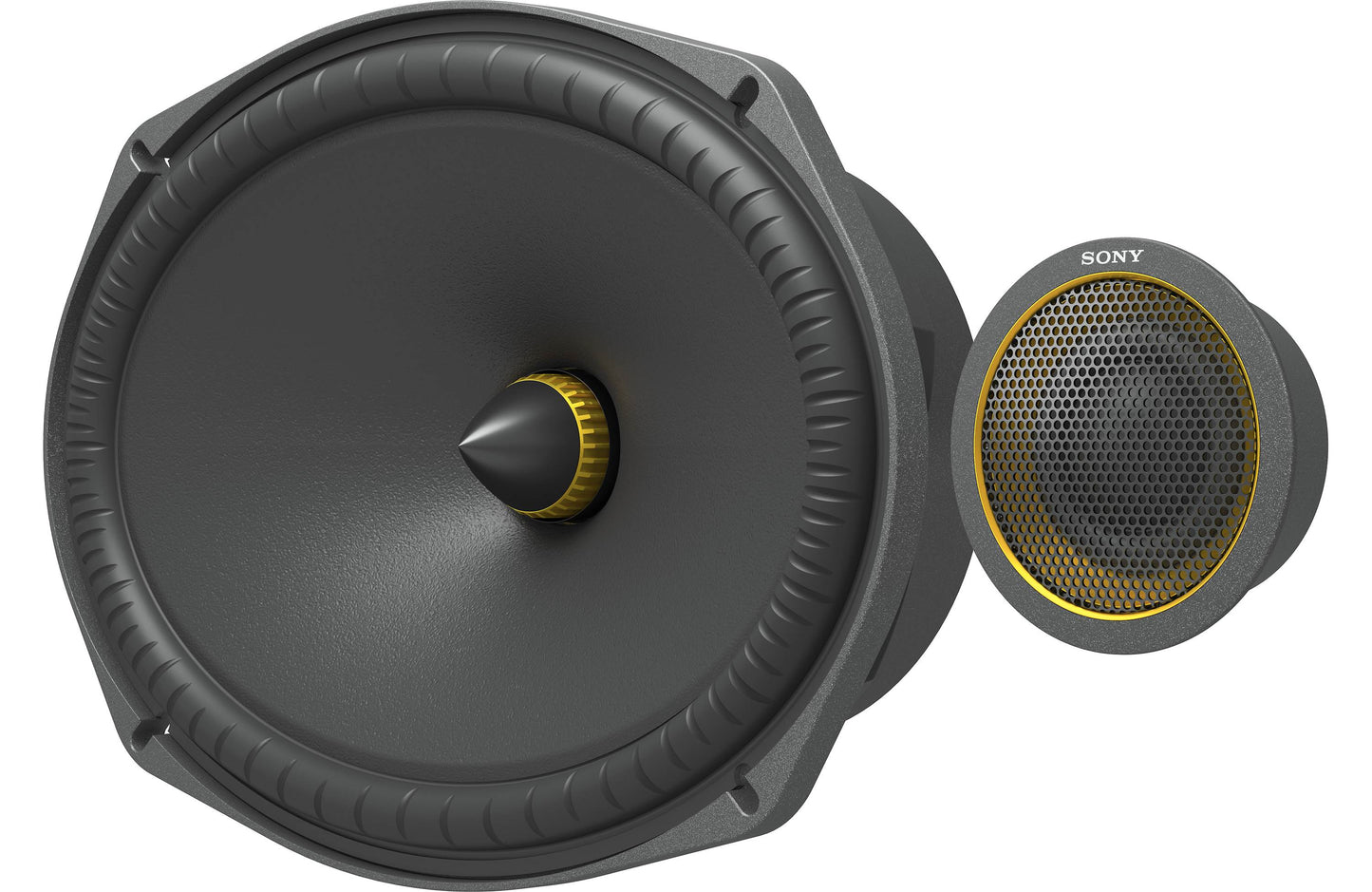

Sony XS-692ES is a 6x9-inch 2-way component speaker system designed for front-stage vehicle audio upgrades where separate woofer and tweeter placement is preferred. It combines 6x9-inch woofers, 1-inch soft-dome tweeters, and passive crossover networks for full-range sound reproduction in factory replacement or aftermarket systems.
Key Performance Features
6x9-inch 2-way component speaker system
110 watts RMS power handling
330 watts peak power handling
35 Hz - 40,000 Hz effective frequency range
90 dB ±2 dB SPL sensitivity (1 W, 1 m)
1-inch synthetic fabric soft-dome tweeters for extended high-frequency response
Heat-resistant voice coil with magnetic fluid
Separated Notch rubber surround for controlled cone movement
System Architecture
Type: 2-way component speaker system
Application: Front-stage speaker upgrade
Nominal Impedance: 4 Ω
Tweeter Type: 1" (2.5 cm) synthetic fabric soft dome
Crossover Type: Passive crossover networks included
System Role: Daily-driver and sound-quality-focused component speaker installation
Power Handling / Output
Continuous (RMS): 110 W
Rated Power: 90 W
Peak: 330 W
Driver / Construction

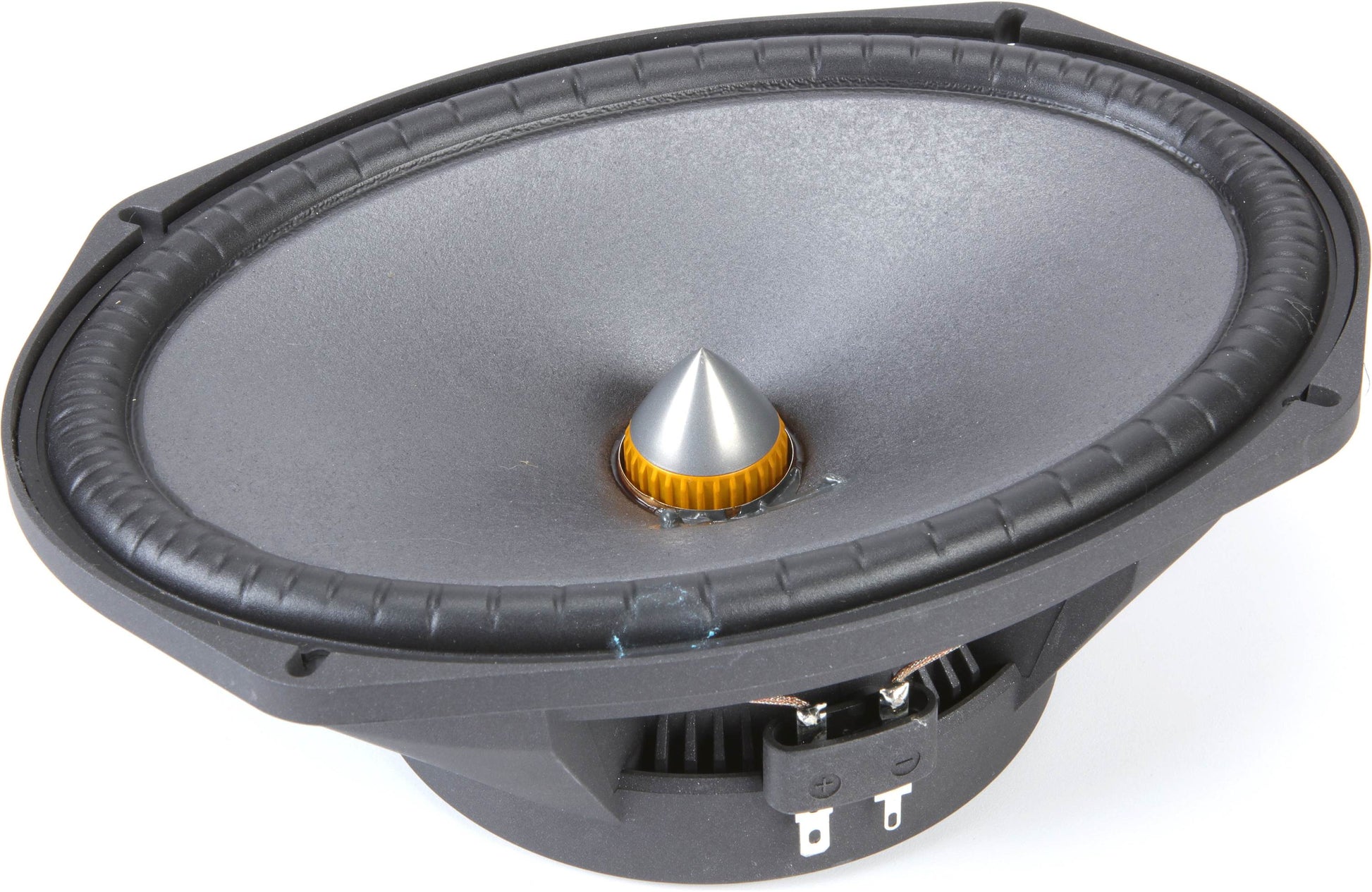

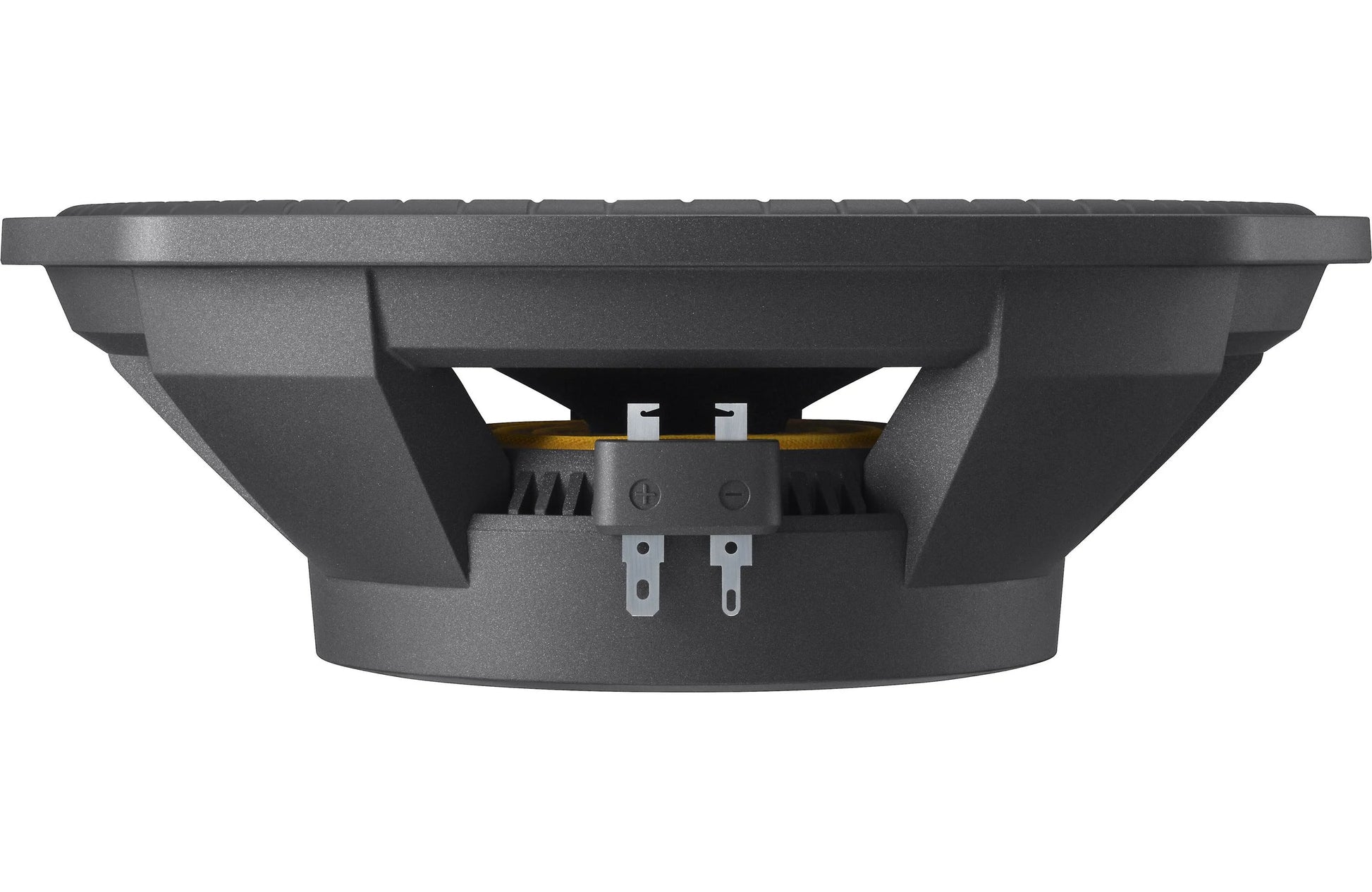

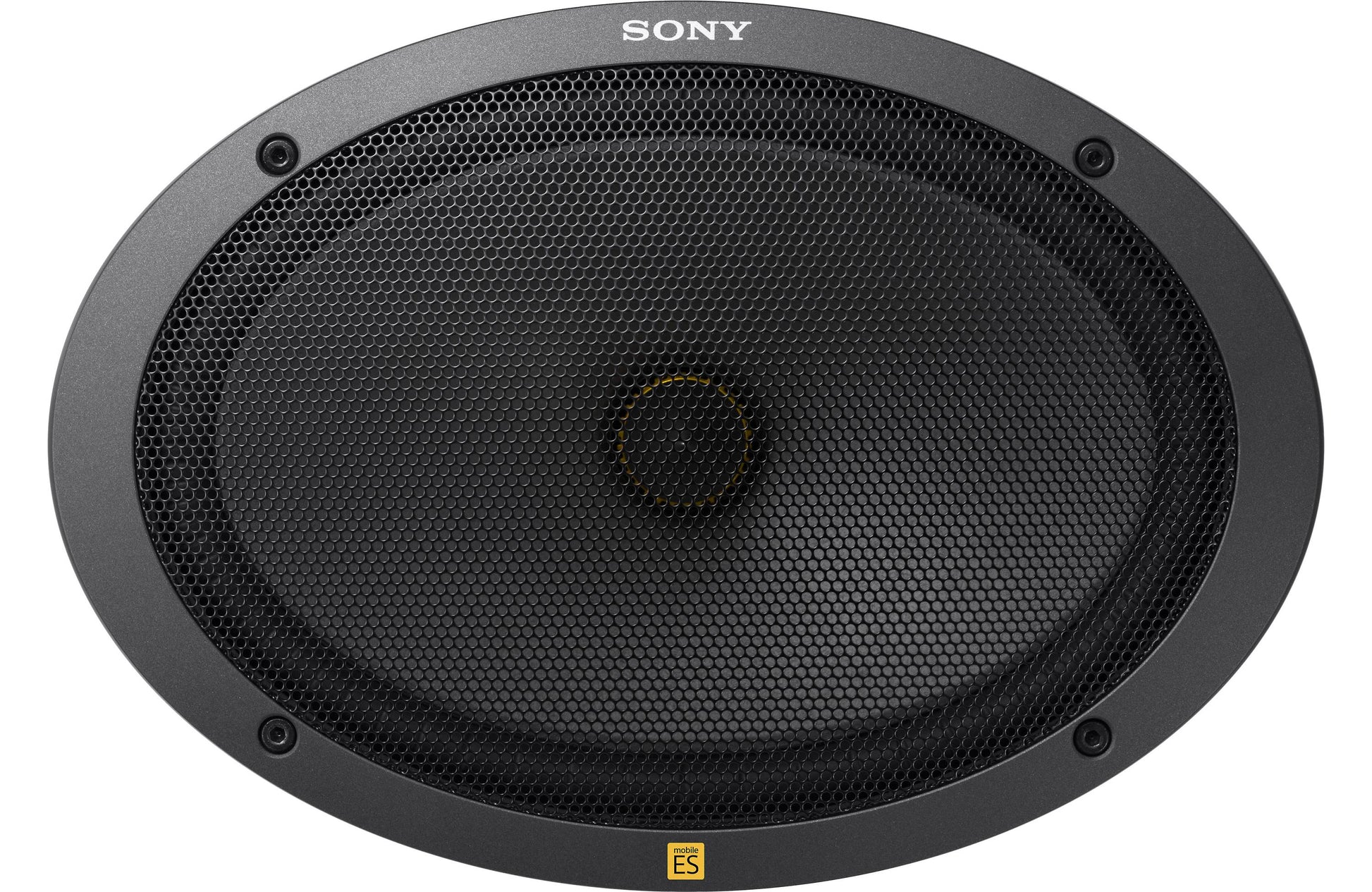

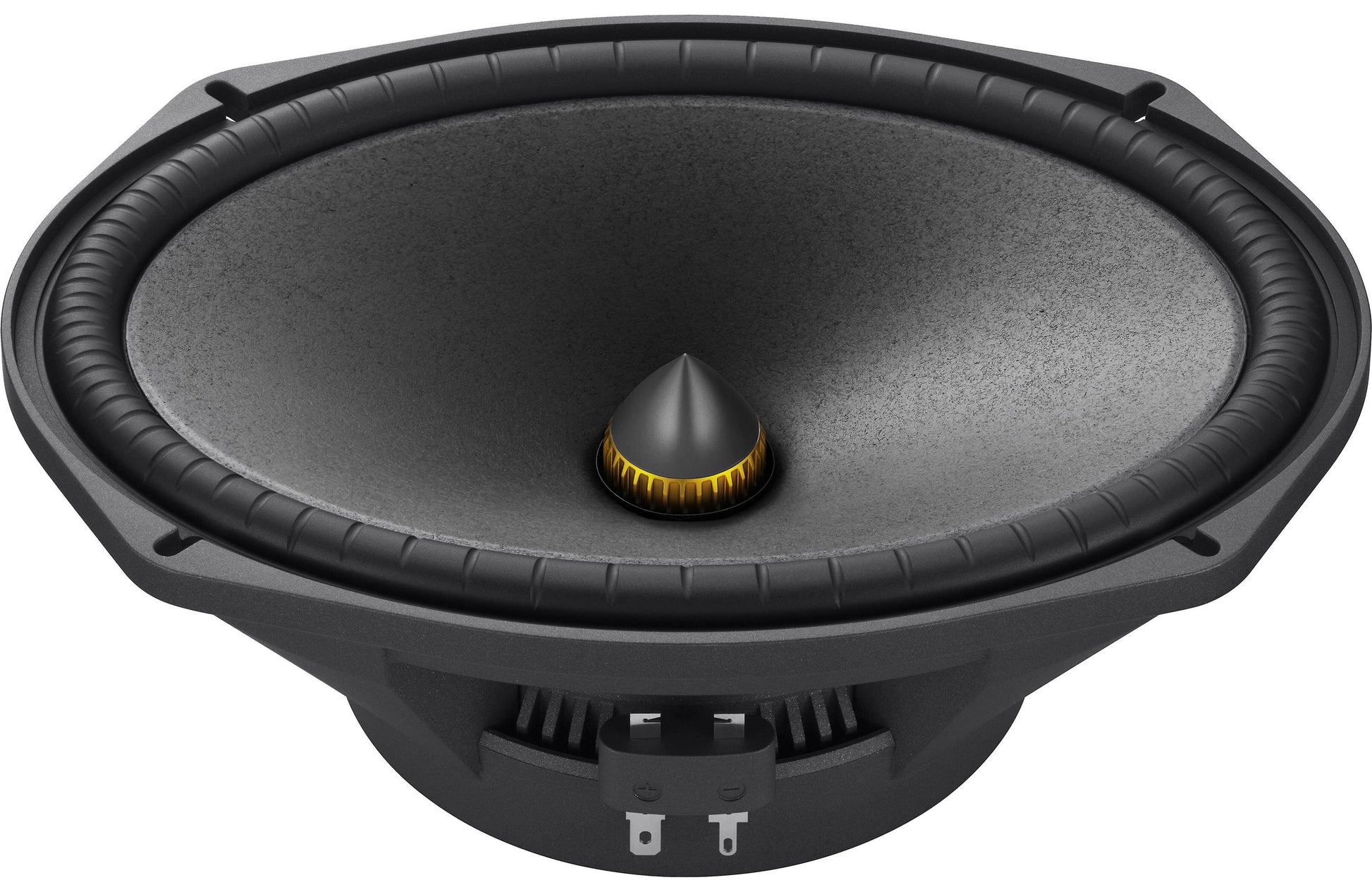

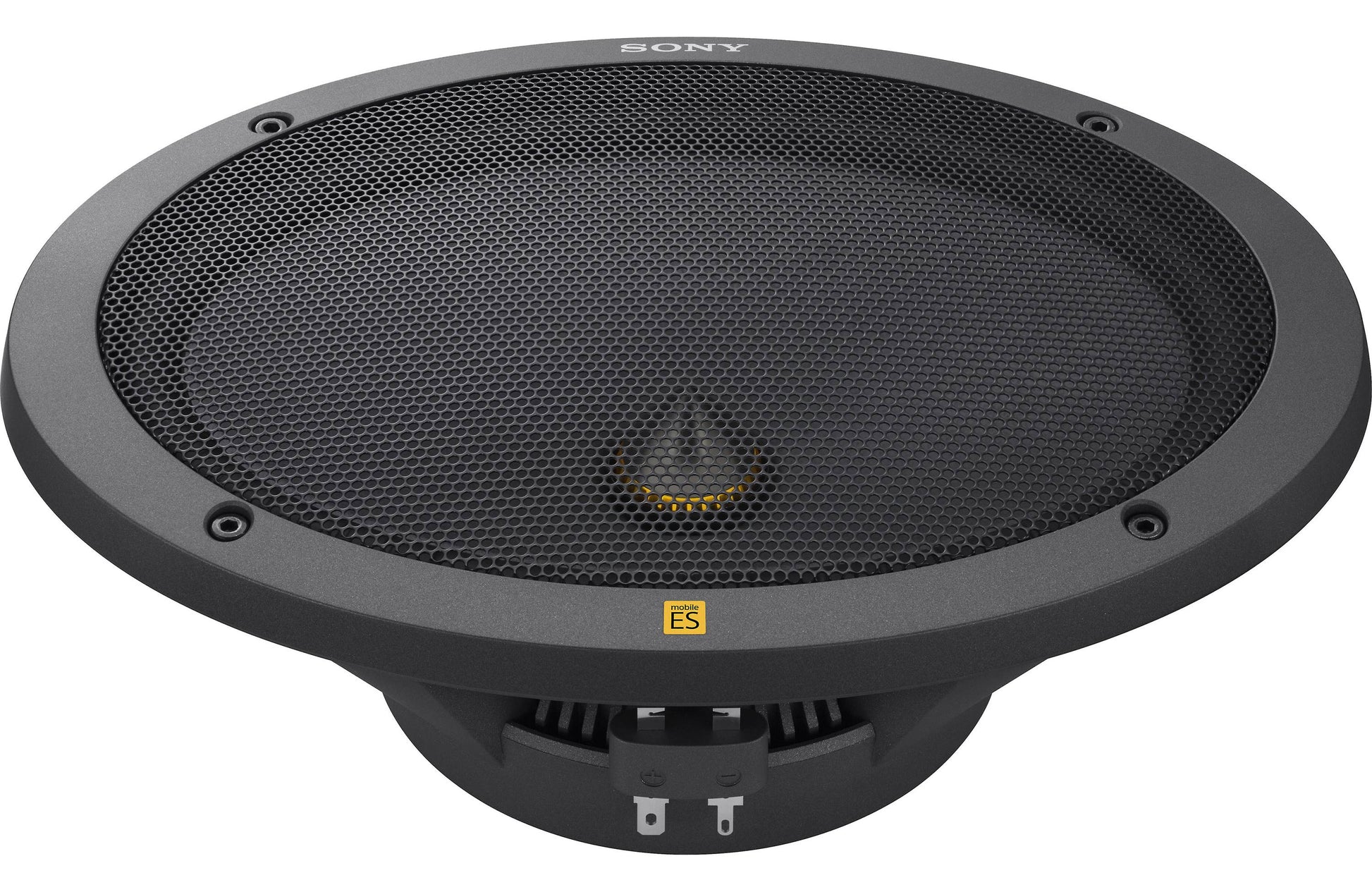

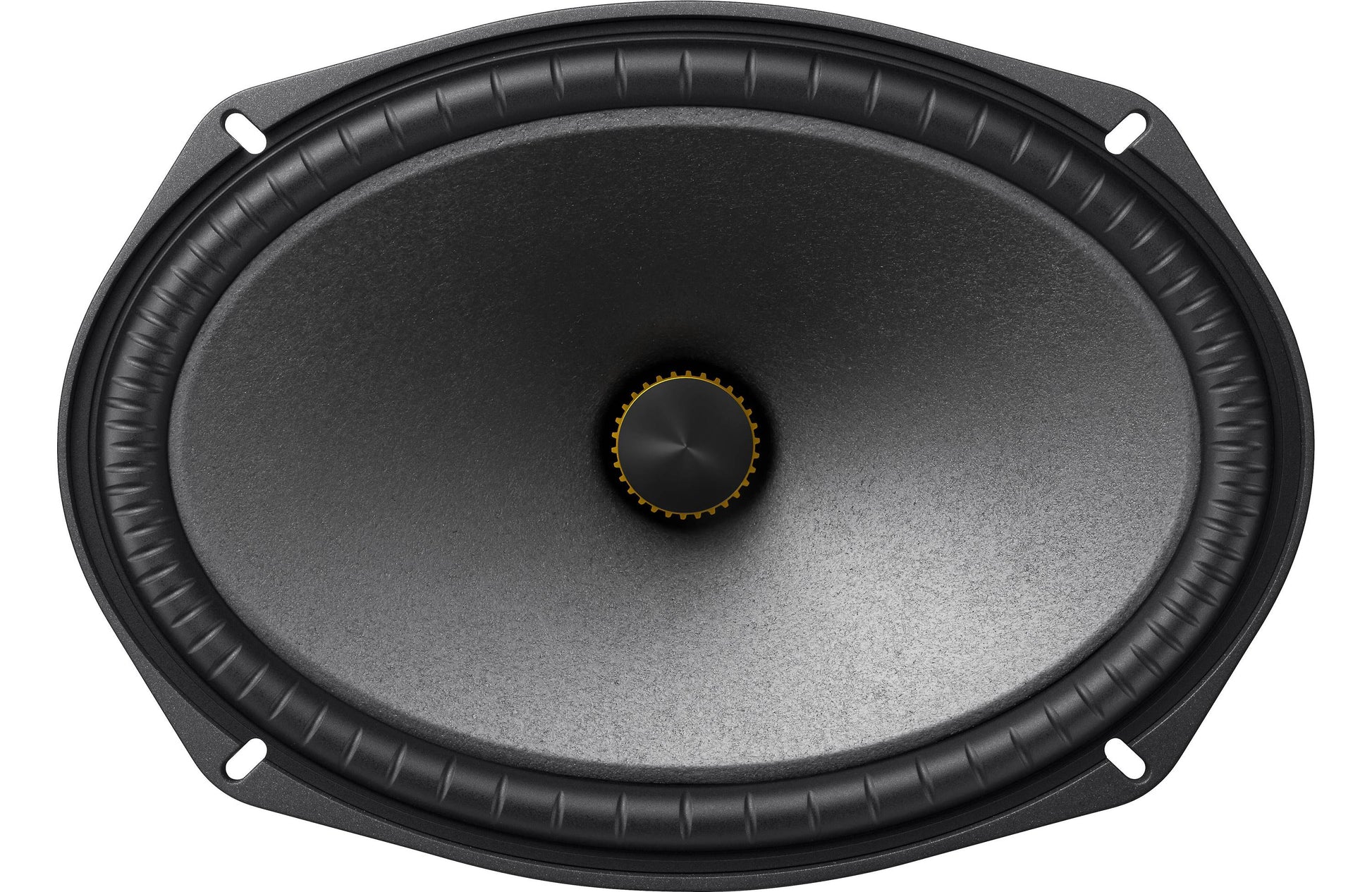

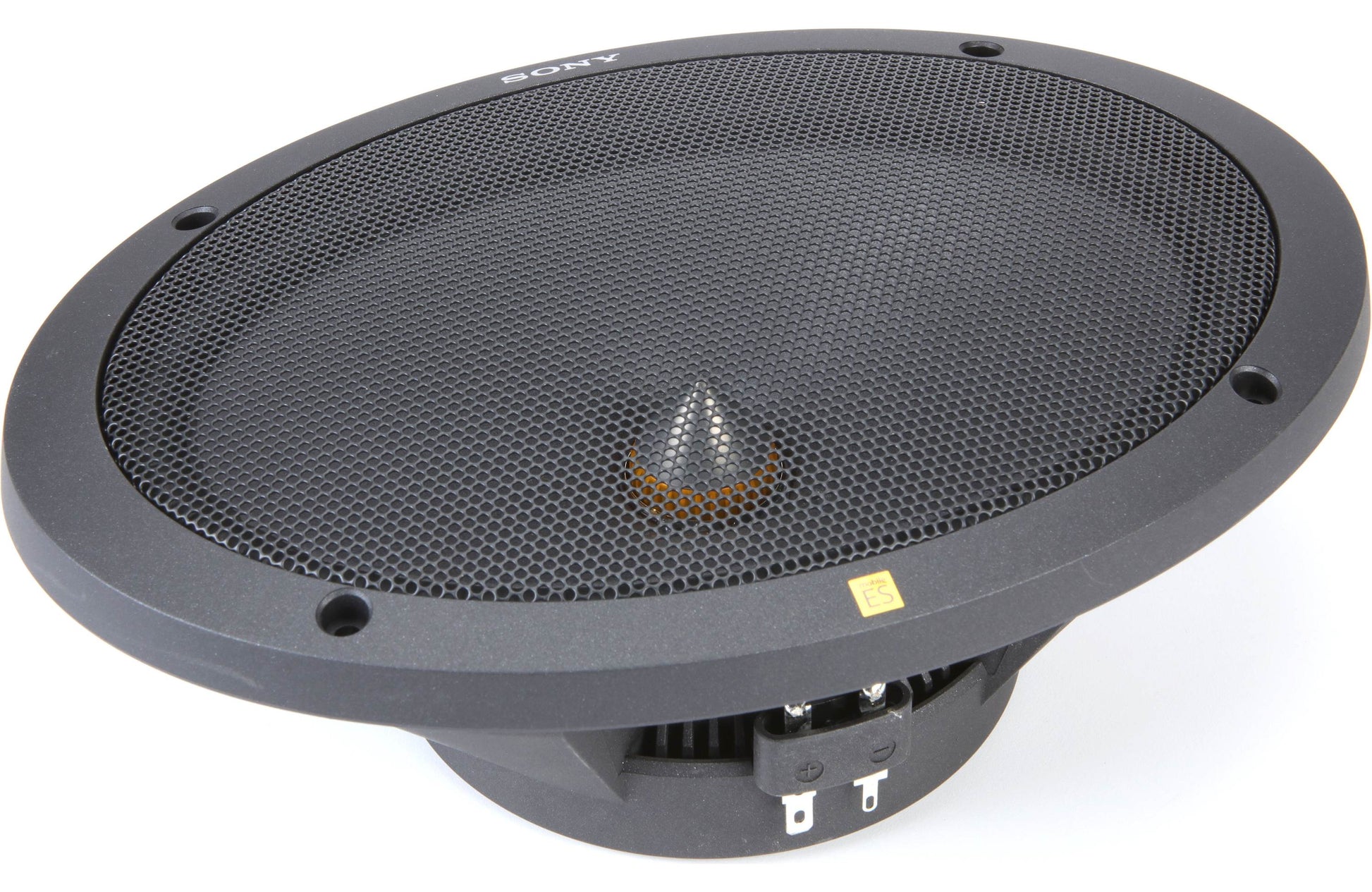

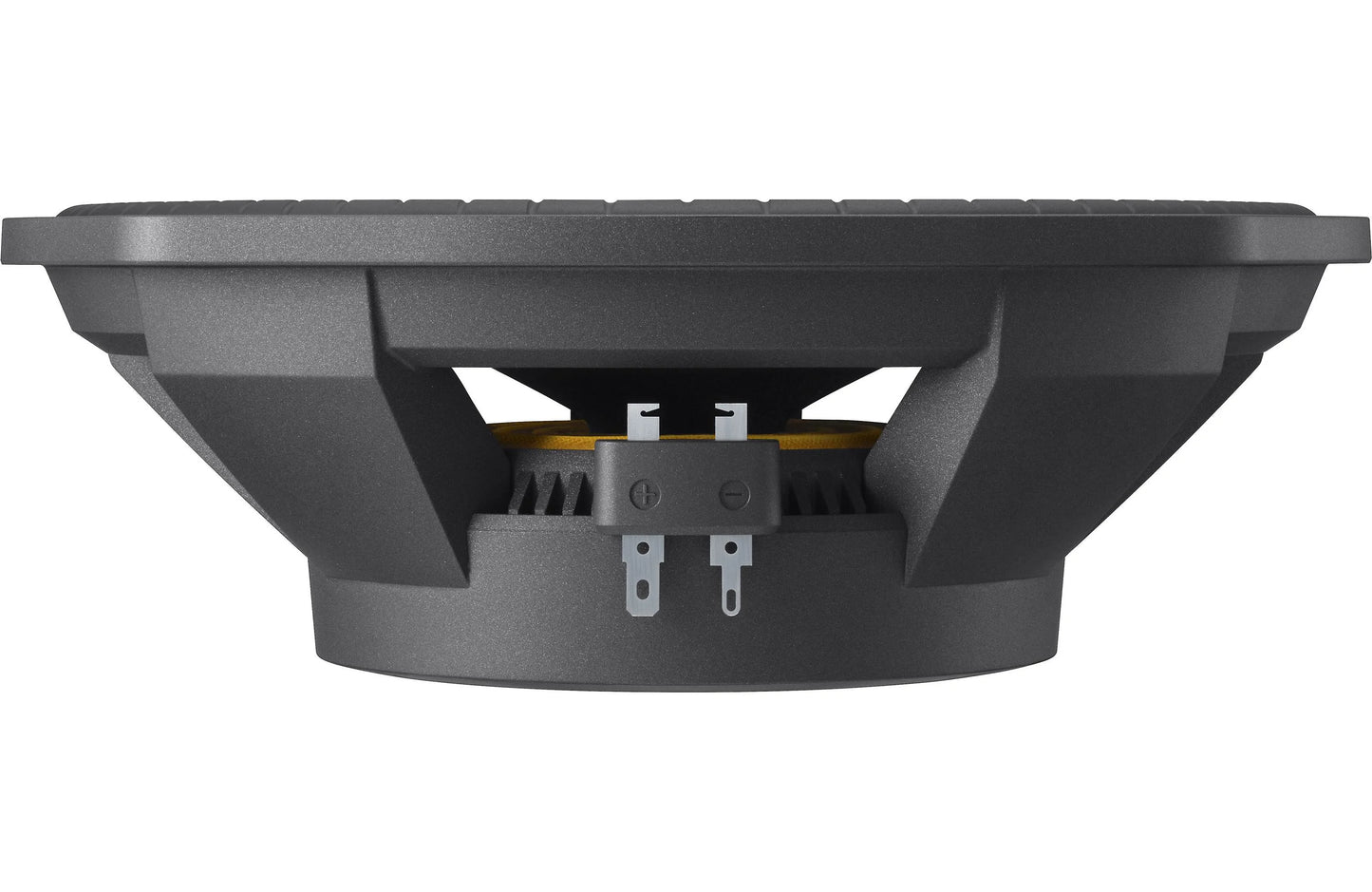

6x9-inch woofer cones
Rubber Separated Notch surrounds

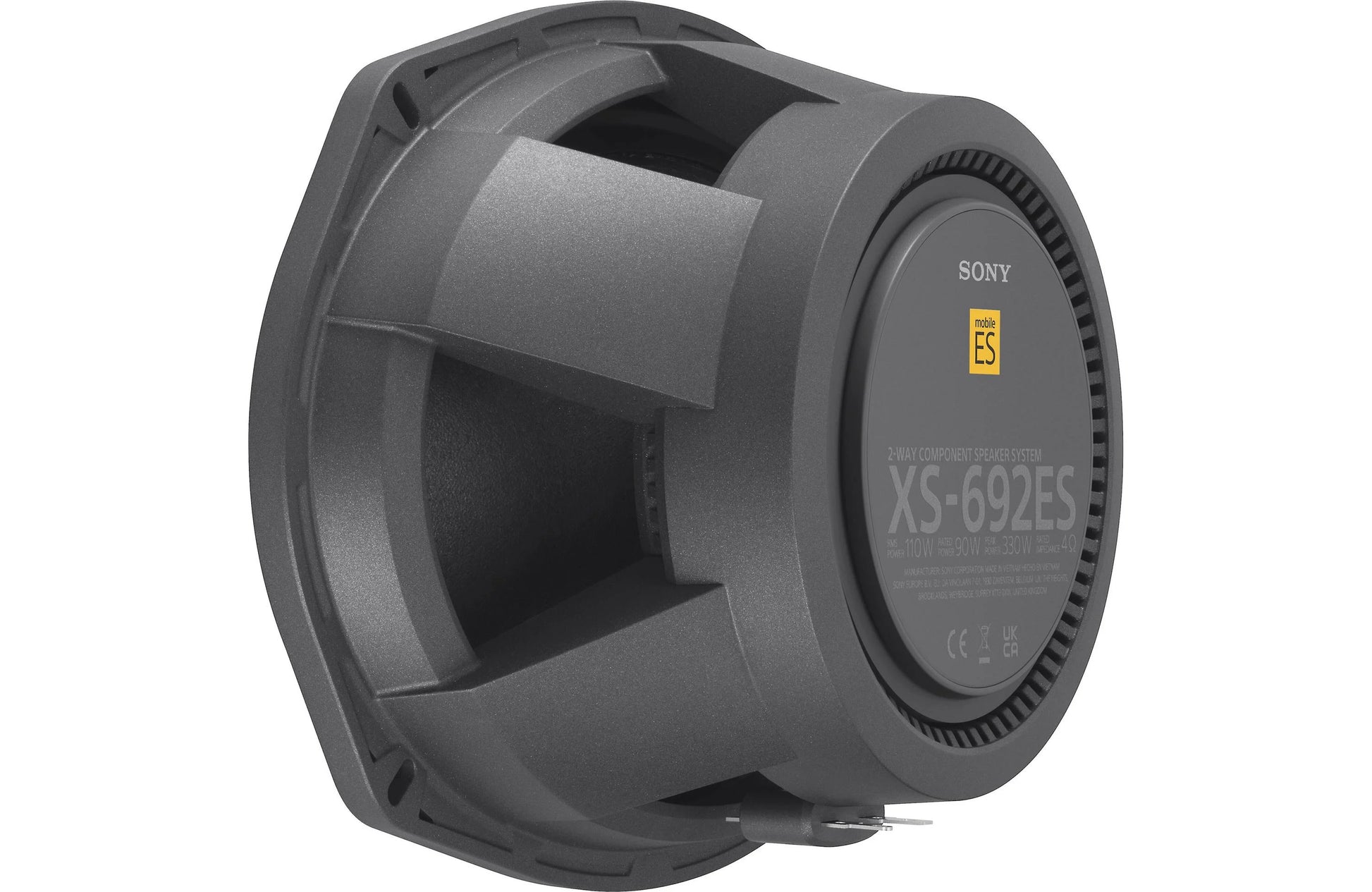

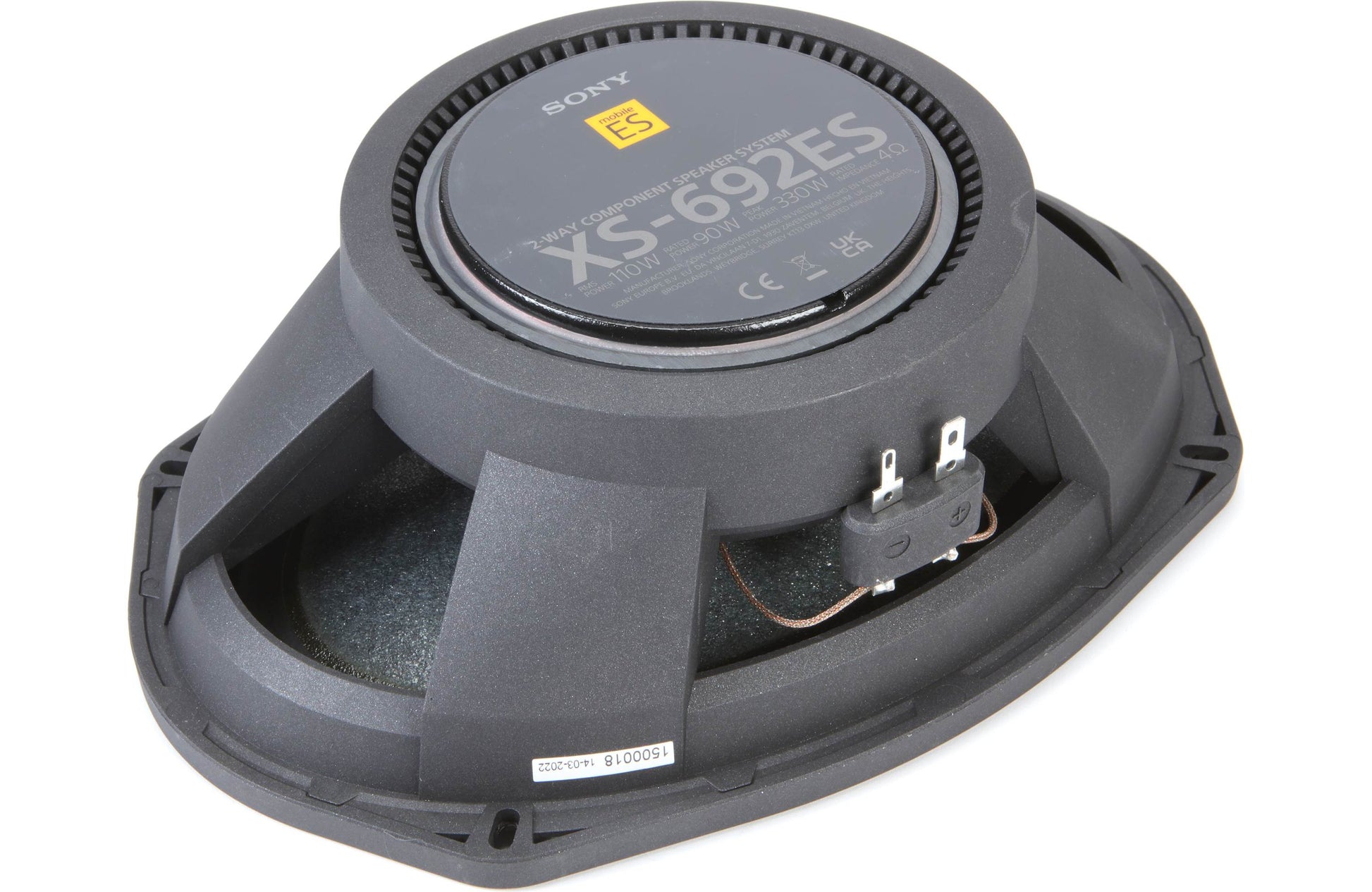

Ferrite woofer magnets

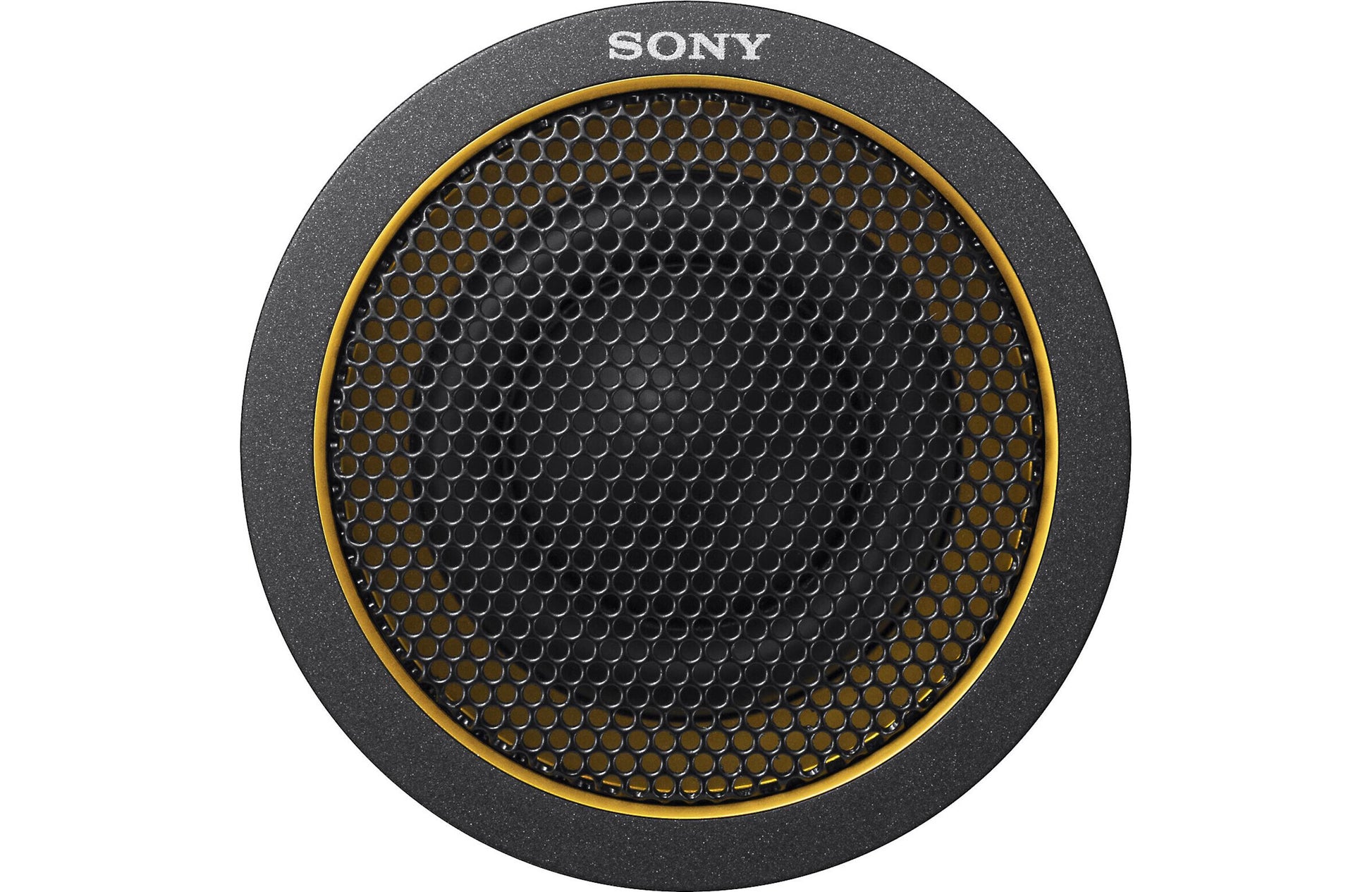

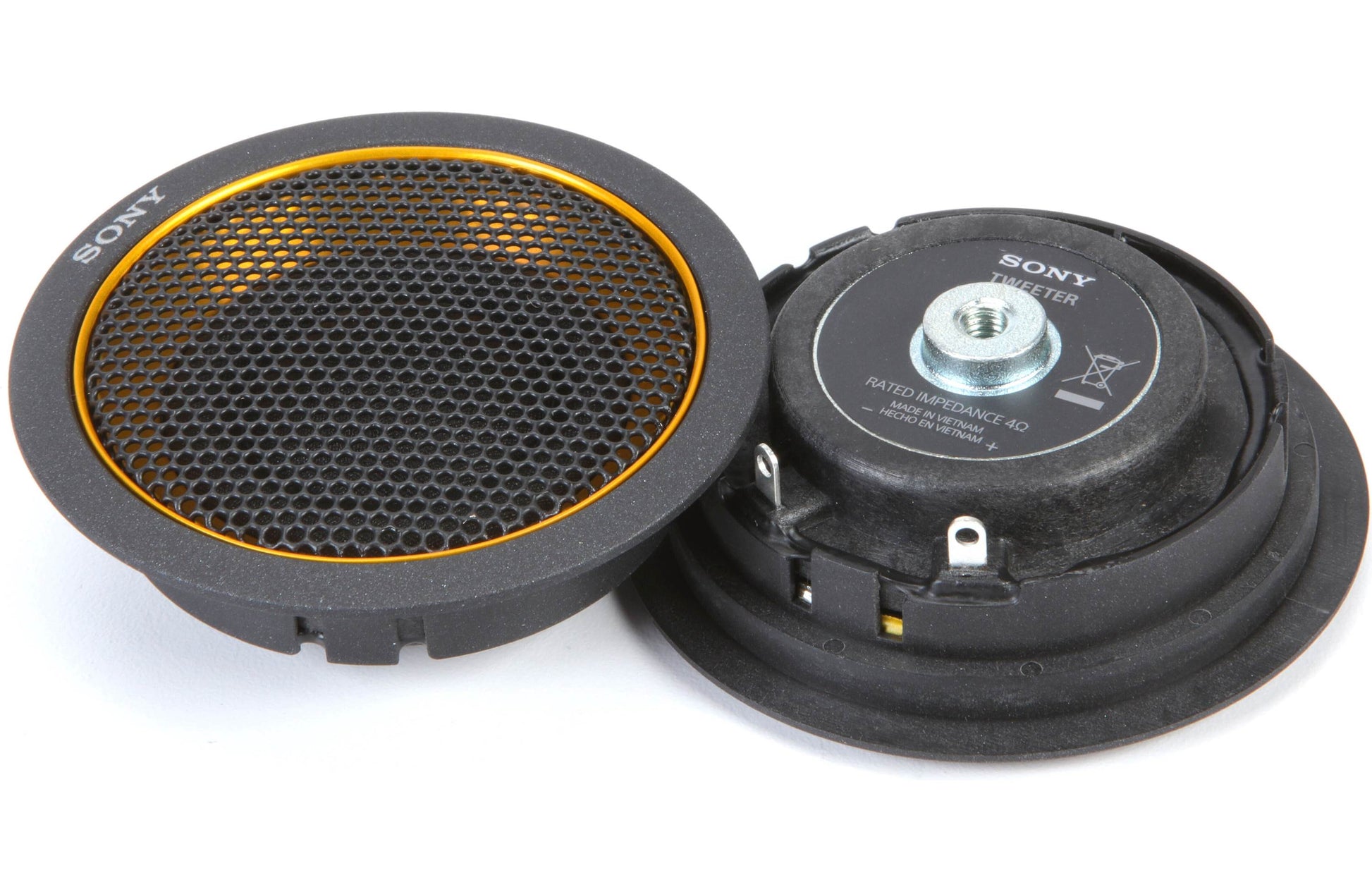

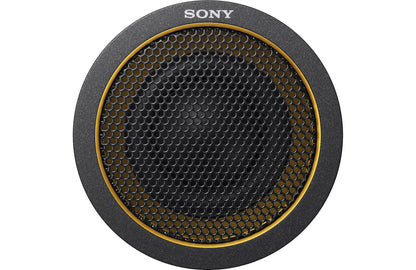

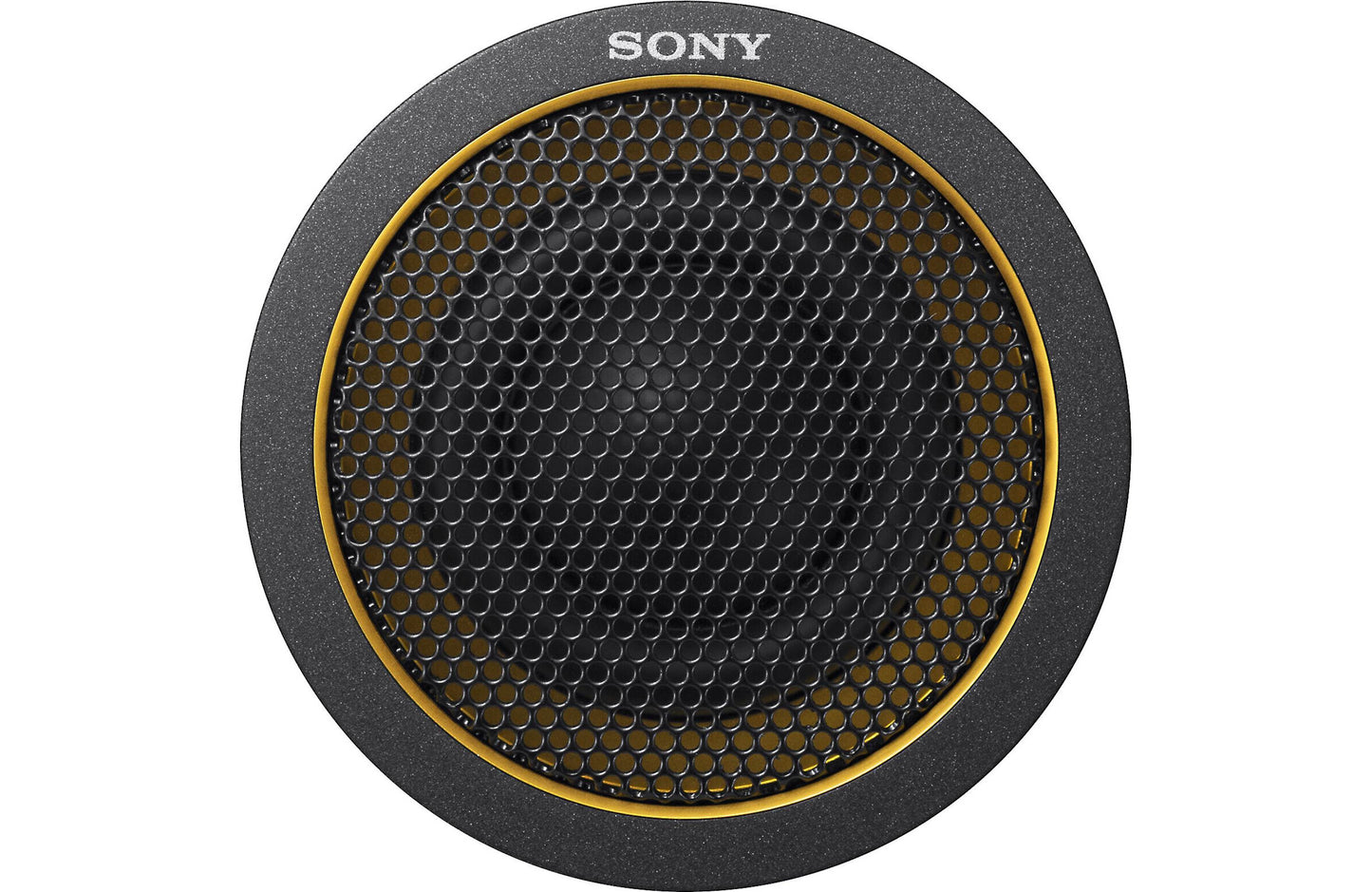

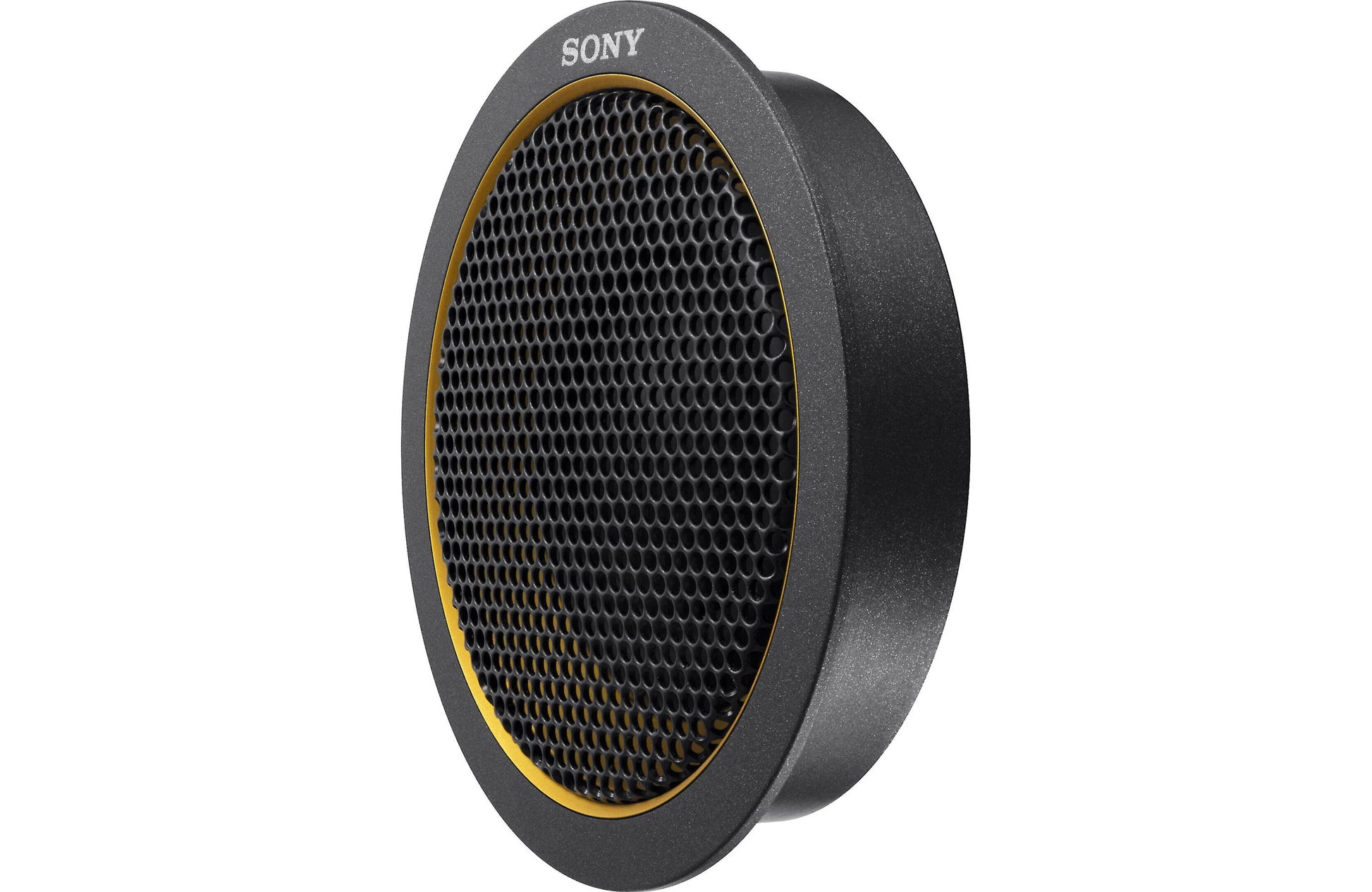

1" (2.5 cm) synthetic fabric soft-dome tweeters
Neodymium tweeter magnets

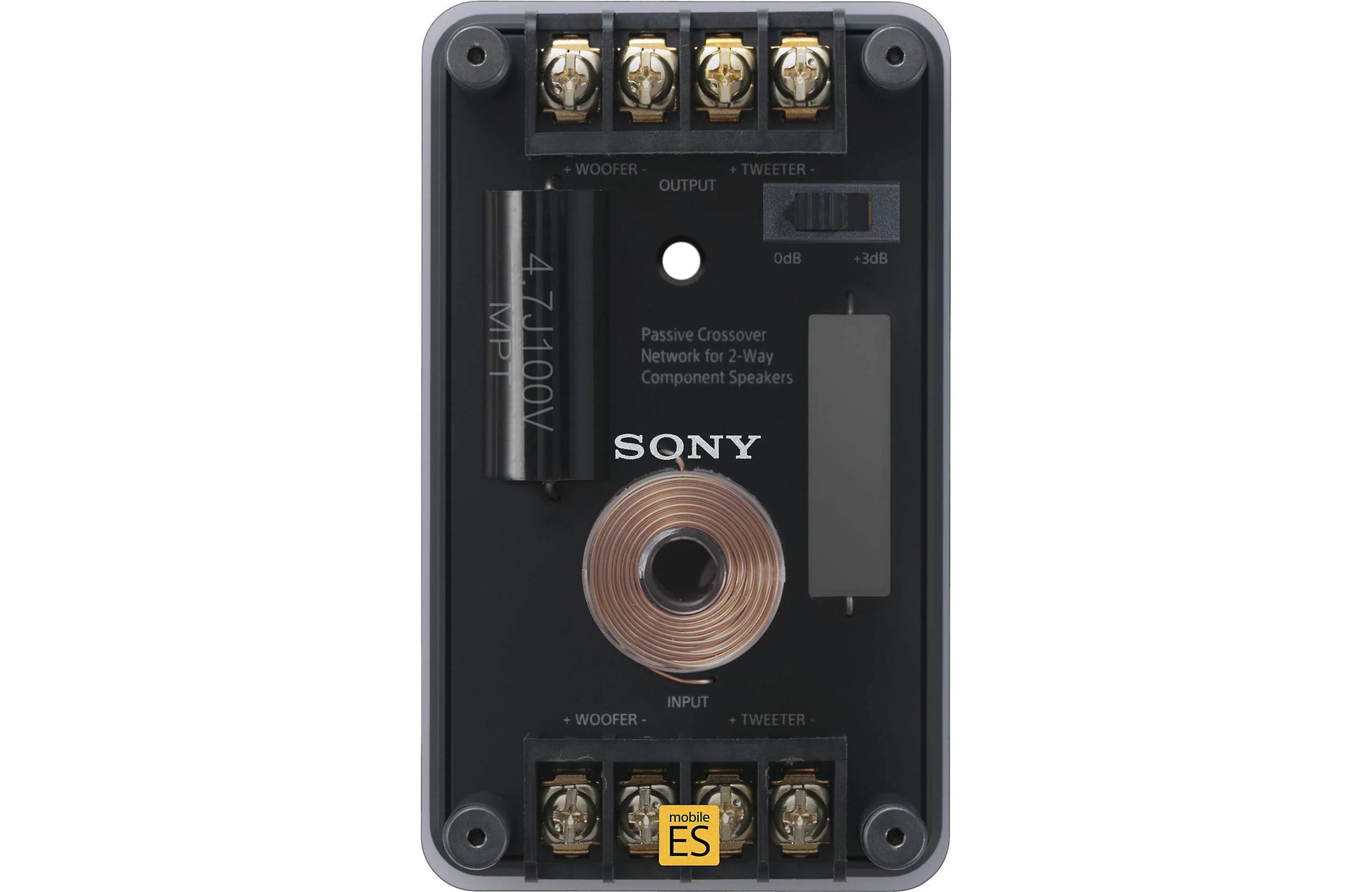

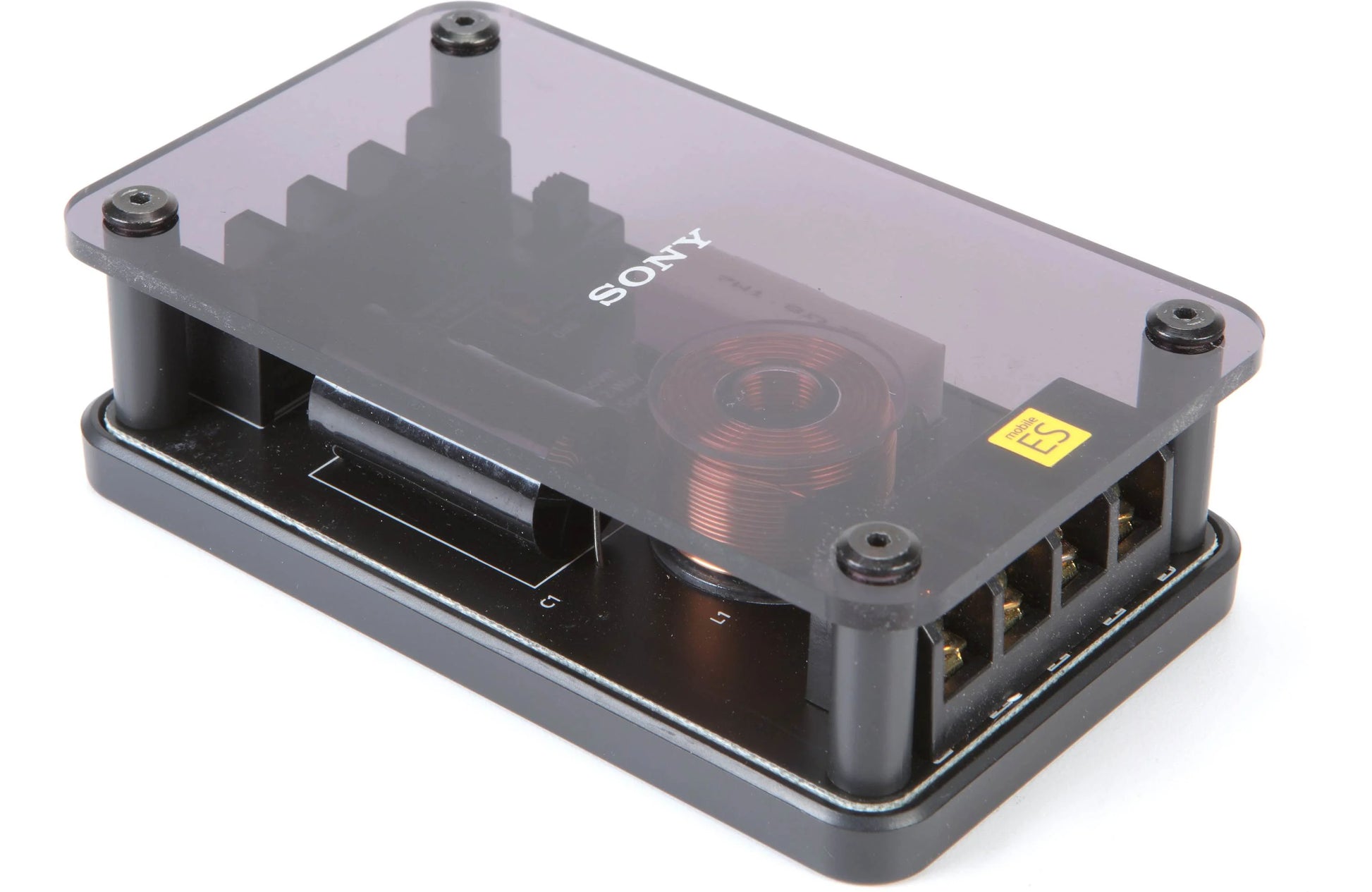

Passive crossover network boxes included
Installation Use Cases
Front-stage upgrades in vehicles that use 6x9-inch speaker locations and separate tweeter mounting positions
Component speaker installations using aftermarket amplification or OEM-integrated signal chains
Suitable for daily-driver and sound-quality-focused vehicle audio systems
Vehicle-specific speaker adapters, mounting brackets, and wiring harnesses may be required depending on application
Technical Specifications
Brand: Sony
Series: Mobile ES

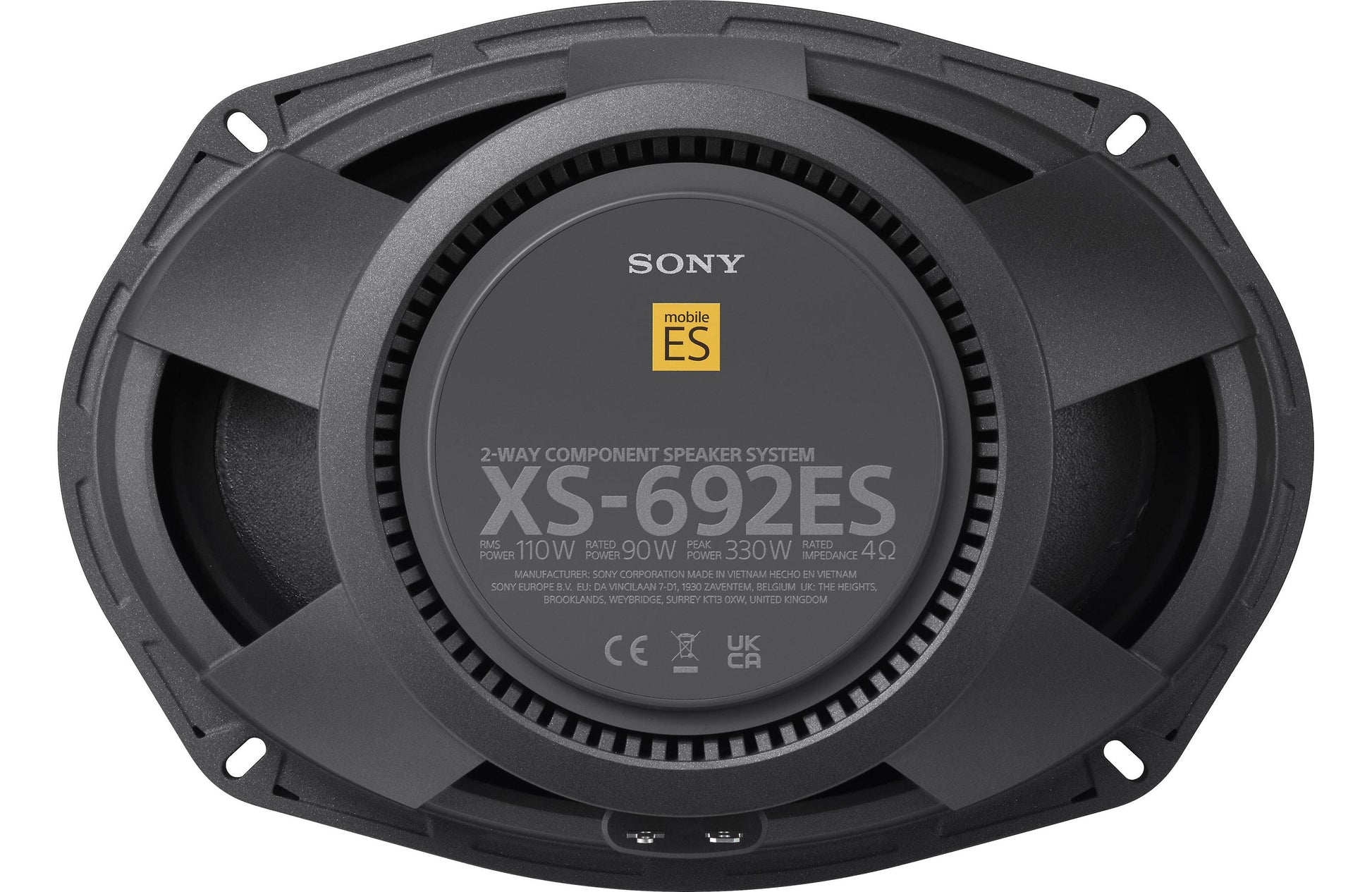

Model: XS-692ES
Component Type: 2-Way Component Speakers
Size: 6 x 9" (16 x 24 cm)
Impedance: 4 Ω
Effective Frequency Range: 35 Hz - 40,000 Hz
Sensitivity: 90 dB ±2 dB SPL (1 W, 1 m)
Power Handling (RMS): 110 W
Power Handling (Peak): 330 W
Rated Power: 90 W
Tweeter Size: 1" (2.5 cm)
Tweeter Type: Soft Dome
Weight: 3.09 lb / 1,400 g
Identifiers & Packaging
Manufacturer Part Number (MPN): XS-692ES
UPC: 027242922587

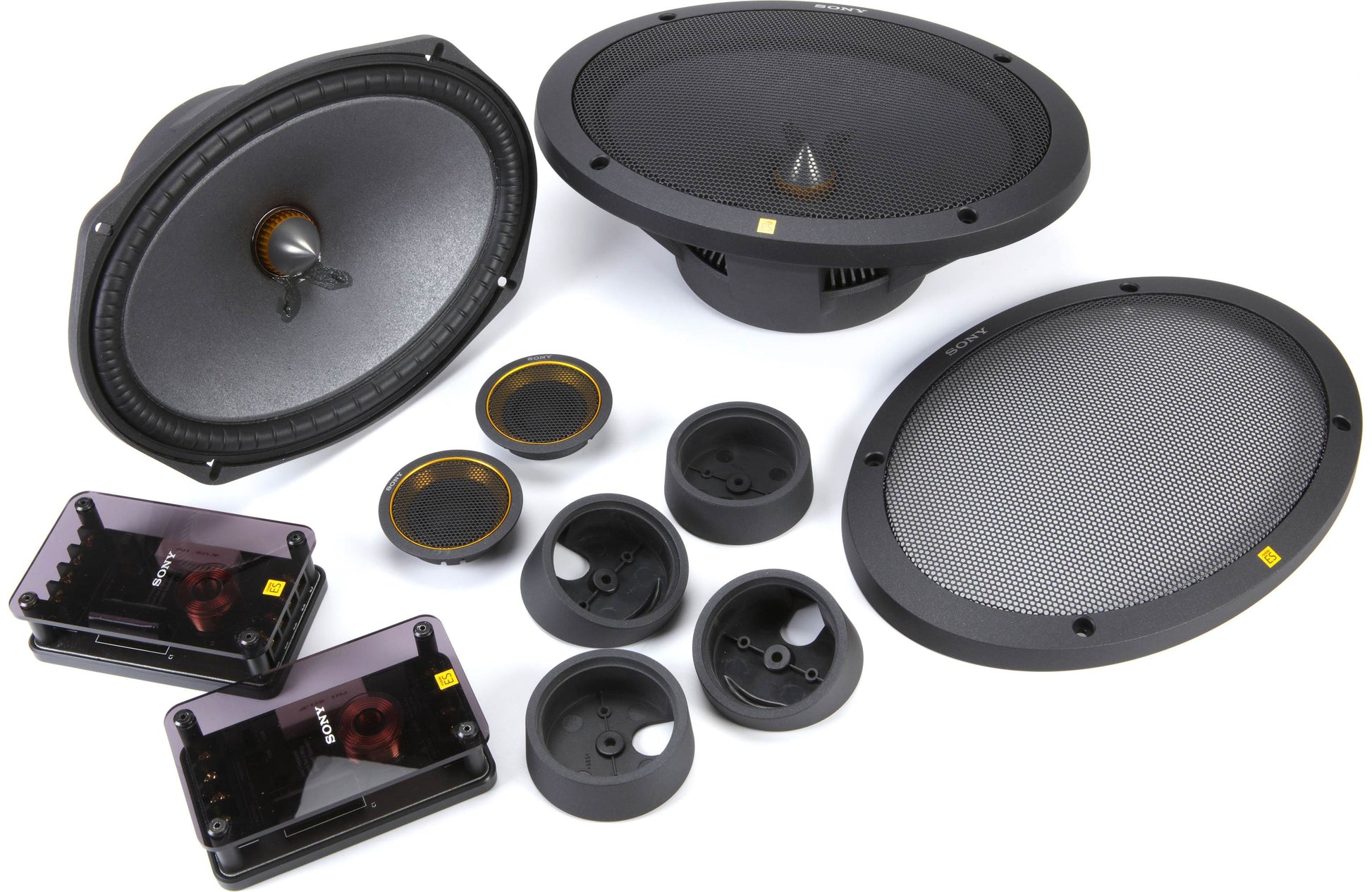

Sold As: Pair (2 woofers, 2 tweeters, 2 crossover networks)
Included Components: Two woofers, two tweeters, two passive crossover network boxes, and documentation
Compatibility / Installation Notes
Confirm speaker size, mounting depth, factory opening shape, impedance, and required adapter brackets or speaker harnesses before ordering.
Vehicle-specific speaker adapters, harnesses, mounting rings, wiring, and installation materials are sold separately unless specifically included.
Use the MCOR Fit Guide or the chat button on this page for help matching these Sony speakers to your vehicle.
