Sony XS-690GS 6x9" 2-Way Coaxial Car Speakers – GS Series, Silk Dome Tweeters, 420W Peak, 60W RMS
Sony XS-690GS 6x9" 2-Way Coaxial Car Speakers – GS Series, Silk Dome Tweeters, 420W Peak, 60W RMS
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

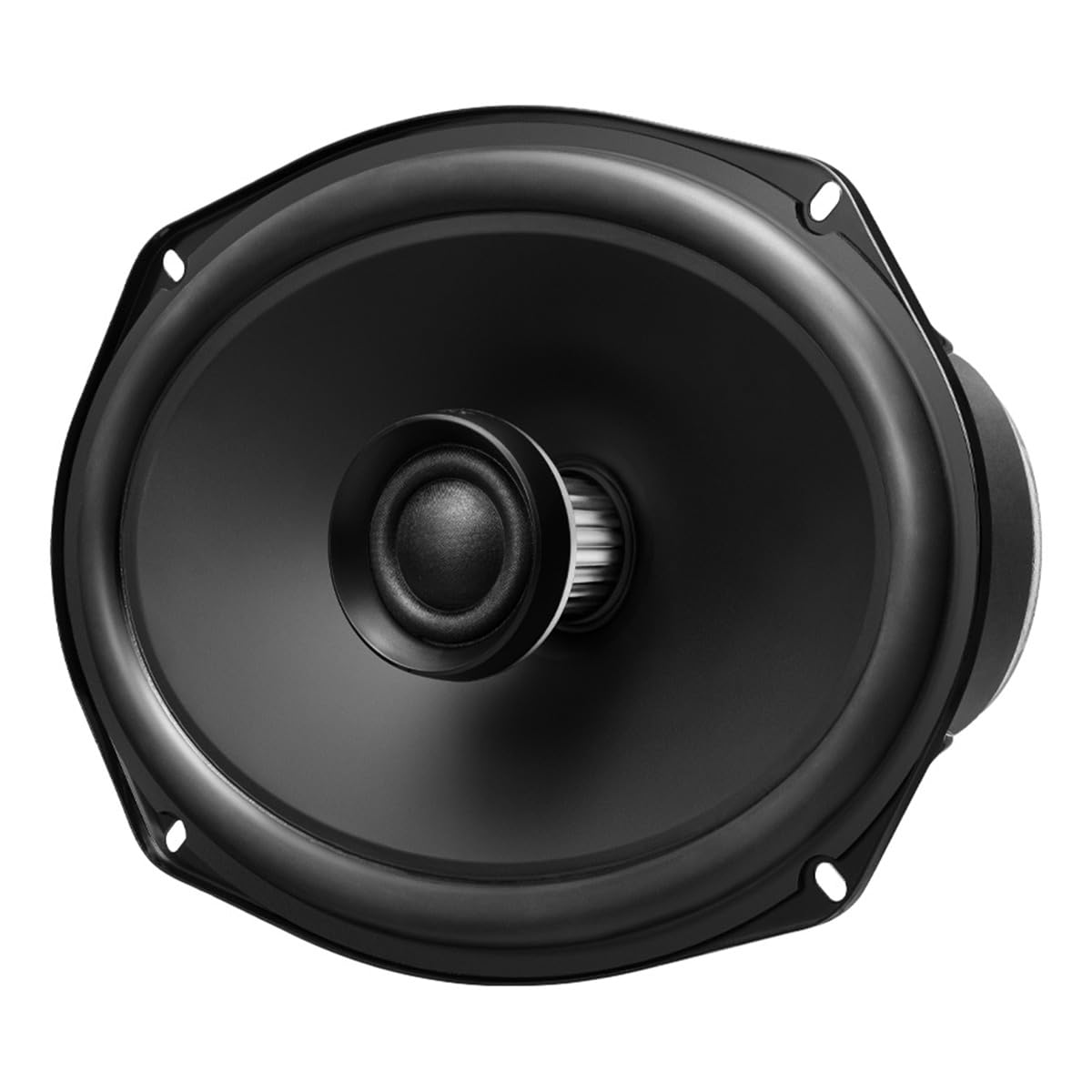

Sony XS-690GS – 6"x9" 2-Way Coaxial Car Speakers (GS Series)
The Sony XS-690GS is the top-tier 6x9" coaxial in Sony’s GS Series—engineered for drivers who want stronger midbass, cleaner highs, and a true upgrade from weak factory speakers. These speakers use a composite polypropylene woofer for tight, punchy midbass and a high-quality silk soft-dome tweeter for smooth, natural highs without harshness.
With 420W peak power and 60W RMS power handling, the XS-690GS thrives on aftermarket amplification but still performs well on upgraded head-unit power. A wide, accurate frequency response and high sensitivity deliver clearer vocals, stronger midbass, and improved overall sound staging inside any vehicle cabin.
Sony includes engineering features typically found in more expensive SQ-focused speakers: a progressive height-rate spider for better cone control, a Dynamic Air Diffuser for improved voice coil cooling, and precisely tuned motor components for clean output even at high volume. A shallow basket design allows easier drop-in installation behind many factory grilles.
Key Features – Sony XS-690GS
- 6"x9" 2-way coaxial speakers – big midbass upgrade for rear decks and doors
- Composite polypropylene woofer cone – tight, controlled bass with low distortion
- Silk soft-dome tweeter (2.5 cm) – smooth highs, no harshness
- Progressive height-rate spider – optimized for higher power handling
- Dynamic Air Diffuser – improved airflow and voice coil cooling
- GS Series acoustic engineering – tuned for realistic, natural sound
- Shallow mounting depth – easier OEM replacement fitment
Technical Specifications – Sony XS-690GS
| Speaker Size | 6"x9" (16 x 24 cm) 2-way coaxial |
| Peak Power | 420 W per pair |
| RMS Power (CTA) | 60 W per speaker |
| Rated Power | 55 W |
| Frequency Response | Approximately 30 Hz – 24,000 Hz |
| Sensitivity | Approx. 90 dB (1 W / 1 m) |
| Impedance | 4 Ω |
| Woofer Cone | Composite polypropylene |
| Woofer Surround | Foam rubber |
| Tweeter Type | Silk soft dome |
| Tweeter Diameter | 2.5 cm (1") |
What’s in the Box
- (2) Sony XS-690GS 6x9" 2-way coaxial speakers
- Mounting hardware and connectors
- Documentation and warranty materials
Ideal For
- Rear deck or rear door factory speaker replacement
- OEM systems needing more midbass and clarity
- Aftermarket systems powered by a 4-channel or 5-channel amplifier
Compatibility / Installation Notes
- Confirm speaker size, mounting depth, factory opening shape, impedance, and required adapter brackets or speaker harnesses before ordering.
- Vehicle-specific speaker adapters, harnesses, mounting rings, wiring, and installation materials are sold separately unless specifically included.
- Use the MCOR Fit Guide or the chat button on this page for help matching these Sony speakers to your vehicle.
