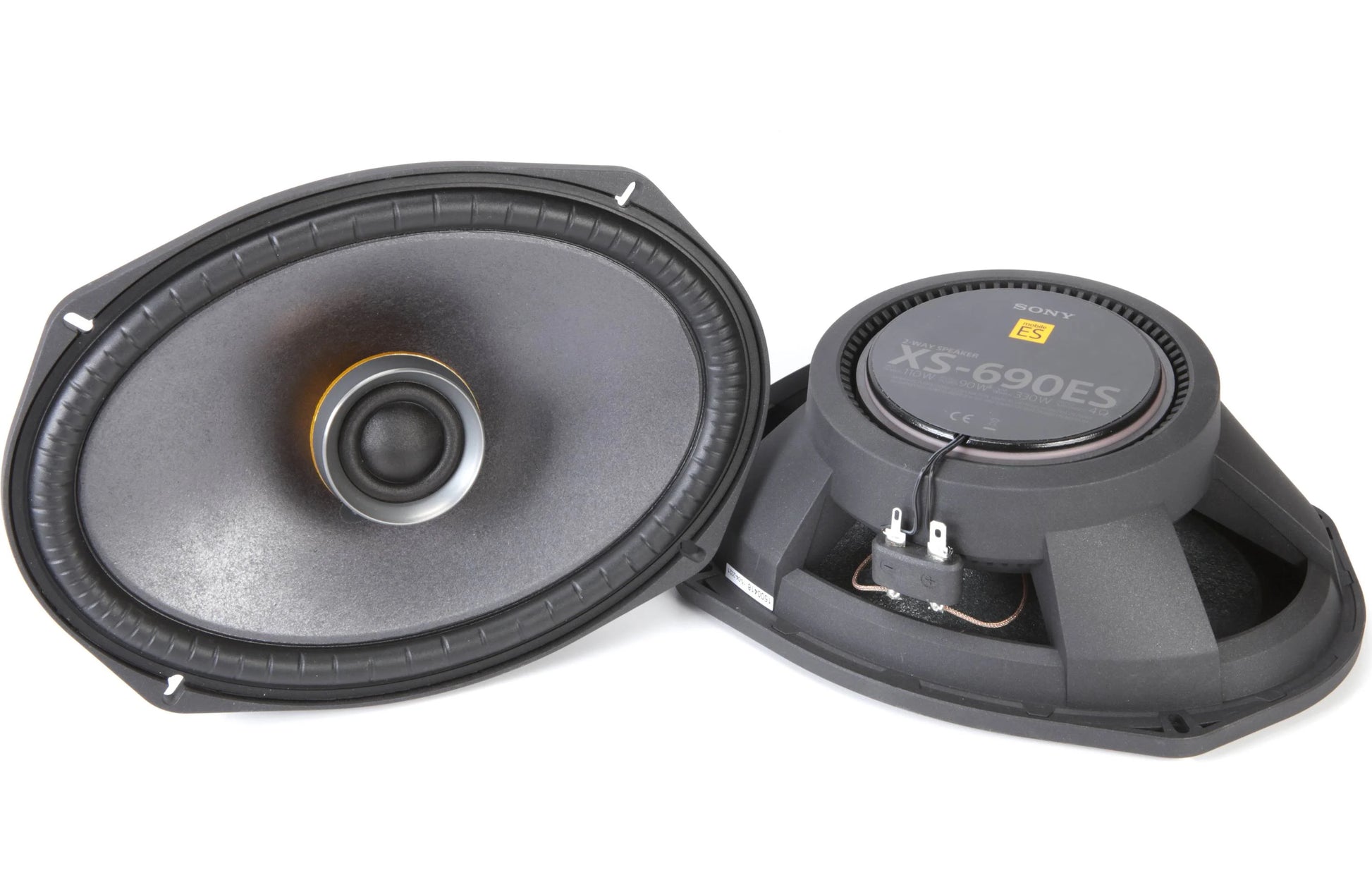

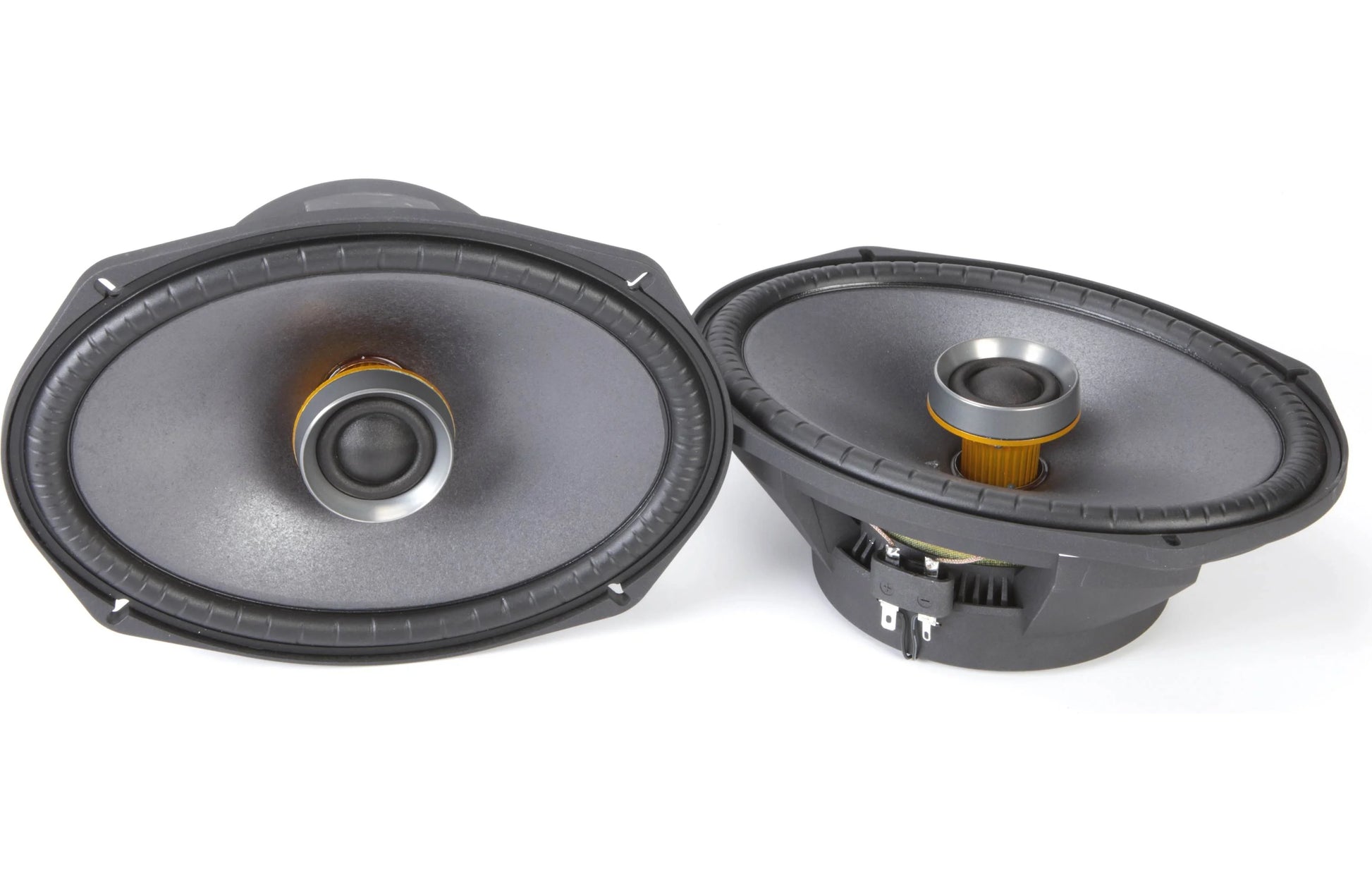

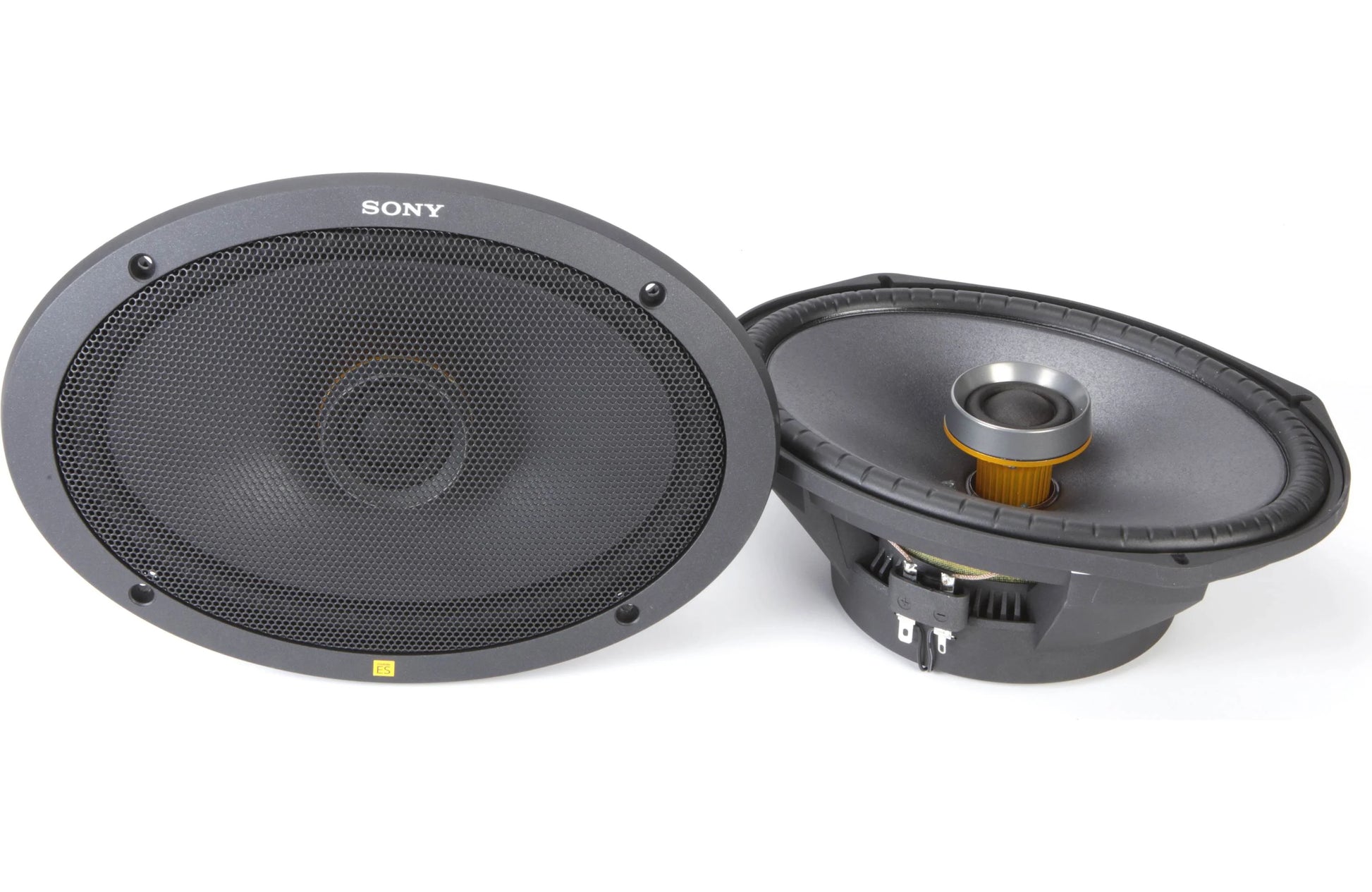

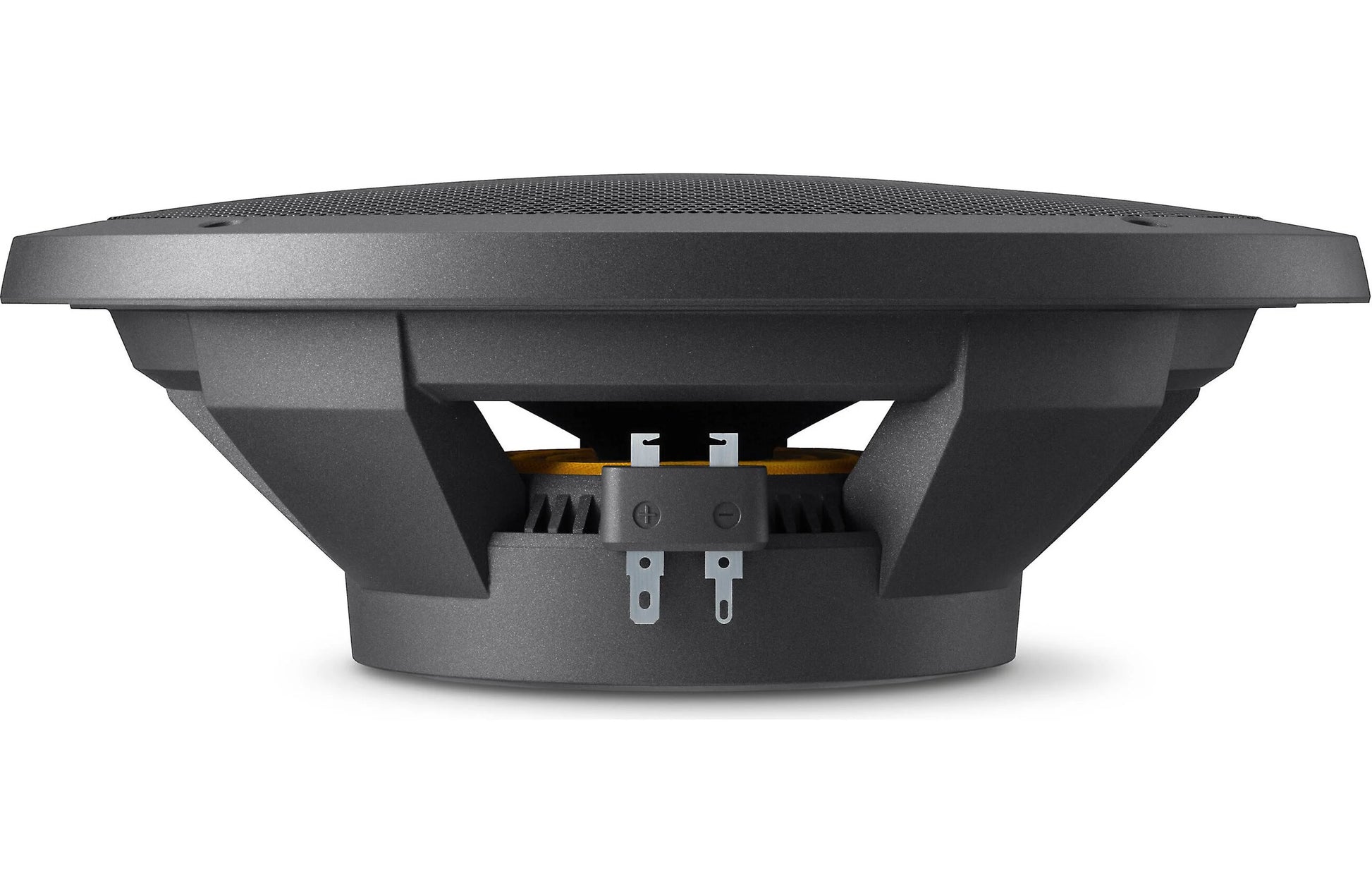

Sony Mobile ES XS-690ES 6x9" 110W RMS 4Ω 2-Way Coaxial Speakers (Pair)

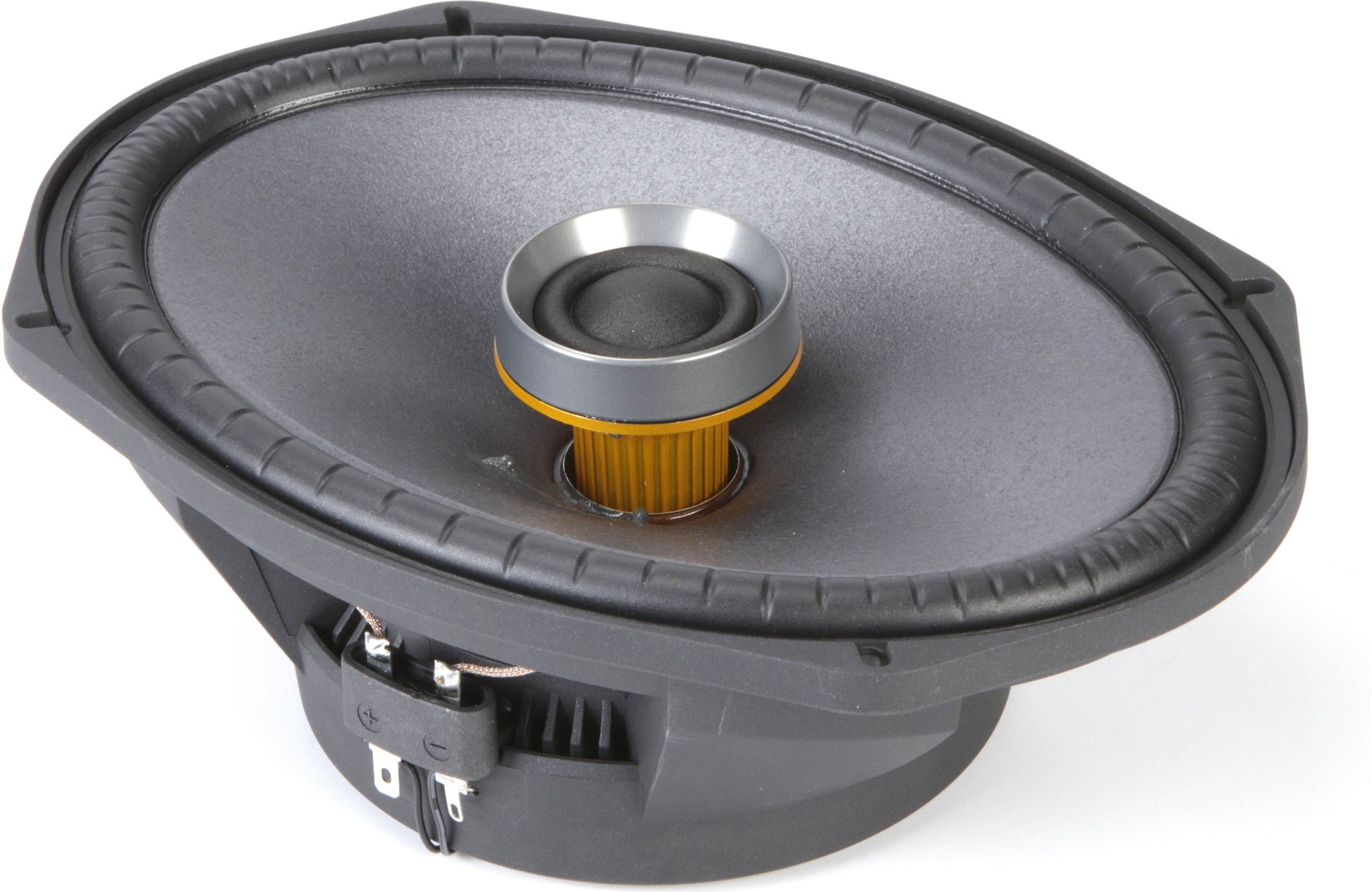

Sony XS-690ES is a 6x9-inch 2-way coaxial speaker set designed for full-range vehicle speaker replacement and upgrade applications. It uses a Lightweight Rigid Cellular aramid fiber matrix woofer and a synthetic fiber soft-dome tweeter for extended bandwidth, stronger midbass output, and clean full-range reproduction.

Key Performance Features

• 6x9-inch 2-way coaxial speaker design
• 110 watts RMS power handling
• 330 watts peak power handling
• 35 Hz - 40,000 Hz effective frequency range
• 90 dB ±2 dB SPL sensitivity (1 W, 1 m)
• 1-inch synthetic fiber soft-dome tweeter extends high-frequency response up to 40 kHz

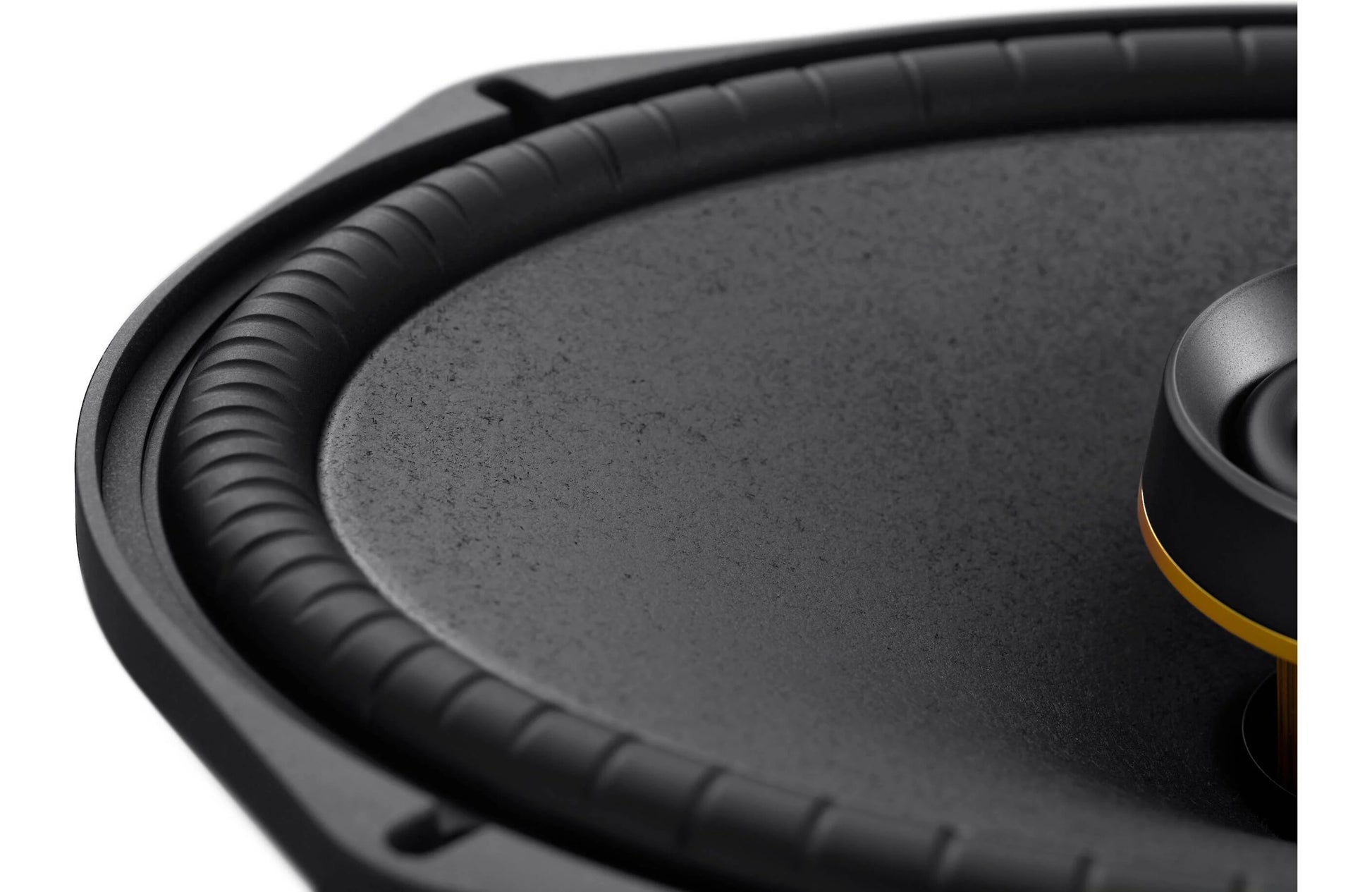

• Separated Notch rubber surround helps reduce resonance and distortion
• Lightweight Rigid Cellular woofer structure is designed for controlled cone response

System Architecture

• Type: 2-way coaxial speakers
• Application: Full-range front or rear speaker replacement
• Nominal Impedance: 4 Ω
• Tweeter Type: 1" (2.5 cm) soft dome
• System Role: Daily-driver and sound-quality-focused full-range speaker upgrade

Power Handling / Output

• Continuous (RMS): 110 W
• Rated Power: 90 W
• Peak: 330 W

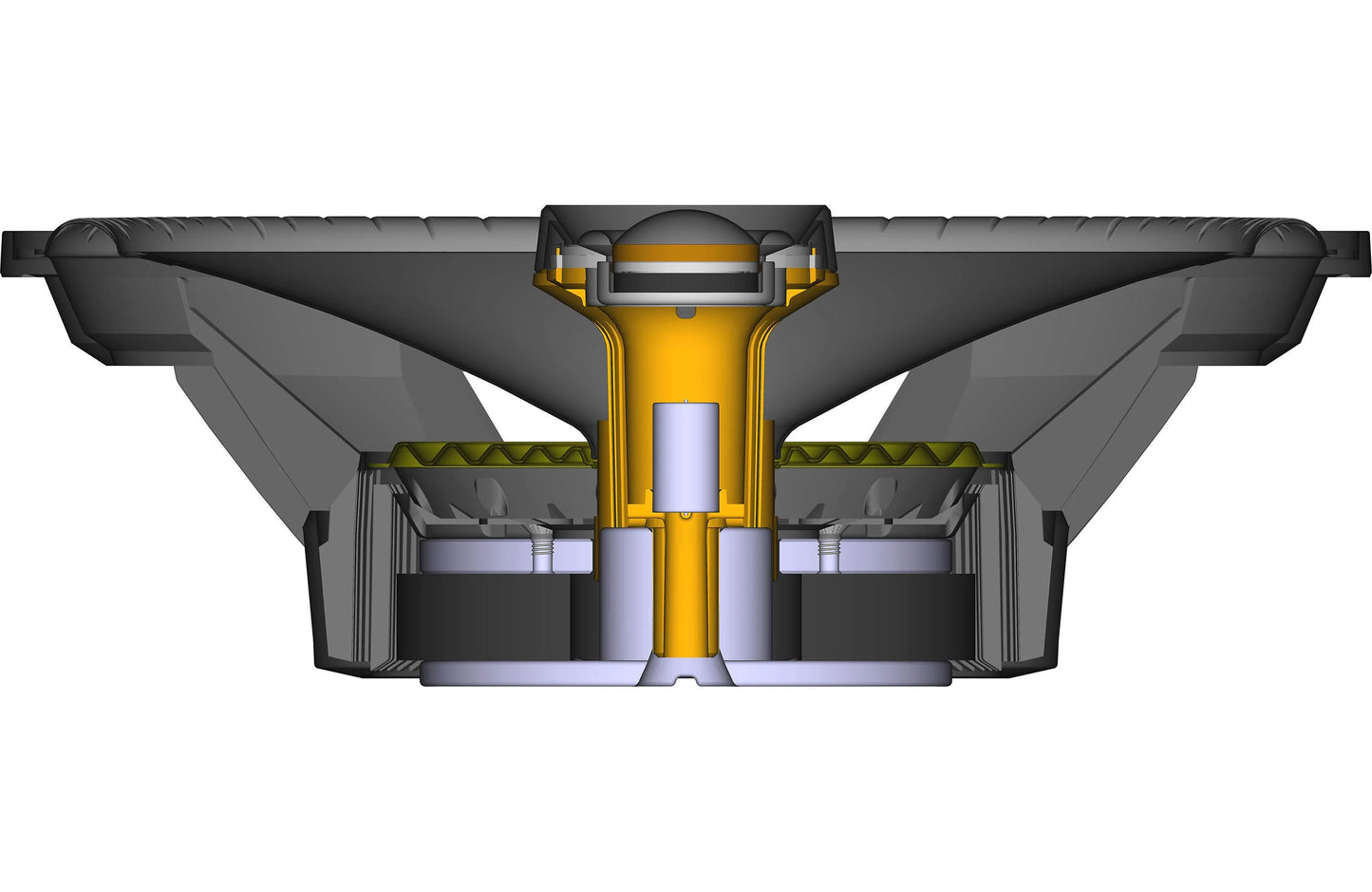

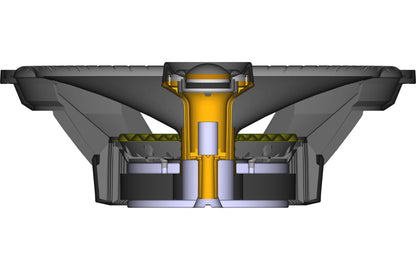

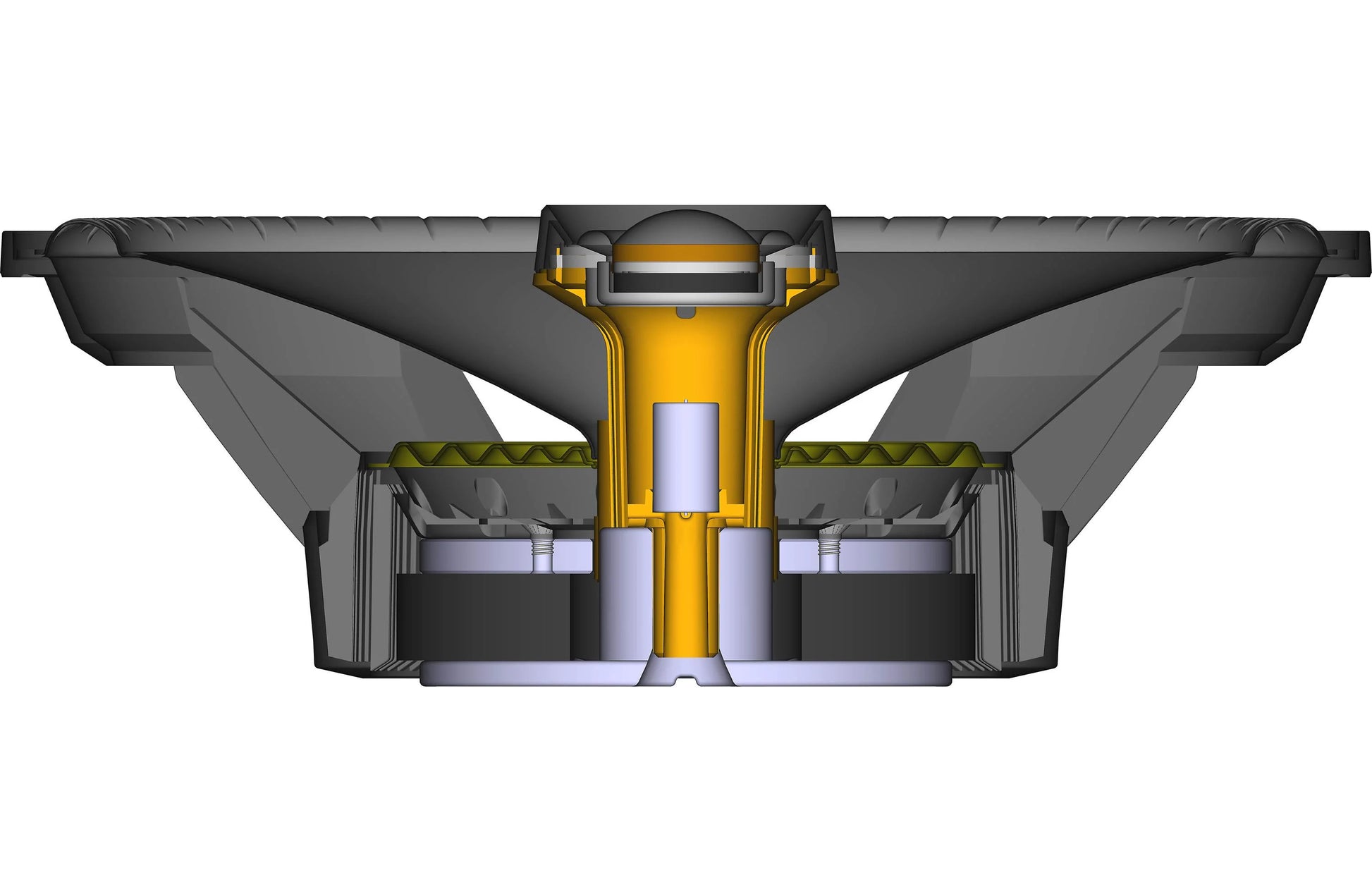

Driver / Construction

• Lightweight Rigid Cellular aramid fiber matrix woofer diaphragm
• Rubber Separated Notch surround
• Ferrite woofer magnet
• 1" (2.5 cm) synthetic fiber soft-dome tweeter
• Neodymium tweeter magnet

Installation Use Cases

• Factory speaker replacement in compatible 6x9-inch locations
• Front-stage or rear-fill speaker upgrades in aftermarket audio systems
• Suitable for daily-driver and sound-quality-oriented vehicle audio builds
• Vehicle-specific speaker adapters, brackets, or wiring harnesses may be required depending on application

Technical Specifications

• Brand: Sony
• Series: Mobile ES
• Model: XS-690ES
• Component Type: 2-Way Coaxial Speakers
• Size: 6 x 9" (16 x 24 cm)
• Impedance: 4 Ω
• Effective Frequency Range: 35 Hz - 40,000 Hz
• Sensitivity: 90 dB ±2 dB SPL (1 W, 1 m)
• Power Handling (RMS): 110 W
• Power Handling (Peak): 330 W
• Rated Power: 90 W
• Tweeter Size: 1" (2.5 cm)
• Tweeter Type: Soft Dome
• Weight: 3.20 lb

Identifiers & Packaging

• Manufacturer Part Number (MPN): XS-690ES
• UPC: 027242921054
• Sold As: Pair (2 speakers)

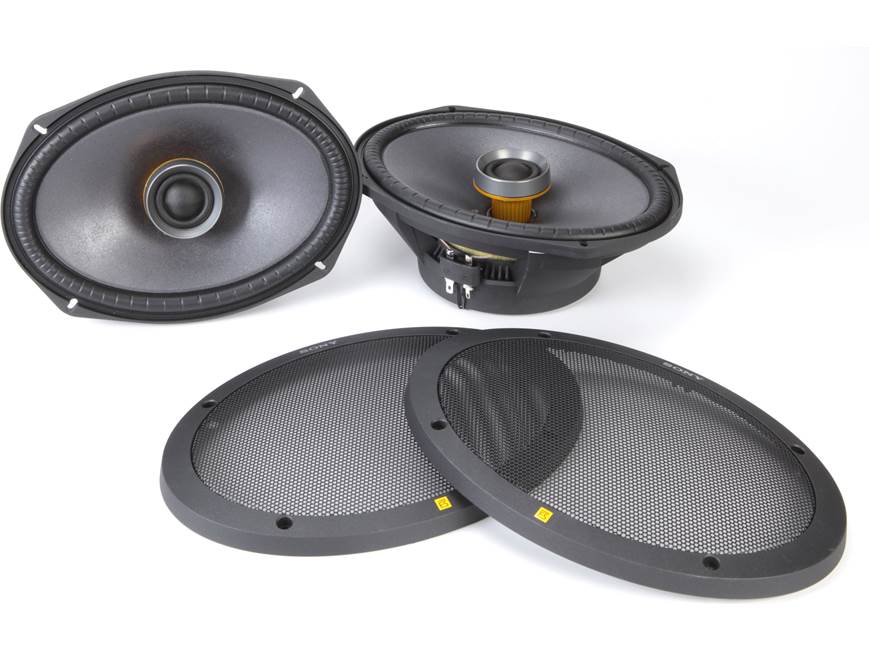

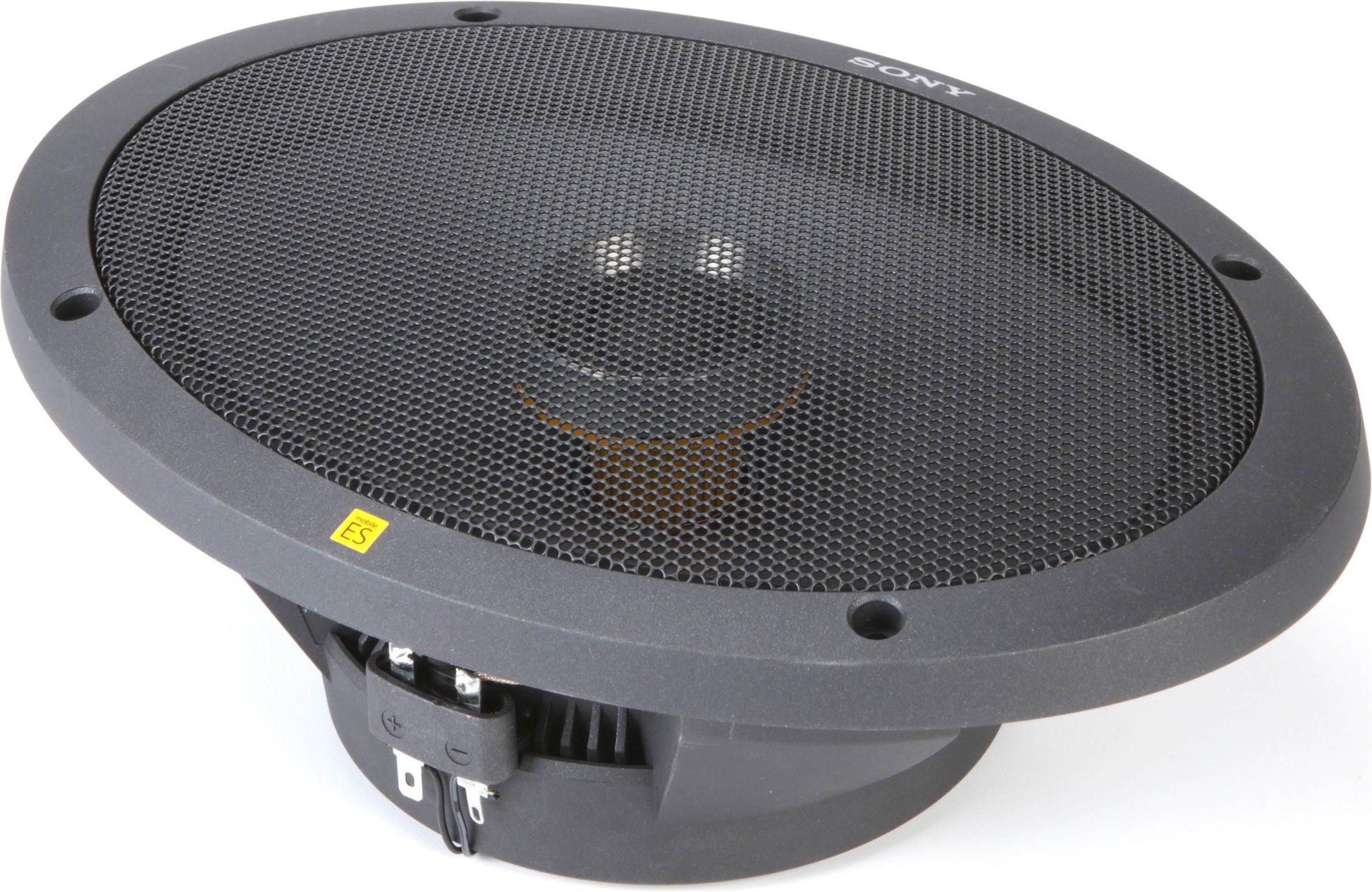

• Included Components: Two speakers, grilles, mounting hardware, and documentation

Compatibility / Installation Notes

• Confirm speaker size, mounting depth, factory opening shape, impedance, and required adapter brackets or speaker harnesses before ordering.
• Vehicle-specific speaker adapters, harnesses, mounting rings, wiring, and installation materials are sold separately unless specifically included.
• Use the MCOR Fit Guide or the chat button on this page for help matching these Sony speakers to your vehicle.
