Sony Mobile ES XS-163ES 6.5" 90W RMS 4Ω 3-Way Component Speakers (Pair)

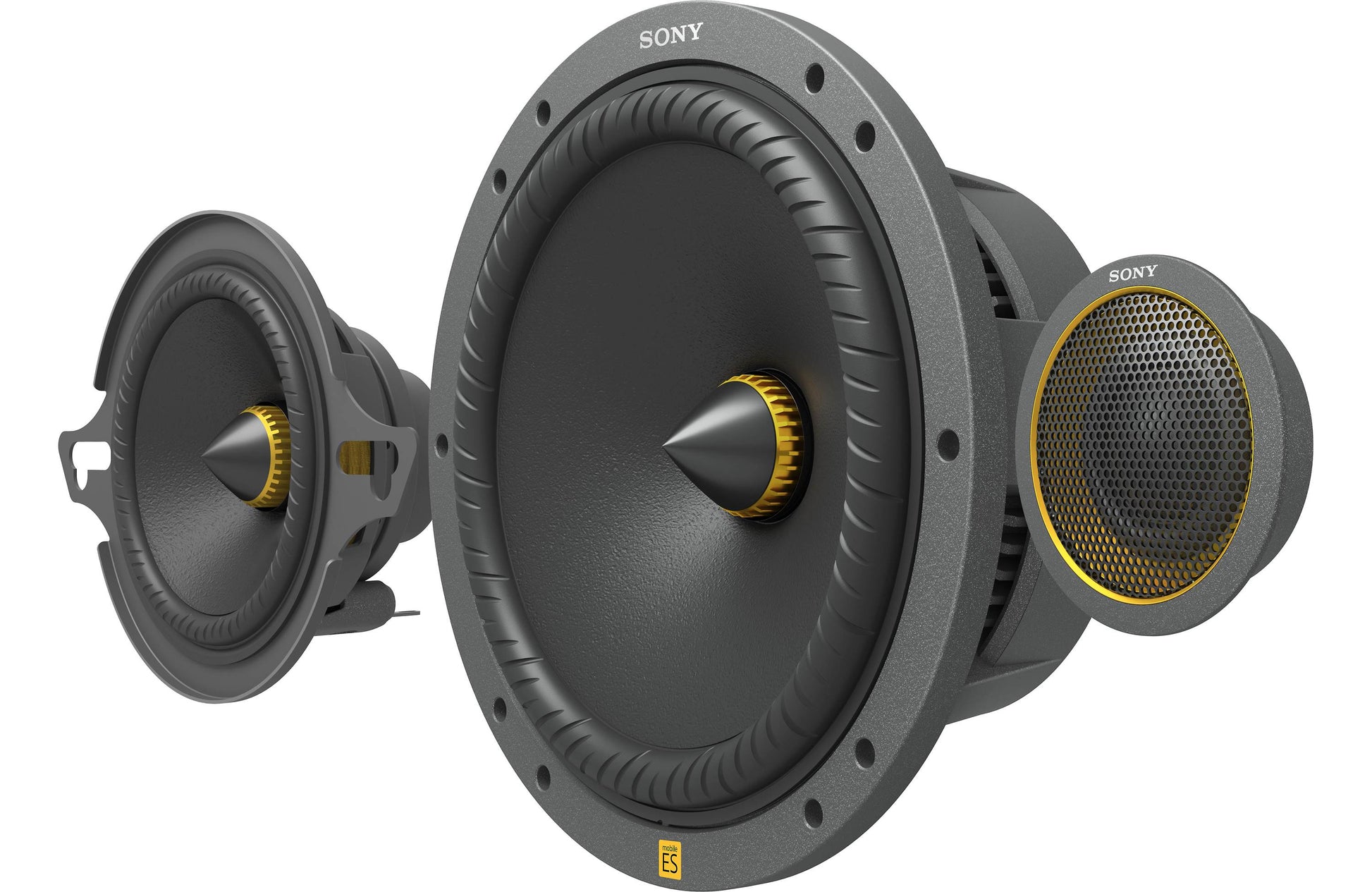

Sony XS-163ES is a 6.5-inch 3-way component speaker system designed for front-stage vehicle audio upgrades that use separate woofer, midrange, and tweeter placement. It combines a 6.5-inch woofer, 3.5-inch midrange, 1-inch soft-dome tweeter, and passive crossover networks for broad bandwidth and controlled staging.

Key Performance Features

• 6.5-inch 3-way component speaker system
• 90 watts RMS power handling
• 270 watts peak power handling
• 40 Hz - 40,000 Hz frequency response
• 89 dB ±2 dB SPL sensitivity (1 W, 1 m)

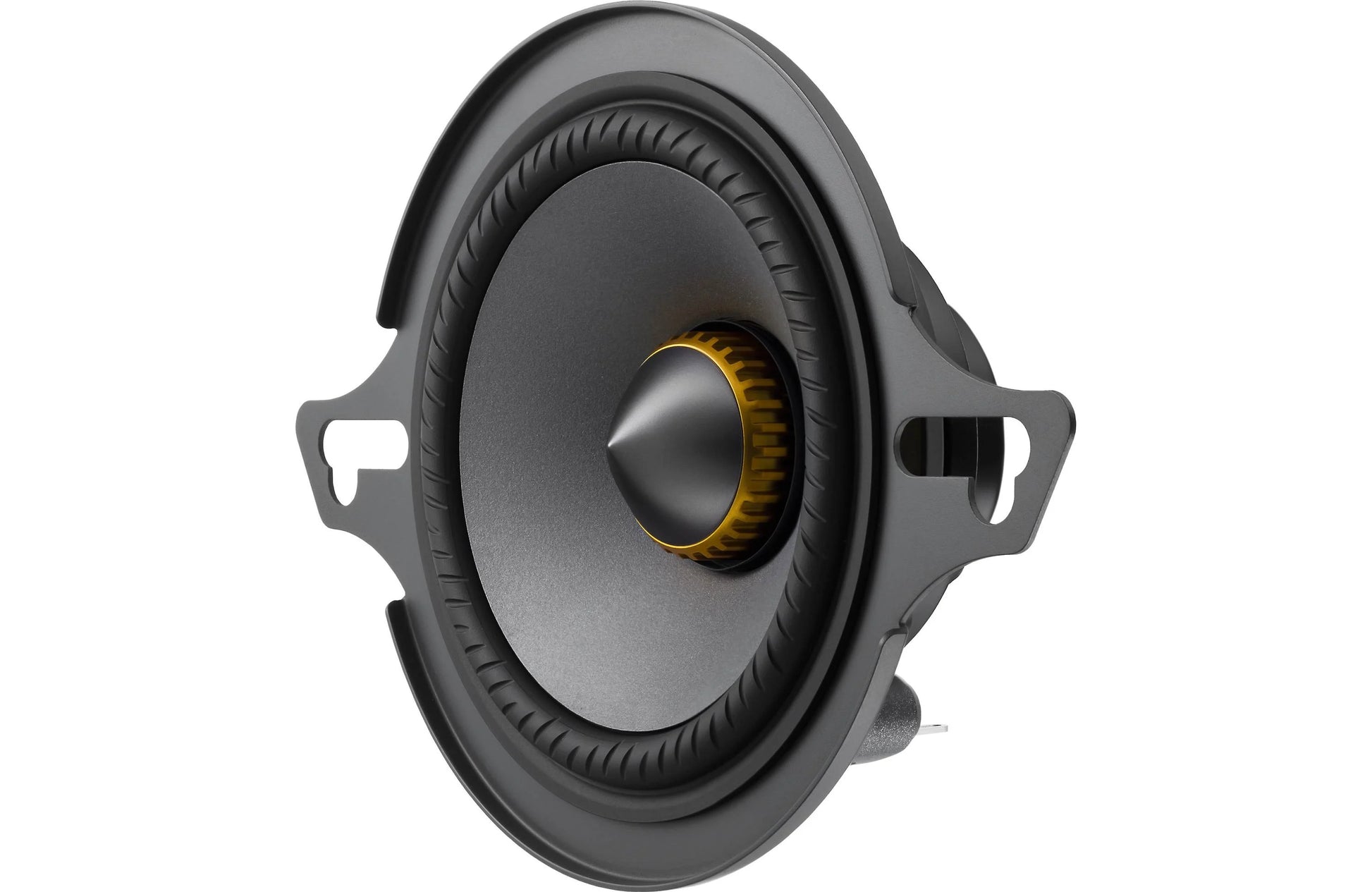

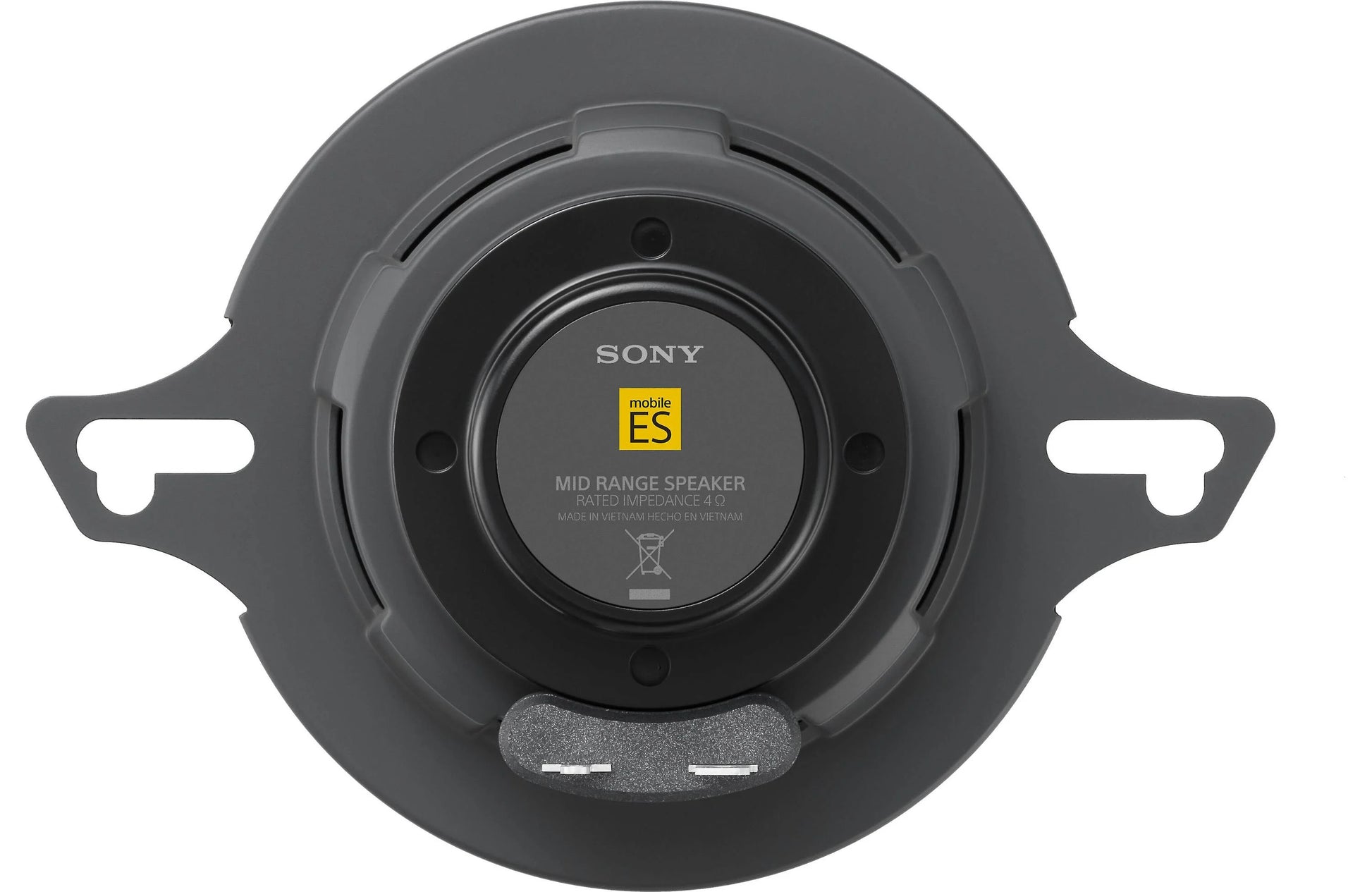

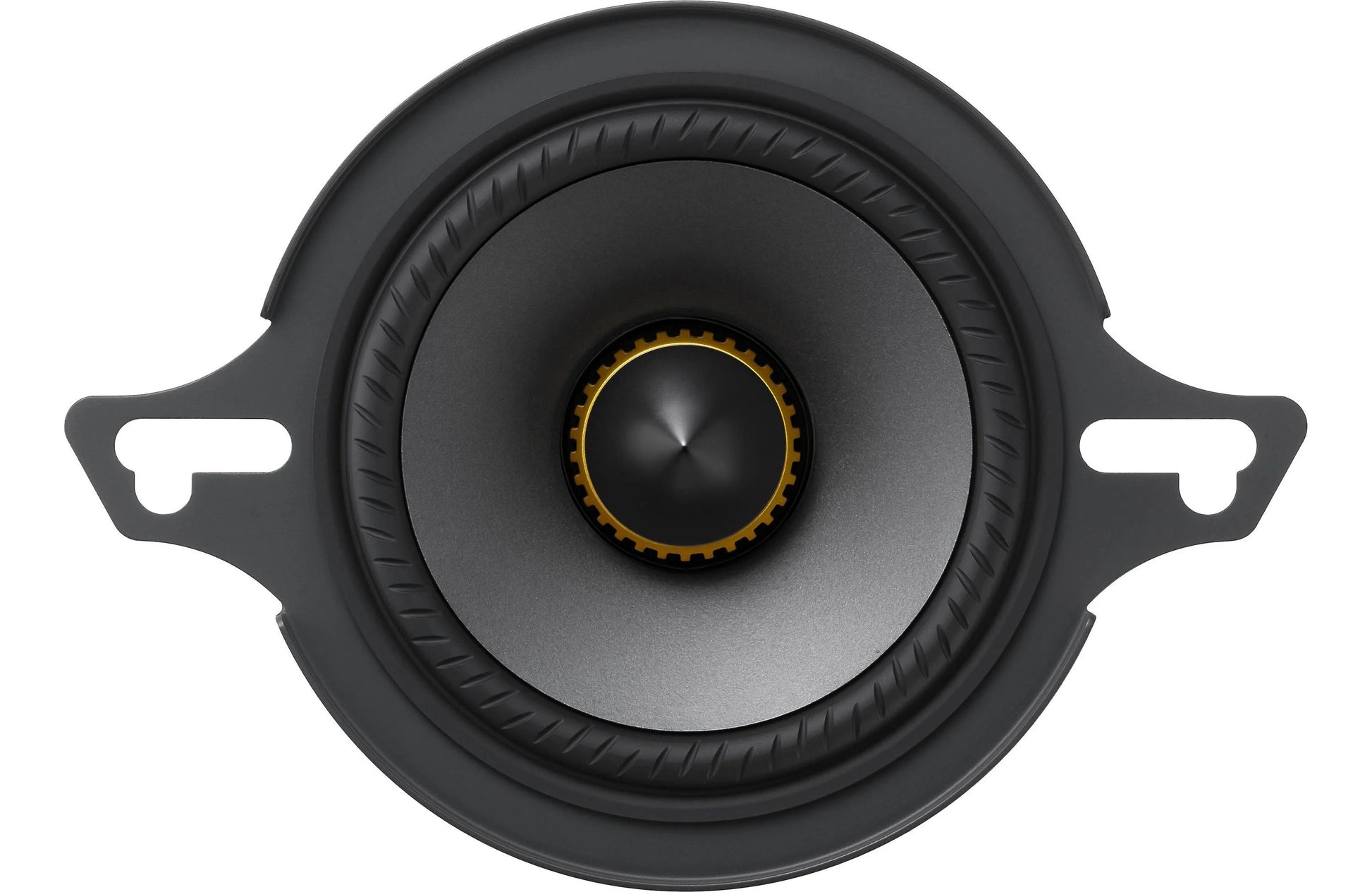

• 3.5-inch midrange driver for improved vocal and midband detail
• 1-inch soft-dome tweeter for extended high-frequency output
• Lightweight Rigid Cellular aramid fiber woofer and midrange diaphragms

System Architecture

• Type: 3-way component speaker system
• Application: Front-stage speaker upgrade
• Nominal Impedance: 4 Ω

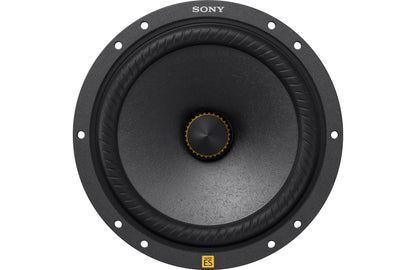

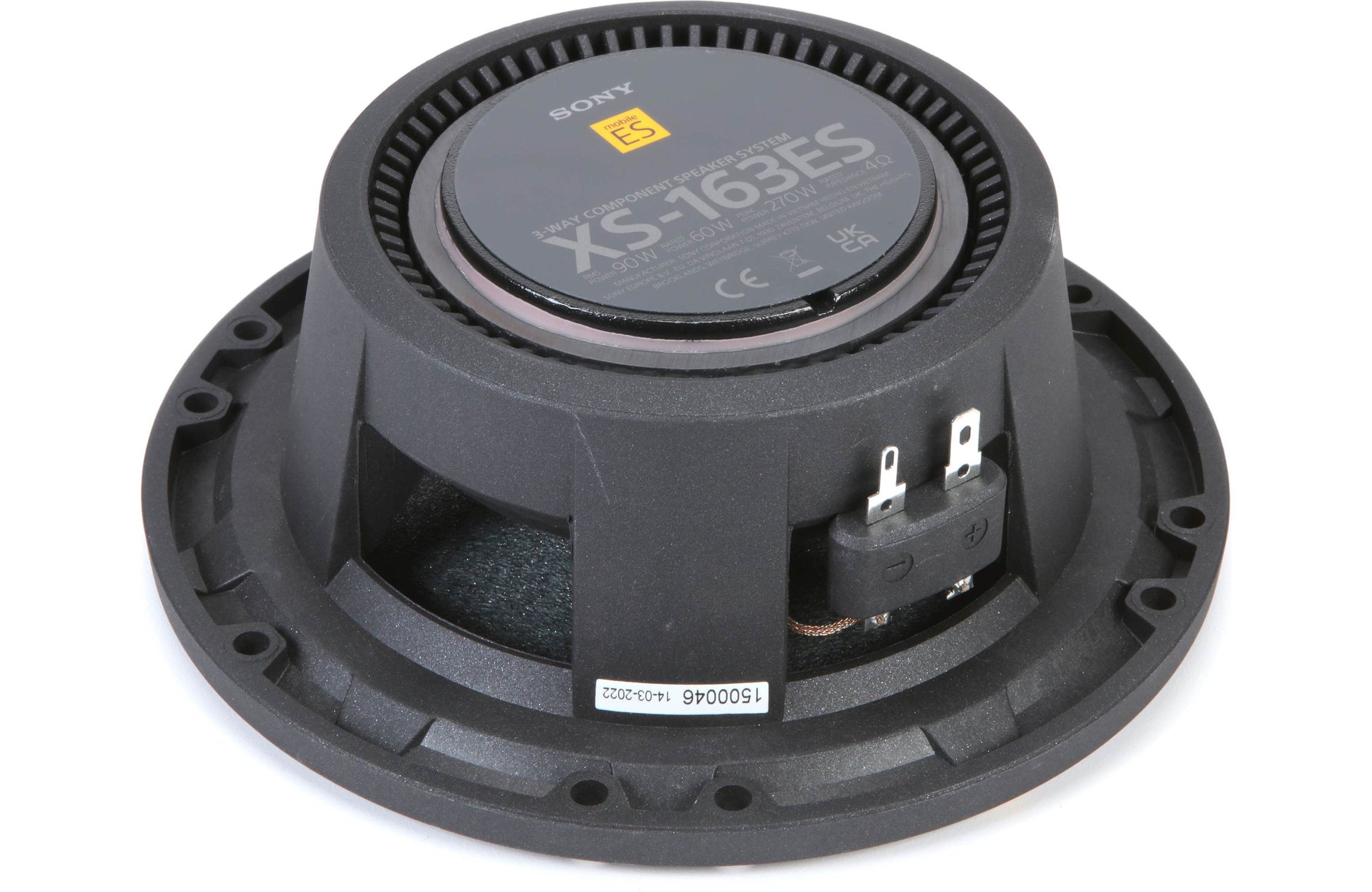

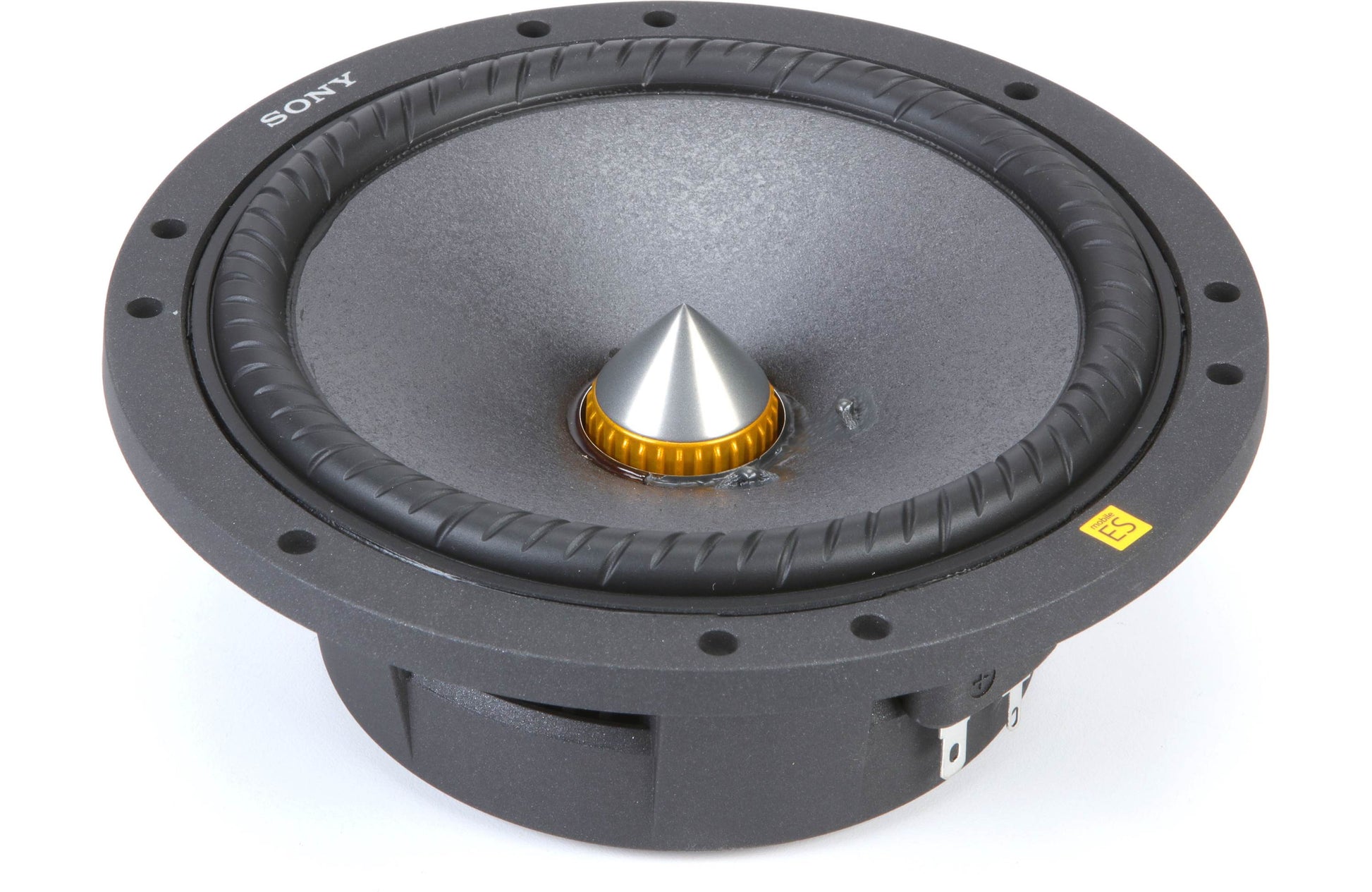

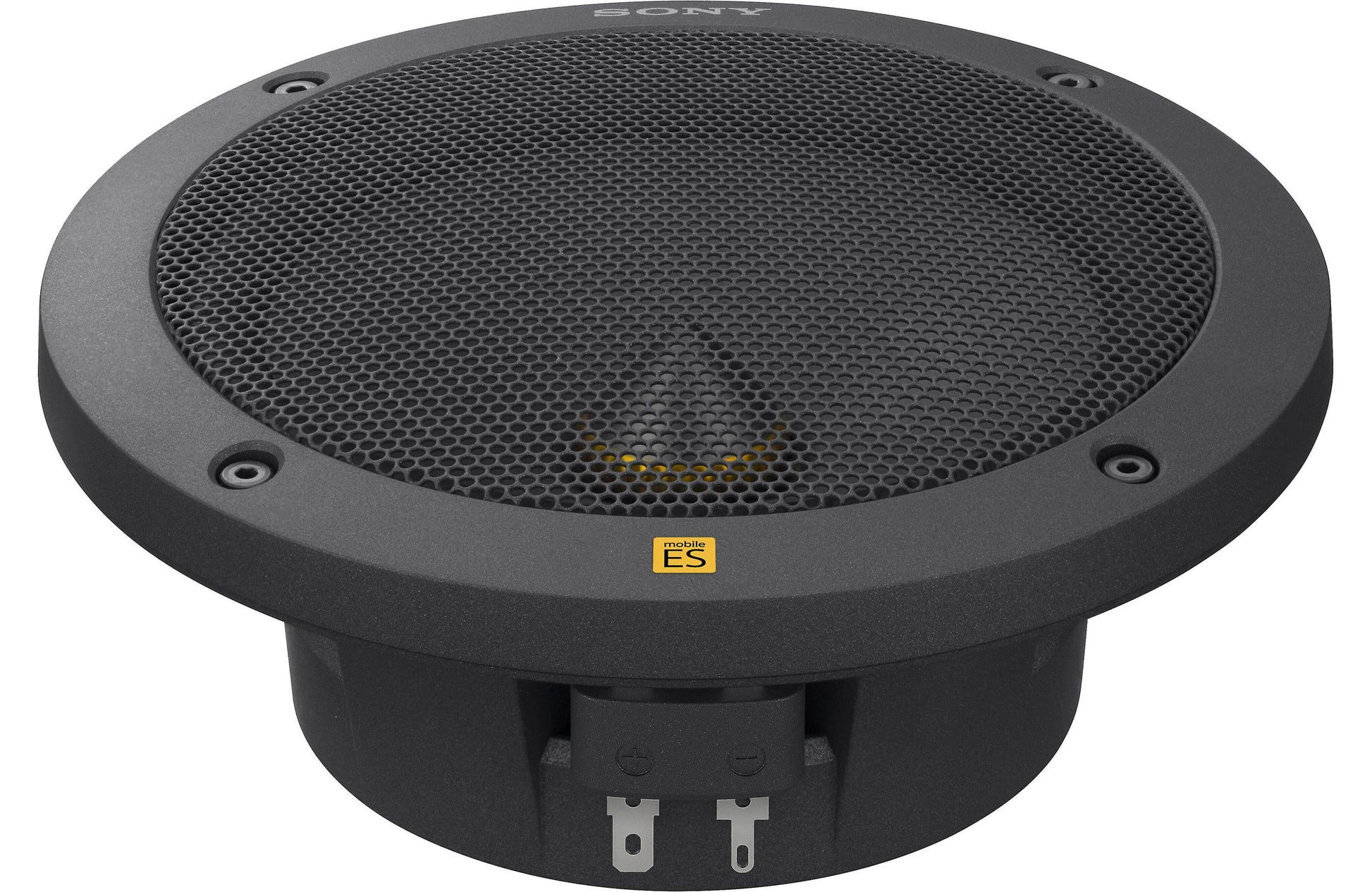

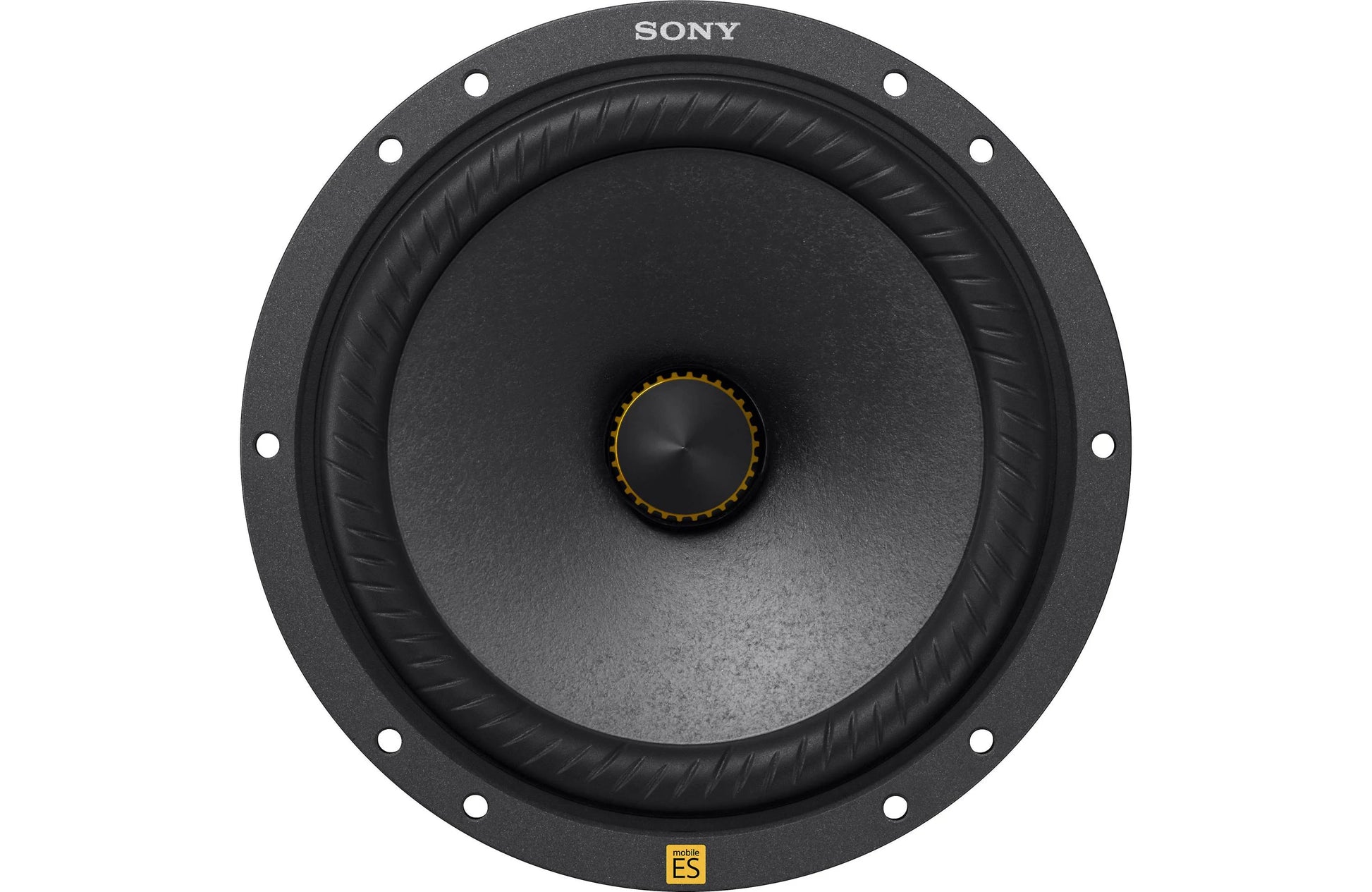

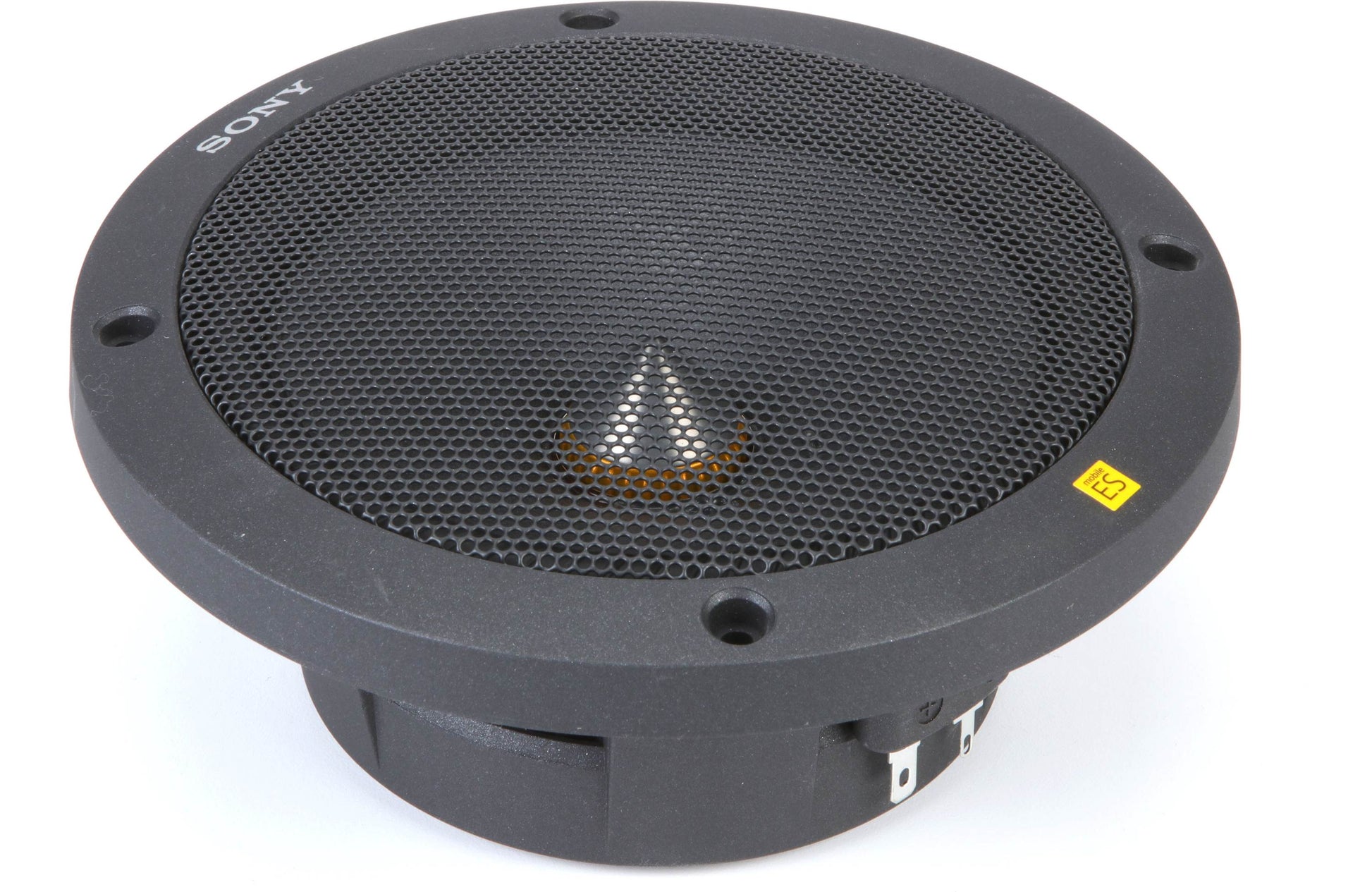

• Woofer Size: 6.5" (16 cm)

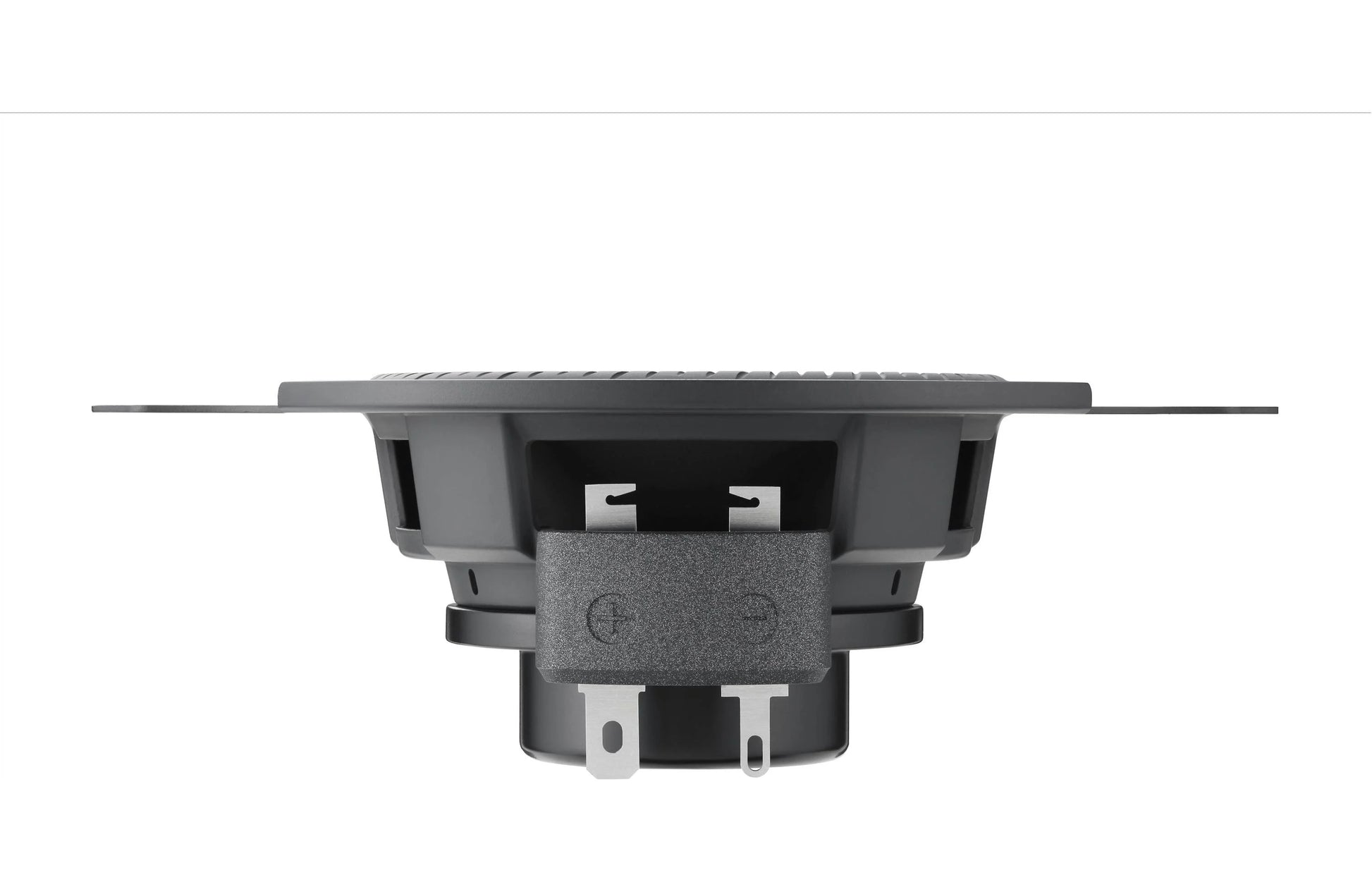

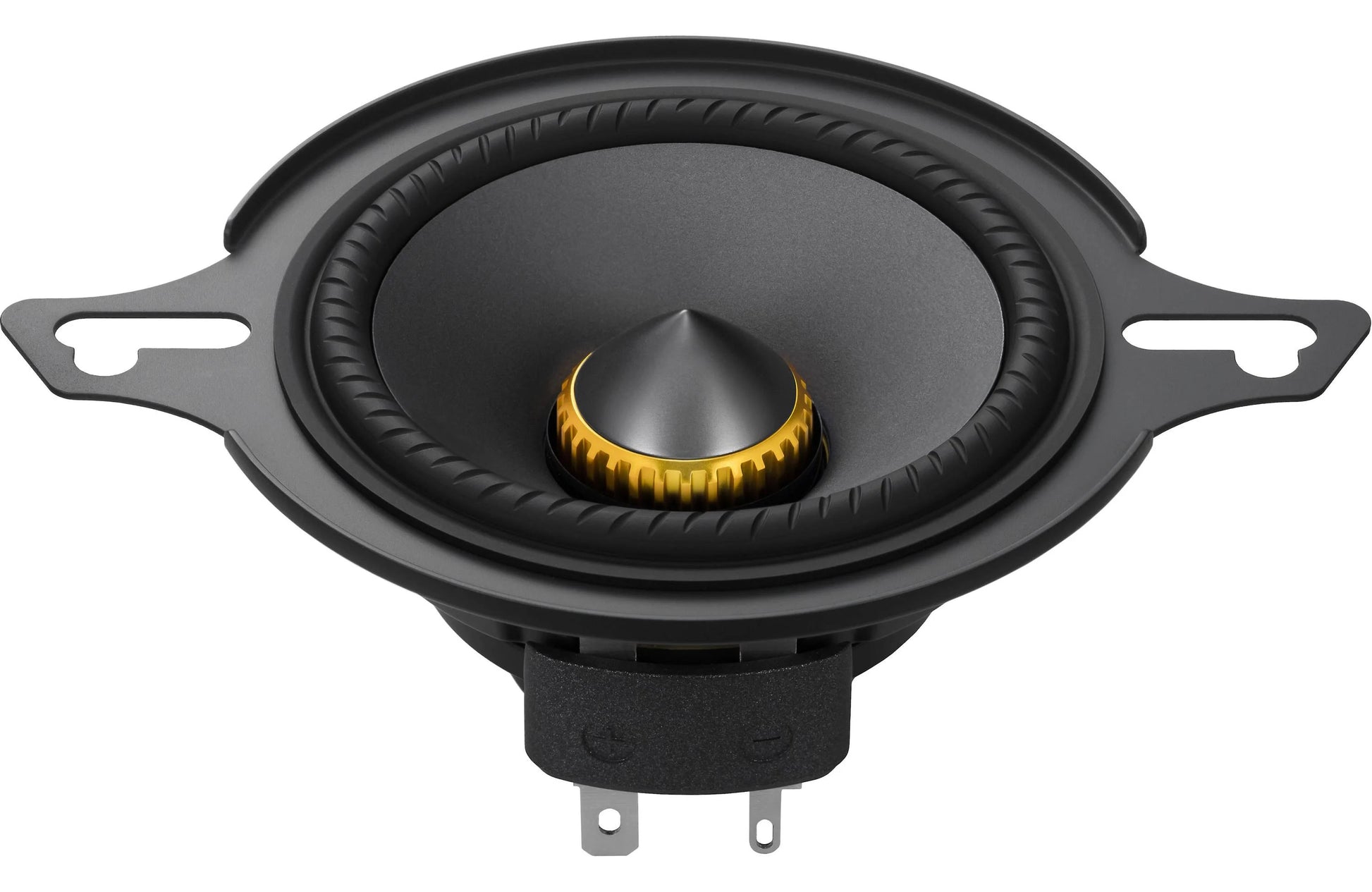

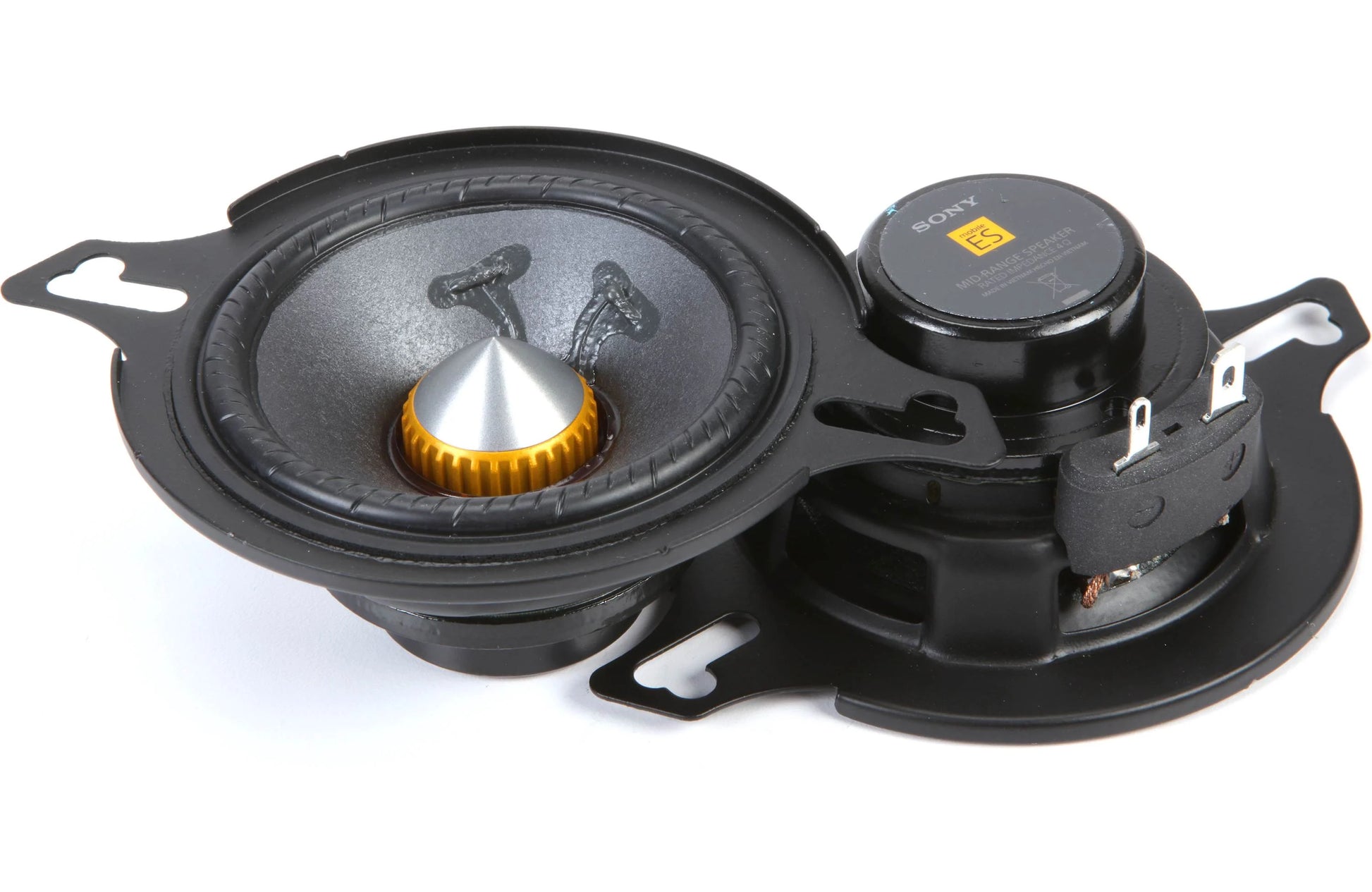

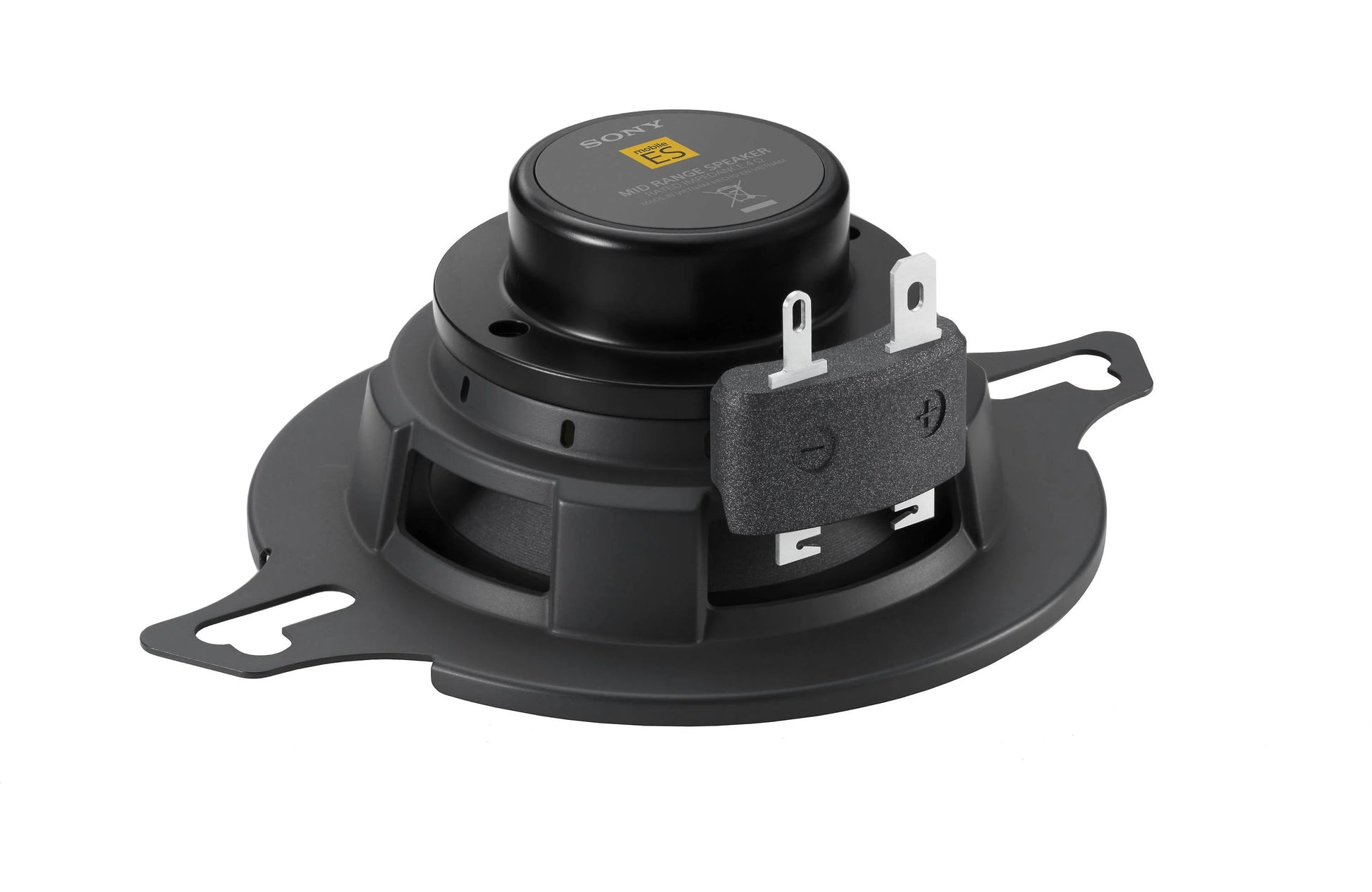

• Midrange Size: 3.5" (8 cm)

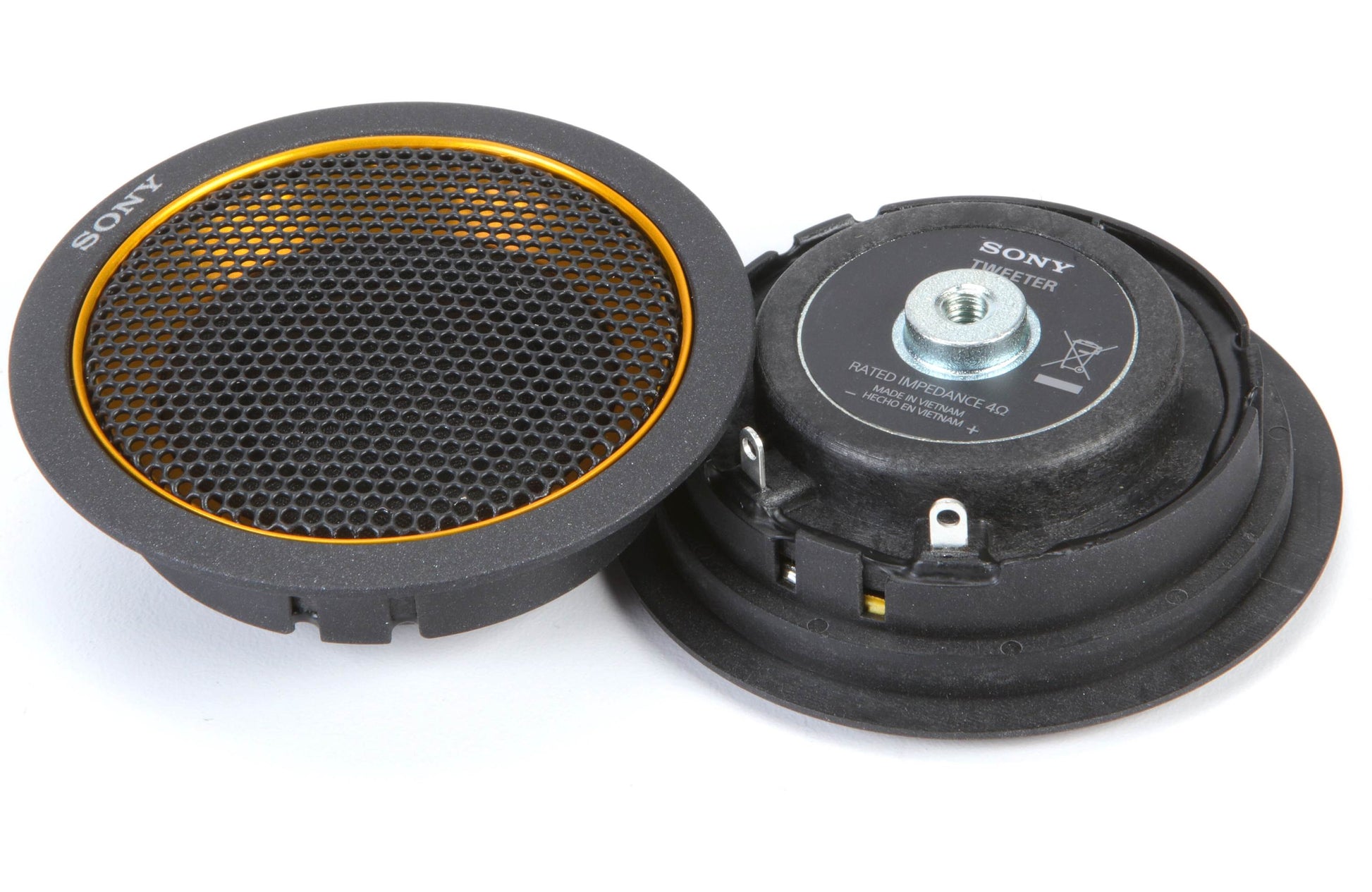

• Tweeter Type: 1" (2.5 cm) synthetic soft dome
• Crossover Type: Passive crossover networks included
• System Role: Sound-quality and daily-driver front-stage installation

Power Handling / Output

• Continuous (RMS): 90 W
• Rated Power: 60 W
• Peak: 270 W

Driver / Construction

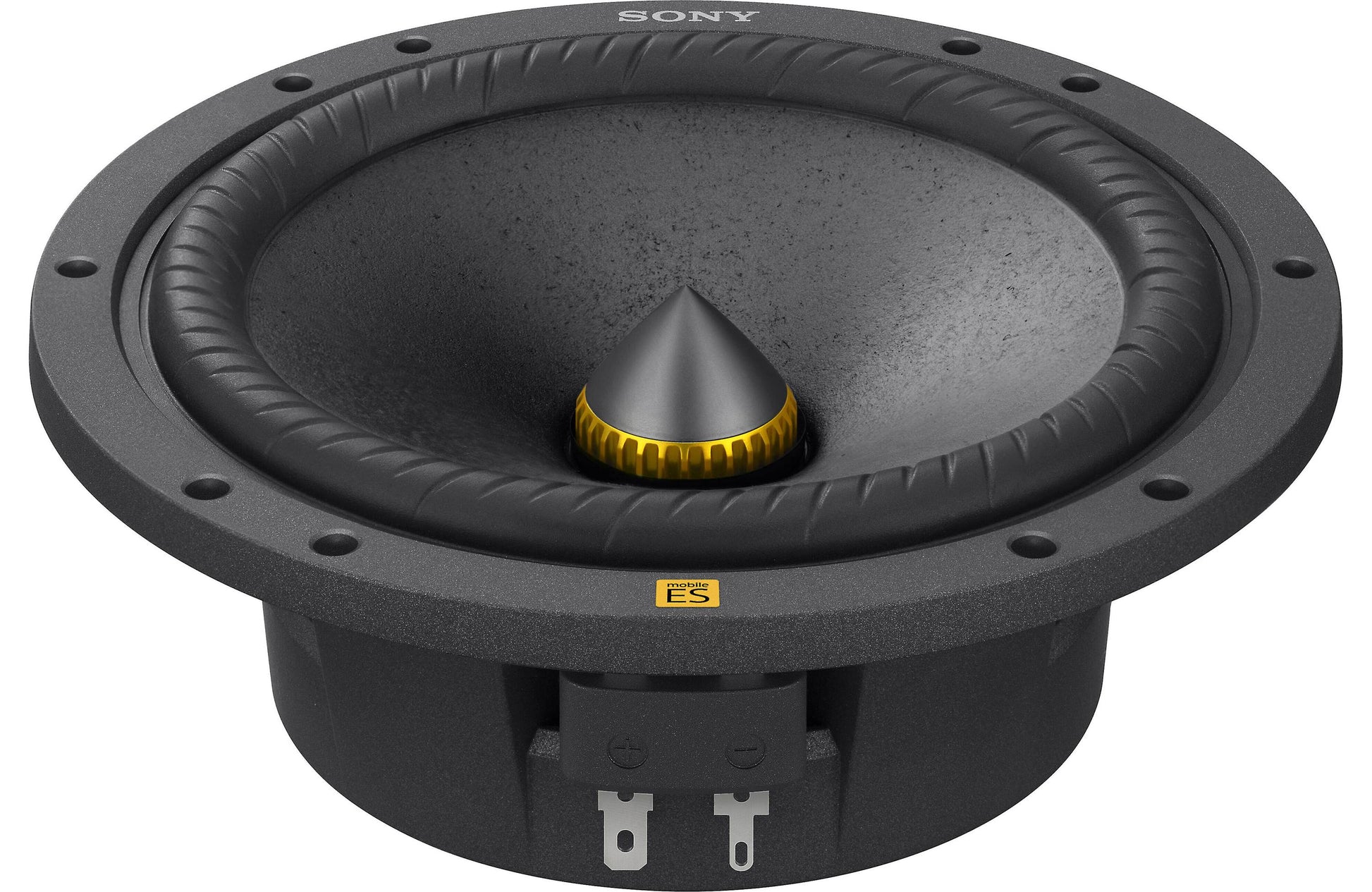

• Lightweight Rigid Cellular aramid fiber matrix woofer diaphragm
• Lightweight Rigid Cellular aramid fiber matrix midrange diaphragm
• Rubber Separated Notch surrounds
• Ferrite woofer magnet
• Neodymium tweeter magnet

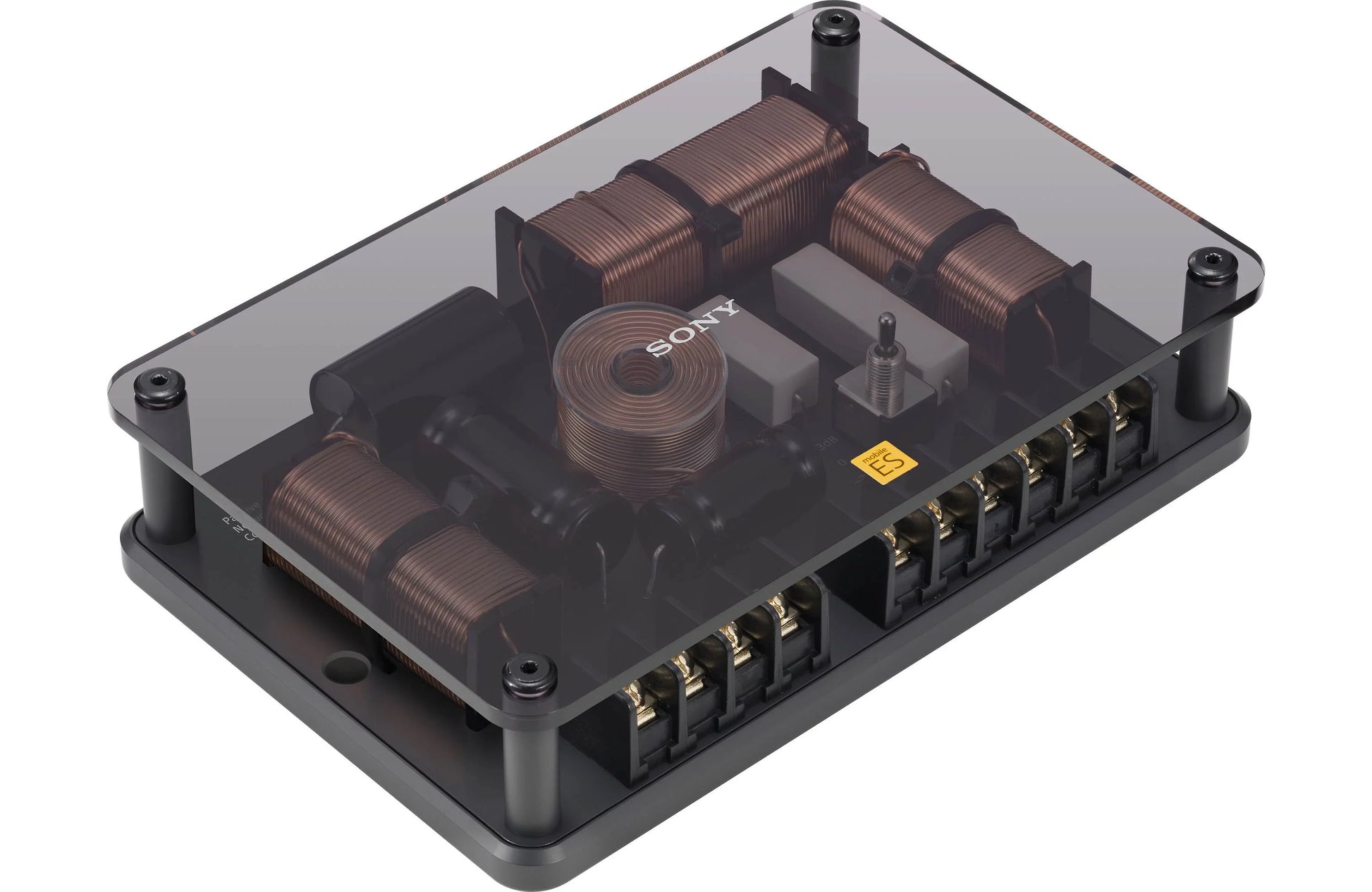

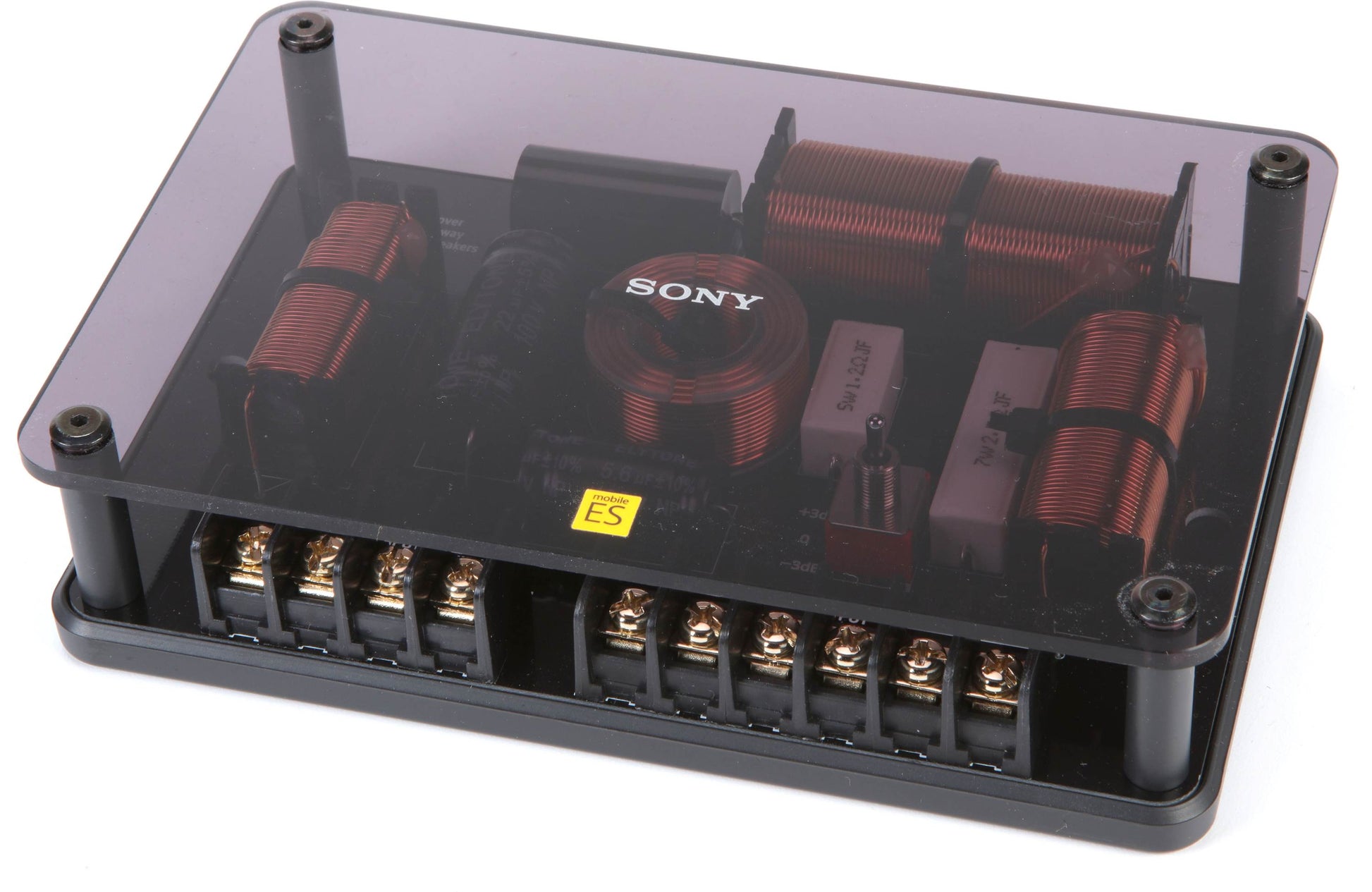

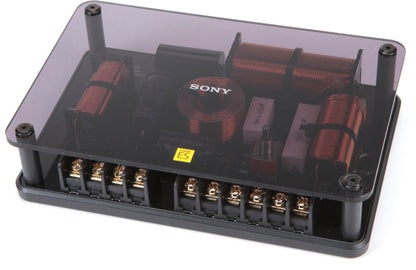

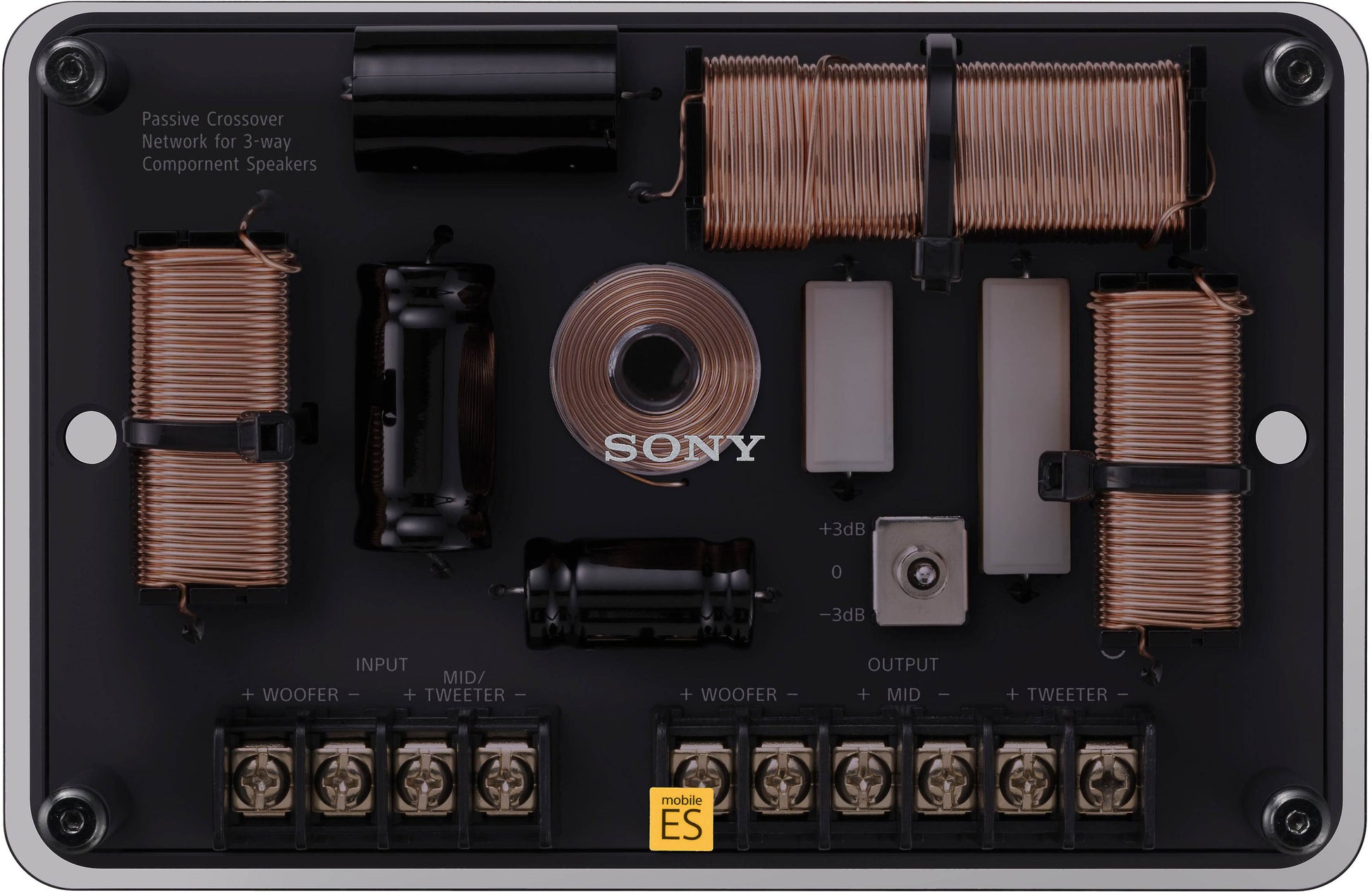

• Passive crossover network boxes included

Installation Use Cases

• Front-stage upgrades in vehicles with separate woofer, midrange, and tweeter mounting options
• Sound-quality-focused systems using aftermarket amplification or OEM-integrated signal chains
• Suitable for daily-driver builds and higher-resolution multi-driver front stages
• Vehicle-specific mounting adapters, brackets, and wiring harnesses may be required depending on application

Technical Specifications

• Brand: Sony
• Series: Mobile ES
• Model: XS-163ES
• Component Type: 3-Way Component Speakers
• Size: 6.5" (16 cm)
• Midrange Size: 3.5" (8 cm)
• Impedance: 4 Ω
• Frequency Response: 40 Hz - 40,000 Hz
• Sensitivity: 89 dB ±2 dB SPL (1 W, 1 m)
• Power Handling (RMS): 90 W
• Power Handling (Peak): 270 W
• Rated Power: 60 W
• Woofer Weight: 33.51 oz
• Midrange Weight: 7.05 oz
• Tweeter Weight: 2.12 oz
• Network Box Weight: 1.08 lb

Identifiers & Packaging

• Manufacturer Part Number (MPN): XS-163ES
• UPC: 027242922570

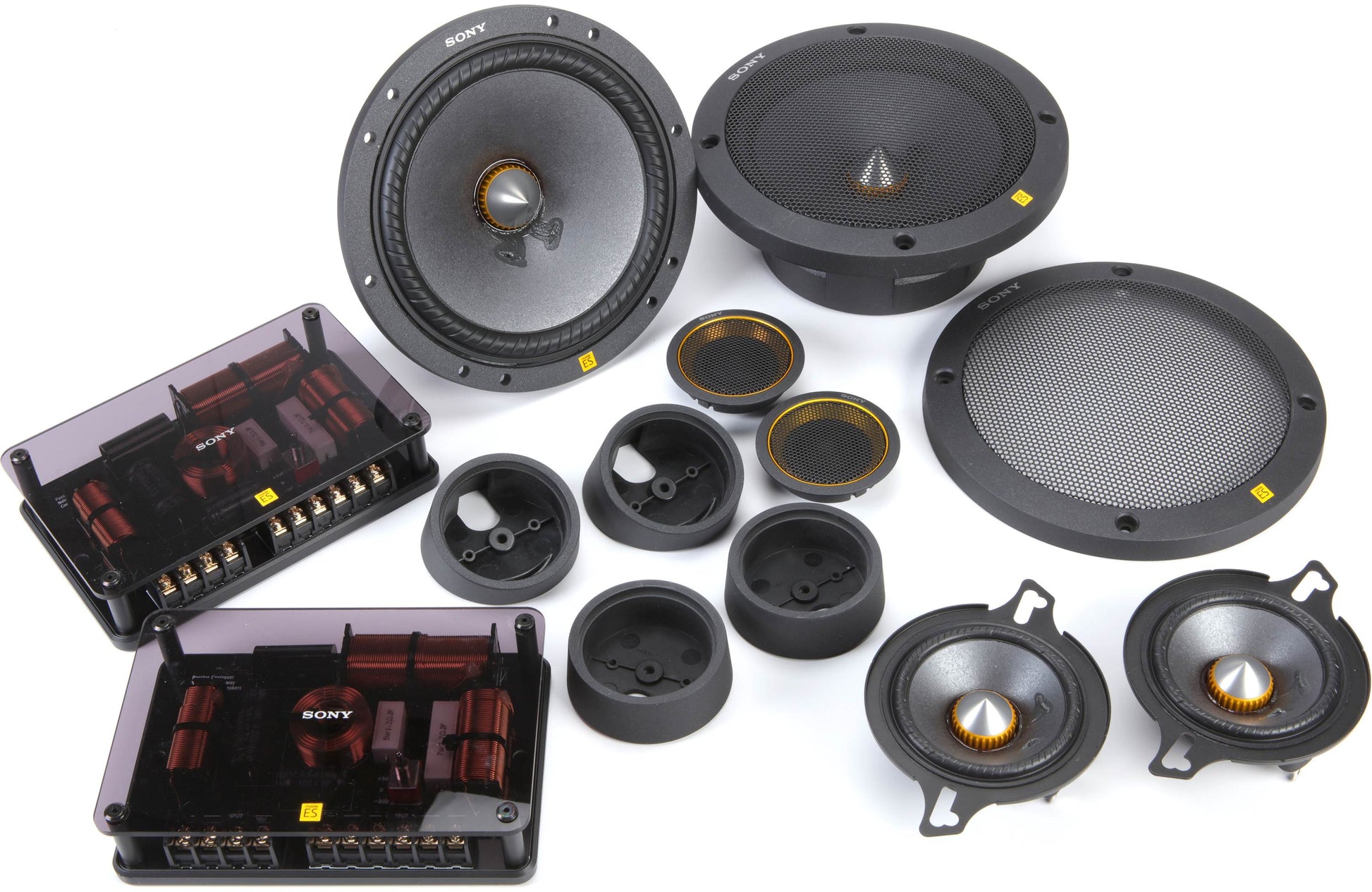

• Sold As: Pair (2 woofers, 2 midrange drivers, 2 tweeters, 2 crossover networks)
• Included Components: Two woofers, two midrange drivers, two tweeters, two passive crossover network boxes, and documentation

Compatibility / Installation Notes

• Confirm speaker size, mounting depth, factory opening shape, impedance, and required adapter brackets or speaker harnesses before ordering.
• Vehicle-specific speaker adapters, harnesses, mounting rings, wiring, and installation materials are sold separately unless specifically included.
• Use the MCOR Fit Guide or the chat button on this page for help matching these Sony speakers to your vehicle.
