Sony Mobile ES XS-162ES 6.5" 90W RMS 4Ω 2-Way Component Speakers (Pair)

Sony XS-162ES is a 6.5-inch 2-way component speaker system designed for front-stage vehicle audio upgrades where separate woofer and tweeter placement is preferred. It uses a Lightweight Rigid Cellular aramid fiber matrix woofer, 1-inch soft-dome tweeter, and passive crossover networks for full-range sound reproduction.

Key Performance Features

• 6.5-inch 2-way component speaker system
• 90 watts RMS power handling
• 270 watts peak power handling
• 40 Hz - 40,000 Hz frequency response
• 89 dB ±2 dB SPL sensitivity (1 W, 1 m)
• 1-inch synthetic fabric soft-dome tweeters for extended high-frequency response
• Lightweight Rigid Cellular aramid fiber matrix woofer cones
• Separated Notch Edge rubber surrounds

System Architecture

• Type: 2-way component speaker system
• Application: Front-stage speaker upgrade
• Nominal Impedance: 4 Ω
• Tweeter Type: 1" (2.5 cm) synthetic fabric soft dome
• Crossover Type: Passive crossover network included
• System Role: Sound-quality and daily-driver component speaker installation

Power Handling / Output

• Continuous (RMS): 90 W
• Rated Power: 60 W
• Peak: 270 W

Driver / Construction

• Lightweight Rigid Cellular aramid fiber matrix woofer diaphragms
• Rubber Separated Notch surrounds
• Ferrite woofer magnets

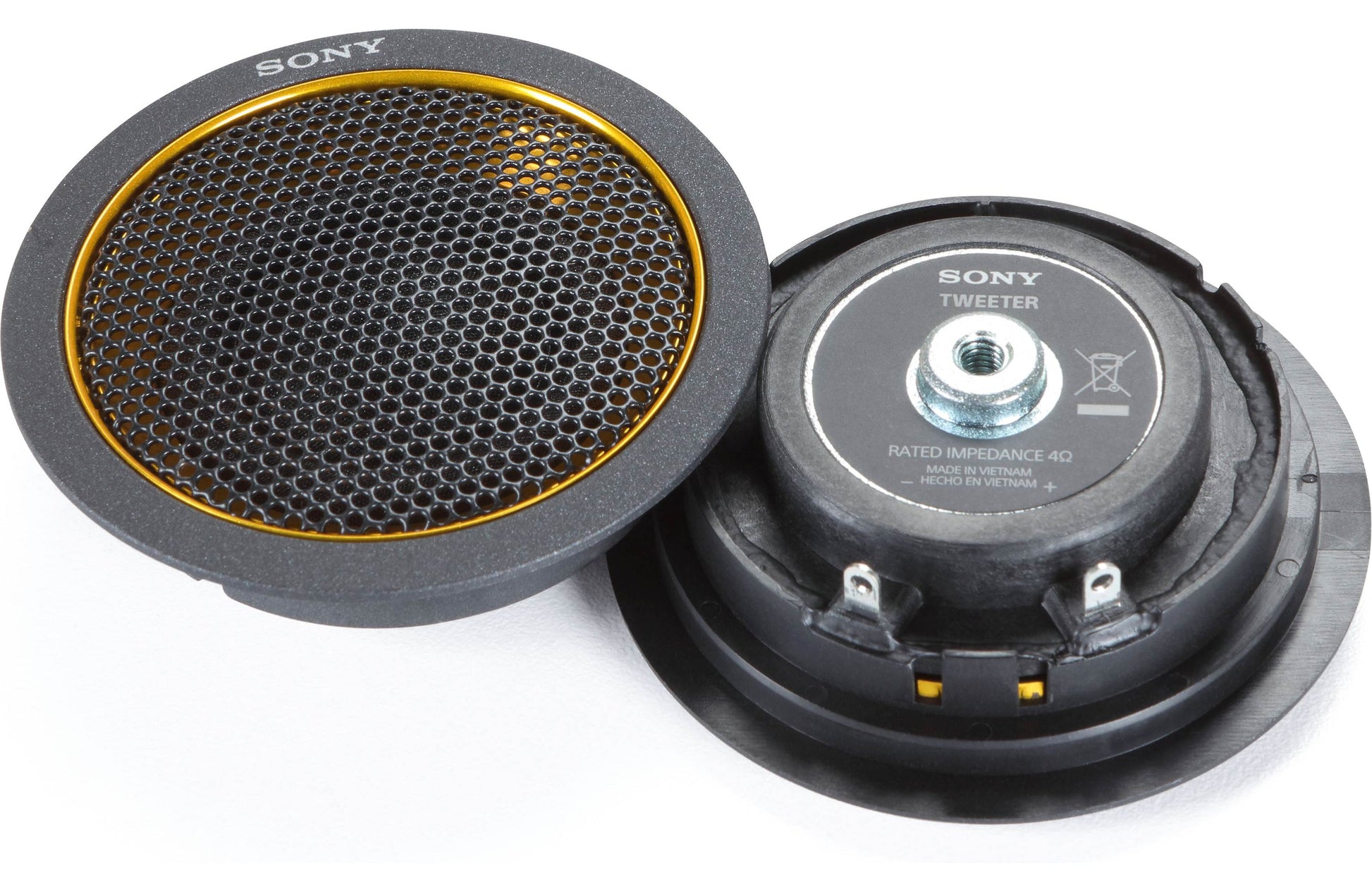

• 1" (2.5 cm) synthetic fabric soft-dome tweeters
• Neodymium tweeter magnets

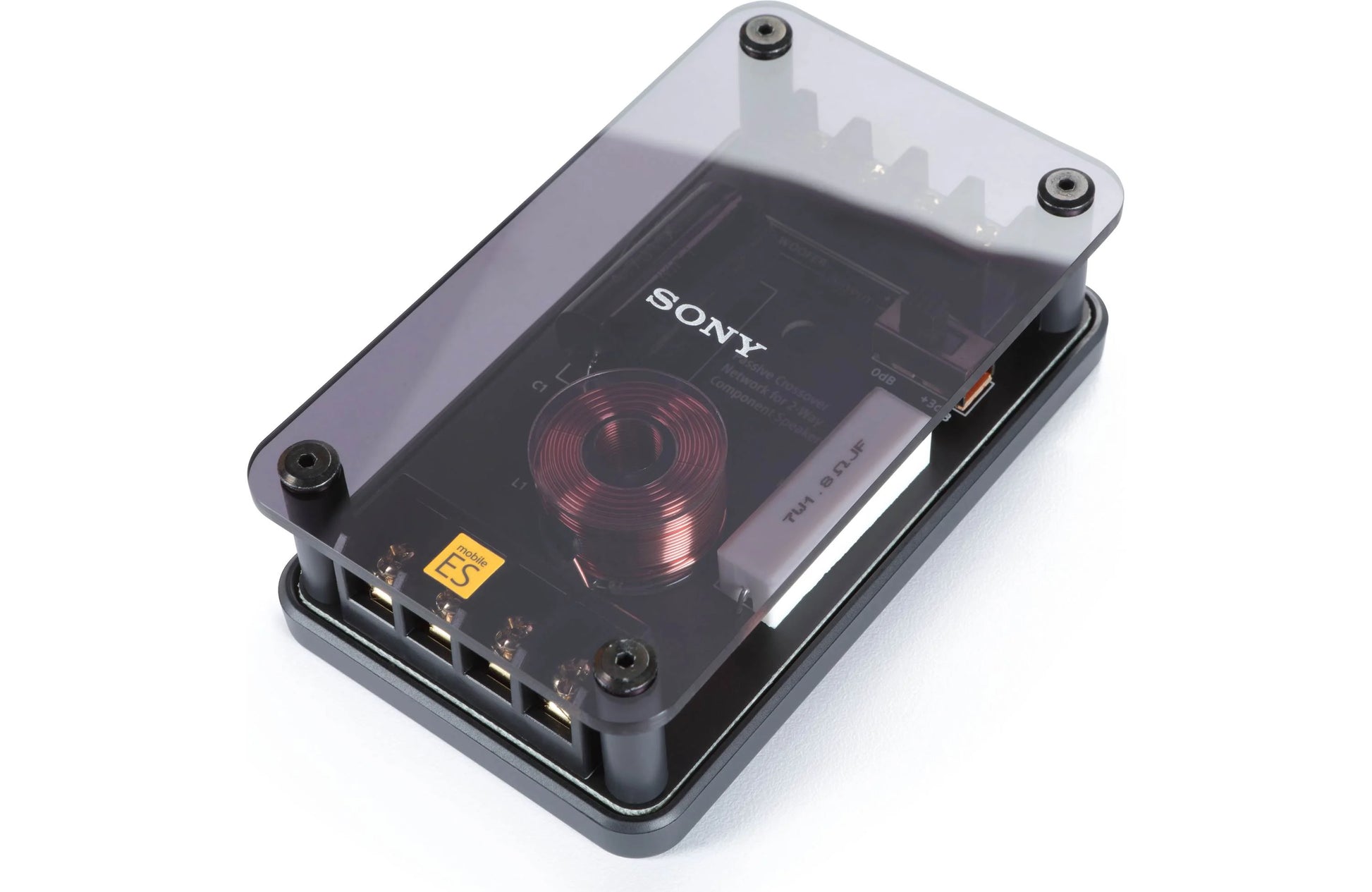

• Network boxes included for passive crossover operation

Installation Use Cases

• Front-door component speaker upgrades in vehicles with separate tweeter locations
• Sound-quality-focused systems using aftermarket or OEM-integrated amplification
• Suitable for daily-driver builds and higher-resolution front-stage installations
• Vehicle-specific speaker adapters, mounting brackets, and wiring harnesses may be required depending on application

Technical Specifications

• Brand: Sony
• Series: Mobile ES
• Model: XS-162ES
• Component Type: 2-Way Component Speakers
• Size: 6.5" (16 cm)
• Impedance: 4 Ω
• Frequency Response: 40 Hz - 40,000 Hz
• Sensitivity: 89 dB ±2 dB SPL (1 W, 1 m)
• Power Handling (RMS): 90 W
• Power Handling (Peak): 270 W
• Rated Power: 60 W
• Tweeter Size: 1" (2.5 cm)
• Tweeter Type: Soft Dome
• Woofer Weight: 950 g
• Tweeter Weight: 60 g
• Network Box Weight: 160 g

Identifiers & Packaging

• Manufacturer Part Number (MPN): XS-162ES
• UPC: 027242921030

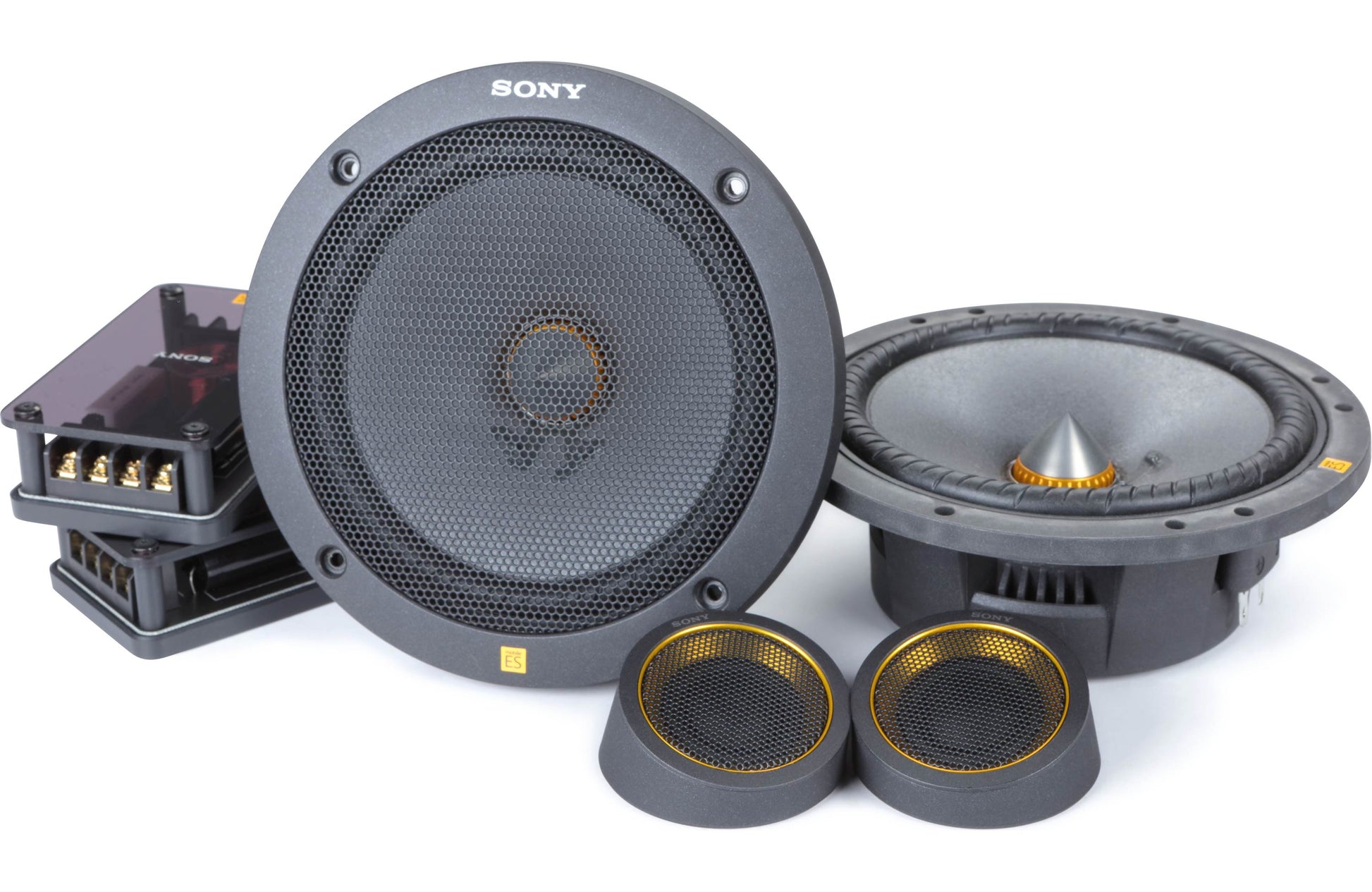

• Sold As: Pair (2 woofers, 2 tweeters, 2 crossover networks)
• Included Components: Two woofers, two tweeters, two passive crossover network boxes, and documentation

Compatibility / Installation Notes

• Confirm speaker size, mounting depth, factory opening shape, impedance, and required adapter brackets or speaker harnesses before ordering.
• Vehicle-specific speaker adapters, harnesses, mounting rings, wiring, and installation materials are sold separately unless specifically included.
• Use the MCOR Fit Guide or the chat button on this page for help matching these Sony speakers to your vehicle.
