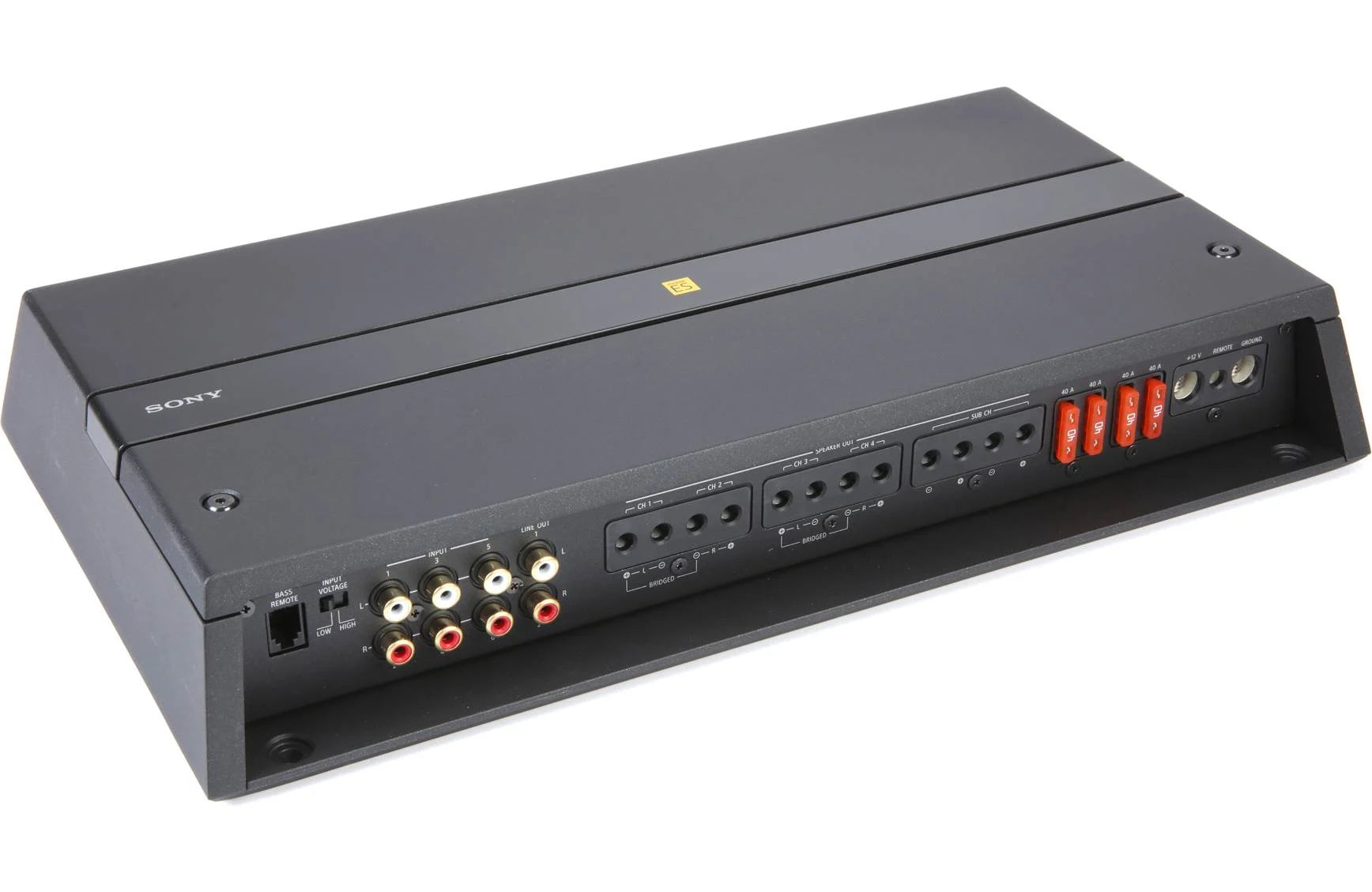

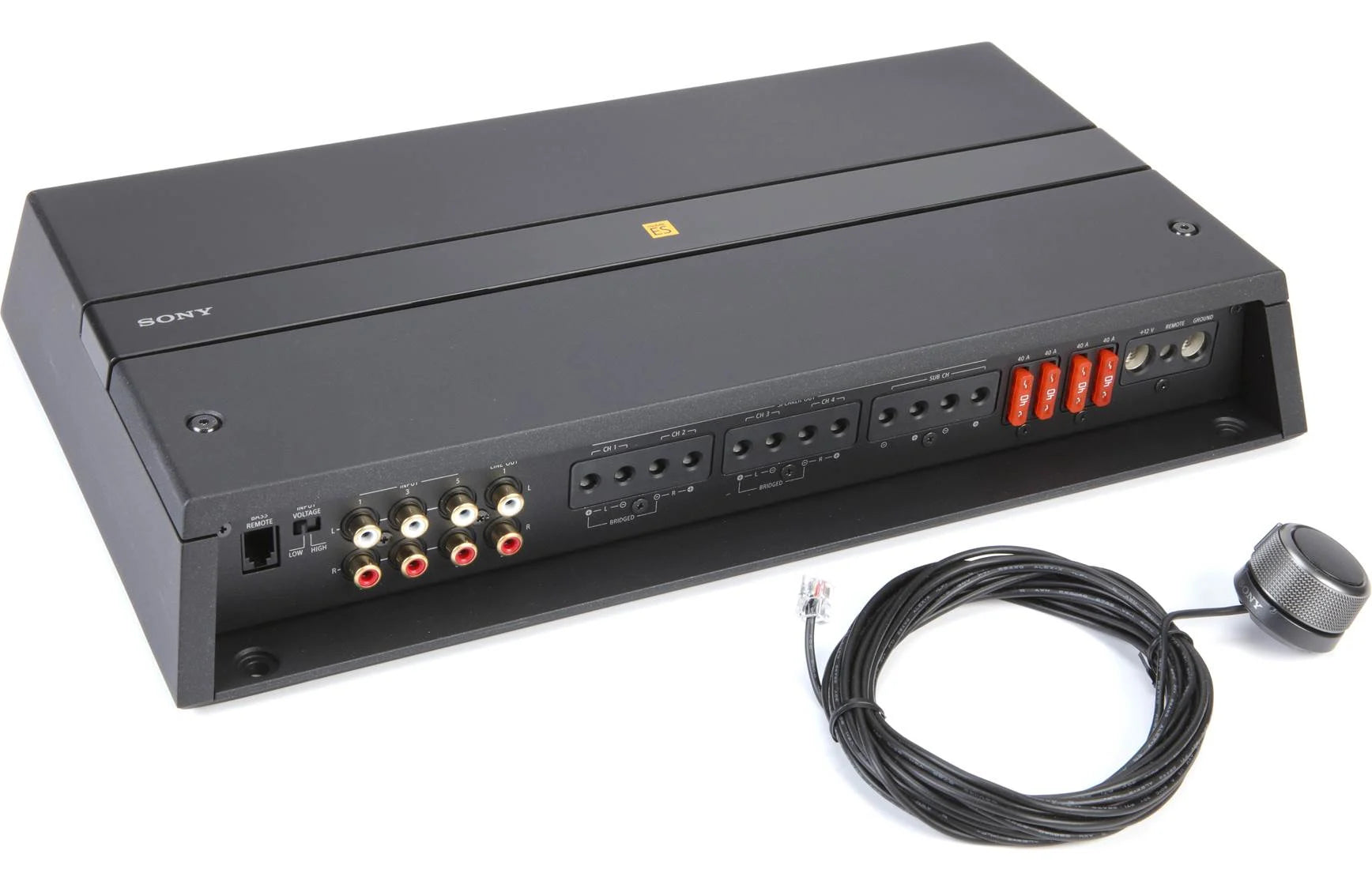

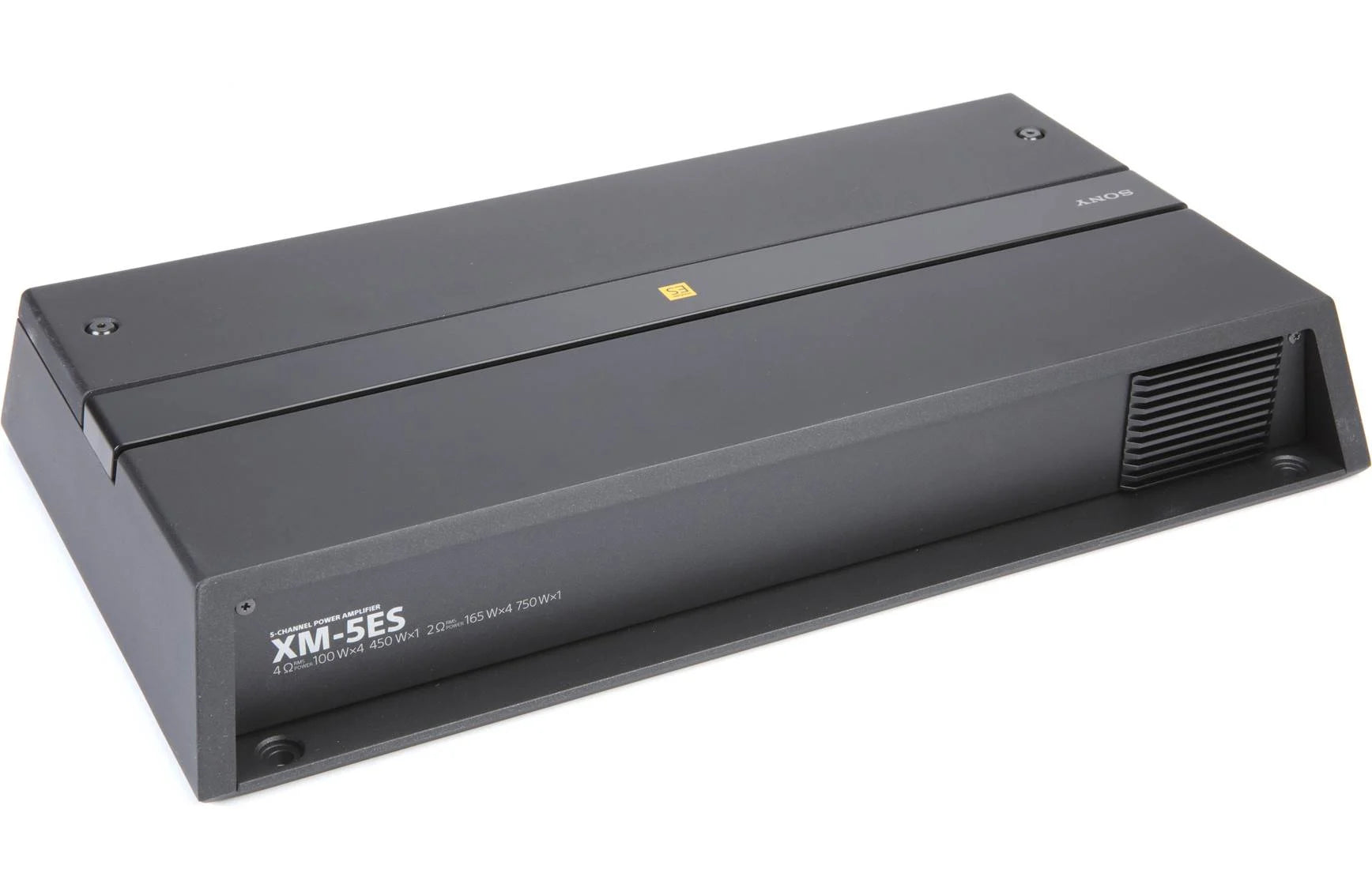

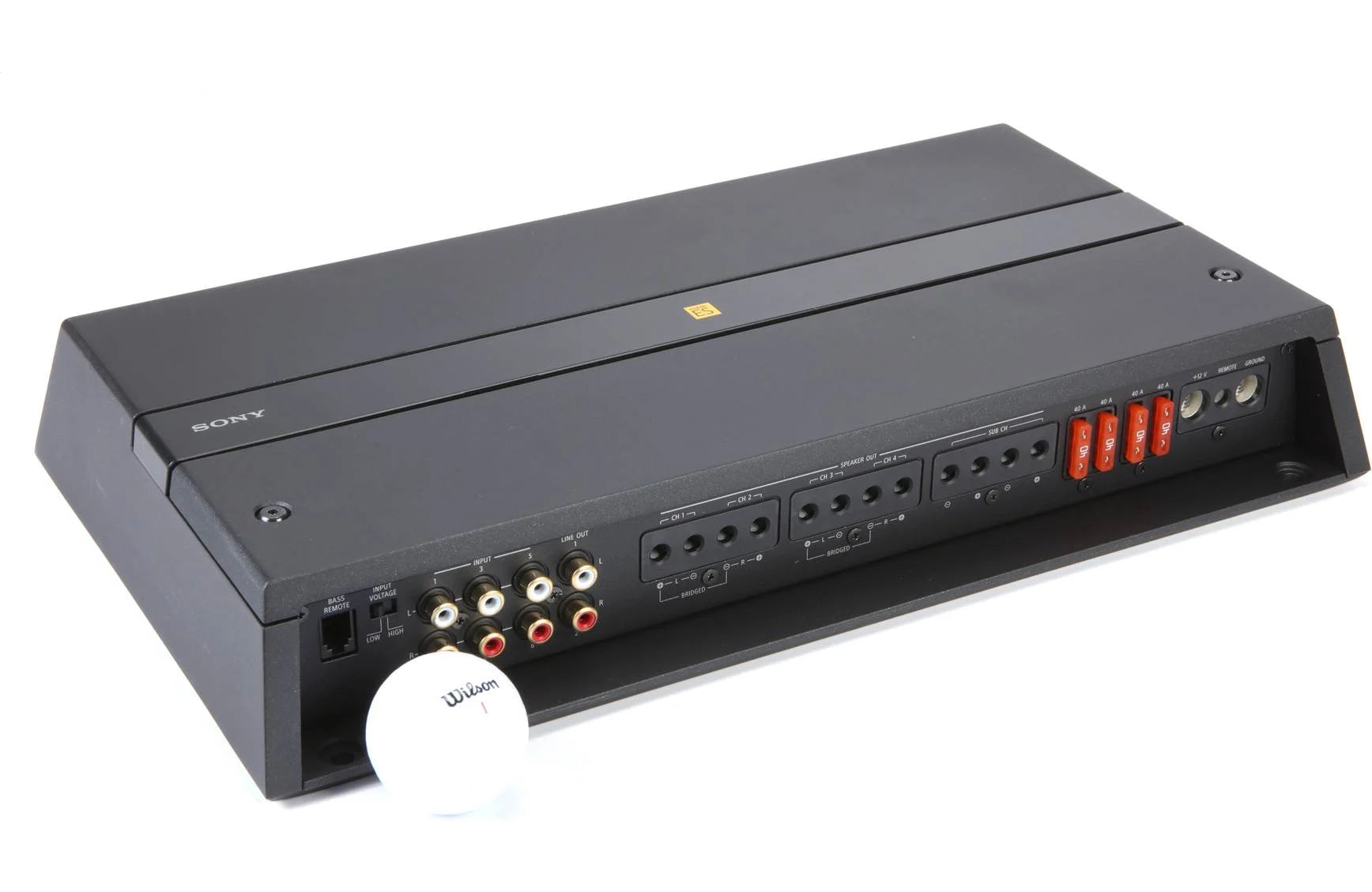

Sony XM-5ES 5-Channel Class-D 100W x 4 RMS @ 4Ω + 450W x 1 RMS @ 4Ω Multi-Channel Amplifier

Sony XM-5ES is a 5-channel Class-D amplifier designed to power a full speaker system plus subwoofer from one chassis. It supports full-range front and rear channels with a dedicated mono subwoofer channel, along with speaker-level and RCA input options for aftermarket or factory-integrated installations.

Key Performance Features

• Class-D 5-channel amplifier design
• 100W x 4 RMS at 4 ohms plus 450W x 1 RMS at 4 ohms
• 165W x 4 RMS at 2 ohms plus 750W x 1 RMS at 2 ohms
• 330W x 2 RMS bridged at 4 ohms on front/rear channels
• CTA-2006 compliant power rating
• High-Resolution Audio compatible signal path
• Resonance-damping aluminum chassis construction
• Gold-plated terminals and signal connections

System Configuration & Flexibility

• 5-channel amplifier with 4 full-range channels and 1 mono subwoofer channel
• Supports 4-ch/3-ch/2-ch/1-ch (mono) channel configuration options
• Front and rear channels can be bridged for higher-power speaker operation
• RCA line-level input for aftermarket source units and processors
• Speaker-level input for factory audio integration
• Signal summing supports installation with factory stereo outputs

Power Output

• RMS @ 4Ω: 100W x 4 + 450W x 1
• RMS @ 2Ω: 165W x 4 + 750W x 1
• Bridged RMS @ 4Ω: 330W x 2
• CTA-2006 Power Output: 100W x 4

Signal Control & Protection

• Variable high-pass filter: 50 Hz - 500 Hz
• Variable low-pass filter: 50 Hz - 500 Hz
• Variable band-pass filter: 500 Hz - 5 kHz
• High-pass filter slope: 12 dB/oct
• Low-pass filter slope: 12 dB/oct + 24 dB/oct
• Protection circuitry for thermal and electrical operating conditions

Installation Notes

• Single-chassis 5-channel layout simplifies full-system amplifier installation
• Proper power wire, ground wire, fuse protection, and signal wiring are required and sold separately unless otherwise noted
• Suitable for full-range speakers plus subwoofer systems using rated 2-ohm, 4-ohm, and bridged channel configurations

Technical Specifications

• Brand: Sony
• Model: XM-5ES
• Amplifier Class: Class-D
• Channels: 5
• RMS Power @ 4Ω: 100W x 4 + 450W x 1
• RMS Power @ 2Ω: 165W x 4 + 750W x 1
• Bridged RMS @ 4Ω: 330W x 2
• CTA-2006 Power Output: 100W x 4
• Frequency Response: 10 Hz - 40,000 Hz (front/rear), 10 Hz - 500 Hz (subwoofer)
• Total Harmonic Distortion at 1 kHz: Less than 0.05%
• High-Pass Filter: Variable 50 Hz - 500 Hz
• Band-Pass Filter: Variable 500 Hz - 5,000 Hz
• Low-Pass Filter: Variable 50 Hz - 500 Hz
• Speaker Level Input: Yes
• Dimensions (W x H x D): 14.96" x 2.36" x 8.46"

Identifiers & Packaging

• Manufacturer Part Number (MPN): XM-5ES
• UPC: 027242924017
• Sold As: Each
• Included Components: Amplifier, mounting hardware, hex tools, and documentation

Compatibility / Installation Notes

• Amplifiers require proper power wire, ground, fuse protection, speaker wiring, signal integration, and gain / crossover setup.
• Confirm speaker or subwoofer impedance and RMS power handling before pairing this amplifier with a system.
• Professional installation is recommended for safe wiring, correct tuning, and long-term reliability.
