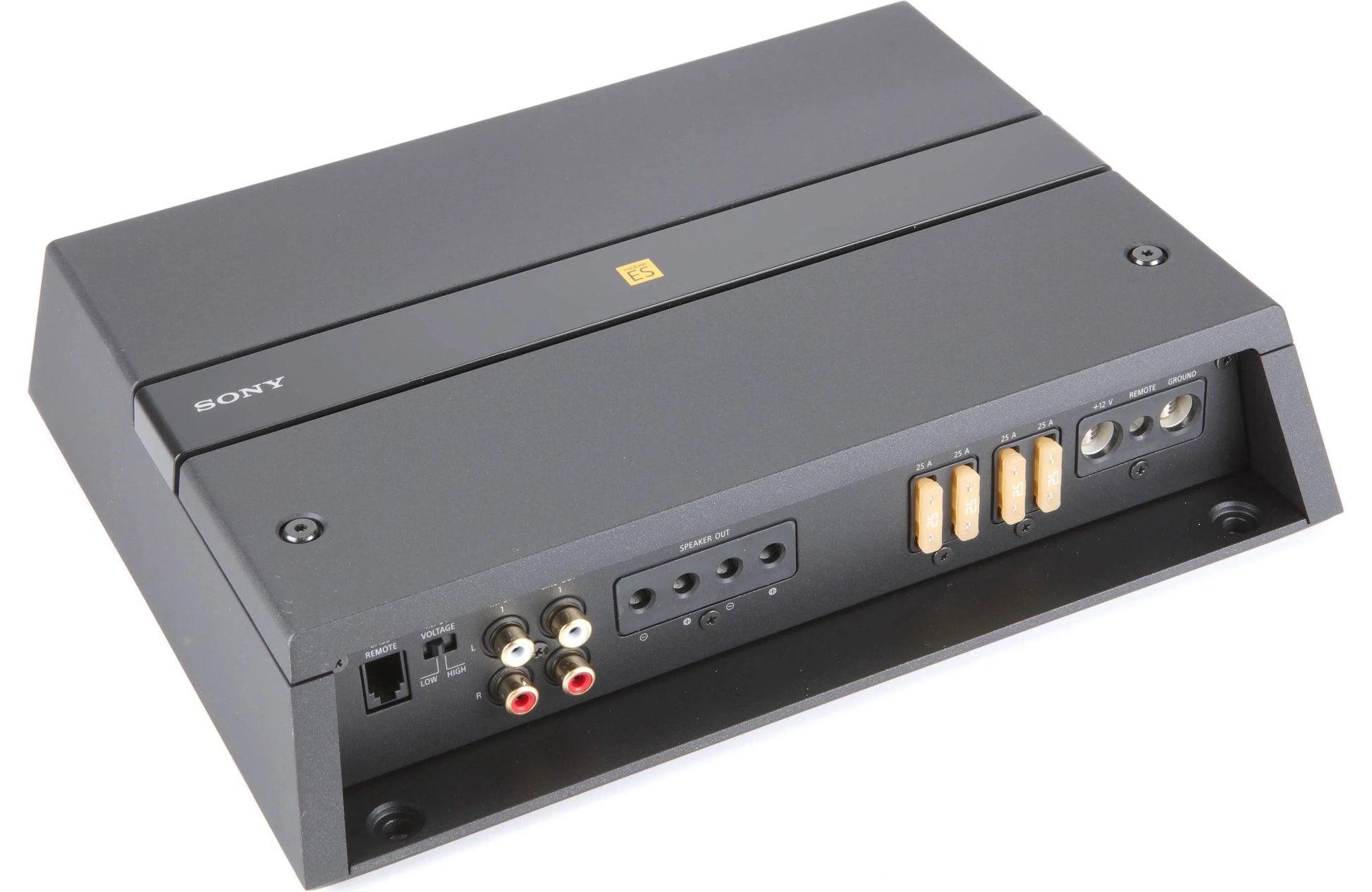

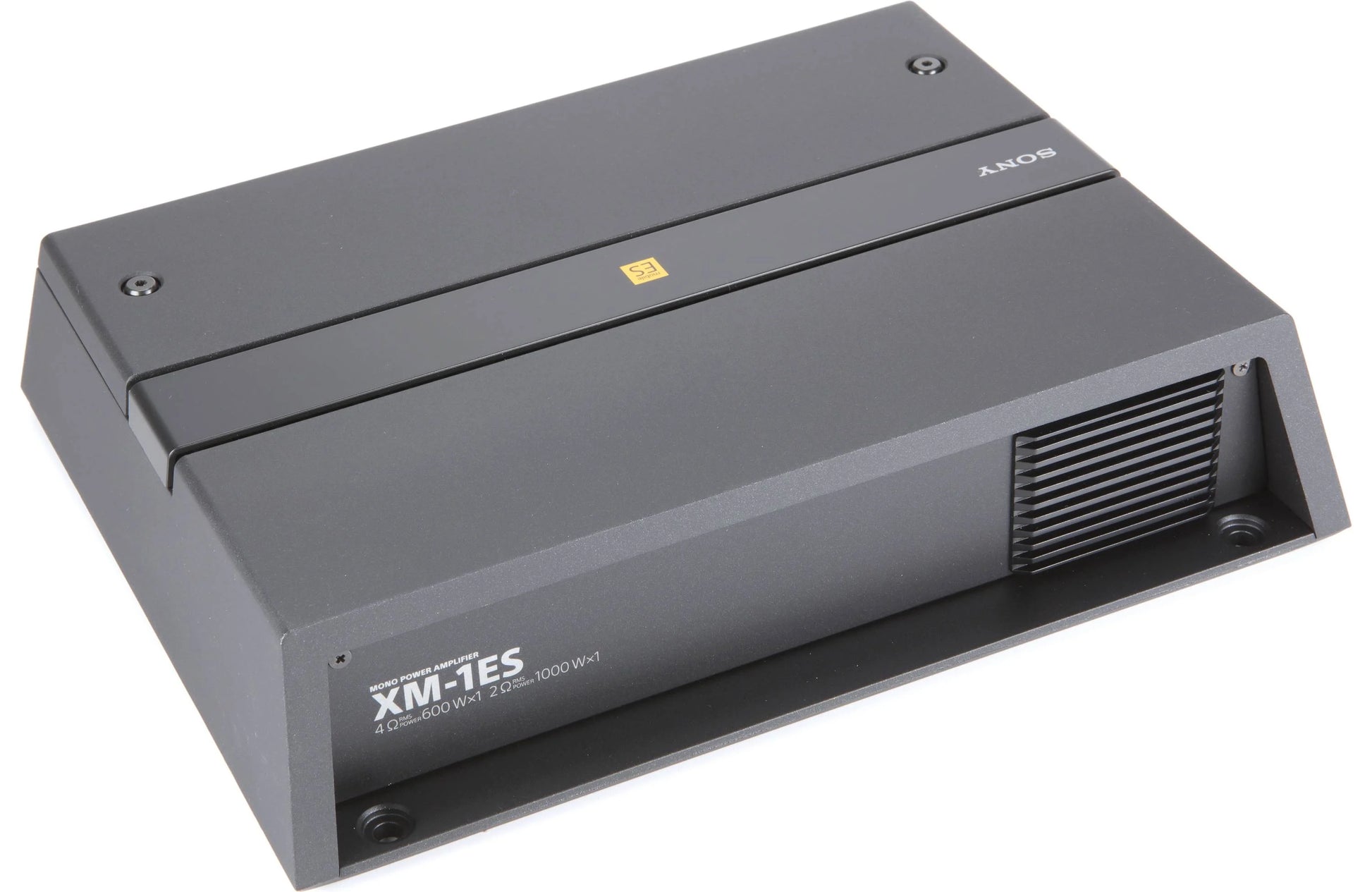

Sony XM-1ES 1-Channel Class-D 600W RMS @ 4Ω / 1000W RMS @ 2Ω Subwoofer Amplifier

Sony XM-1ES is a 1-channel Class-D amplifier built for subwoofer duty in systems that need strong continuous low-frequency power, compact fitment, and flexible signal integration. It is designed for mono subwoofer applications and supports both RCA and speaker-level input configurations.

Key Performance Features

• Class-D mono amplifier design for subwoofer applications
• 600W RMS x 1 at 4 ohms
• 1000W RMS x 1 at 2 ohms
• CTA-2006 compliant power rating
• Resonance-damping aluminum chassis construction
• Gold-plated connectors
• Speaker terminals accept bare wire or ferrules up to AWG 8

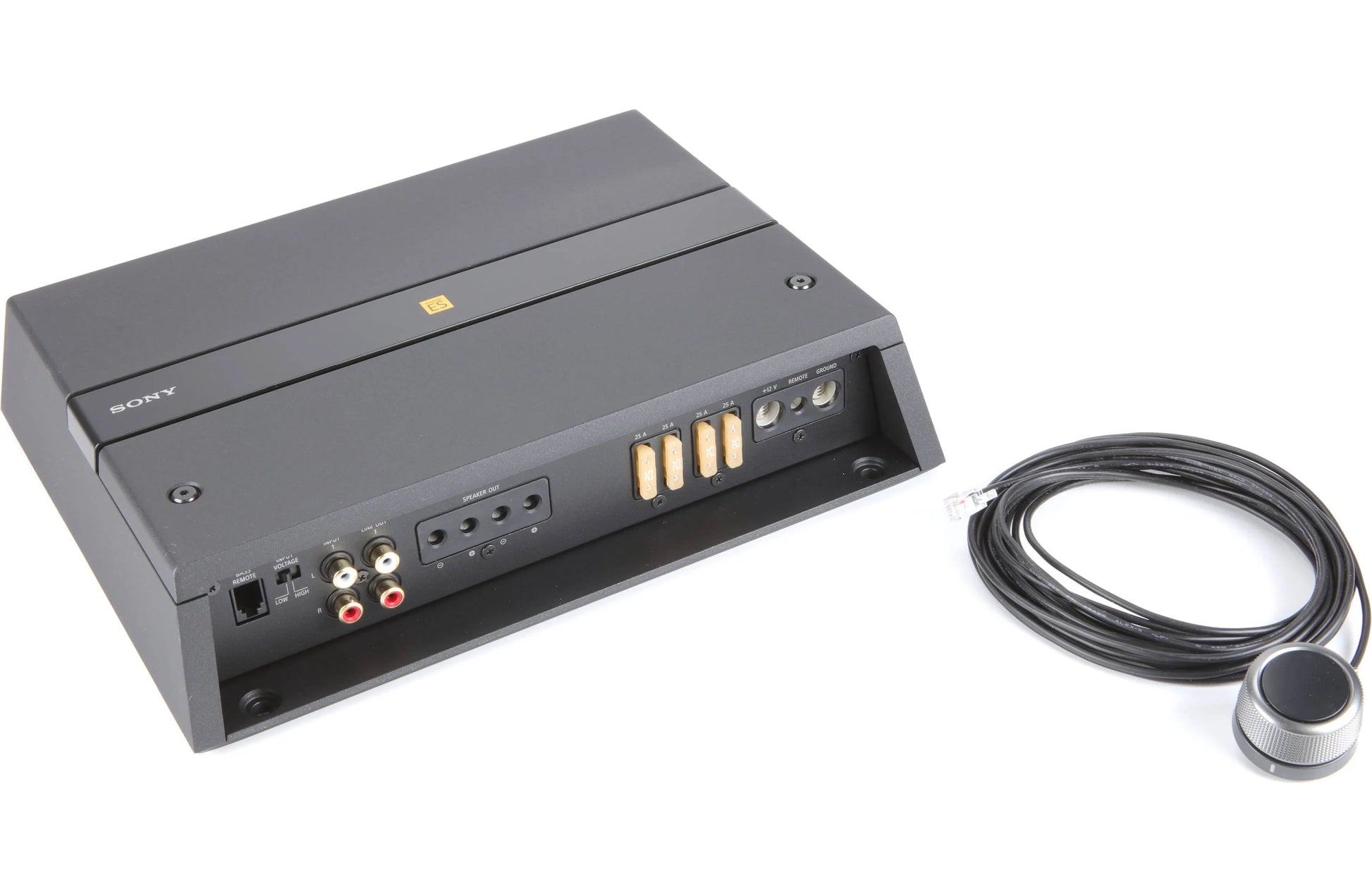

• Includes wired bass remote

System Configuration & Flexibility

• 1-channel mono amplifier
• Designed for subwoofer system use
• Accepts RCA line-level input
• Accepts speaker-level input for factory system integration
• Line-level pass-through supports adding amplifiers in expanded systems
• Signal summing supports mono subwoofer integration from stereo input sources

Power Output

• RMS @ 4Ω: 600W x 1
• RMS @ 2Ω: 1000W x 1
• CTA-2006 Power Output: 600W x 1
• Maximum Output Power: 1500W x 1

Signal Control & Protection

• Variable low-pass filter
• Subsonic high-pass filter
• Phase adjustment

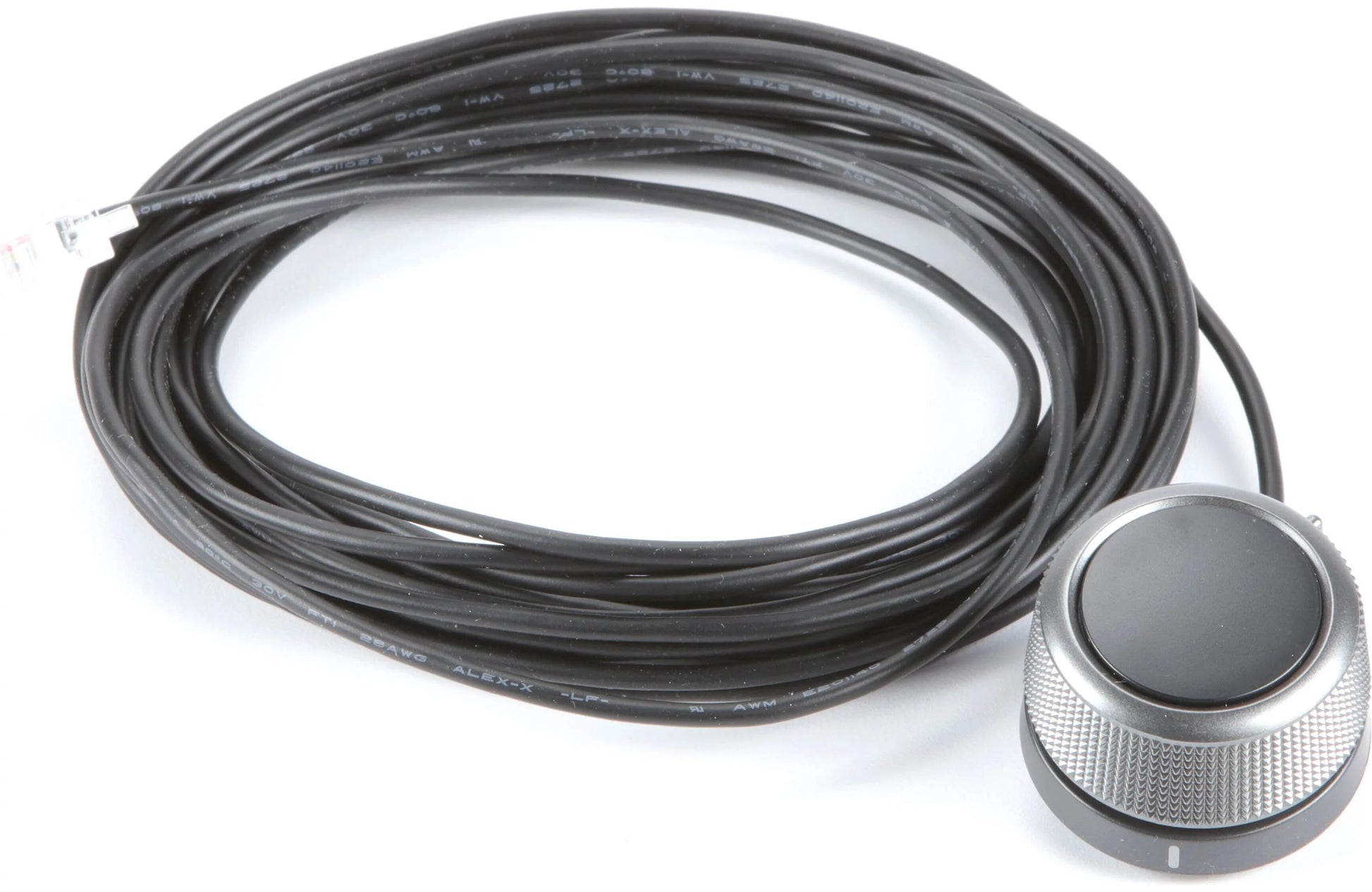

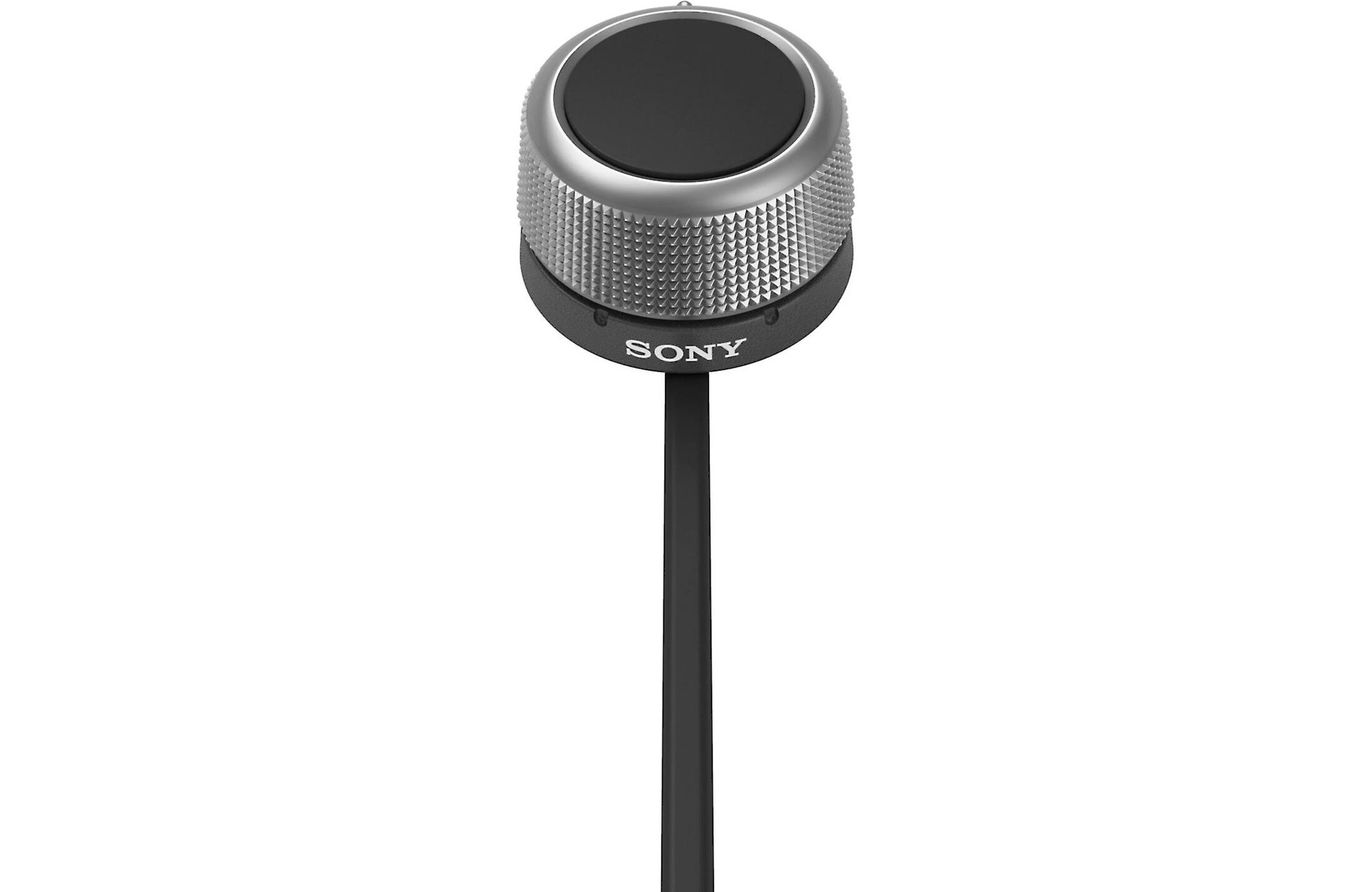

• Remote bass level control included
• Protection circuitry for thermal and electrical operating conditions

Installation Notes

• Compact chassis supports flexible amplifier mounting locations
• Proper power wire, ground wire, fuse protection, and signal wiring are required and sold separately unless otherwise noted
• Suitable for 2-ohm and 4-ohm subwoofer system configurations within rated specifications

Technical Specifications

• Brand: Sony
• Model: XM-1ES
• Amplifier Class: Class-D
• Channels: 1
• RMS Power @ 4Ω: 600W x 1
• RMS Power @ 2Ω: 1000W x 1
• CTA-2006 Power Output: 600W x 1
• Maximum Output Power: 1500W x 1
• Frequency Response: 10 Hz - 500 Hz
• Low-Pass Filter: 50 Hz - 500 Hz
• Speaker Level Input: Yes
• Subsonic High-Pass Filter: Yes
• MOSFET Power Supply: Yes
• Dimensions (W x H x D): 10.63" x 2.38" x 8.5"

Identifiers & Packaging

• Manufacturer Part Number (MPN): XM-1ES
• UPC: 027242923997
• Sold As: Each
• Included Components: Amplifier, wired bass remote, mounting hardware, hex tools, and documentation
