Race Sport Lighting MS240WW-WA 42.5-Inch Wrap-Around Marine Dual-Row LED Light Bar
Race Sport Lighting MS240WW-WA 42.5-Inch Wrap-Around Marine Dual-Row LED Light Bar
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

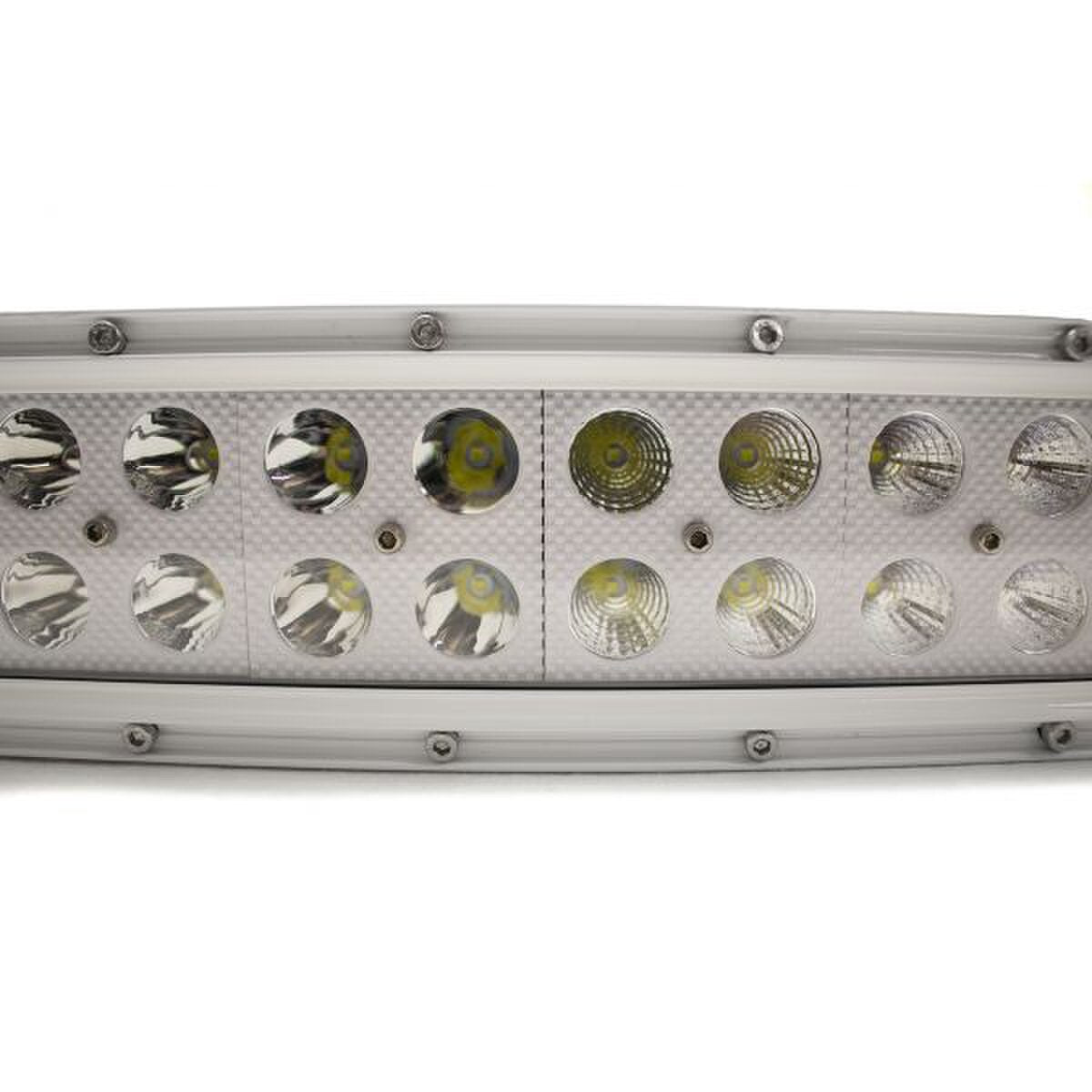

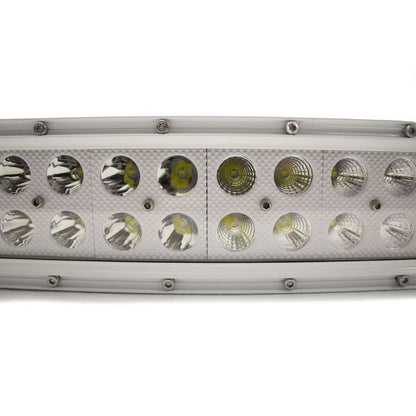

Add a white-housing dual-row work light to a planned marine or custom vehicle mounting position. The aluminum bar uses three-watt LEDs behind a polycarbonate lens for a durable installation.
At a Glance
- White housing and face treatment

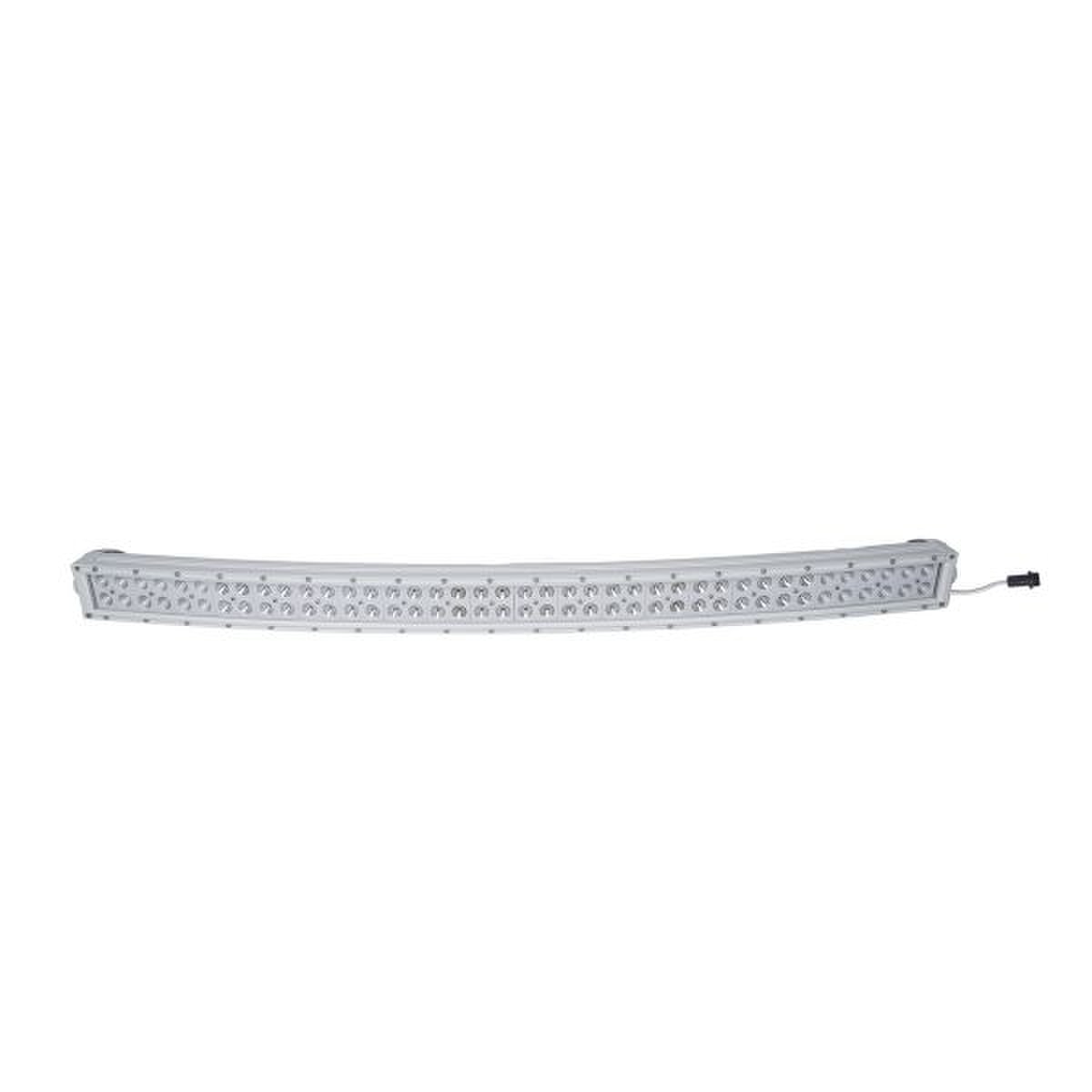

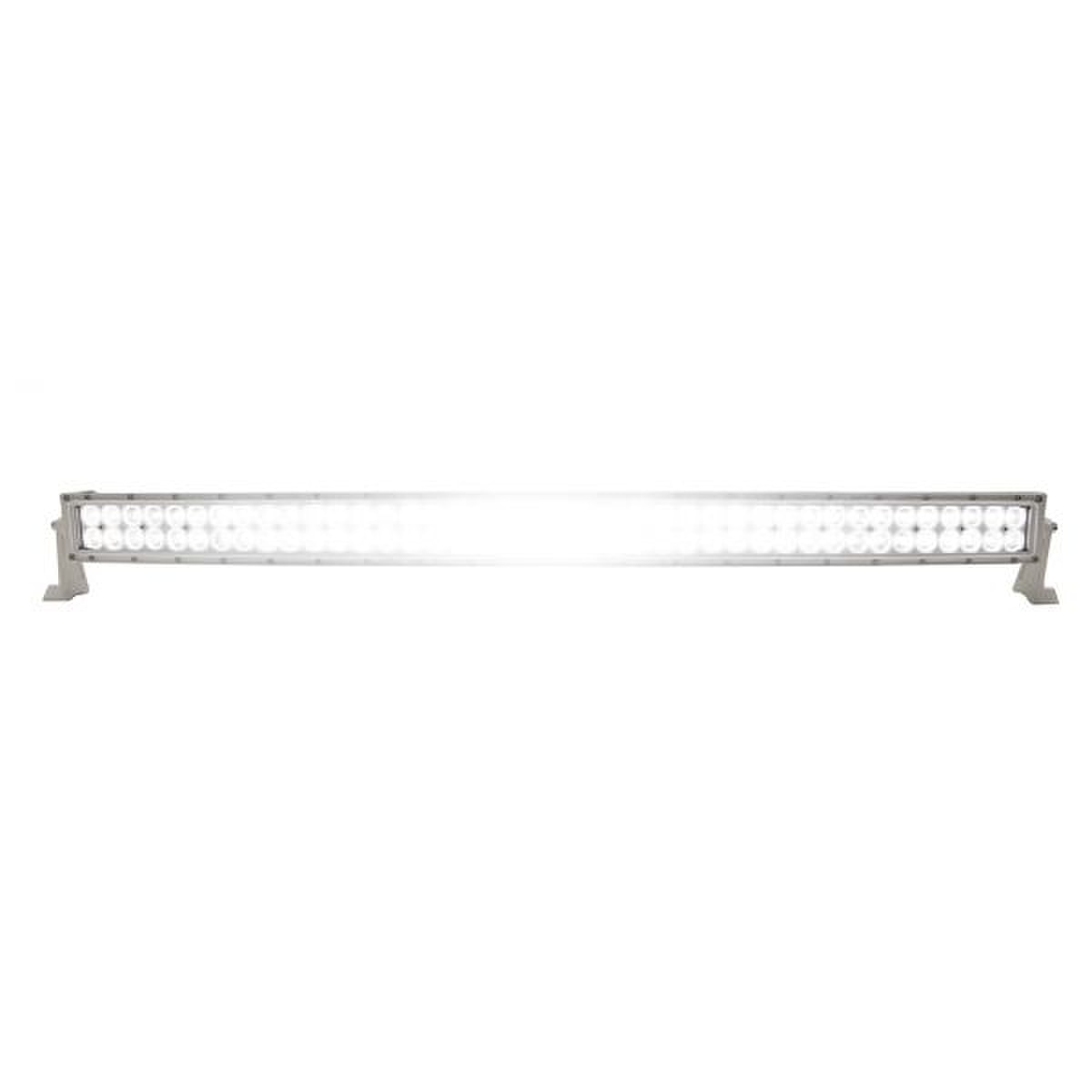

- Wrap-around dual-row layout

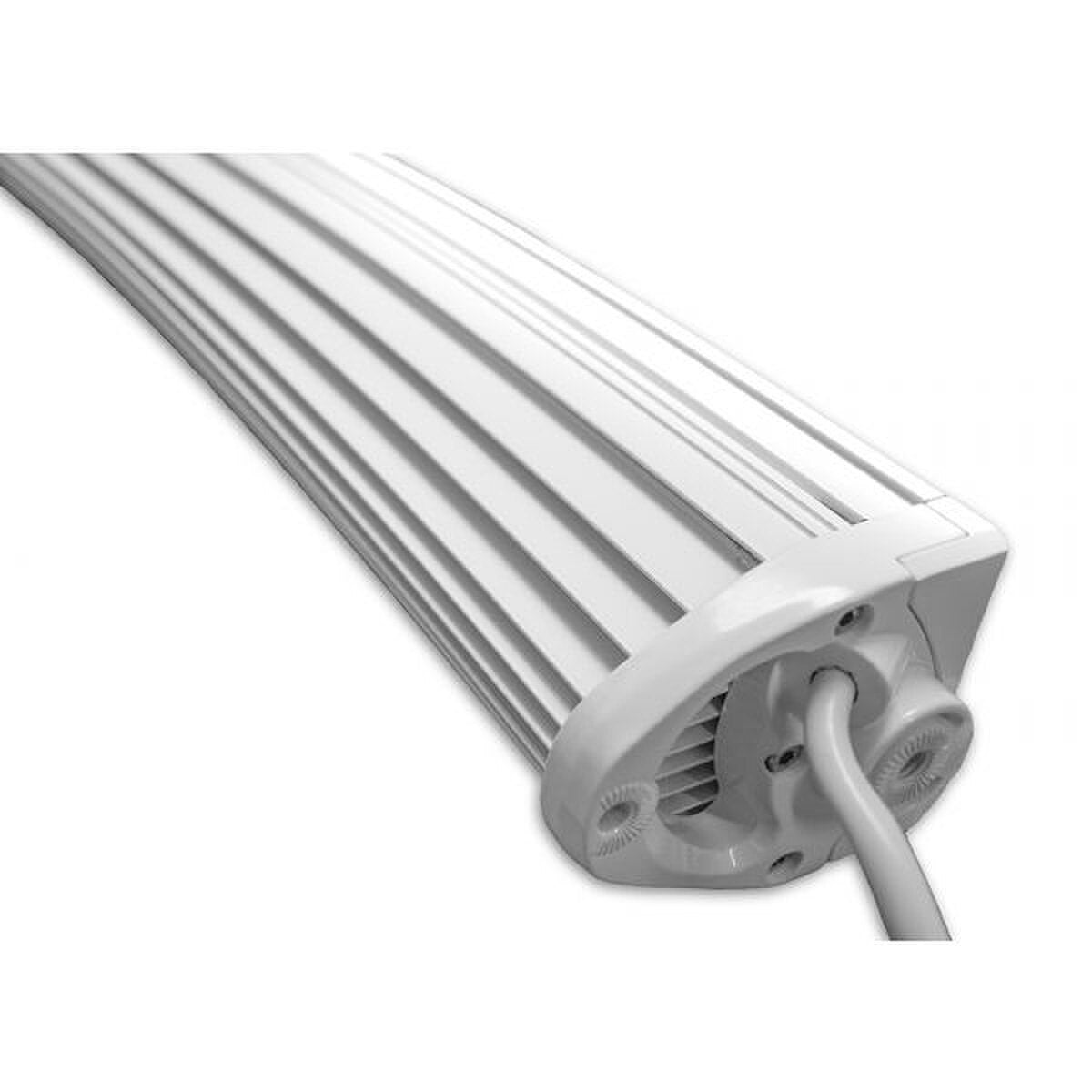

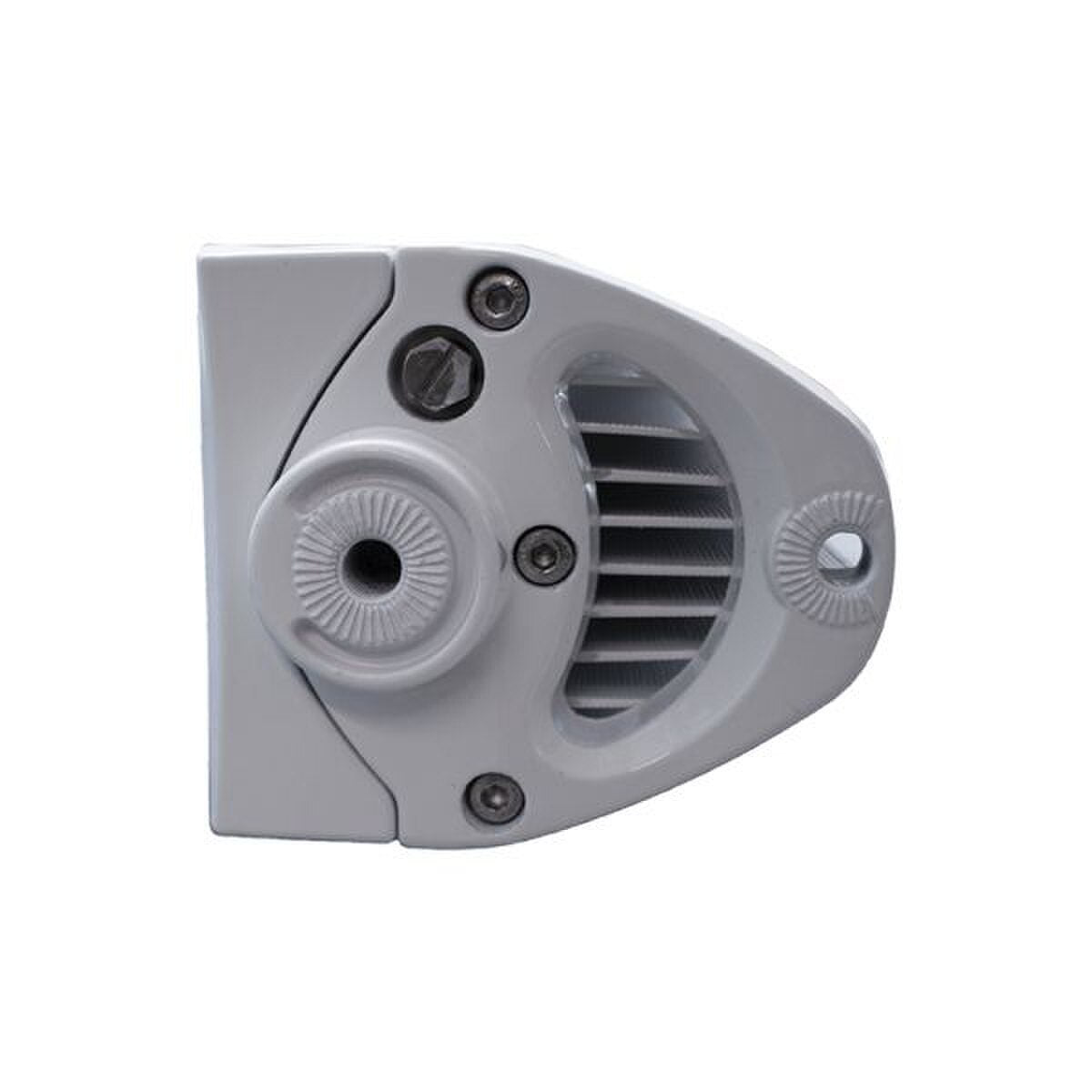

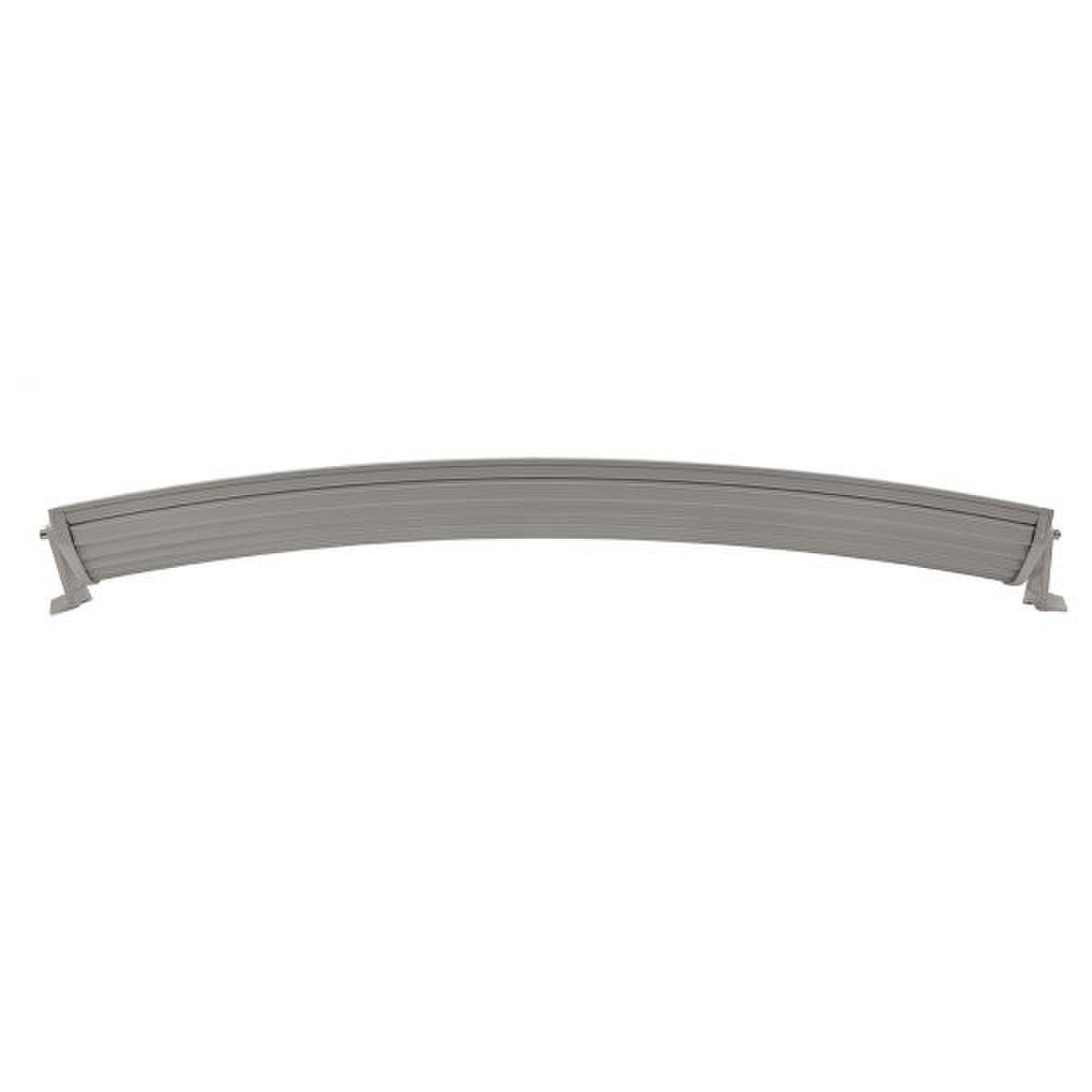

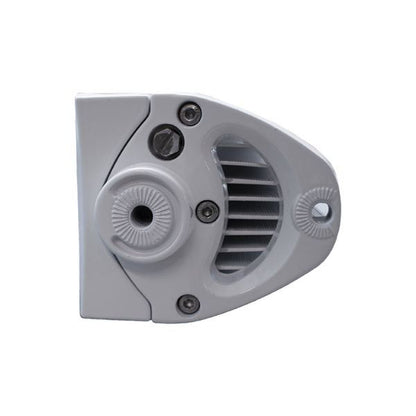

- Aluminum mounting brackets
- IP67 environmental rating
Compatibility & Installation Requirements
Measure the mounting span, depth and beam position before ordering. Nominal size in the product name is not a bracket or cutout measurement.
Confirm the vessel mounting surface, power supply, wire routing and required sealing method. Use marine-rated circuit protection and secure watertight connections. Accent or work lighting does not replace the vessel navigation lights required for its size and use. Use the separately sold MSLBWAH harness/switch where applicable, or a correctly designed fused hardwire circuit. No wiring harness is included in this listing.
Included Equipment
- One marine LED light bar
- Mounting brackets
Technical Specifications
| Brand | Race Sport Lighting |
|---|---|
| Model | MS240WW-WA |
| UPC | 817999027808 |
| Sold as | One product or kit as described |
| Shape | Wrap-around |
| End-to-end length | 42.5 inches |
| Lens width | 40.5 inches |
| Mounting-hole span | 43.75 inches |
| Height x depth | 3 x 3.5 inches |
| Power rating | 240 W |
| LED count | 80 |
| Supply voltage | 9–30 V DC |
| Color temperature | 6000 K |
| Environmental rating | IP67 |
Help Choosing Your Setup
Tell MCOR Automotive your vehicle or vessel, intended mounting location and lighting goal. Contact us for help checking the lighting size, power requirements and installation parts before ordering.
