Race Sport Lighting JGHB20UP Hitch-Bar Reverse Lighting Kit for Select 2020+ Jeep Gladiator
Race Sport Lighting JGHB20UP Hitch-Bar Reverse Lighting Kit for Select 2020+ Jeep Gladiator
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

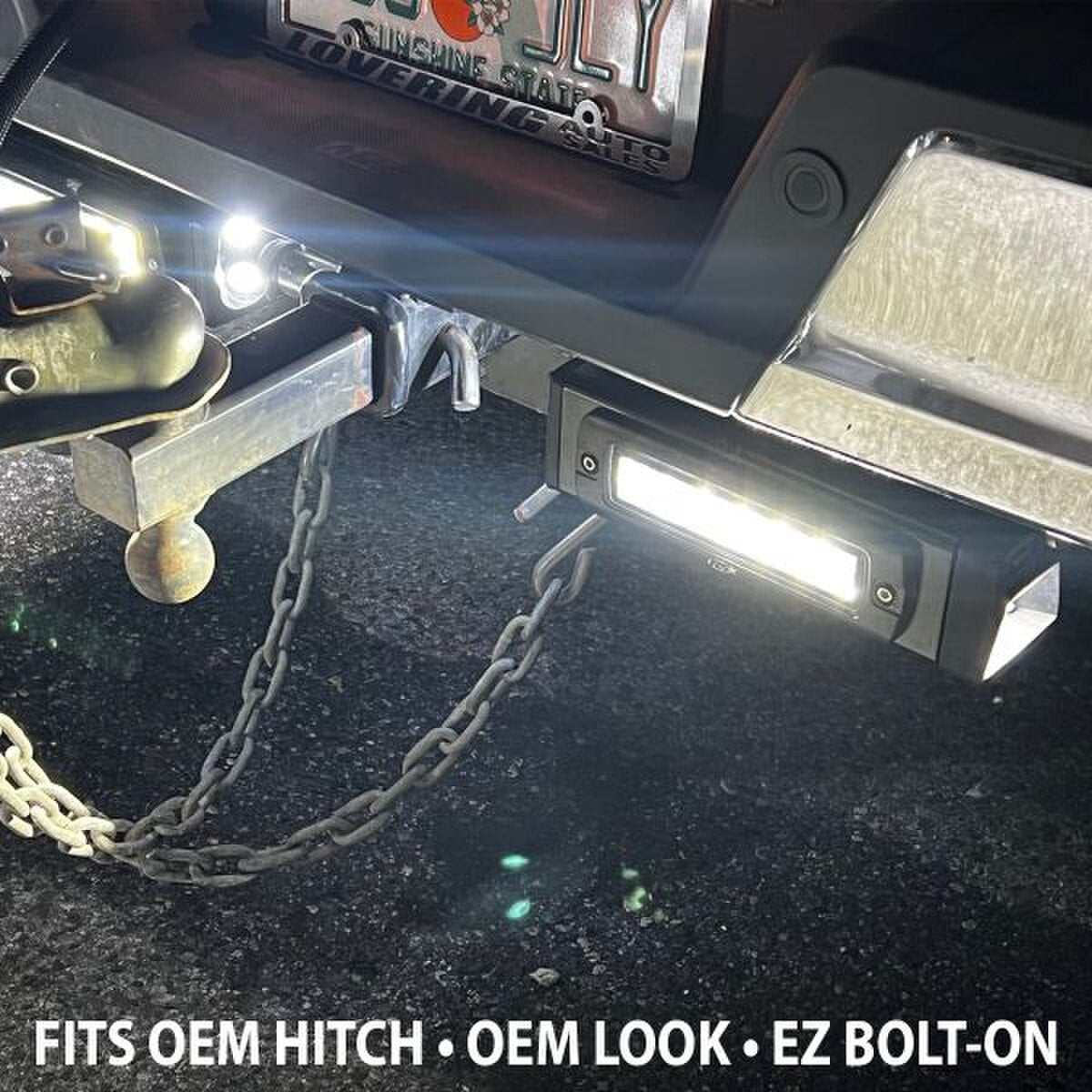

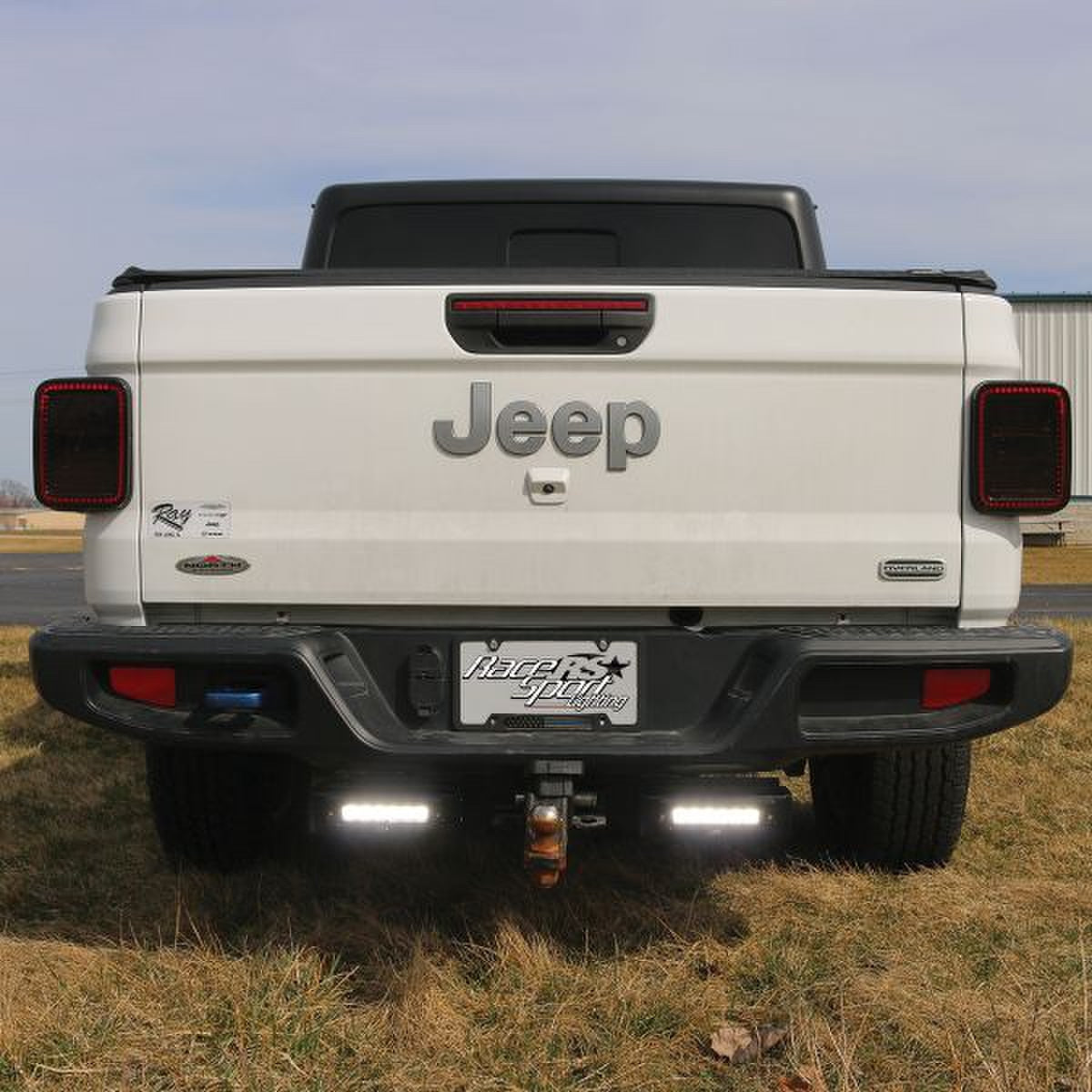

Add reverse-area and rear-side lighting at the hitch with a vehicle-specific steel assembly. Heated Roadrunner flood lamps and angled side lights provide a coordinated rear work-light arrangement.
At a Glance

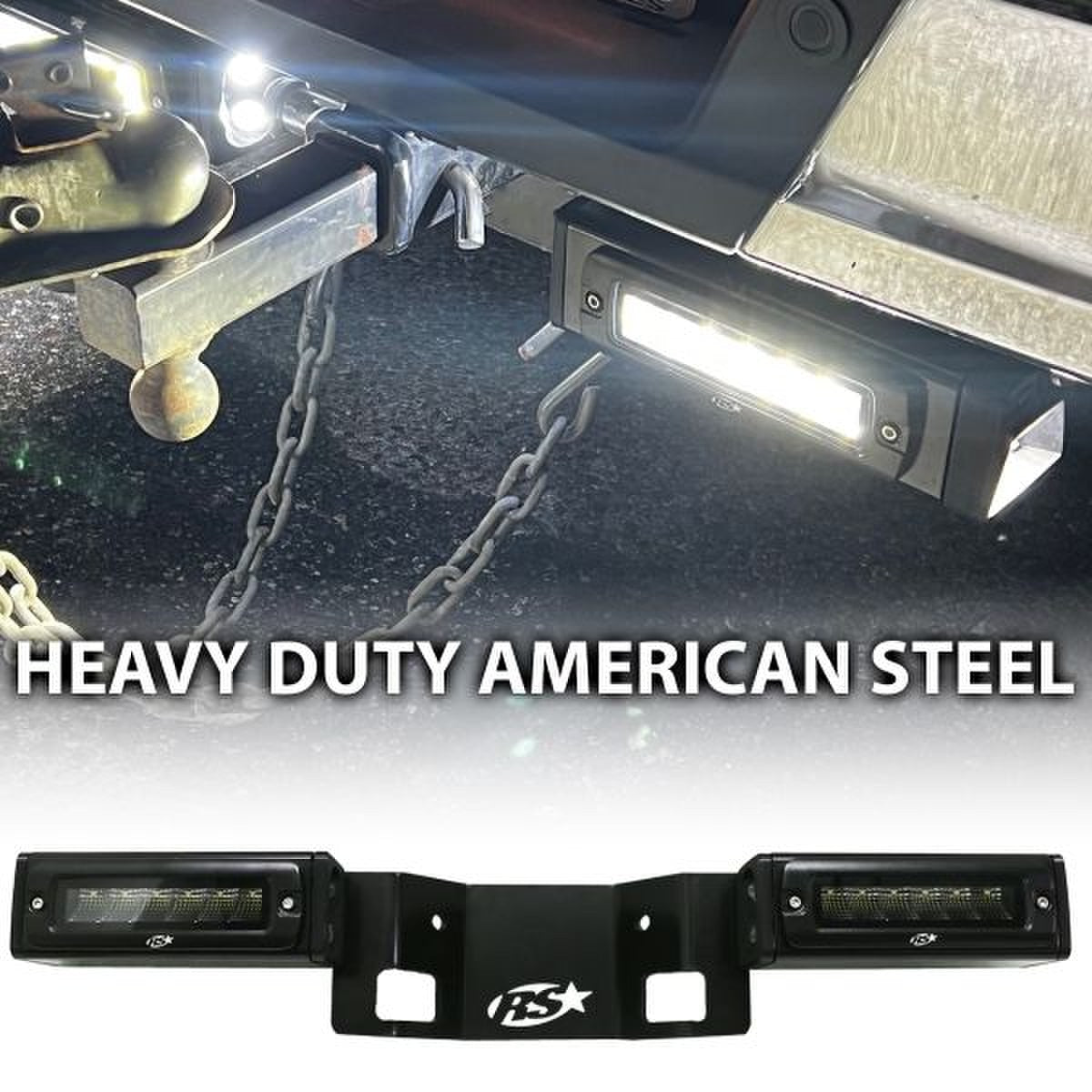

- Satin-black powder-coated steel construction

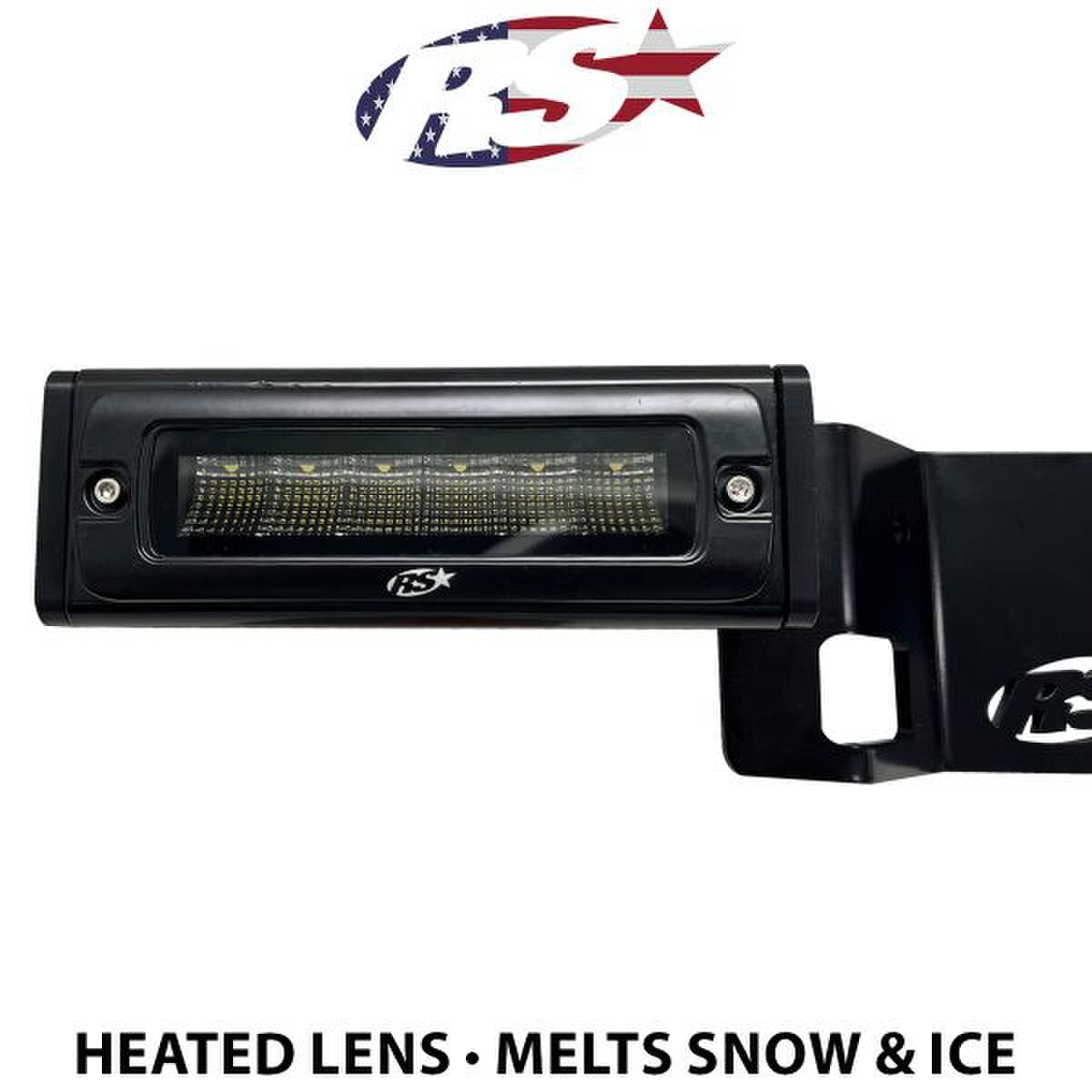

- Heated-lens Roadrunner flood lighting

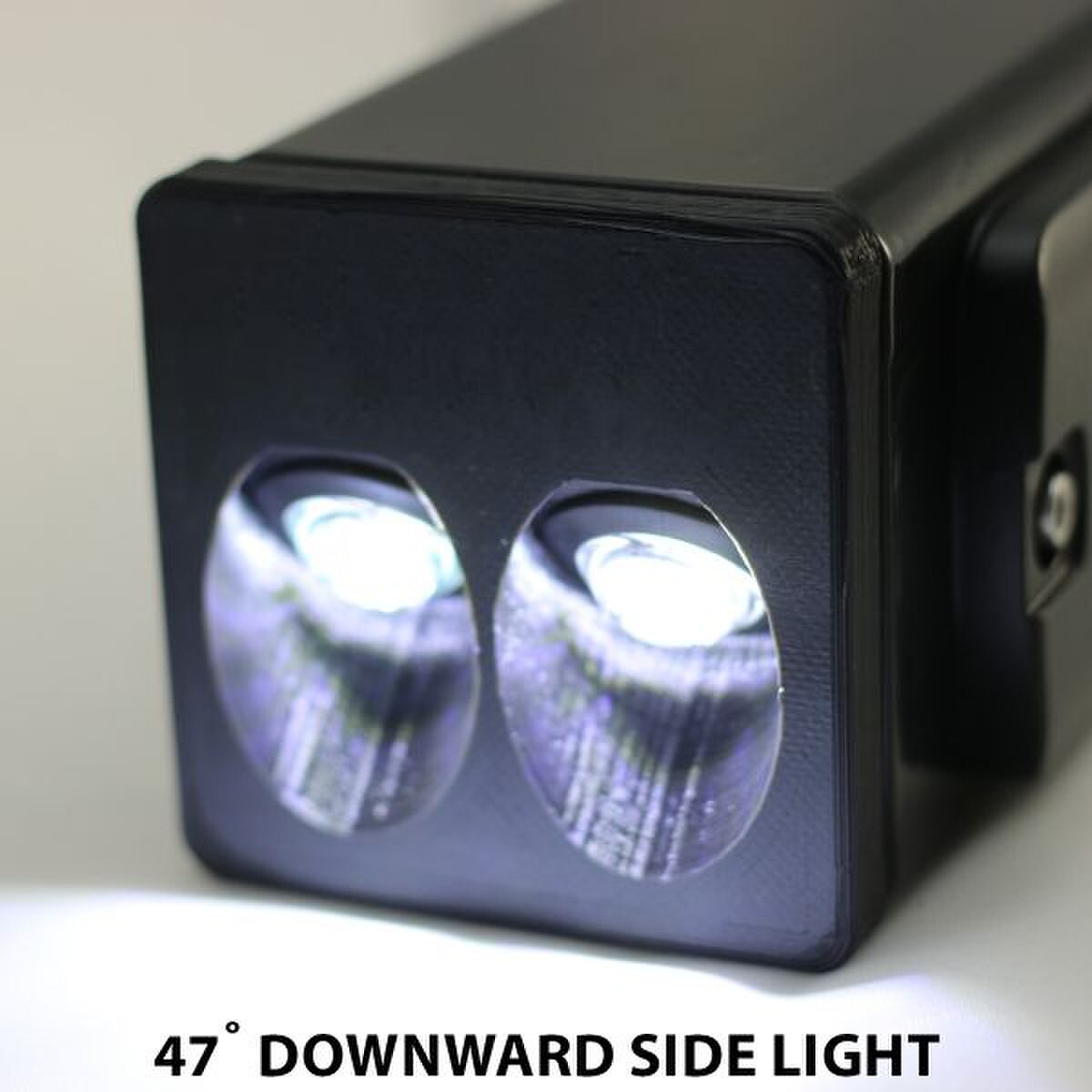

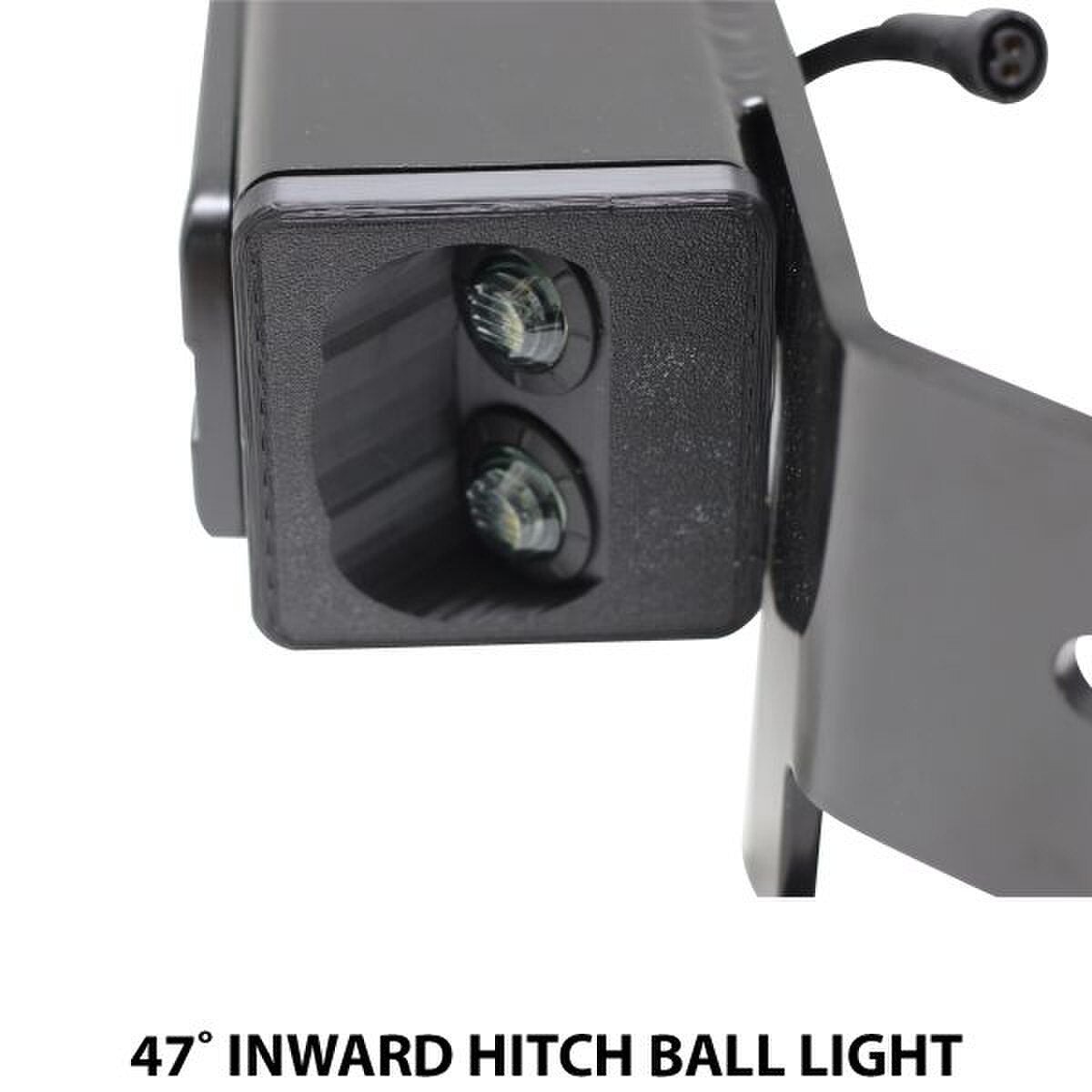

- Angled side lighting
- Installation harness includes an output for the separate strobe-plate accessory
Compatibility & Installation Requirements
Manufacturer lists 2020-and-later Jeep Gladiator with the matching factory hitch. Confirm exact year, hitch and rear accessories.
Use a fused power circuit and correctly rated wiring, switching and relays. Protect connections from water and abrasion, and verify mounting clearance through the full range of vehicle movement. Professional installation is recommended. Confirm full hitch, trailer, spare-tire and rear-step clearance. This lighting assembly is not a new towing hitch or a towing-capacity upgrade. Strobe plate is separate.
Included Equipment

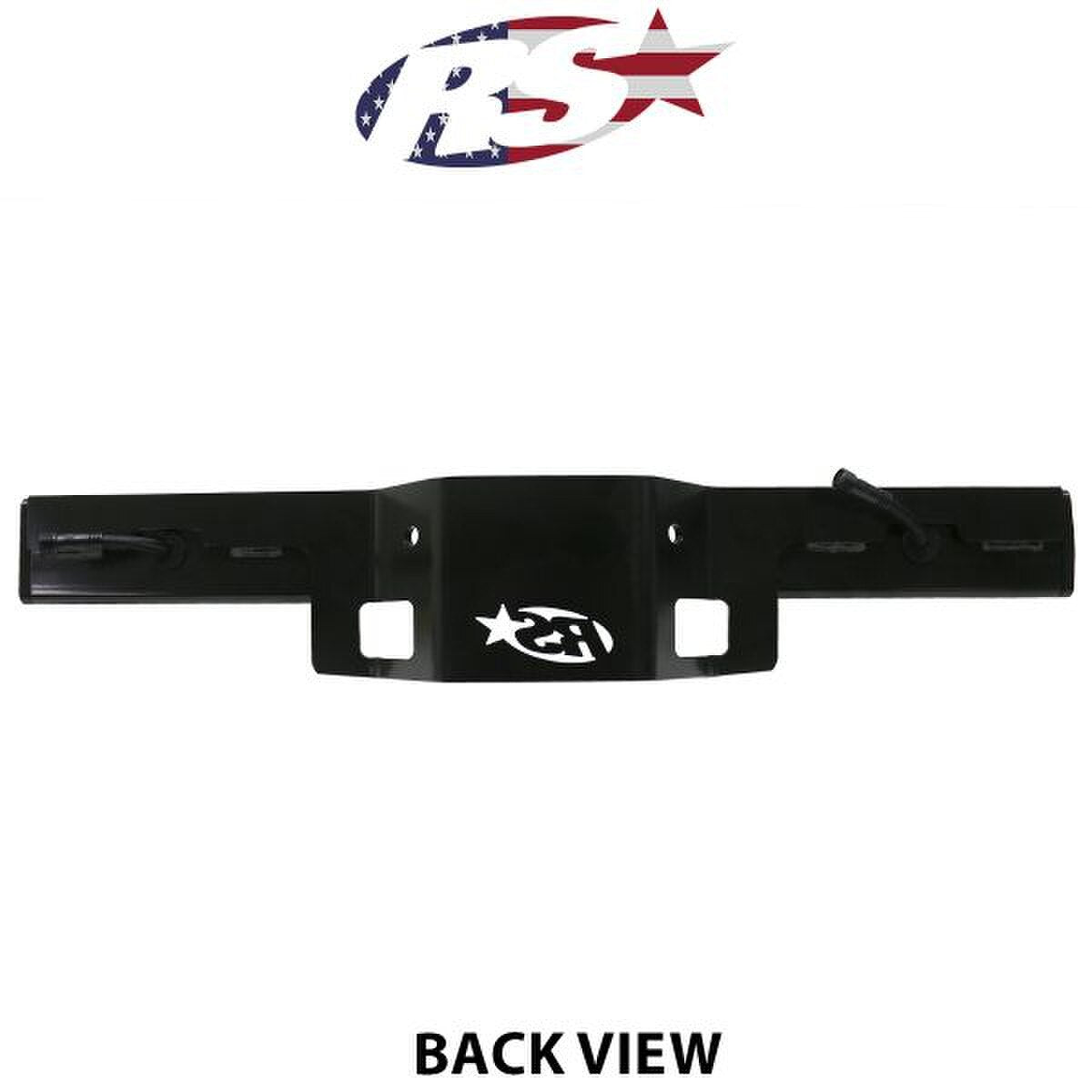

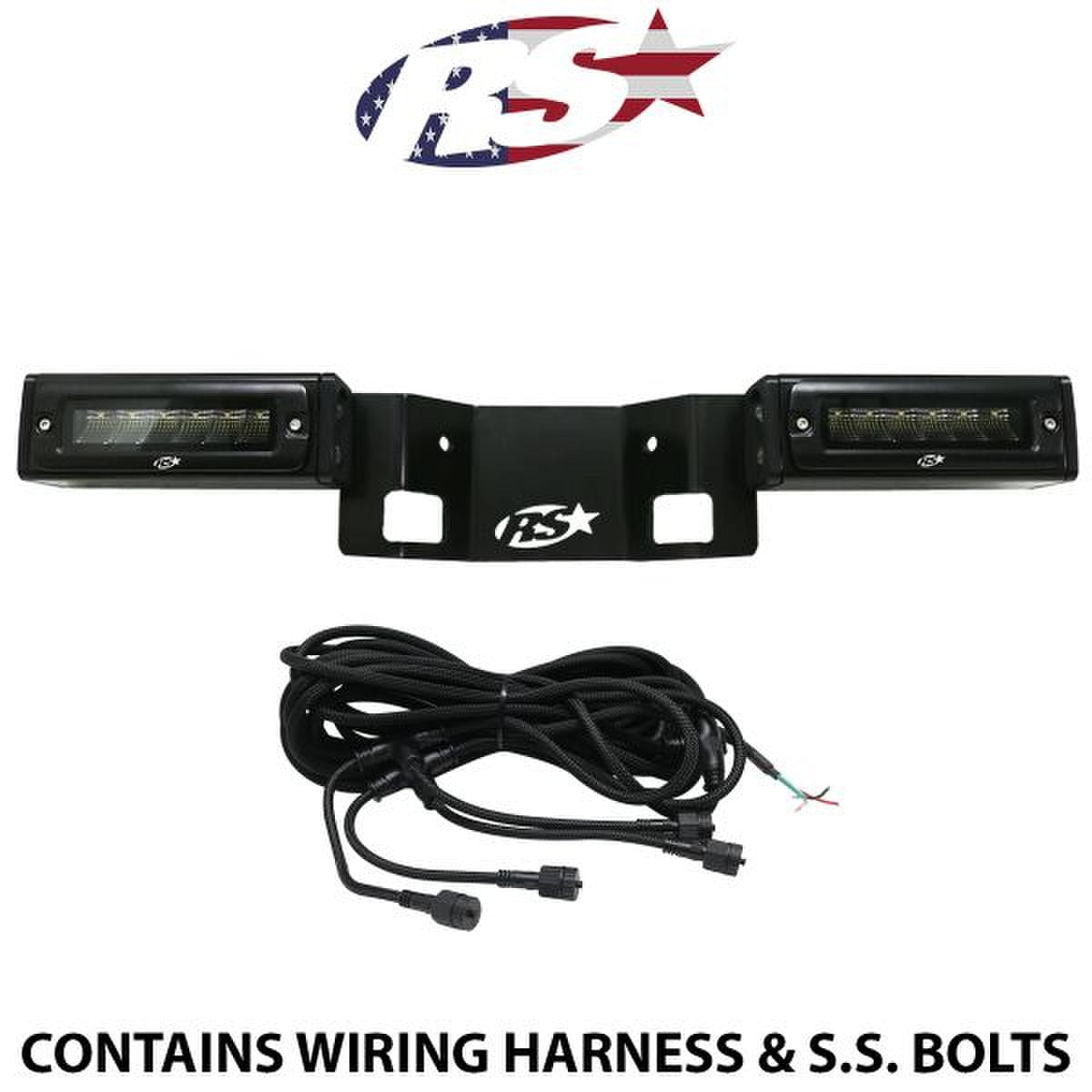

- Vehicle-specific hitch-bar lighting assembly
- Supplied installation harness and mounting equipment
Technical Specifications
| Brand | Race Sport Lighting |
|---|---|
| Model | JGHB20UP |
| UPC | 810077232903 |
| Sold as | One product or kit as described |
| Frame construction | 3 x 3-inch tube, 3/16-inch steel |
| End-cap arrangement | Dual inner/outer |
| Mounting | Two-bolt mounting |
| Supplied harness length | 25 ft |
| Light connector | 4-pin |
Help Choosing Your Setup
Tell MCOR Automotive your vehicle or vessel, intended mounting location and lighting goal. Contact us for help checking the lighting size, power requirements and installation parts before ordering.
