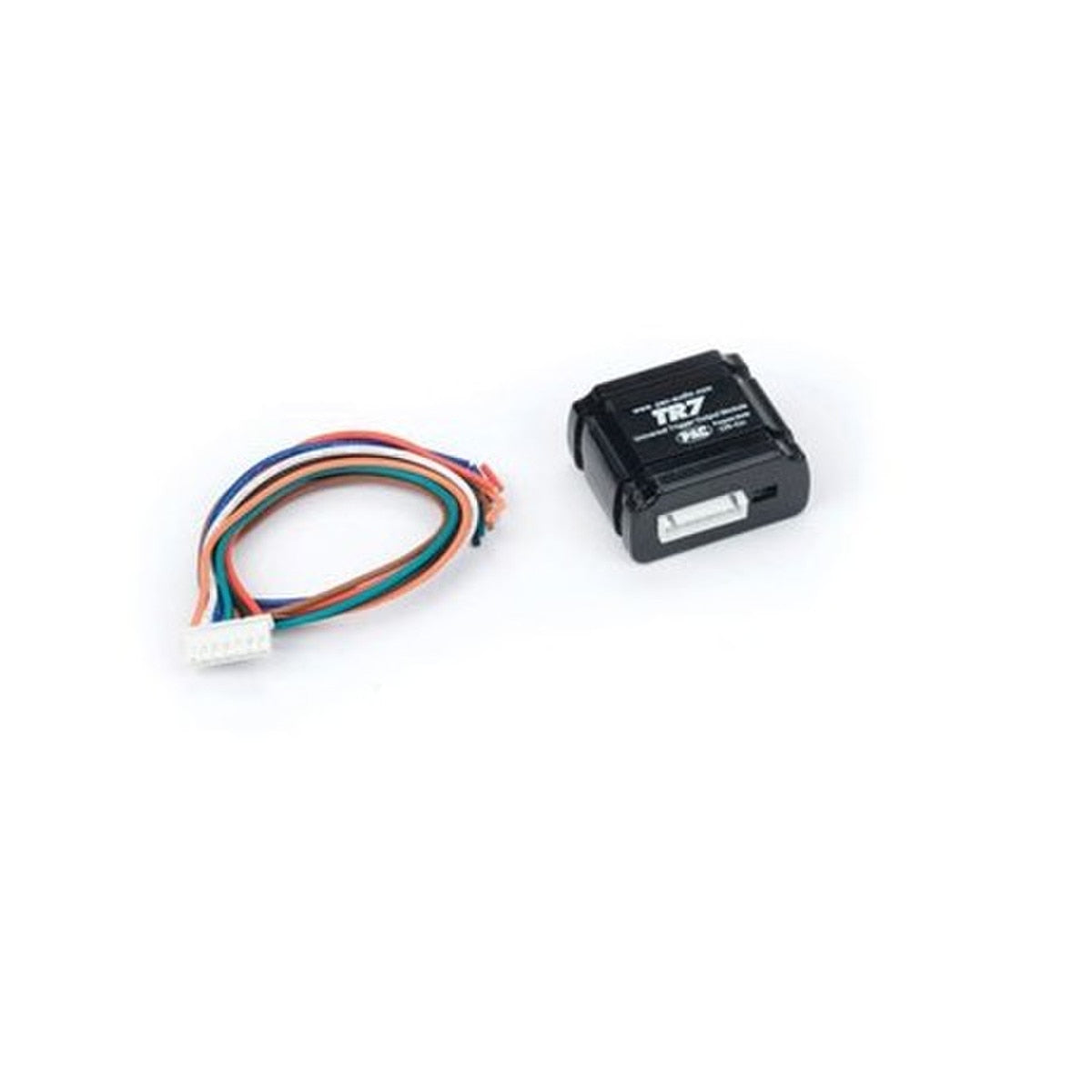

PAC TR7 Programmable Universal Trigger and Timer Module

Solve an accessory timing or trigger requirement with one configurable interface. TR7 supports low-voltage triggering, pulse control, latching and timed outputs for a properly designed automotive installation.

At a Glance

• Low-voltage trigger and latching modes
• Pulse extension and double-pulse functions
• Timed output and channel-splitting modes
• Amplifier turn-on delay and delayed turn-off options

Compatibility & Installation Requirements

Select the mode for the exact accessory circuit and verify output polarity/current in the manual. A universal trigger module is not a vehicle-specific radio or remote-start interface.

Navigation and video unlock functions are for appropriate passenger use only. Do not view video or operate navigation entry while driving; use must comply with local requirements. Unlocking a function does not add hardware or factory features that the vehicle lacks. Any motor, lock or higher-current load requires the appropriate external relay arrangement; do not connect loads beyond the module rating.

Included Equipment

• TR7 programmable trigger module

Technical Specifications

Manufacturer Resources & Warranty

• TR7 Manual

Help Choosing Your Setup

Tell MCOR Automotive your vehicle year, make, model, original radio and planned upgrade. Contact us for help checking the factory equipment, signal compatibility and installation parts before ordering.
