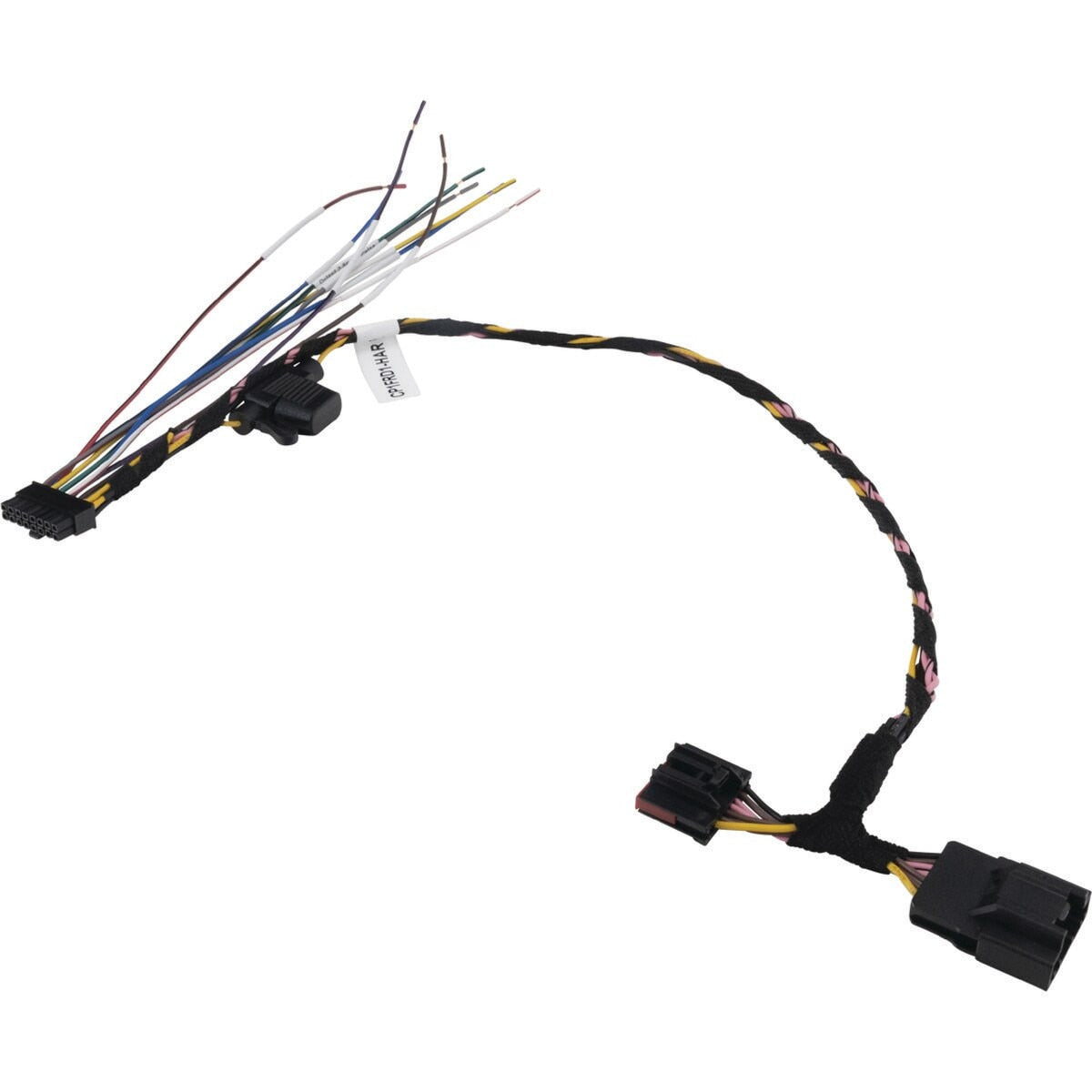

PAC CP1-FRD1 CANPRO Harness for Select Ford Steering-Column Connections

Connect the separately purchased CANPRO interface to the specified factory data connector without substituting a generic wiring splice. This matched harness is one part of a CAN-to-analog accessory-trigger installation.

At a Glance

• Factory-matched plug connection
• For use with the separate PAC CP1-S module
• Supports the vehicle-specific CANPRO signal configuration

Compatibility & Installation Requirements

Select Ford vehicles. Confirm the exact vehicle and 8-pin connector at steering column before ordering. This harness is not the CP1-S electronic interface.

Follow the exact CANPRO manual and vehicle power-down procedure. Outputs are triggers for suitable equipment; use relays when the connected load exceeds the module output rating. Do not interrupt a powered data connector.

Included Equipment

• CP1-FRD1 vehicle harness

Technical Specifications

Manufacturer Resources & Warranty

• CP1-FRD1 Manual.pdf

Help Choosing Your Setup

Tell MCOR Automotive your vehicle year, make, model, original radio and planned upgrade. Contact us for help checking the factory equipment, signal compatibility and installation parts before ordering.
