• PAC AmpPRO SUB APSUB-CH42 Subwoofer Amplifier Interface for Select Chrysler, Dodge, Jeep & Ram Vehicles
1 1

PAC

PAC AmpPRO SUB APSUB-CH42 Subwoofer Amplifier Interface for Select Chrysler, Dodge, Jeep & Ram Vehicles

PAC AmpPRO SUB APSUB-CH42 Subwoofer Amplifier Interface for Select Chrysler, Dodge, Jeep & Ram Vehicles

$239.00 USD
$239.00 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Vehicle fitment must match

Confirm your exact year, model, factory equipment, and any required companion parts before ordering.

Check your vehicle in the MCOR Fit Guide

Professional installation is recommended for this product.

The PAC AmpPRO SUB APSUB-CH42 subwoofer amplifier interface gives a compatible factory audio system a clean, controlled preamp signal for an aftermarket subwoofer amplifier or powered subwoofer while keeping the original radio and supported factory audio functions.

At a Glance

  • Vehicle-specific interface for adding bass to a supported factory amplified audio system
  • Two non-fading subwoofer preamp outputs with selectable 4- or 5-volt RMS level
  • Includes a wired level control for adjusting aftermarket subwoofer output from the front seat
  • Provides a data-controlled remote turn-on output for the aftermarket amplifier
  • Retains supported factory radio controls, chimes, prompts, Bluetooth and communication audio
  • Aftermarket amplifier or powered subwoofer, power wiring, RCA cables and installation materials are sold separately

Exact Vehicle Compatibility

Use the table below to match your vehicle and factory audio equipment. A year and model match by itself is not enough—the factory amplifier, premium-audio system, radio connector, screen and option details shown for the application must also match.

Make Model Years Factory Audio / Equipment
Chrysler Pacifica 2021-2022 compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; 12 / 32-Pin Radio Plugs
Dodge Durango 2021-2024 compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; 12 / 32-Pin Radio Plugs; 10-inch factory screen and factory amplifier
Dodge Ram Truck 2022-2024 compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; 12 / 32-Pin Radio Plugs
Dodge Ram Truck 2025-2026 compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; 12 / 32-Pin Radio Plugs
Jeep Gladiator JL 2024-2025 compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors
Jeep Grand Cherokee 2022+ compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; All listed trims; current firmware required
Jeep Grand Cherokee L 2021+ compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; All listed trims; current firmware required
Jeep Grand Wagoneer 2022+ compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; Excludes Wagoneer EV; current firmware required
Jeep Wagoneer 2022+ compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors; All listed trims; current firmware required
Jeep Wrangler JL 2024-2026 compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors

Compatibility & Installation Requirements

  • Factory system: compatible data-bus-controlled factory amplified system using the listed 12-pin and 32-pin radio connectors.
  • System design: This interface adds subwoofer-level outputs; it does not replace the factory radio, factory amplifier, aftermarket amplifier, or subwoofer.
  • Signal and power: The aftermarket amplifier or powered subwoofer requires appropriate power/ground wiring and RCA signal cables.
  • Programming: Use current PAC firmware and follow the current application guide for the exact vehicle.
  • The factory radio and factory amplifier must remain connected and operational.
  • Screen, connector, body-style and factory-audio requirements must match the exact application.
  • Professional installation and system tuning are strongly recommended.

Technical Specifications

Brand PAC
Manufacturer Part Number APSUB-CH42
Product Family AmpPRO SUB
Audio Outputs Two non-fading subwoofer preamp outputs; selectable 4 or 5 volts RMS
Low-Pass Filter 350 Hz, 24 dB/octave
UPC 609098906487
Current Manufacturer Resource APSUB-CH42 Manual

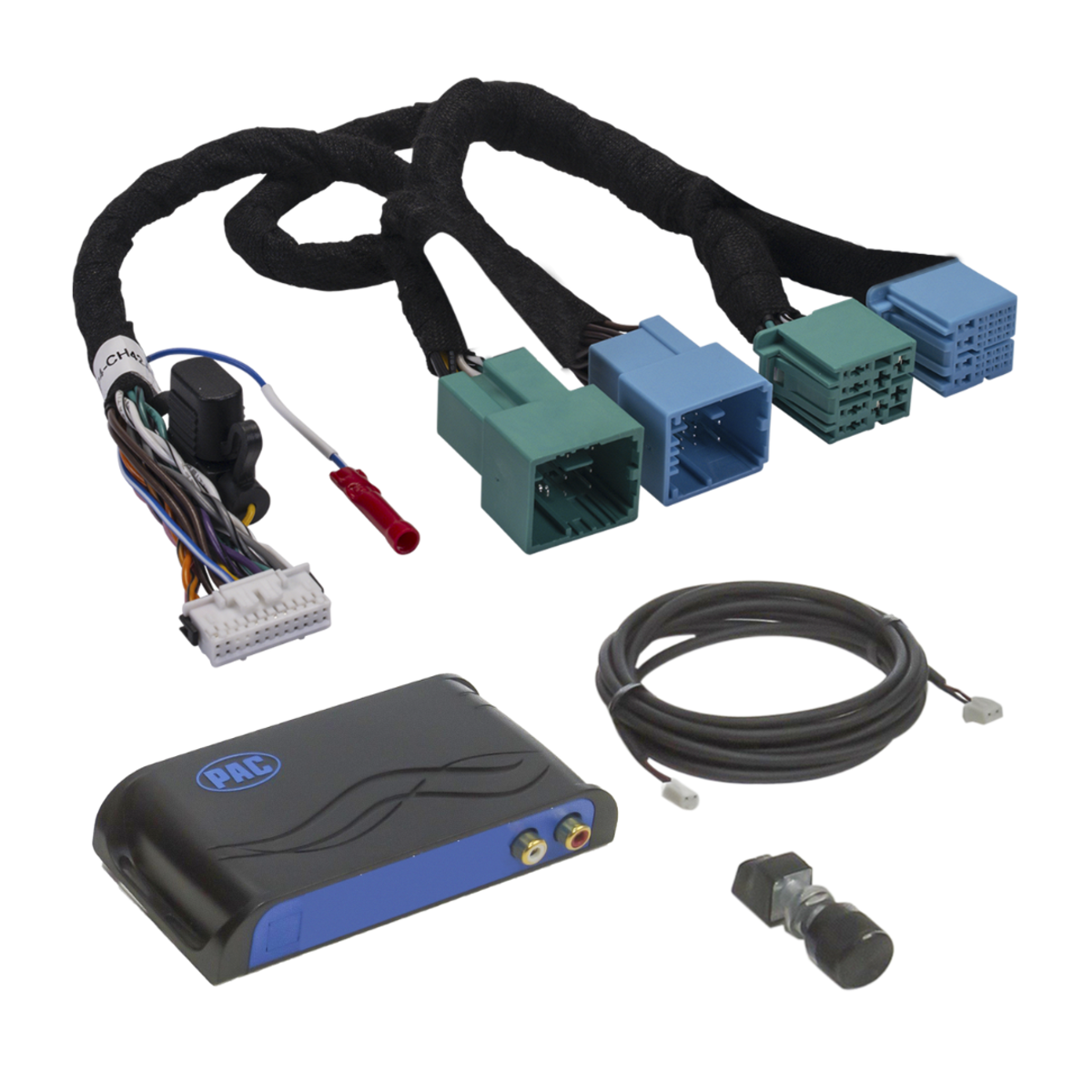

What's Included

  • One genuine PAC AmpPRO SUB APSUB-CH42 interface module
  • Manufacturer-supplied vehicle-specific connection harnesses for this exact part number
  • Wired subwoofer-level control and connection lead

Sold separately: aftermarket subwoofer amplifier or powered subwoofer, amplifier power/ground wiring, RCA cables, subwoofer enclosure and general installation materials.

Fitment disclaimer: Verify the exact vehicle, factory radio, premium-audio brand, amplifier, connector style, screen, firmware and option content before ordering. Product photos show the listed interface package; surrounding installation equipment is not included. Contact MCOR Automotive through the chat button for application help.
