Kenwood eXcelon P-XW1221SHP 12" Ported Subwoofer Enclosure 2000W Max 500W RMS

***This Item requires an additional 3-5 Days Handling Time***

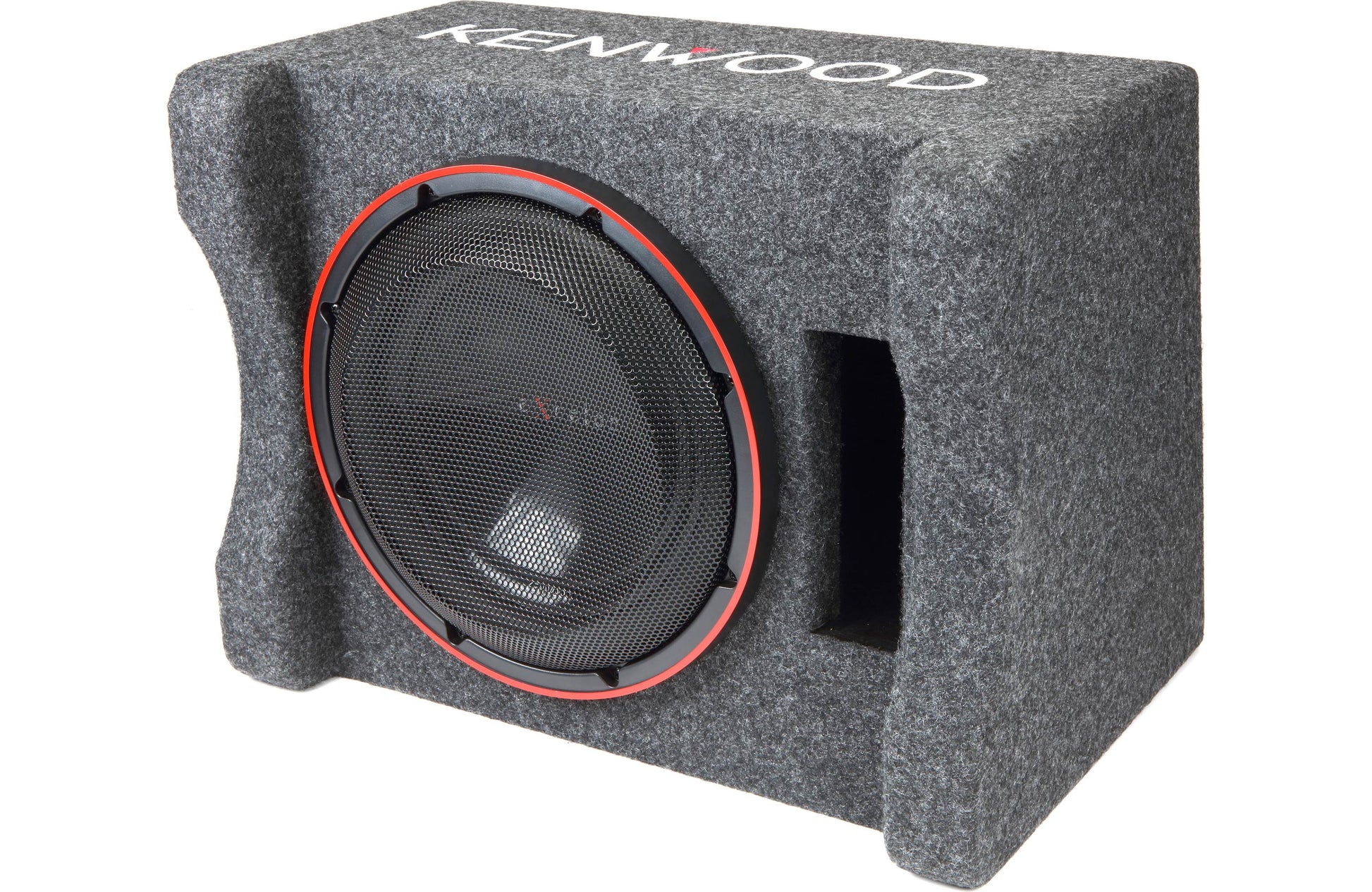

The Kenwood eXcelon P-XW1221SHP is a preloaded 12" ported high-power subwoofer enclosure built for buyers who want stronger low-frequency output without having to source a separate woofer and box. It combines a single high-power 12" eXcelon subwoofer with a matched ported enclosure designed for harder-hitting bass, cleaner airflow, and practical fitment in common trunk and cargo-area installs.

For systems that need a straightforward bass upgrade with more output and higher RMS handling than basic loaded enclosures, the P-XW1221SHP gives you a ready-to-install solution using Kenwood’s matched high-power woofer-and-box design.

Key Features

• Preloaded 12" ported high-power subwoofer enclosure
• 2000 watts max power handling
• 500 watts RMS power handling
• Single 2-ohm woofer load
• PP dual area cap cone design
• Steel mesh grille included
• Down-firing capable enclosure design
• Flared port helps reduce port noise
• 8 AWG-ready spring terminal connections

Sound & Subwoofer Design

• Loaded woofer: 12" Kenwood eXcelon high-power subwoofer
• Base woofer model: KFC-XW1221HP
• Cone: PP dual area cap
• Thermal design: Aluminum bobbin with closed yoke and advanced airflow control
• Suspension: Stress Controlled Spider
• Nominal impedance: 2 ohms
• Frequency response: 30Hz - 300Hz
• Ported enclosure design is built for stronger output and deeper bass presence than a typical sealed box

Installation & Fitment Notes

• Enclosure type: Ported preloaded enclosure

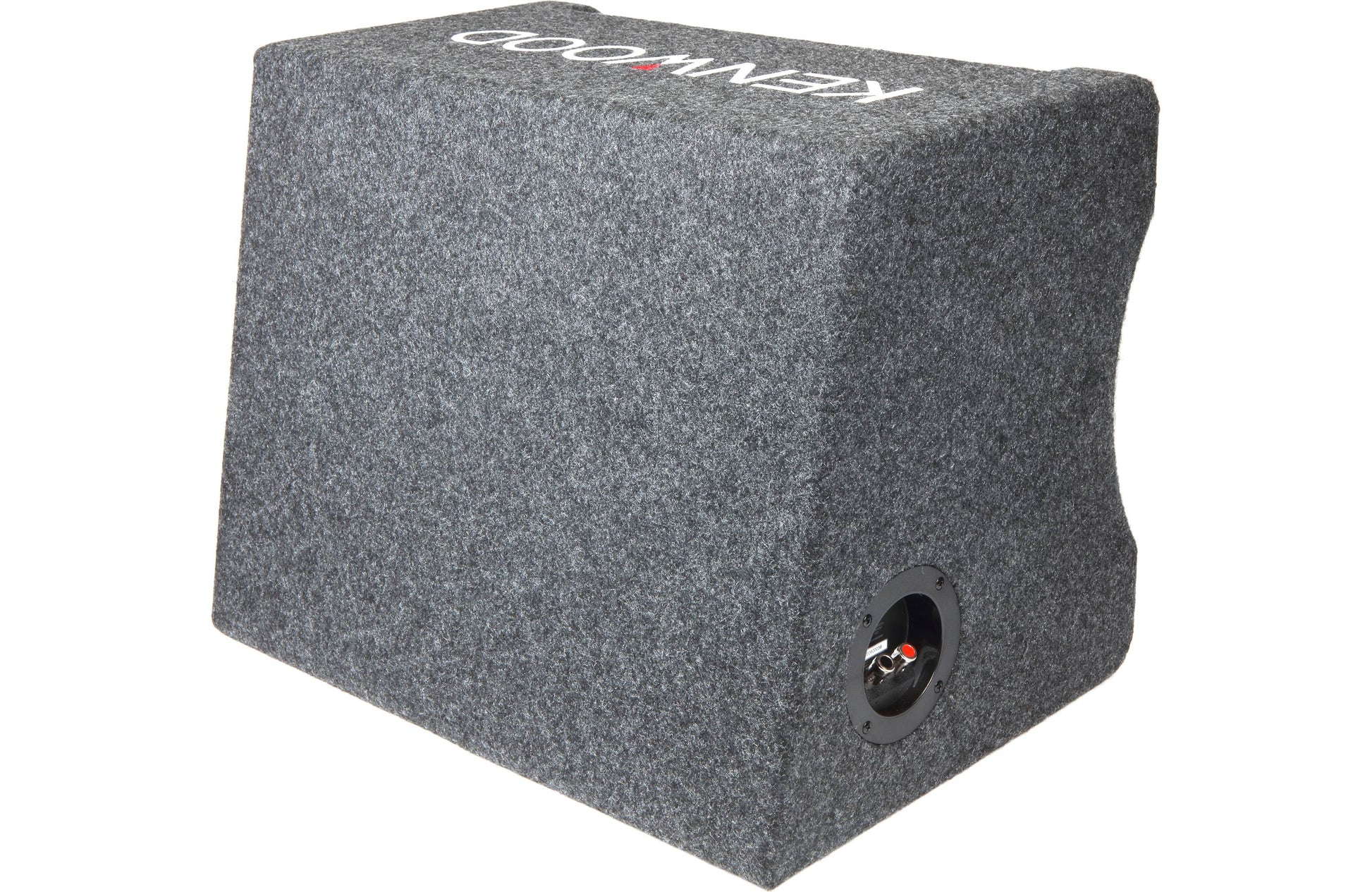

• Cabinet design: Slant-back with flared port
• Construction: 5/8" MDF with 3/4" MDF baffle board

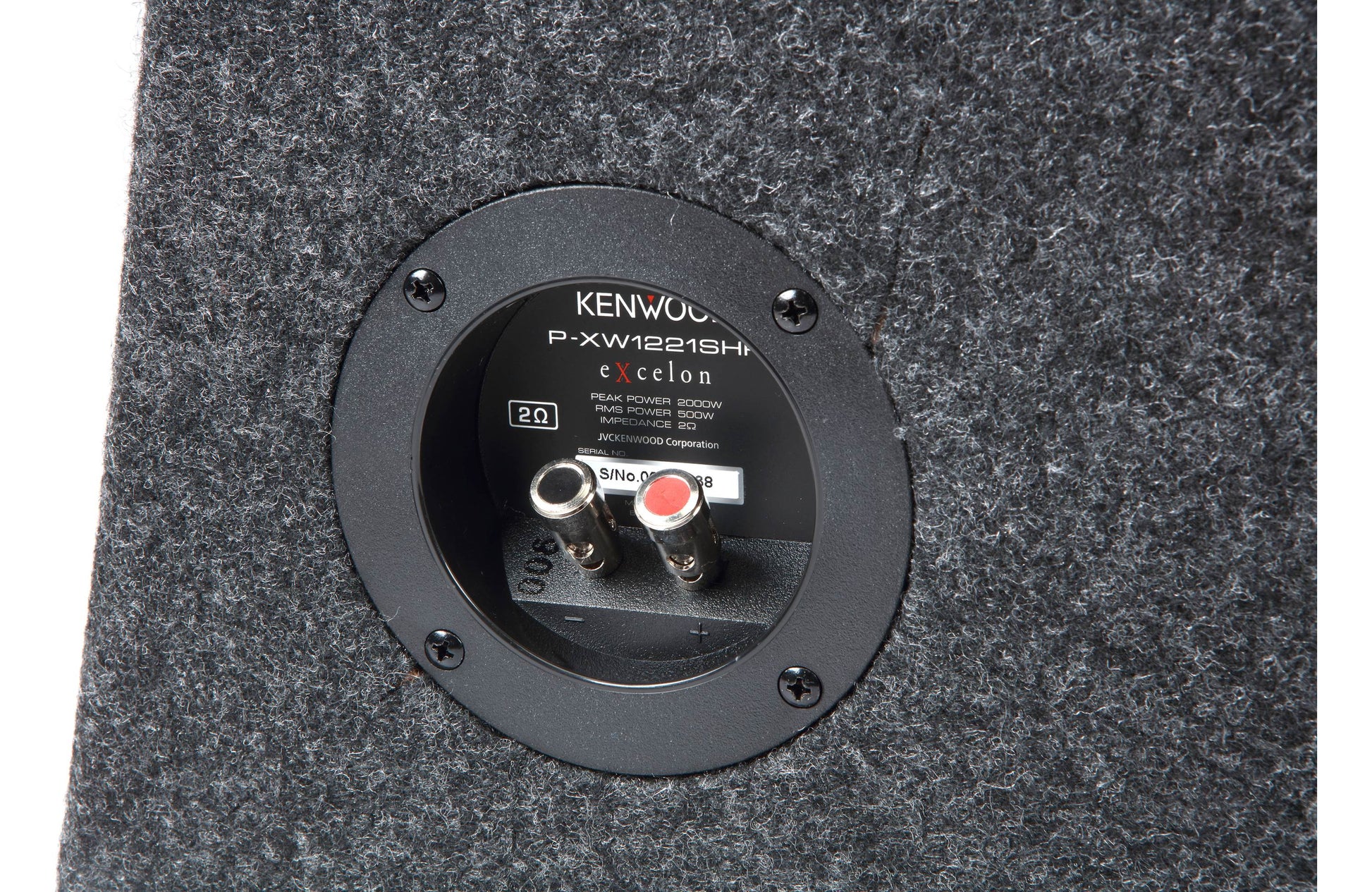

• Terminal type: Spring post terminals that accept up to 8-gauge wire
• Down-firing capable: Yes
• Dimensions: 20-7/8" W x 15-13/16" H x 14-5/8" D
• Final performance depends on correct amplifier matching, vehicle space, and installation quality

Technical Specifications

• Model: P-XW1221SHP
• Product type: Preloaded high-power subwoofer enclosure
• Woofer size: 12"
• Woofer quantity: 1
• Base woofer: KFC-XW1221HP
• Maximum peak power: 2000W
• Rated input power (RMS): 500W
• Nominal impedance: 2 ohms
• Frequency response: 30Hz - 300Hz
• Enclosure material: Medium Density Fiberboard
• Grille: Steel mesh included

Identifiers & Packaging

• Manufacturer Part Number (MPN): P-XW1221SHP
• UPC: 019048231727
• Sold As: Each
• Included Components: One preloaded ported high-power subwoofer enclosure with integrated 12" woofer, steel mesh grille, and manufacturer-supplied documentation as packaged by Kenwood
