JL Audio Rotary DRC Adaptor for MVi Amplifiers (MVi-DRCADAPT) - 010-13865-00 (99946)

***This item may have an additional 3 days handling time***

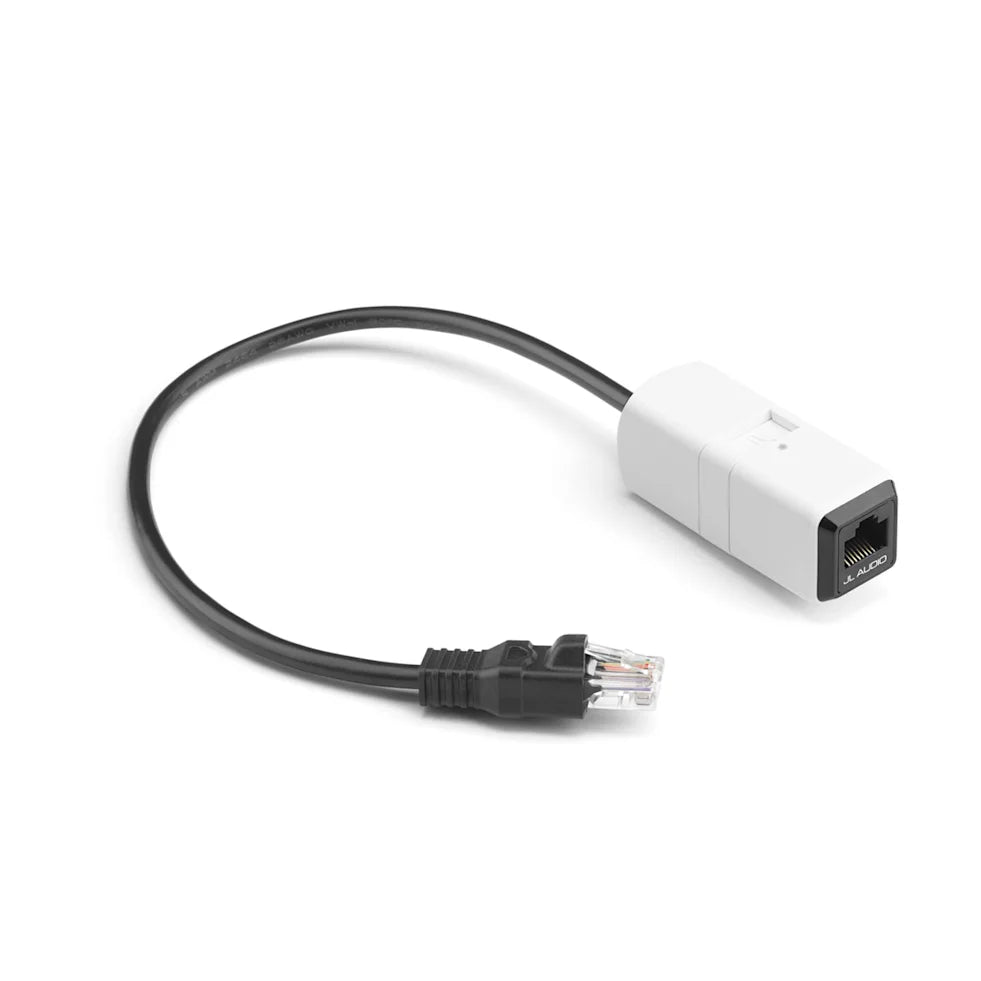

JL Audio MVi-DRCADAPT Rotary DRC Adaptor is a dedicated interface that allows a JL Audio DRC-205 rotary remote controller to connect to compatible JL Audio MVi series amplifiers. It plugs directly into the JLid-COMM port, enabling clean, integrated remote level control without the need for separate power wiring.

The adapter draws power from the JLid network and includes an integrated RGB status LED for system and fault indication. It is designed specifically for MVi amplifiers and is not compatible with JL Audio mono MV amplifiers, the MVi-HUB, or the M-DRC-50 push-button controller.

Key Features

• Adapter to connect a DRC-205 rotary controller to JL Audio MVi amplifiers
• Direct plug-in to JLid-COMM port for clean, integrated installation
• No separate power or ground wiring required (powered via JLid)
• Integrated RGB LED for status and fault indication
• Purpose-built for JL Audio MVi amplifier systems

System / Wiring Notes

• Connects to the JLid-COMM port on compatible JL Audio MVi amplifiers
• Designed for use with the DRC-205 rotary controller only
• Not compatible with JL Audio mono MV amplifiers
• Not compatible with the MVi-HUB network hub
• Not compatible with the M-DRC-50 push-button controller

Installation Notes

Plug the MVi-DRCADAPT into the JLid-COMM port on the MVi amplifier and connect the DRC-205 controller cable to the adapter. Verify component compatibility before installation. No additional power or ground connections are required.

What’s Included

• JL Audio MVi-DRCADAPT Rotary DRC Adapter
• Installation documentation

Identifiers & Packaging
