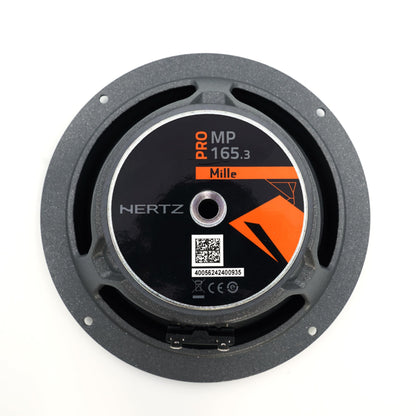

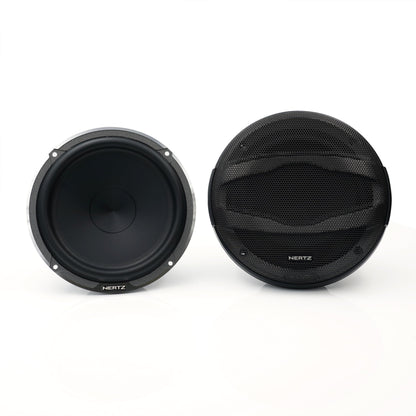

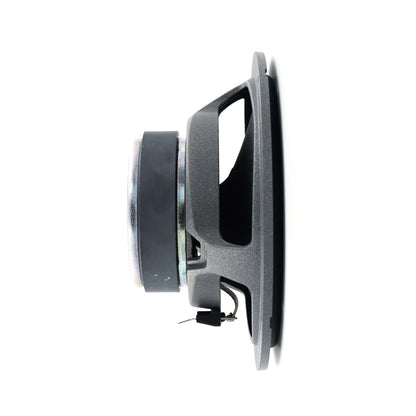

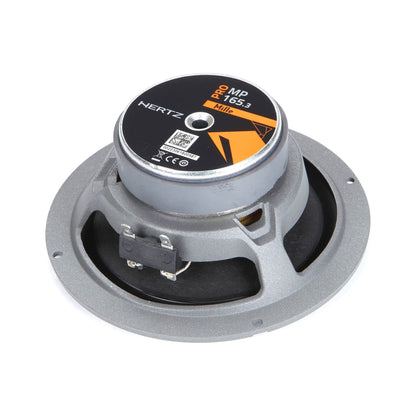

Hertz MPK 165.3 PRO is a 2-way 6.5" component speaker system engineered for a wide low-frequency response and high output, making it a strong choice for vehicles where subwoofer space is limited. The MP 165.3 woofer uses V-cone® and Boundary Free Surround technologies to improve dispersion and generate high SPL from a compact footprint.

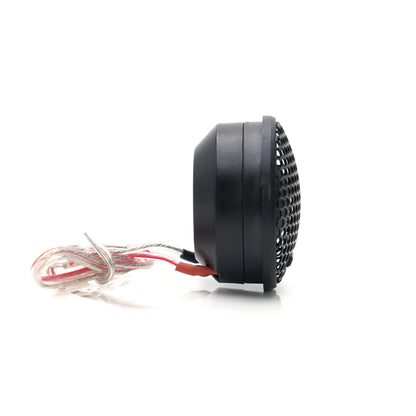

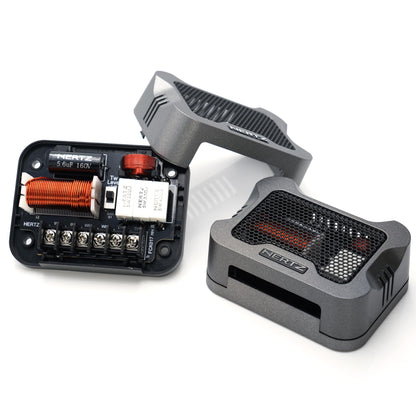

The included MPCX 2.3 passive crossover is tuned to take advantage of the woofer’s extension while ensuring a smooth transition to the MP 25.3 tweeter for a natural, balanced top end. A low parasitic-resistance copper filter coil supports efficiency, and the crossover provides tweeter level adjustment (0 / +2 dB) to match the tweeter output to the woofer and vehicle acoustics.
Key Performance Features
2-way component speaker system designed for strong midbass without requiring a subwoofer
V-cone® + Boundary Free Surround for wide dispersion and high SPL
MPCX 2.3 dedicated passive crossover for smooth woofer-to-tweeter transition
Tweeter level control: 0 / +2 dB
High-efficiency design with low-resistance copper filter coil
System Architecture
Configuration: 2-way component system
Crossover Type: 2-way passive crossover
Crossover Cutoff: 3.5 kHz
Technical Specifications
Size: 165 mm (6.5")
Impedance: 4 Ω
Power Handling (Continuous): 110 W
Power Handling (Peak): 220 W
Sensitivity: 92 dB SPL
Frequency Response: 40 Hz – 22.5 kHz
Tweeter Diaphragm: 29 mm (1.14")
Woofer Voice Coil Ø: 25 mm (1")
Tweeter Voice Coil Ø: 25 mm (1")
Component Weight (Woofer): 1.07 kg (2.36 lb)
Component Weight (Tweeter): 0.07 kg (0.15 lb)
Component Weight (Crossover): 0.16 kg (0.35 lb)
Woofer Electro-Acoustic Parameters
D: 132 mm
Re: 3.1 Ω
Fs: 70 Hz
Le: 0.3 mH
Vas: 9.5 L
Mms: 14.9 g
Cms: 0.36 mm/N
BL: 5.5 T·m
Qts: 0.58
Qes: 0.67
Qms: 4.6
SPL: 93 dB
Buyer Use Cases
Upgrading factory speakers with a real component set (better staging + clarity)
Systems needing stronger midbass where a subwoofer isn’t practical
Front-stage focused builds using passive crossovers
What’s Included

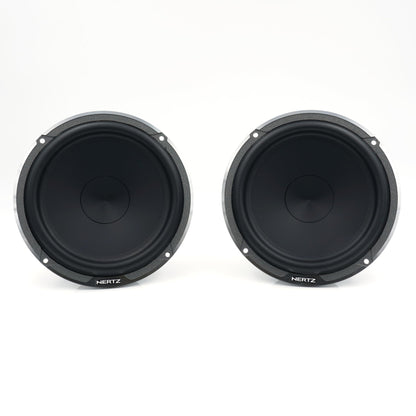

(2) MP 165.3 woofers

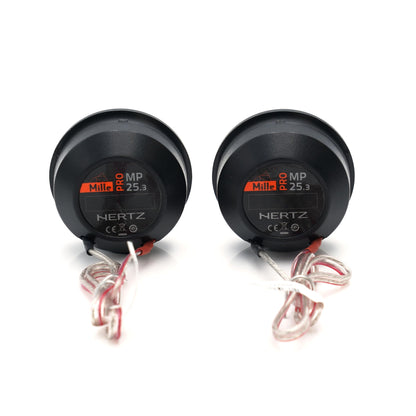

(2) MP 25.3 tweeters
MPCX 2.3 passive crossovers (as supplied by manufacturer)
Manufacturer documentation
Why Buy From MCOR Automotive
Expert speaker system matching (amps, crossovers, tuning approach)
Install-focused support from a real-world restyling/audio shop
Fast fulfillment with knowledgeable help when you need it
Fitment, Installation & Warranty Notes
Fitment Help: Need help confirming fitment, compatibility, amplifier matching, or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer: MCOR Automotive is an authorized Hertz retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
