Metra 99-8163 TurboTouch Dash Kit for Lexus IS250/IS350 2006-2015

Metra 99-8163 is a TurboTouch radio installation dash kit for 2006-2015 Lexus IS250 and IS350 vehicles without factory navigation. It supports Single-DIN or Double-DIN aftermarket radios while retaining climate control functions through a touchscreen display.

At a Glance

• TurboTouch dash kit for 2006-2015 Lexus IS250 and IS350 without factory navigation
• ISO Double-DIN radio provision
• ISO Single-DIN radio provision with pocket
• Touchscreen display for factory climate control functions
• Includes passenger seat belt and airbag indicator provisions
• Painted two-tone gray and black for a factory-style appearance

System / Wiring Notes

• Axxess touchscreen interface and wiring harnesses are included
• Antenna adapter is included with the kit
• Amp bypass harness is included with the kit
• Factory amplifier is not retained and must stay plugged into the vehicle for factory HVAC operation when using the listed amp bypass harnesses
• The kit does not provide navigation outputs such as VSS, parking brake, and reverse for aftermarket navigation radios

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

• Confirm exact vehicle year, trim, factory radio configuration, and factory audio system before installation
• Additional parts such as a wiring harness, antenna adapter, steering wheel control interface, or amplifier integration interface may be required for a complete radio installation
• Professional installation is recommended for best fit, wiring integration, and system setup
• Factory amplifier, HVAC, indicator, and interface wiring must be verified before installation

What’s in the Box

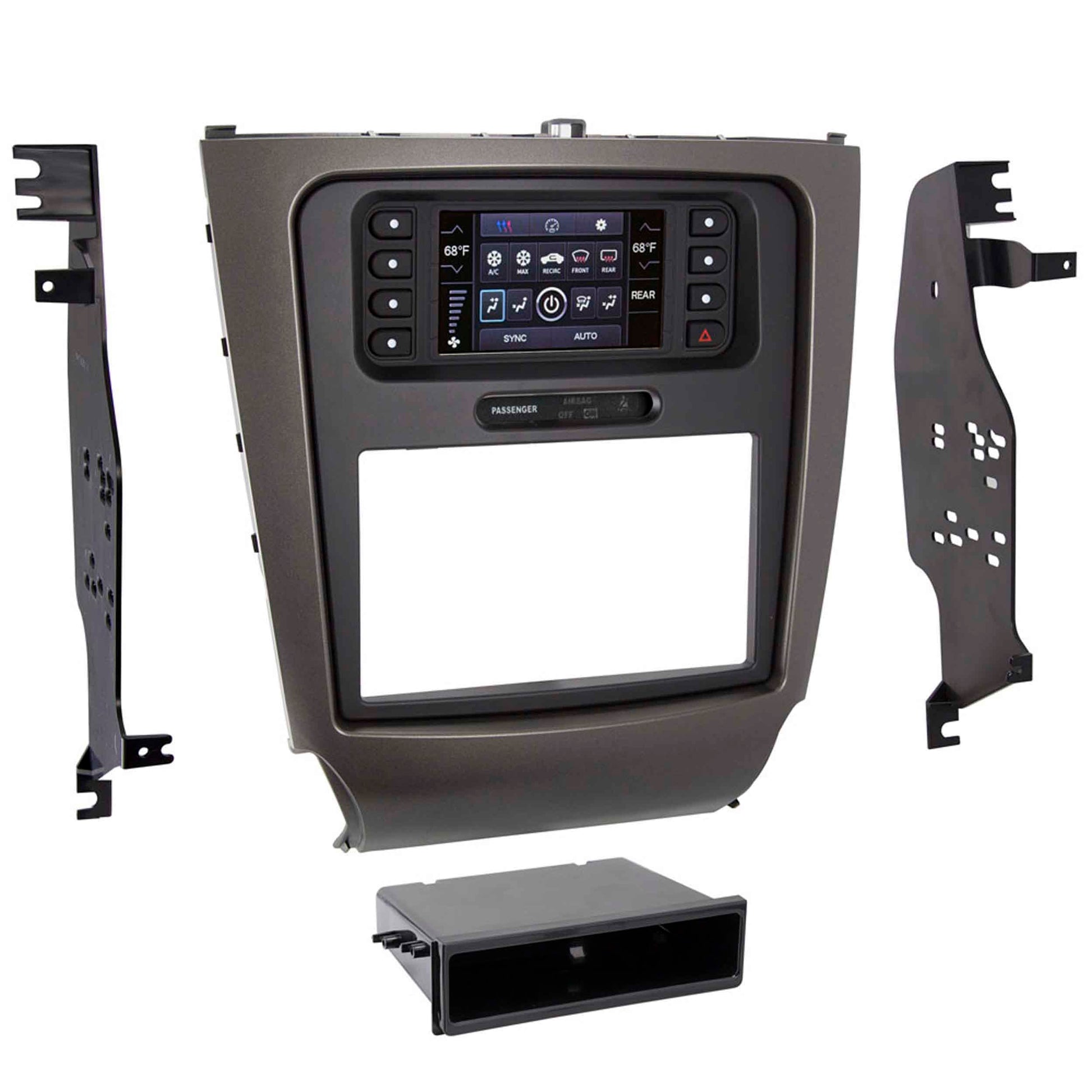

• Metra 99-8163 TurboTouch radio installation dash kit
• Axxess touchscreen interface, wiring harnesses, antenna adapter, amp bypass harness, brackets, pocket, and hardware as supplied by Metra

Technical Specifications

• Brand: Metra
• Model: 99-8163
• Product Type: TurboTouch radio installation dash kit
• Application: 2006-2015 Lexus IS250/IS350 without factory navigation
• Radio Provision: ISO Double-DIN or ISO Single-DIN with pocket
• Retained Features: Climate control functions via touchscreen
• Included Interfaces: Axxess touchscreen interface, wiring harnesses, antenna adapter, and amp bypass harness
• Color: Two-tone gray and black
• Compatibility Type: Vehicle-specific

Identifiers & Packaging

• MPN: 99-8163
• UPC: 086429340750
• Sold As: Kit
• Included Components: TurboTouch dash kit, Axxess touchscreen interface, wiring harnesses, antenna adapter, amp bypass harness, and installation components as supplied by Metra
