Metra 99-6523 Single-DIN Dash Kit for Ram ProMaster
Metra 99-6523 Single-DIN Dash Kit for Ram ProMaster
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

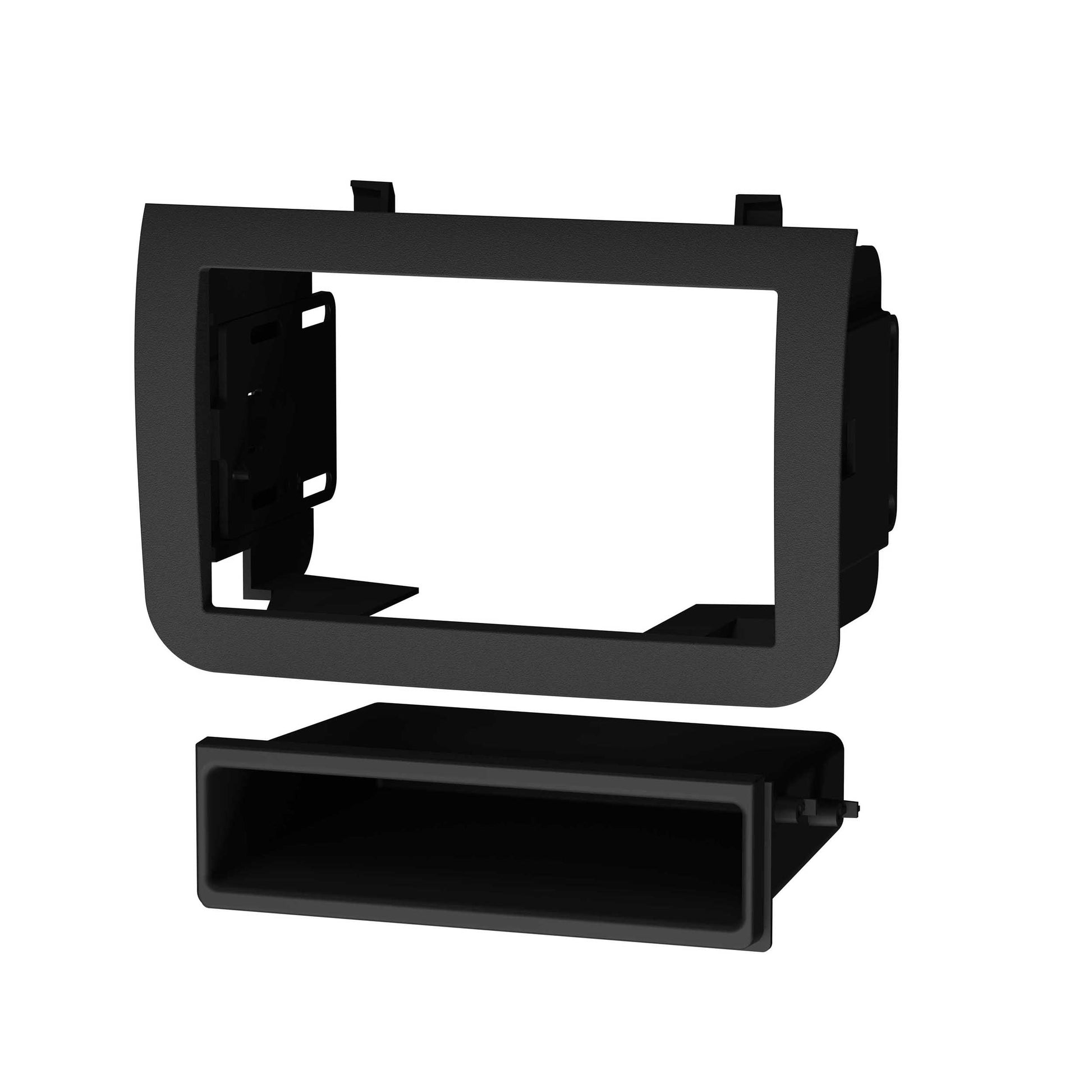

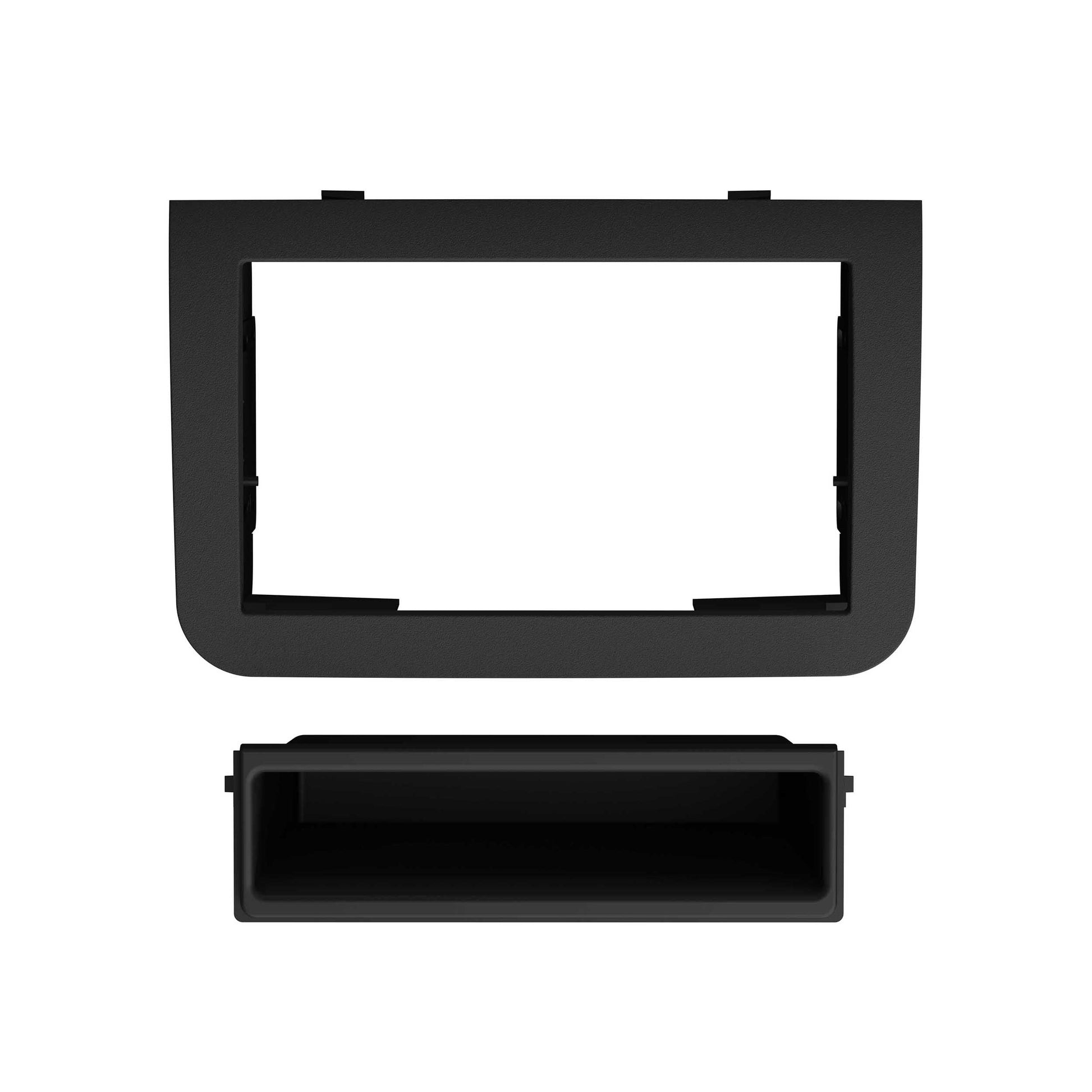

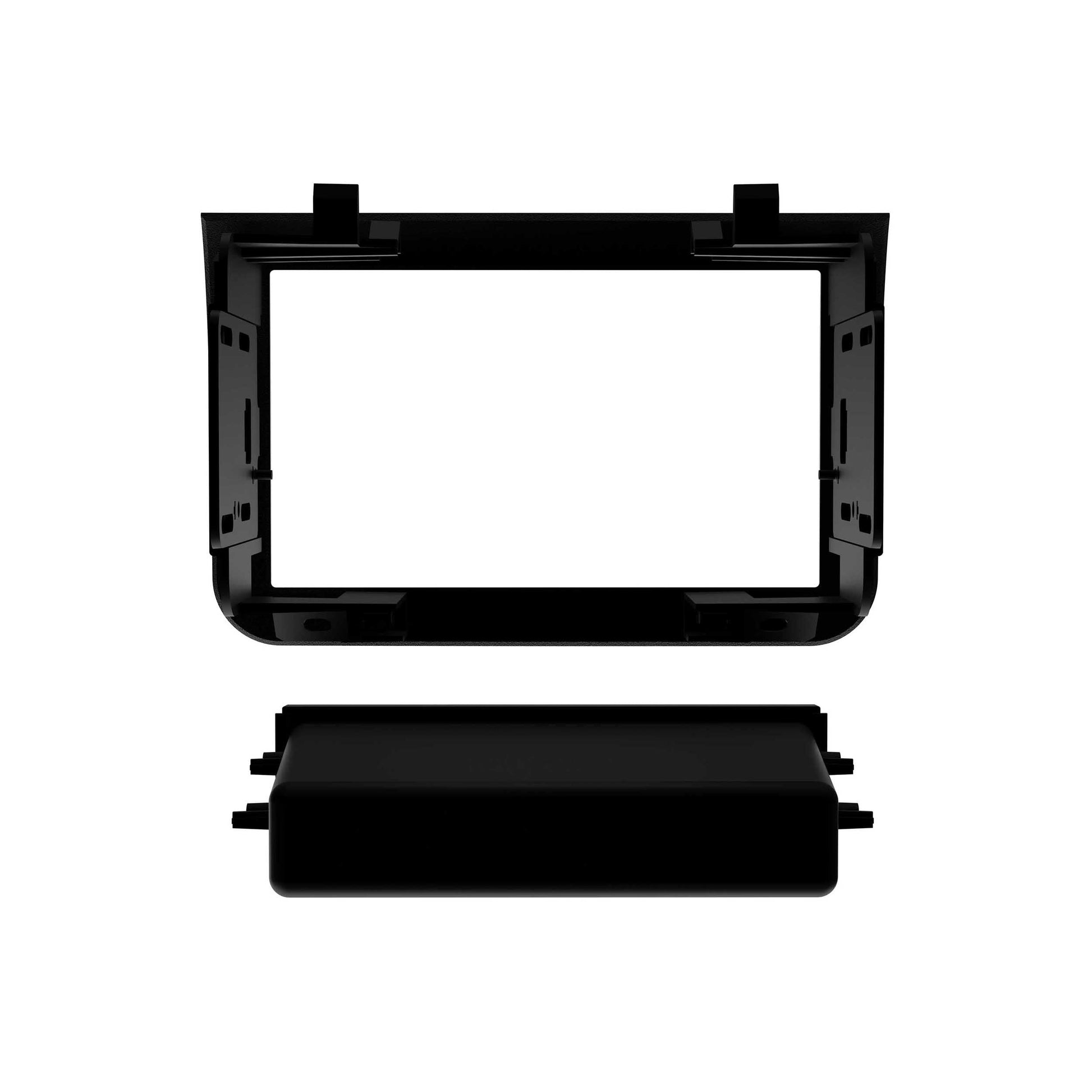

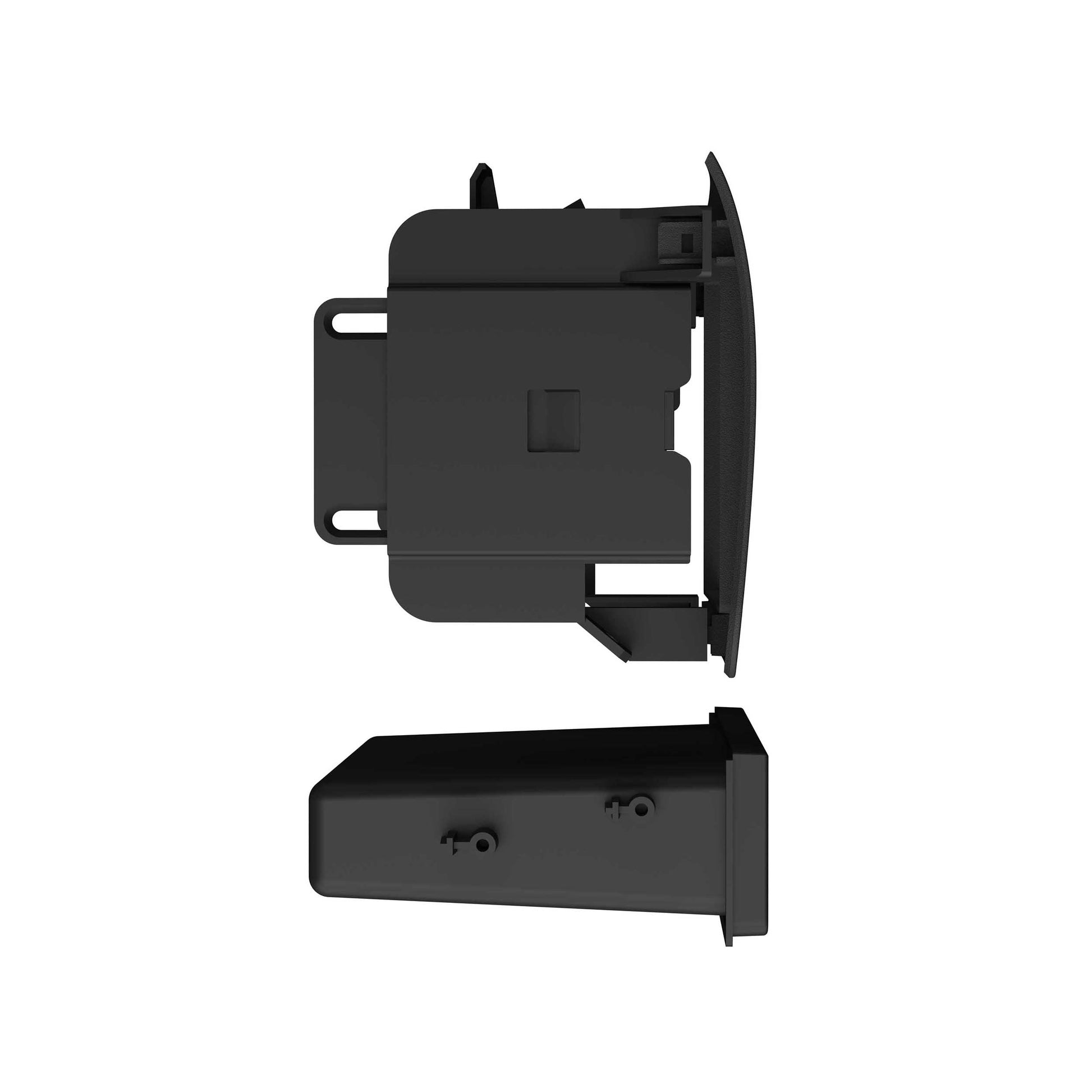

Metra 99-6523 is a Single-DIN radio installation dash kit for Ram ProMaster 1500/2500/3500 2014-2021 with factory 5-inch screen. It provides the vehicle-specific mounting, trim, and installation components needed to replace the factory radio with a properly fitted aftermarket receiver.
At a Glance
- Single-DIN radio installation dash kit for Ram ProMaster 1500/2500/3500 2014-2021 with factory 5-inch screen
- Vehicle-specific trim and mounting solution for aftermarket radio installation
- Stereo installation kit designed for a standard 2-inch-tall Single-DIN aftermarket radio
- Includes a storage pocket below the Single-DIN radio opening
- Custom textured to match the factory dashboard finish
- Designed for models with the factory 5-inch screen
- Made from automotive-grade ABS plastic for an OEM-style fit and finish
System / Wiring Notes
- Radio provision: Single-DIN
- Finish / color: Custom textured factory-match finish
- Retained features depend on the vehicle trim, factory radio, factory audio system, and the aftermarket radio being installed
- Metra 86-5618 radio removal tool is required to remove the factory radio
- 70-1784 or AXDI-6524 wiring interface sold separately depending on installation requirements
- 40-VW10 or 40-EU10 antenna adapter sold separately depending on vehicle configuration
- Verify factory 5-inch screen and radio equipment before installation
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| RAM | ProMaster 1500/2500/3500 | 2014-2017 | With Radio Delete or AM-FM (Uconnect RH3) |
| RAM | ProMaster 1500/2500/3500 | 2014-2021 | With 5" display (Uconnect 5.0) |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact year, make, model, trim level, factory audio system, and radio size before installation
- Additional installation parts may be required depending on the vehicle and aftermarket radio being installed
- Professional installation is recommended for best results
- Check the manufacturer instructions and vehicle fit guide before installation
What’s in the Box

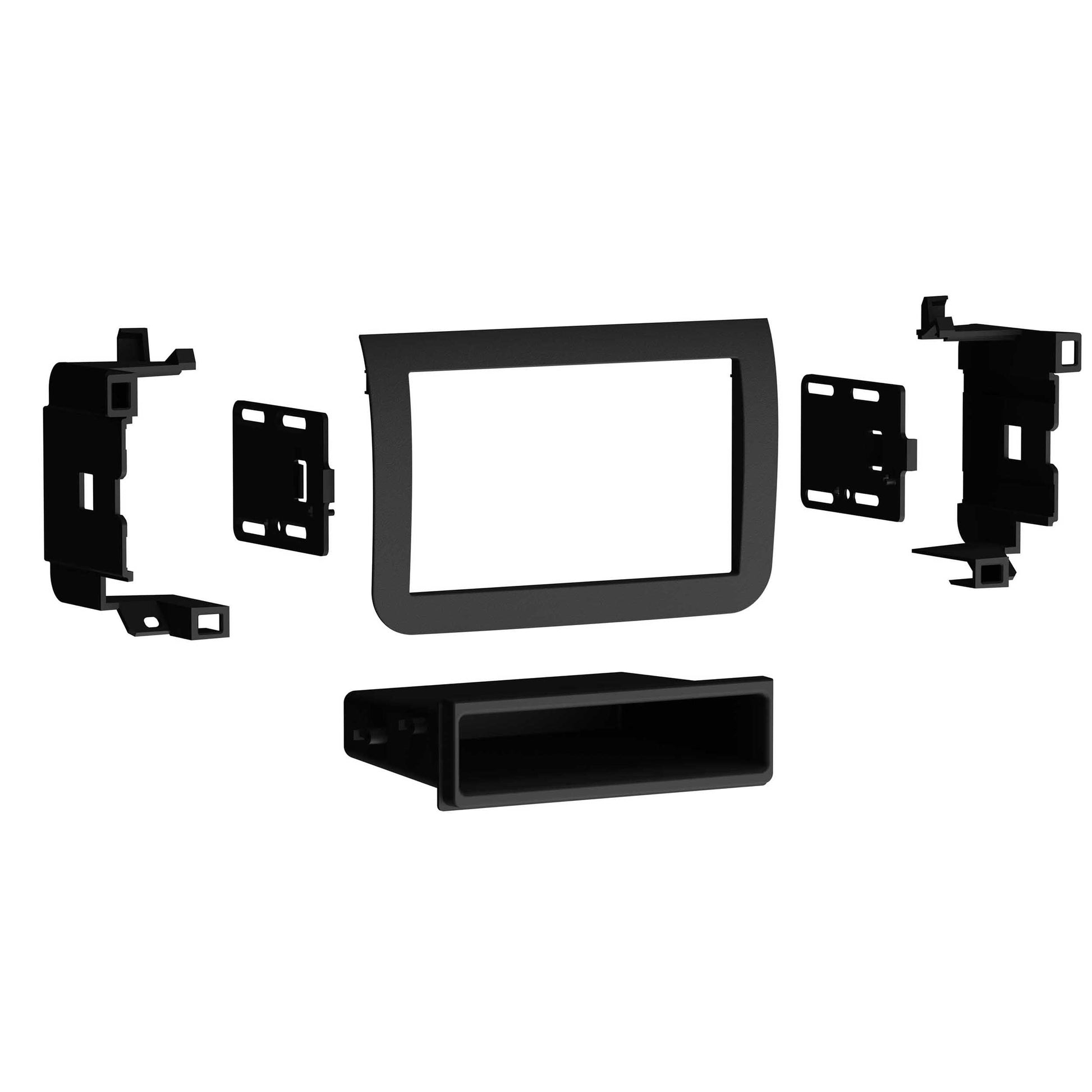

- Metra 99-6523 radio installation kit with pocket, brackets, hardware, and installation instructions as supplied by Metra
Technical Specifications
- Brand: Metra
- Model: 99-6523
- Product Type: Radio installation dash kit
- Radio Provision: Single-DIN
- Application: Ram ProMaster 1500/2500/3500 2014-2021 with factory 5-inch screen
- Compatibility Type: Vehicle-specific
- Color / Finish: Custom textured factory-match finish
- Material: ABS plastic
Identifiers & Packaging
- MPN: 99-6523
- UPC: 086429297771
- Sold As: Each
- Included Components: Metra 99-6523 radio installation kit with pocket, brackets, hardware, and installation instructions as supplied by Metra
