Metra

Metra 70-1782 Radio Wiring Harness for Chevy Geo Isuzu Suzuki 1985-2001

Metra 70-1782 Radio Wiring Harness for Chevy Geo Isuzu Suzuki 1985-2001

$14.99 USD
$14.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

Metra 70-1782 is a radio replacement wiring harness for select Chevrolet, Geo, Honda, Isuzu, Pontiac, and Suzuki vehicles from 1985-2001. It connects an aftermarket radio to the factory radio plug without cutting the vehicle’s original connector.

At a Glance

  • Radio replacement wiring harness for select Chevrolet, Geo, Honda, Isuzu, Pontiac, and Suzuki vehicles
  • Connects to the factory radio plug for aftermarket radio installation

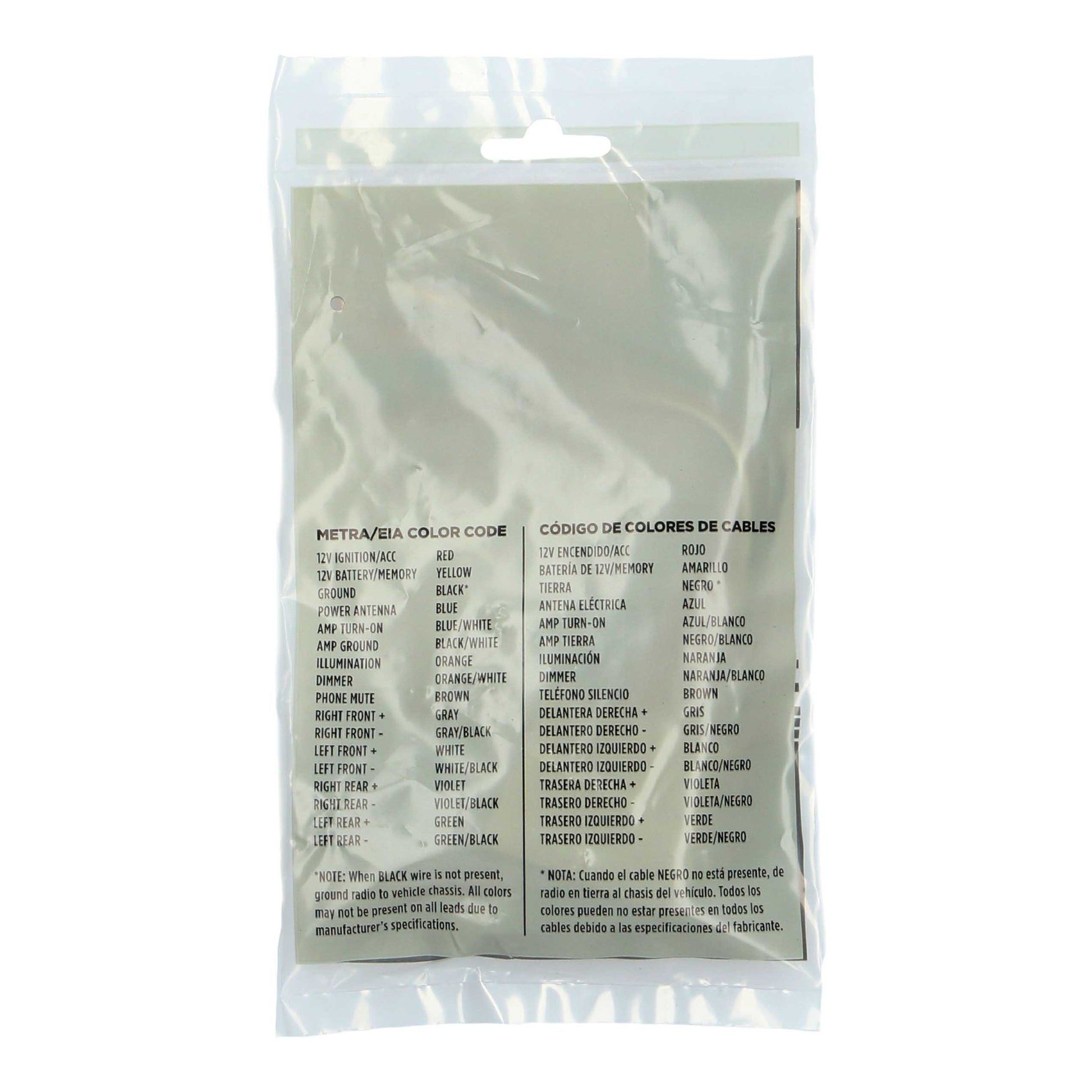

  • Color-coded leads support standard aftermarket radio wiring connections
  • Provides electrical power and four-speaker connections where applicable
  • Helps avoid cutting the vehicle’s factory radio connector

System / Wiring Notes

  • Designed for compatible factory radio connector applications only
  • Additional parts such as a dash kit, antenna adapter, steering wheel control interface, or data interface may be required for a complete installation
  • Verify factory radio connector, trim level, and factory audio system before installation

Exact Vehicle Compatibility

Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.

Make Model Years Factory Equipment / Qualifier
Chevrolet Metro 1995-1999 Non-amplified factory audio system
Chevrolet Prizm 1998-1999 Non-amplified factory audio system
Chevrolet Spectrum 1985-1989 Non-amplified factory audio system
Geo Metro 1989-1991 Non-amplified factory audio system
Geo Metro 1991-1993 convertible; Non-amplified factory audio system
Geo Metro 1992-1994 Non-amplified factory audio system
Geo Metro 1994 convertible; Non-amplified factory audio system
Geo Metro 1995-1997 Non-amplified factory audio system
Geo Prizm 1993-1997 Non-amplified factory audio system
Geo Spectrum 1989 Non-amplified factory audio system
Geo Storm 1990-1993 Non-amplified factory audio system
Geo Tracker 1989-1991 Non-amplified factory audio system
Geo Tracker 1992-1997 Non-amplified factory audio system
Honda Passport 1994-1995 Non-amplified factory audio system
Isuzu Amigo 1991-1994 Non-amplified factory audio system
Isuzu I-Mark 1985-1988 S/XS/RS/LS; Non-amplified factory audio system
Isuzu I-Mark 1989-1991 S/XS/RS/LS; Non-amplified factory audio system
Isuzu Impulse 1990 With double DIN factory radio; Non-amplified factory audio system
Isuzu Impulse 1991-1993 Non-amplified factory audio system
Isuzu Pickup 1988 Non-amplified factory audio system
Isuzu Pickup 1989-1995 Non-amplified factory audio system
Isuzu Rodeo 1992-1995 Non-amplified factory audio system
Isuzu Stylus 1990-1993 With double DIN factory radio; Non-amplified factory audio system
Isuzu Trooper 1990-1995 Non-amplified factory audio system
Isuzu Trooper II 1989-1991 Non-amplified factory audio system
Isuzu Trooper II 1992 Non-amplified factory audio system
Pontiac Lemans 1988-1993 Non-amplified factory audio system
Suzuki Swift 1992-1994 Non-amplified factory audio system
Suzuki Swift 1995-2001 Non-amplified factory audio system

Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.

Installation Notes

  • Confirm exact vehicle fitment, factory audio system, and radio connector before installation
  • Additional parts such as a dash kit, antenna adapter, steering wheel control interface, or data interface may be required for a complete installation
  • Professional installation is recommended for best results
  • Check current manufacturer instructions and vehicle application data before installation

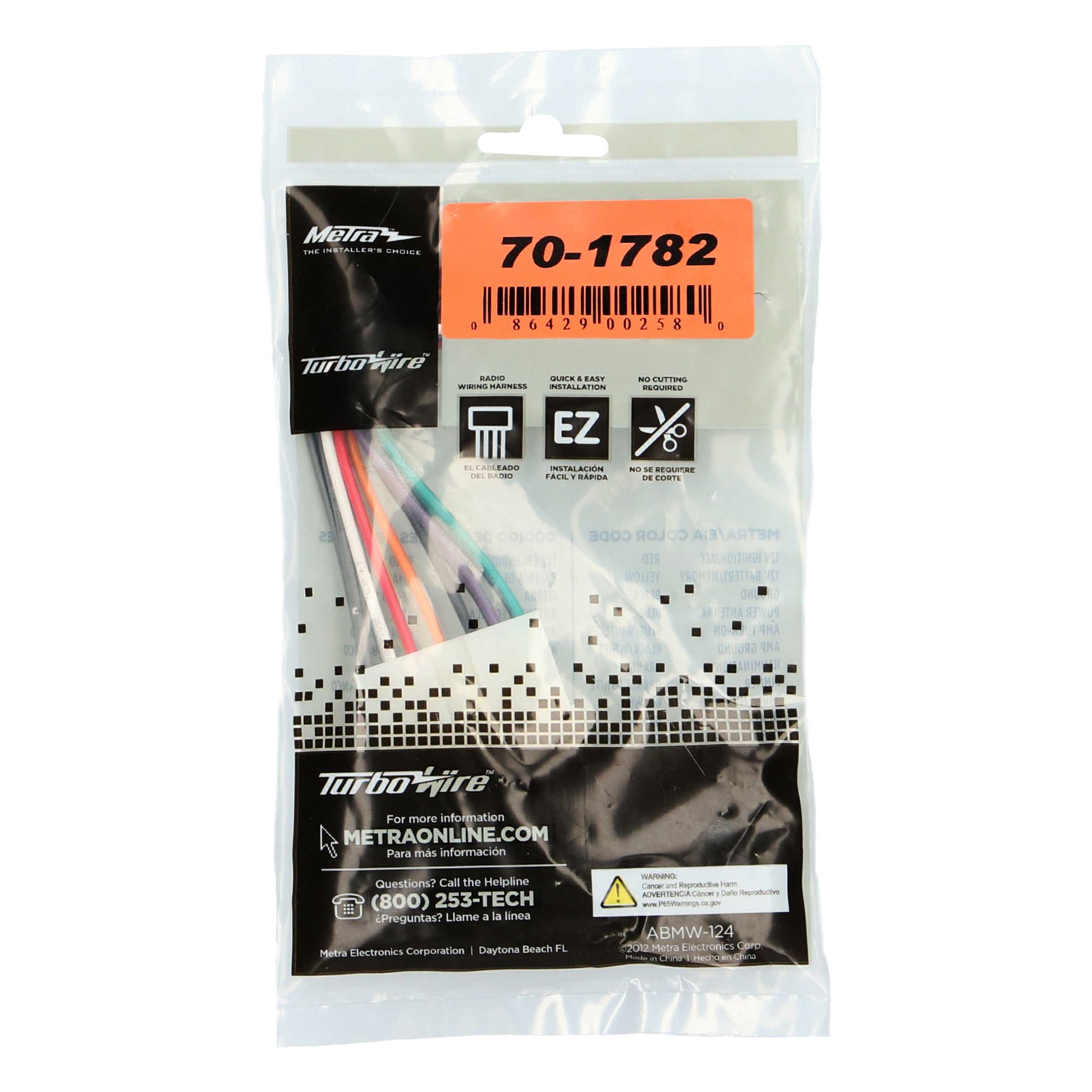

What’s in the Box

  • Metra 70-1782 radio replacement wiring harness

Technical Specifications

  • Brand: Metra
  • Model: 70-1782
  • Product Type: Radio wiring harness
  • Application: Select Chevrolet, Geo, Honda, Isuzu, Pontiac, and Suzuki aftermarket radio installations using the compatible factory radio connector
  • Compatibility Type: Vehicle-specific
  • Connection Type: Vehicle-specific radio connector
  • Speaker Support: Four-speaker connection where applicable

Identifiers & Packaging

  • MPN: 70-1782
  • UPC: 086429002580
  • Sold As: Each
  • Included Components: Radio replacement wiring harness
