Metra 70-1726 Amp Bypass Harness for Honda Element 2003-2011
Metra 70-1726 Amp Bypass Harness for Honda Element 2003-2011
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Metra 70-1726 is a factory amplifier bypass harness for 2003-2011 Honda Element factory amplified applications. It helps integrate an aftermarket radio with the listed factory audio system while keeping the installation cleaner and more serviceable.
At a Glance
- Factory amplifier bypass harness for 2003-2011 Honda Element factory amplified applications
- Connects to factory audio wiring for a cleaner aftermarket radio installation

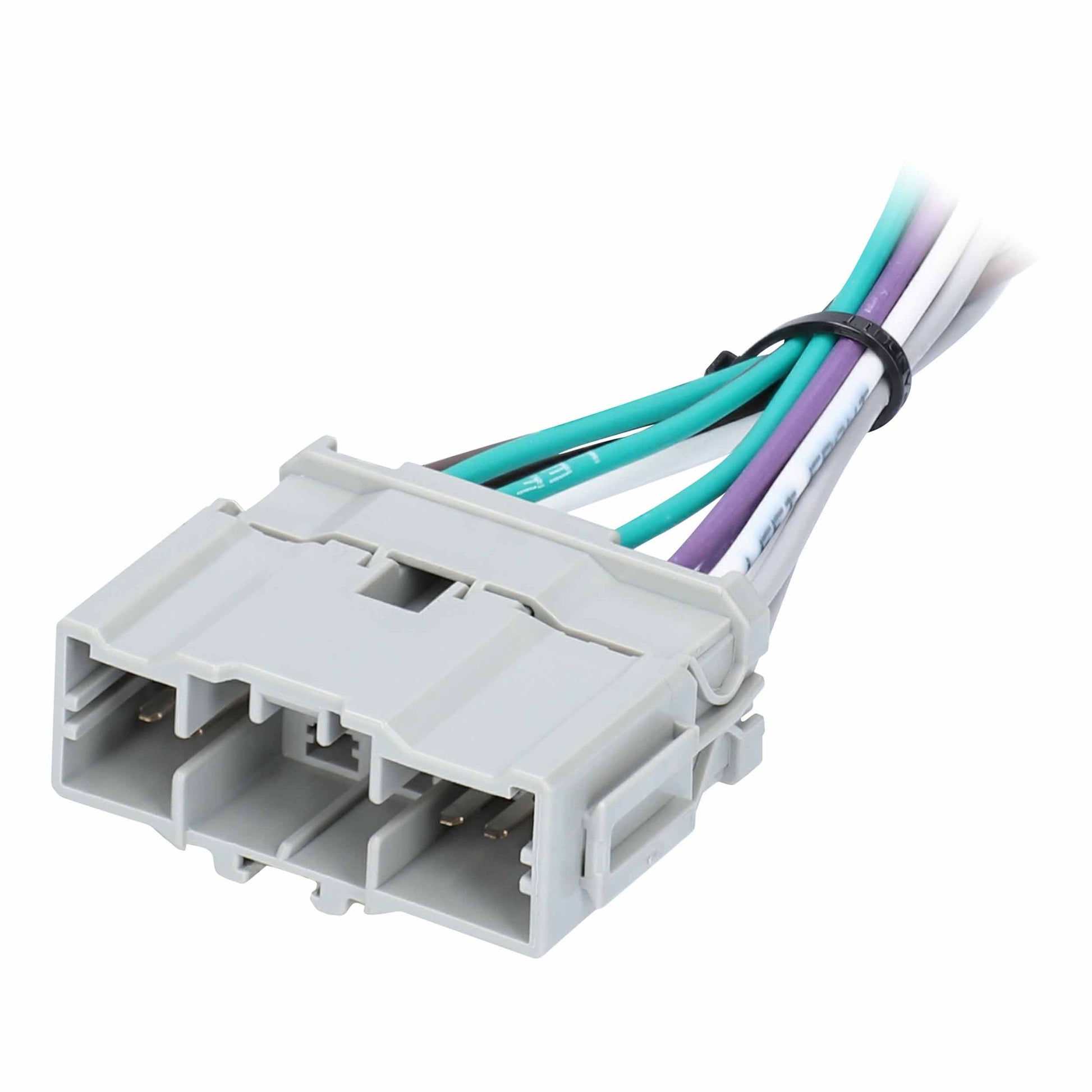

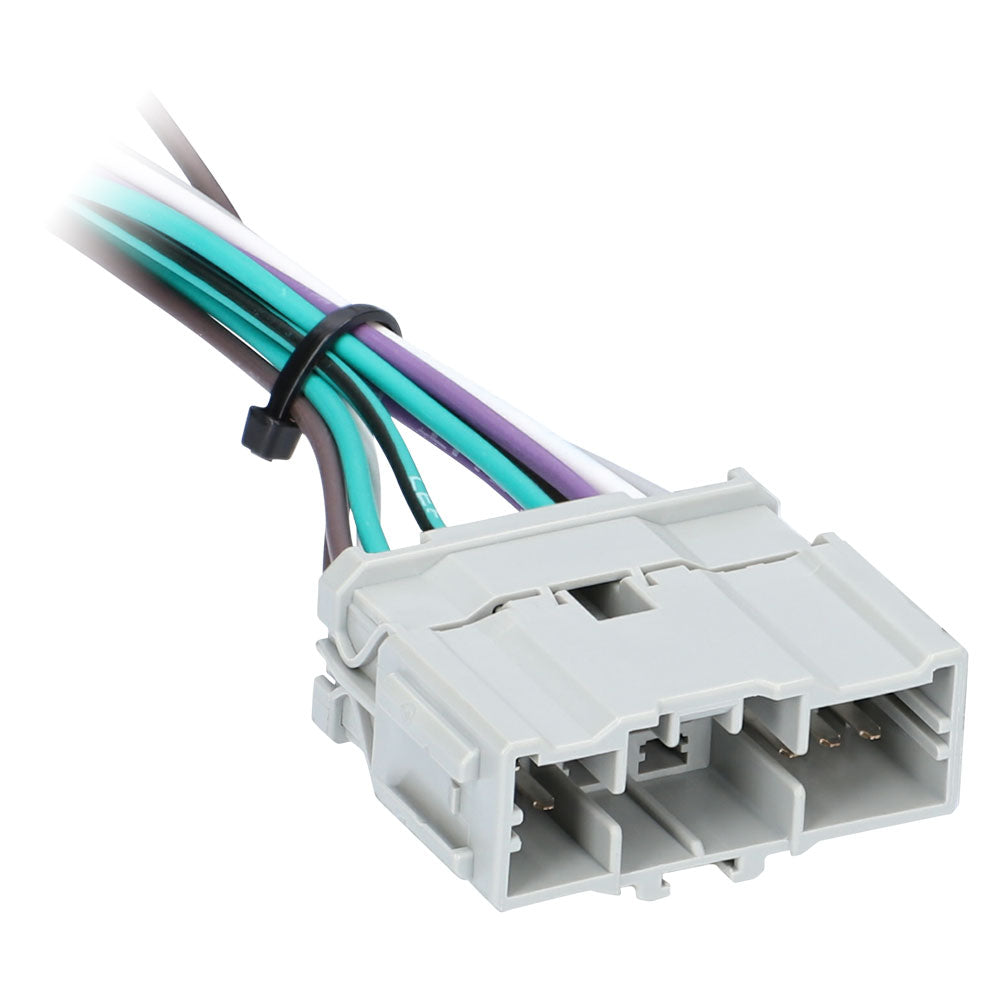

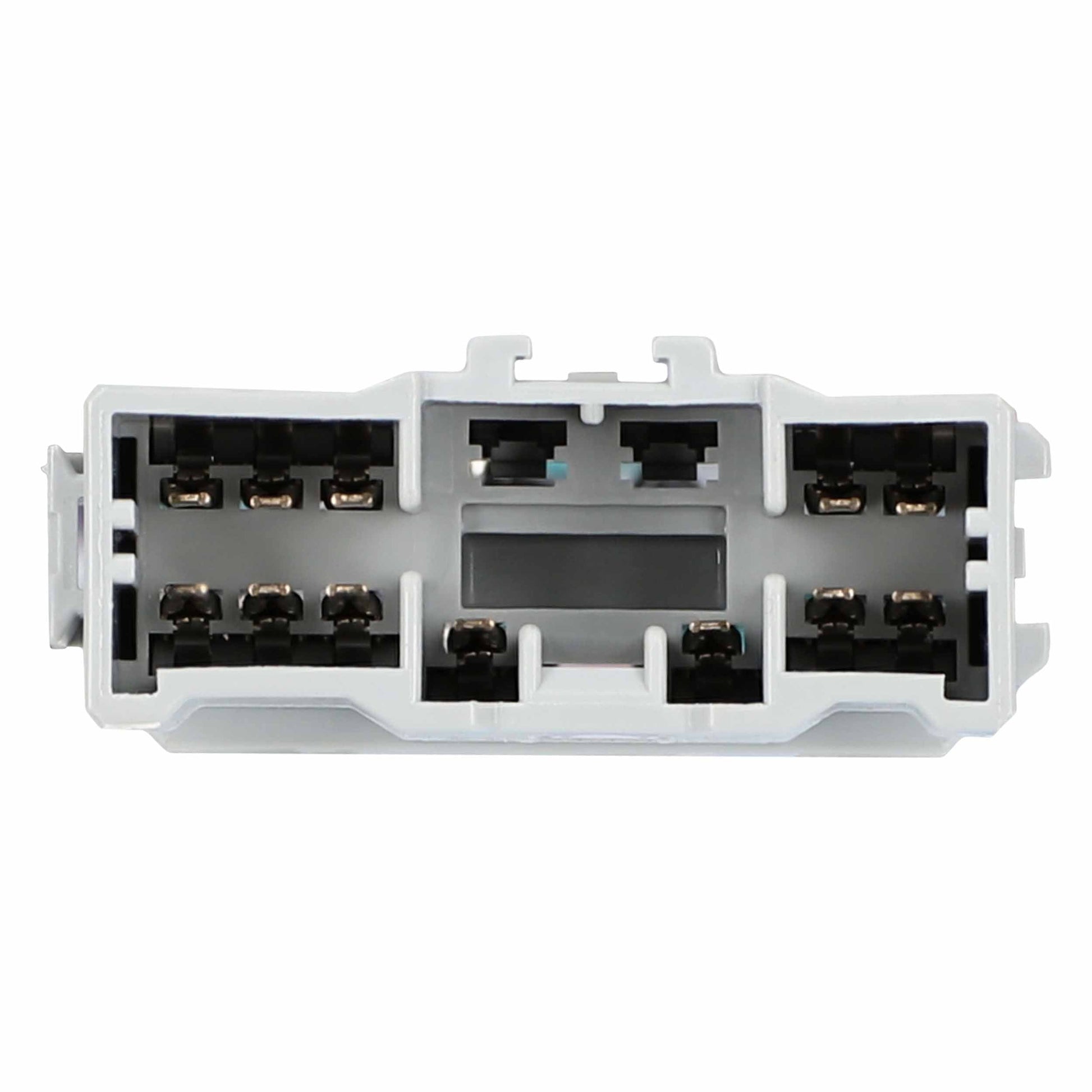

- Vehicle-specific connector helps reduce cutting or splicing of factory radio wiring
- Color-coded leads support aftermarket radio wiring connections

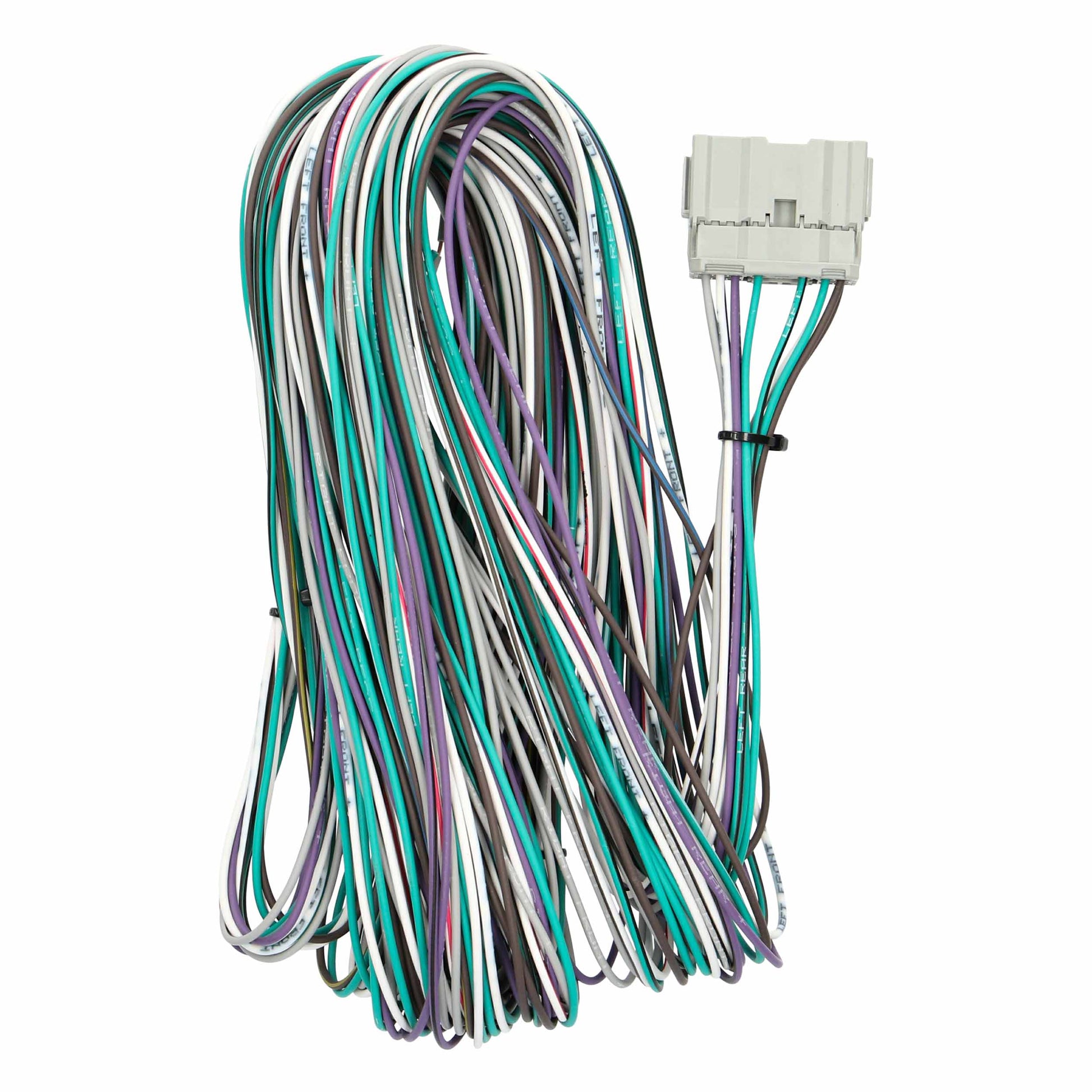

- 204-inch harness length supports routing from the factory amplifier location
- Factory amplifier location is the passenger side kick panel
- Factory subwoofer handling requires correct crossover planning
System / Wiring Notes
- Bypasses the factory amplifier in listed vehicle applications
- Factory subwoofer retention may vary by vehicle and factory system
- Routes aftermarket radio speaker output to the vehicle speaker wiring through the bypass harness
- Harness length is 204 inches
- Factory amplifier location: passenger side kick panel
- Honda uses a dual voice coil subwoofer that must be crossed over properly to avoid damage
- Factory subwoofer is not retained in select vehicles
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Honda | Element | 2003-2004 | Factory amplified audio system |
| Honda | Element | 2005-2011 | all but LX trim; Factory amplified audio system |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact vehicle fitment, factory audio system, and radio connector before installation
- Additional installation parts such as a dash kit, antenna adapter, steering wheel control interface, or integration interface may be required
- Professional installation is recommended for best results
What’s in the Box

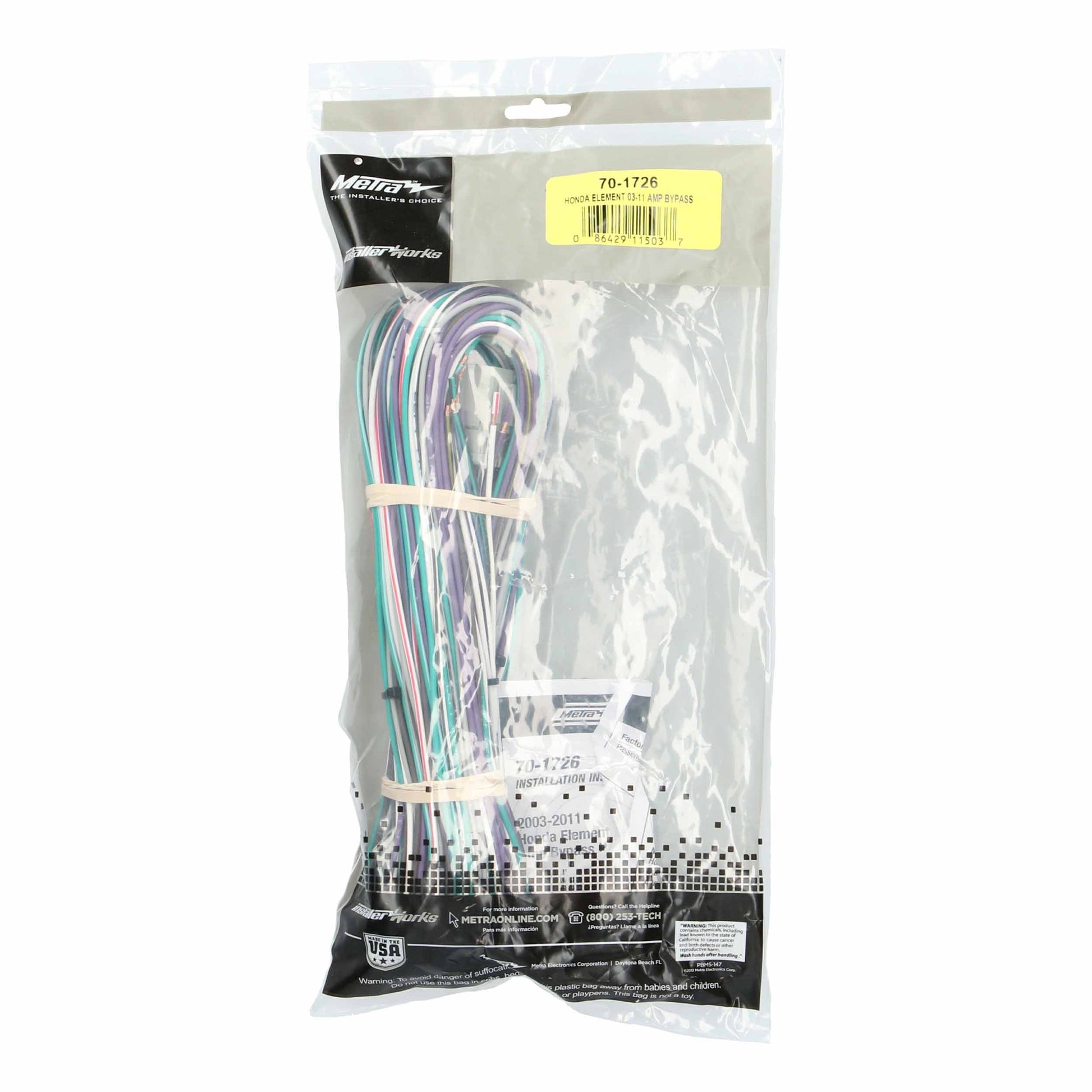

- Metra 70-1726 factory amplifier bypass harness
Technical Specifications
- Brand: Metra
- Model: 70-1726
- Product Type: Factory amplifier bypass harness
- Application: 2003-2011 Honda Element factory amplified applications
- Compatibility Type: Vehicle-specific
- System Type: Factory amplified audio system
- Harness Length: 204 inches
- Factory Amp Location: Passenger side kick panel
Identifiers & Packaging
- MPN: 70-1726
- UPC: 086429115037
- Sold As: Each
- Included Components: Metra 70-1726 factory amplifier bypass harness
