Metra 107-CH3B Radio Dash Kit for Jeep Wrangler JL Gladiator JT
Metra 107-CH3B Radio Dash Kit for Jeep Wrangler JL Gladiator JT
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

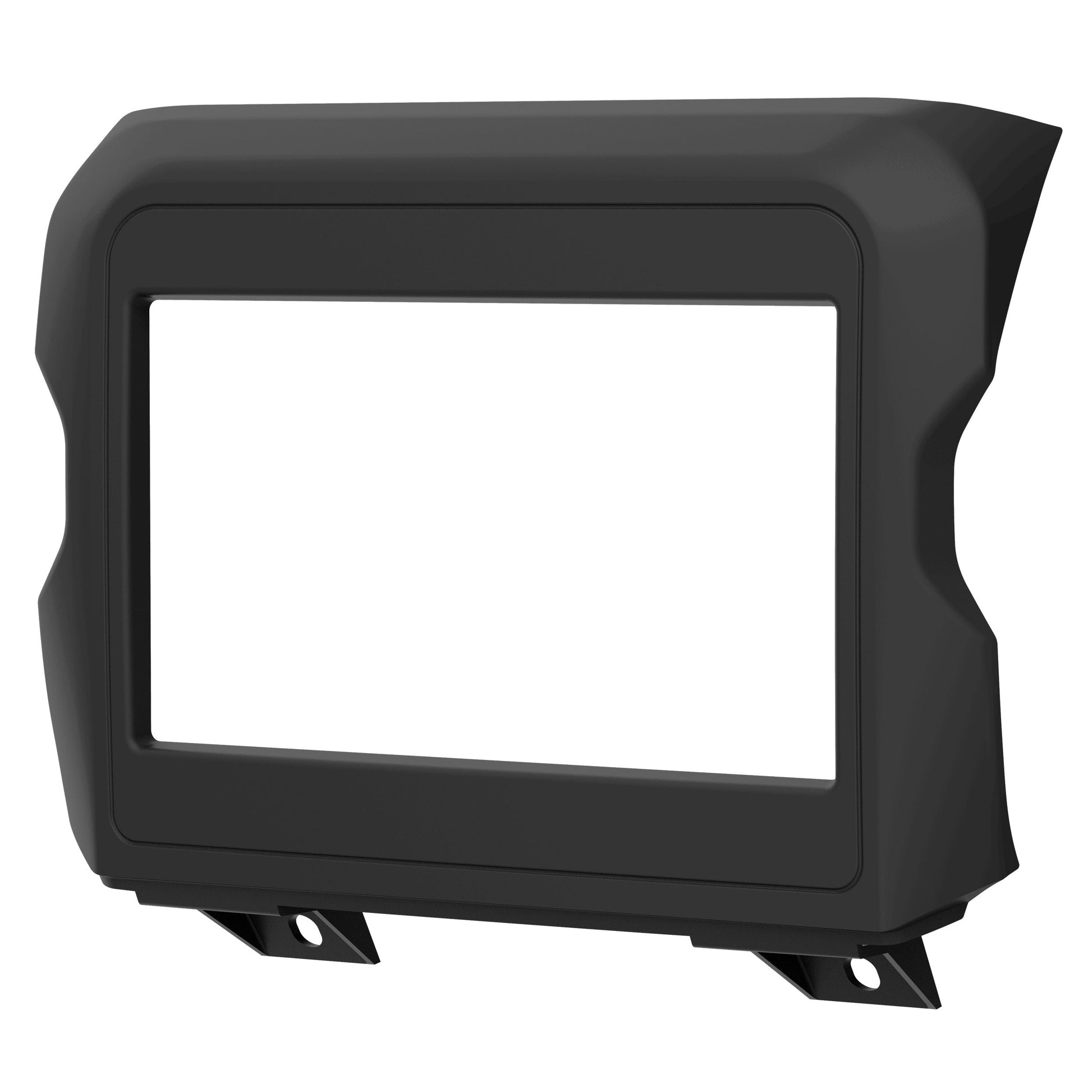

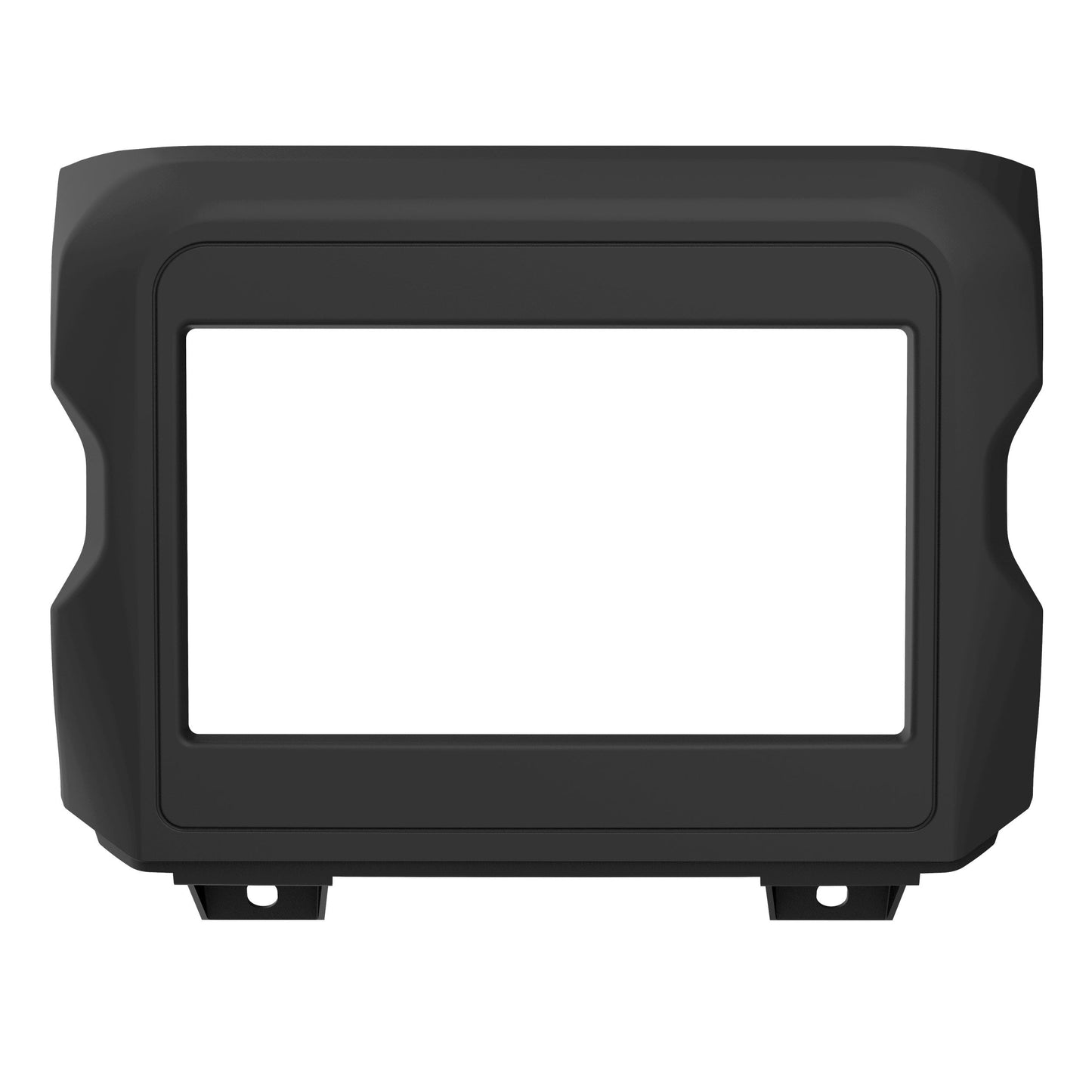

The Metra 107-CH3B is a vehicle-specific radio installation dash kit for 2018-2023 Jeep Wrangler JL and 2020-2023 Jeep Gladiator JT models. It provides the mounting, trim, and installation support needed to fit the listed aftermarket radio style while keeping the dash layout clean and application-correct.
At a Glance
- Radio installation dash kit for Jeep Wrangler JL and Gladiator JT
- Designed for most shallow-mount radios with 3.75-inch maximum chassis depth not including the screen
- Brackets included for Pioneer modular radios DMH-C2550NEX and DMH-C2500NEX
- Painted scratch-resistant matte black to match the factory finish
- Vehicle-specific trim and brackets for a cleaner installation
System / Wiring Notes
- Refer to the Metra Vehicle Applications Guide for wiring harness options
- 40-EU55 antenna adapter is sold separately when required
- Pioneer CD-RGB150E RGB extension cable is required for modular-radio installations and is not sold by Metra
- U.S. Patent D905,046
Exact Vehicle Compatibility
Find your vehicle below, then match the model year and factory-equipment details in the same row. Factory radio, amplifier, navigation, trim, speaker location, and connector differences can change which installation parts are required. If anything differs, contact MCOR before ordering.
| Make | Model | Years | Factory Equipment / Qualifier |
|---|---|---|---|
| Jeep | Gladiator | 2020-2023 | Uconnect 3.0 with 5" display; Non-traditional radio chassis application. |
| Jeep | Wrangler | 2018-2020 | JL body type (base); Non-traditional radio chassis application. |
| Jeep | Wrangler | 2018-2023 | JL body type (Uconnect 3.0 with 5" display); Non-traditional radio chassis application. |
| Jeep | Wrangler | 2018-2023 | JL body type (Uconnect 4.0 with 7" display); Non-traditional radio chassis application. |
Fitment note: Year and model alone are not always enough to confirm compatibility. Match every factory-equipment qualifier shown for your vehicle, and contact MCOR Automotive if the radio, amplifier, navigation, speaker, camera, trim, or connector details are uncertain.
Installation Notes
- Confirm exact year, make, model, trim level, factory radio, and factory audio system before installation
- Test-fit dash kit components and review the manufacturer instructions before final assembly
- Additional harnesses, antenna adapters, interfaces, or vehicle-specific parts may be required and are sold separately unless listed as included
- Professional installation is recommended for best fit, finish, and retained-feature setup

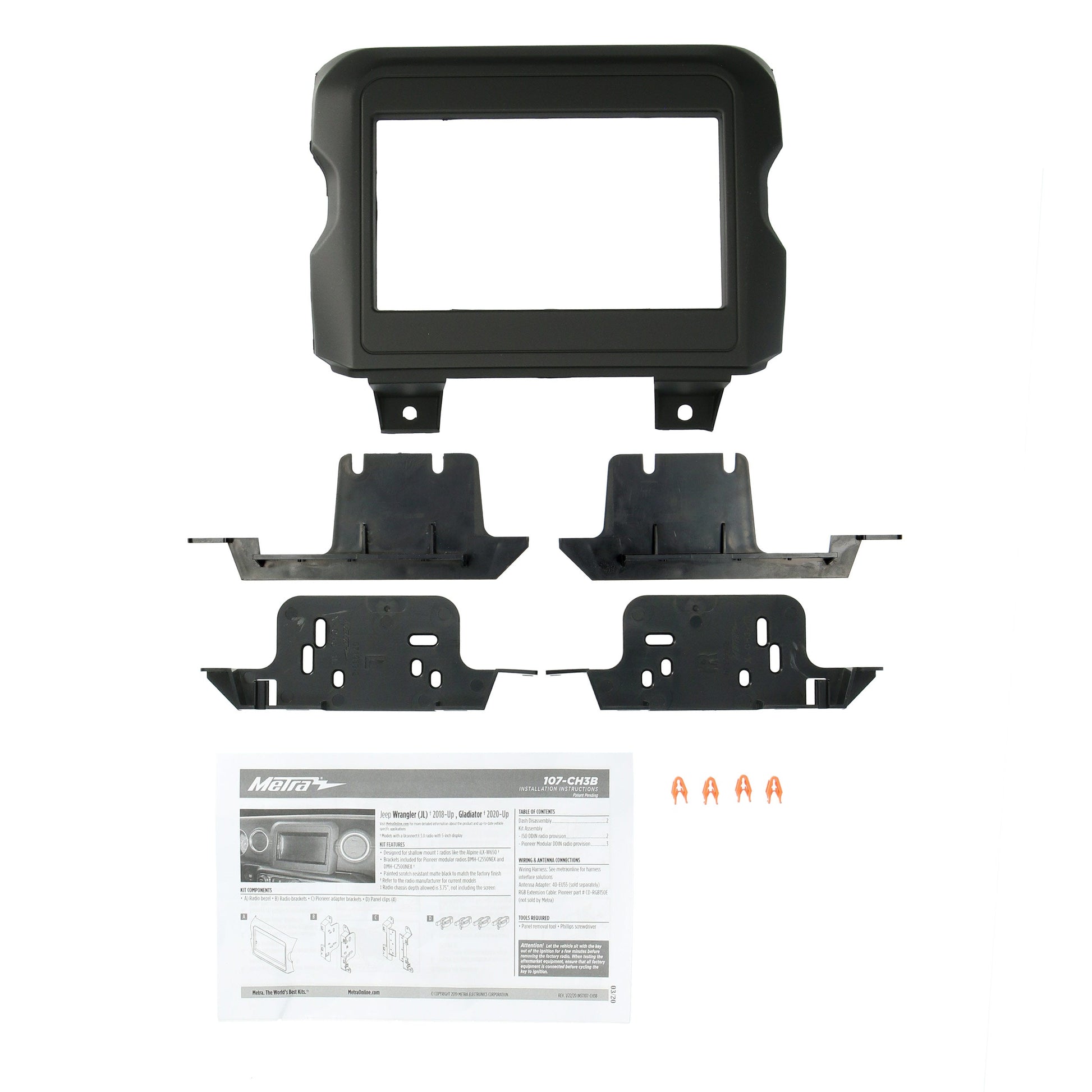

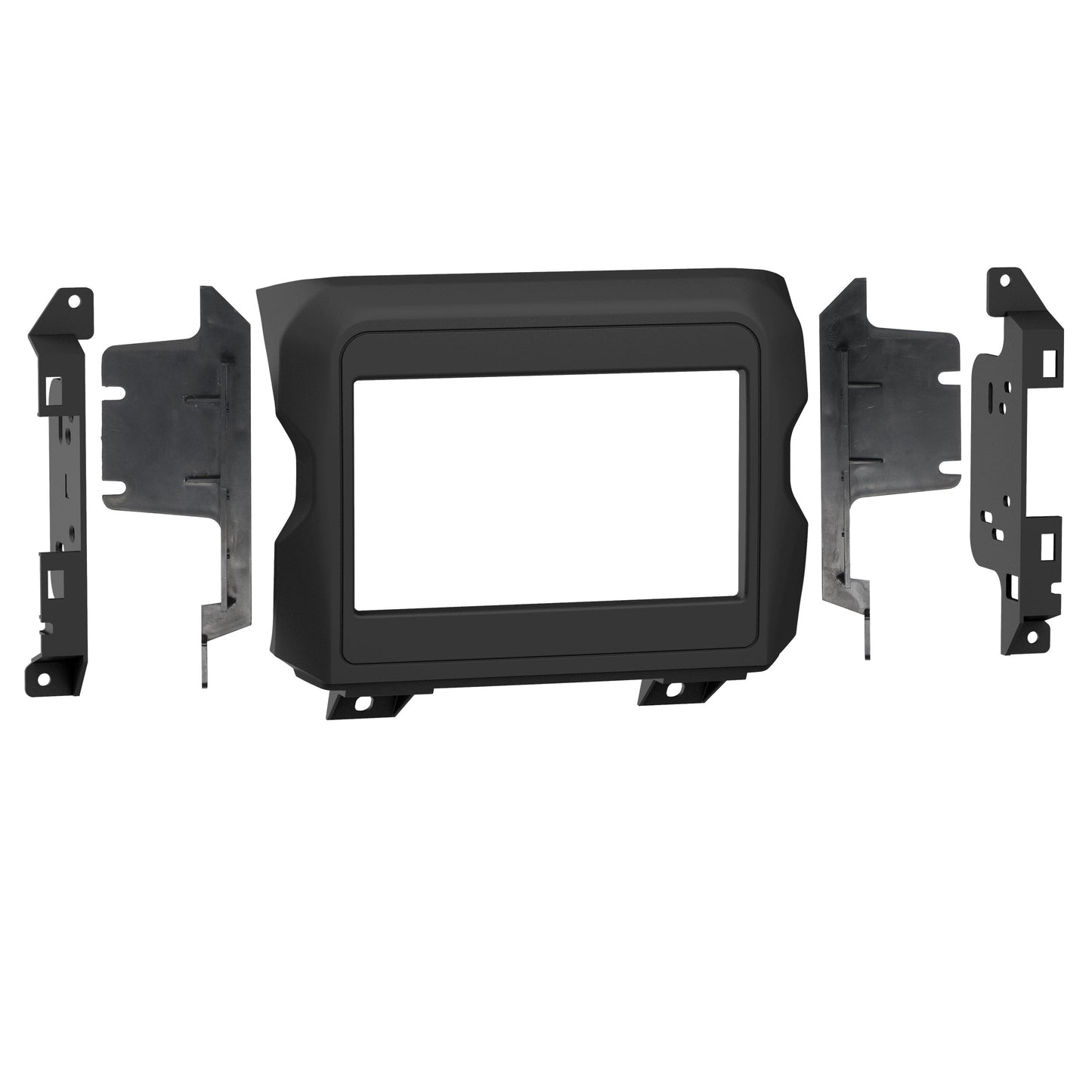

What’s in the Box

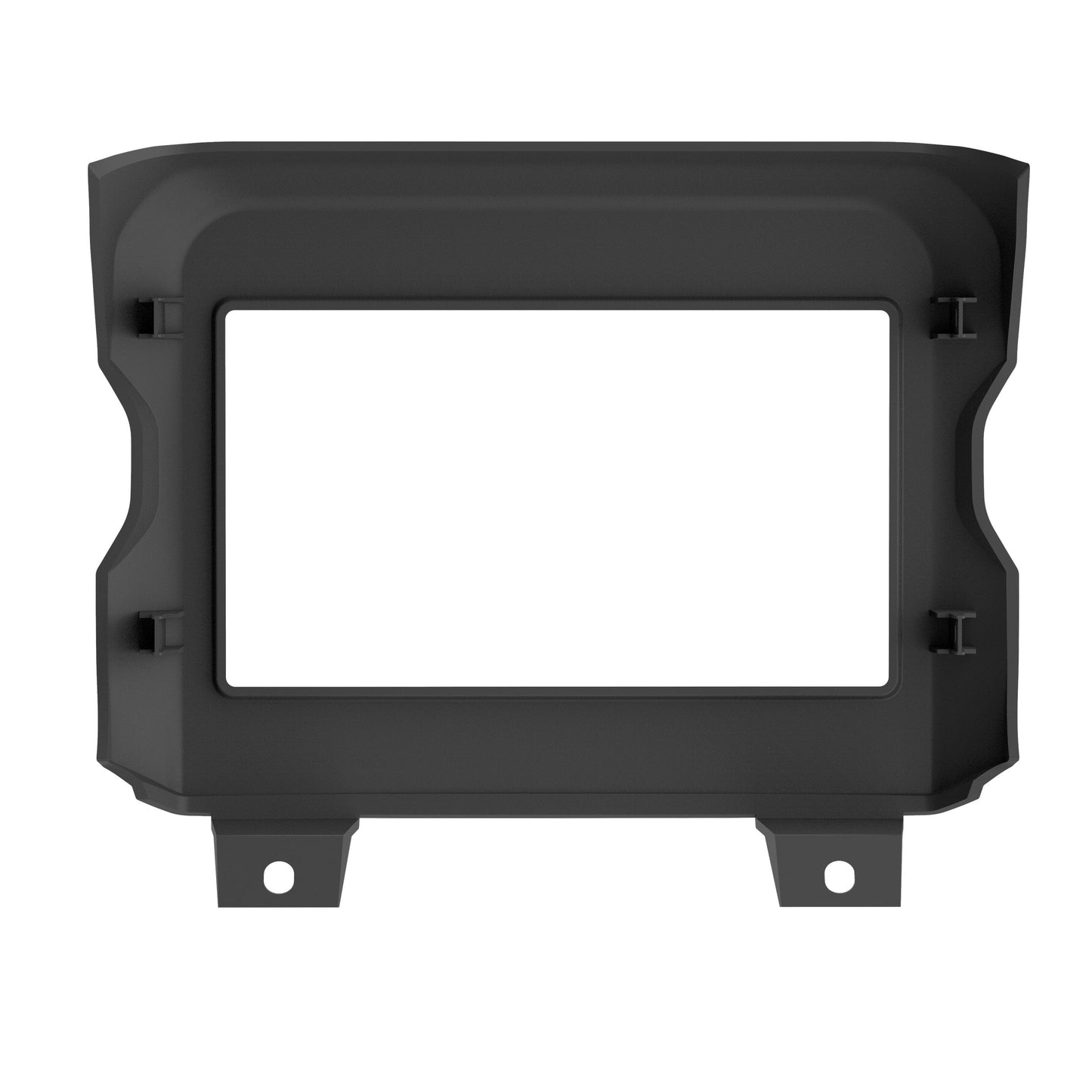

- Radio trim panel

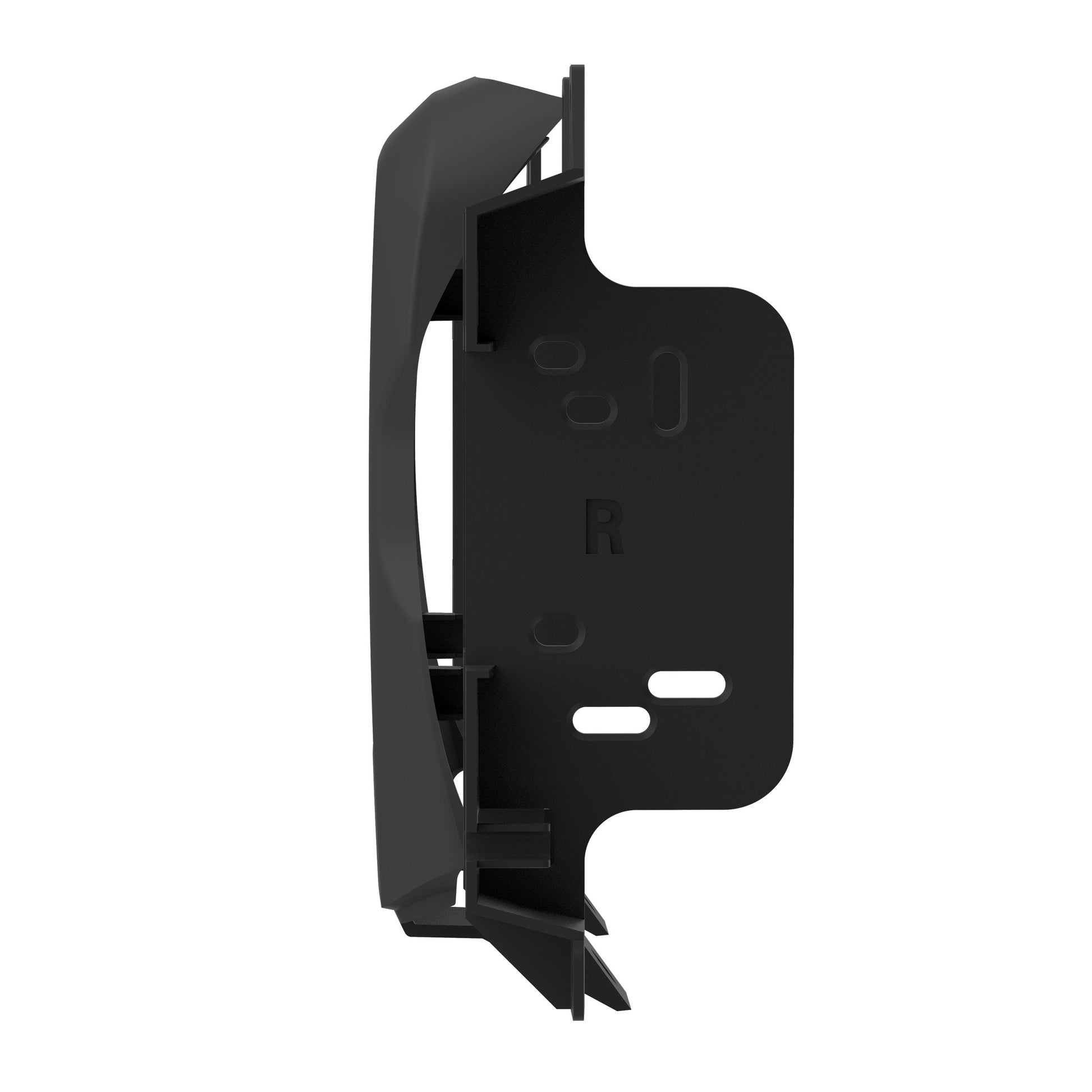

- Radio brackets
- Hardware and kit components as supplied by Metra
Technical Specifications
- Brand: Metra
- Model: 107-CH3B
- Product Type: Radio installation dash kit
- Radio Provision: Most shallow-mount radios such as Alpine iLX-W650 and Pioneer DMH-C2550NEX / DMH-C2500NEX modular radios
- Finish: Scratch-resistant matte black
Identifiers & Packaging
- MPN: 107-CH3B
- UPC: 086429400584
- Sold As: Kit
- Included Components: Dash kit components as supplied by Metra
