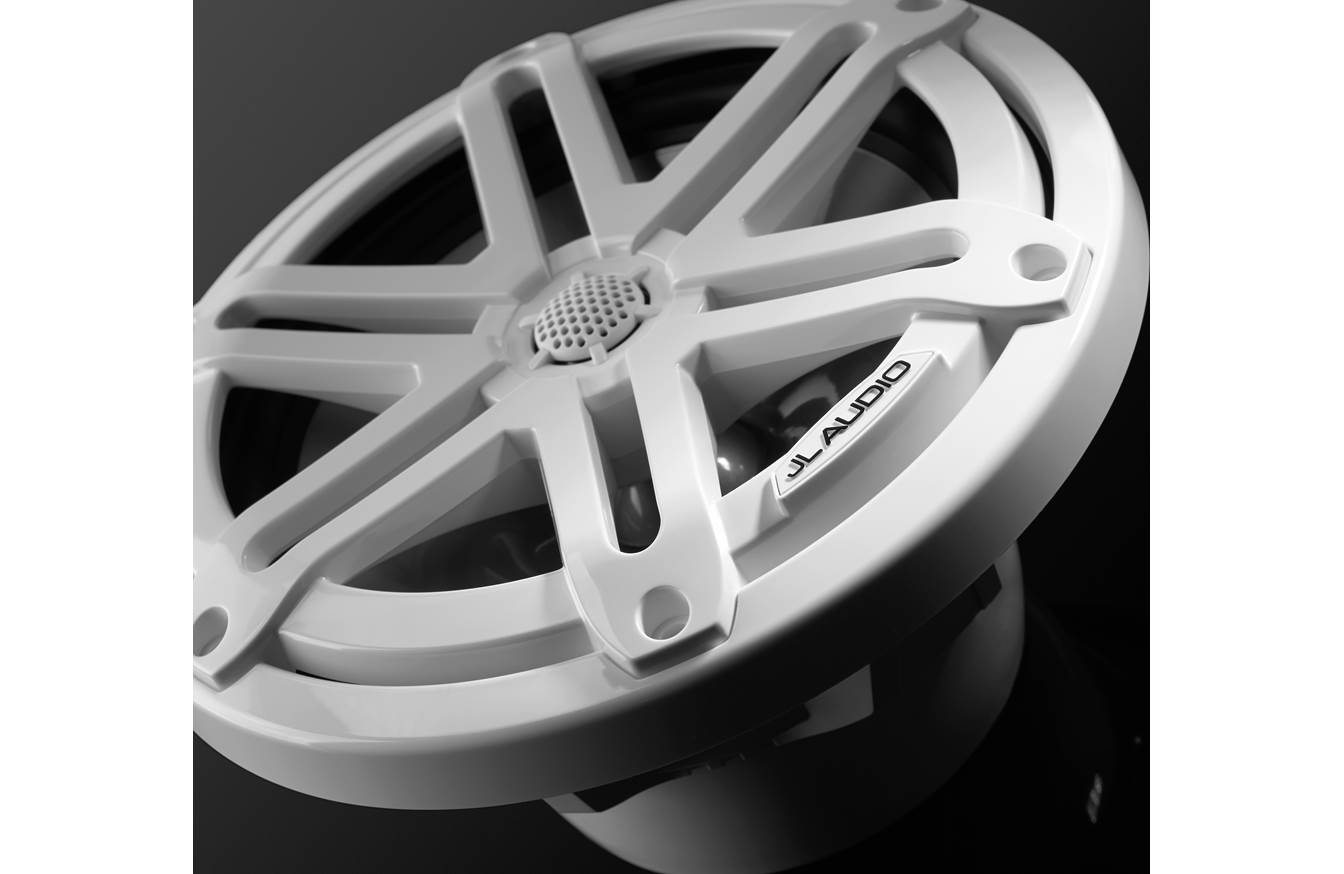

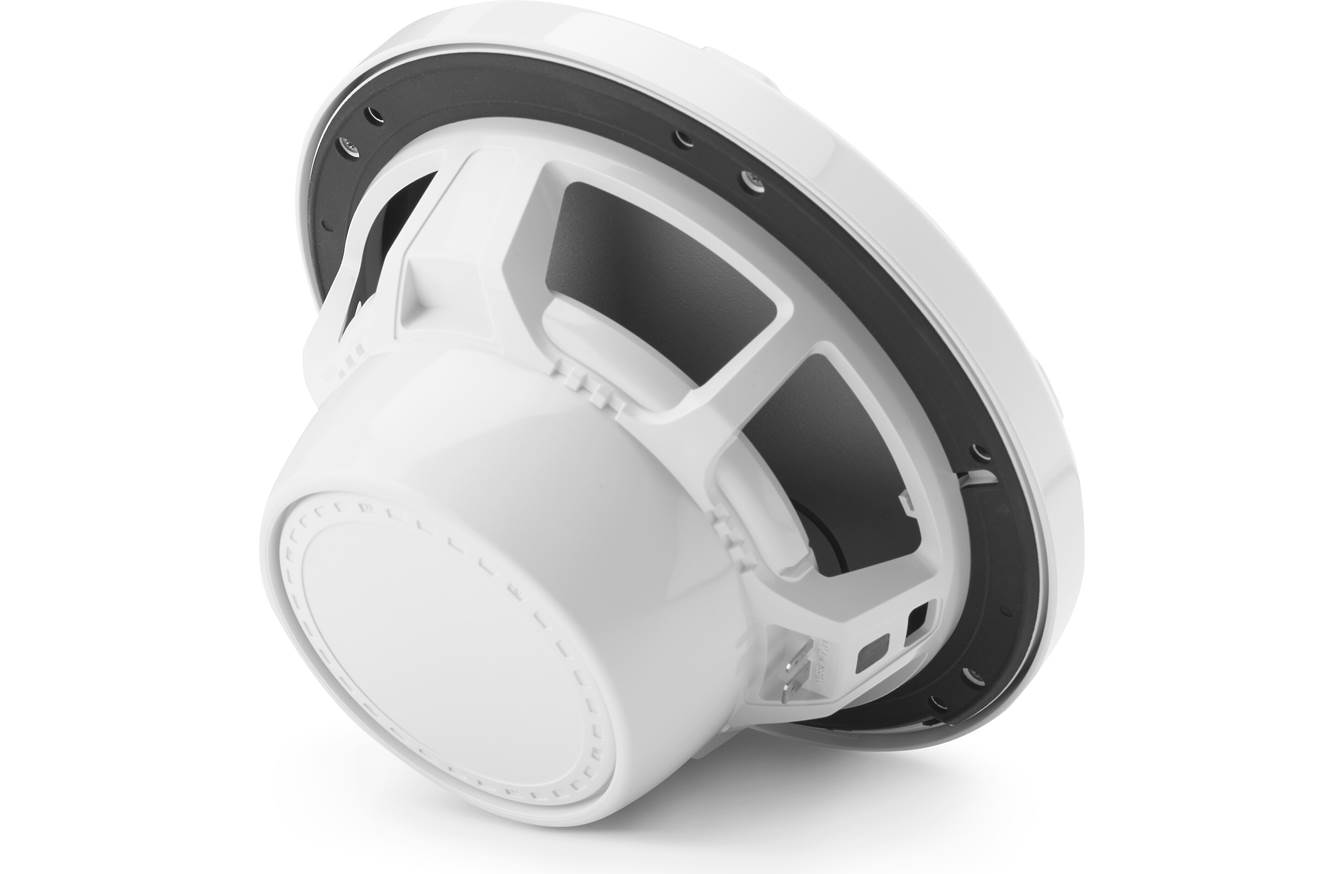

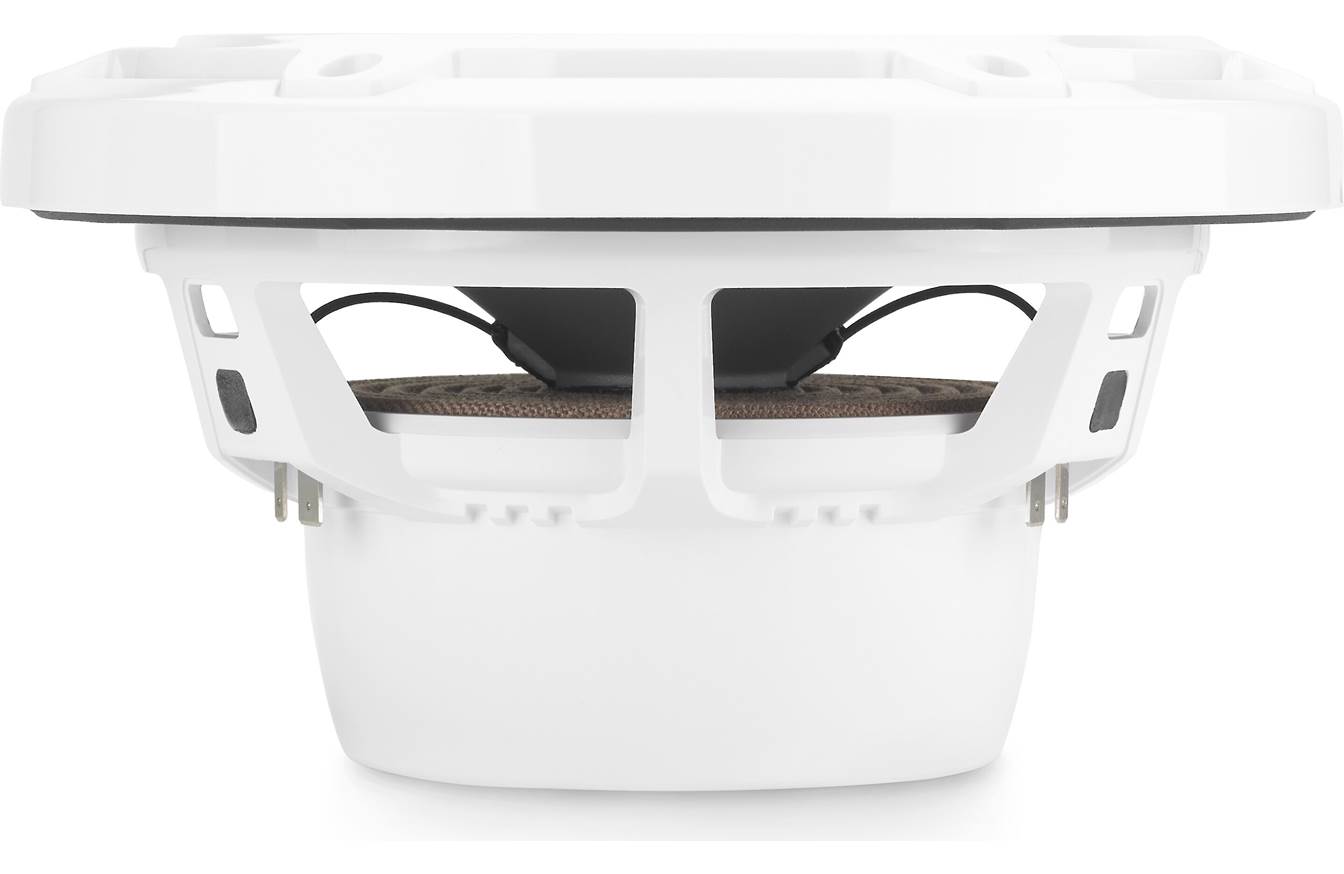

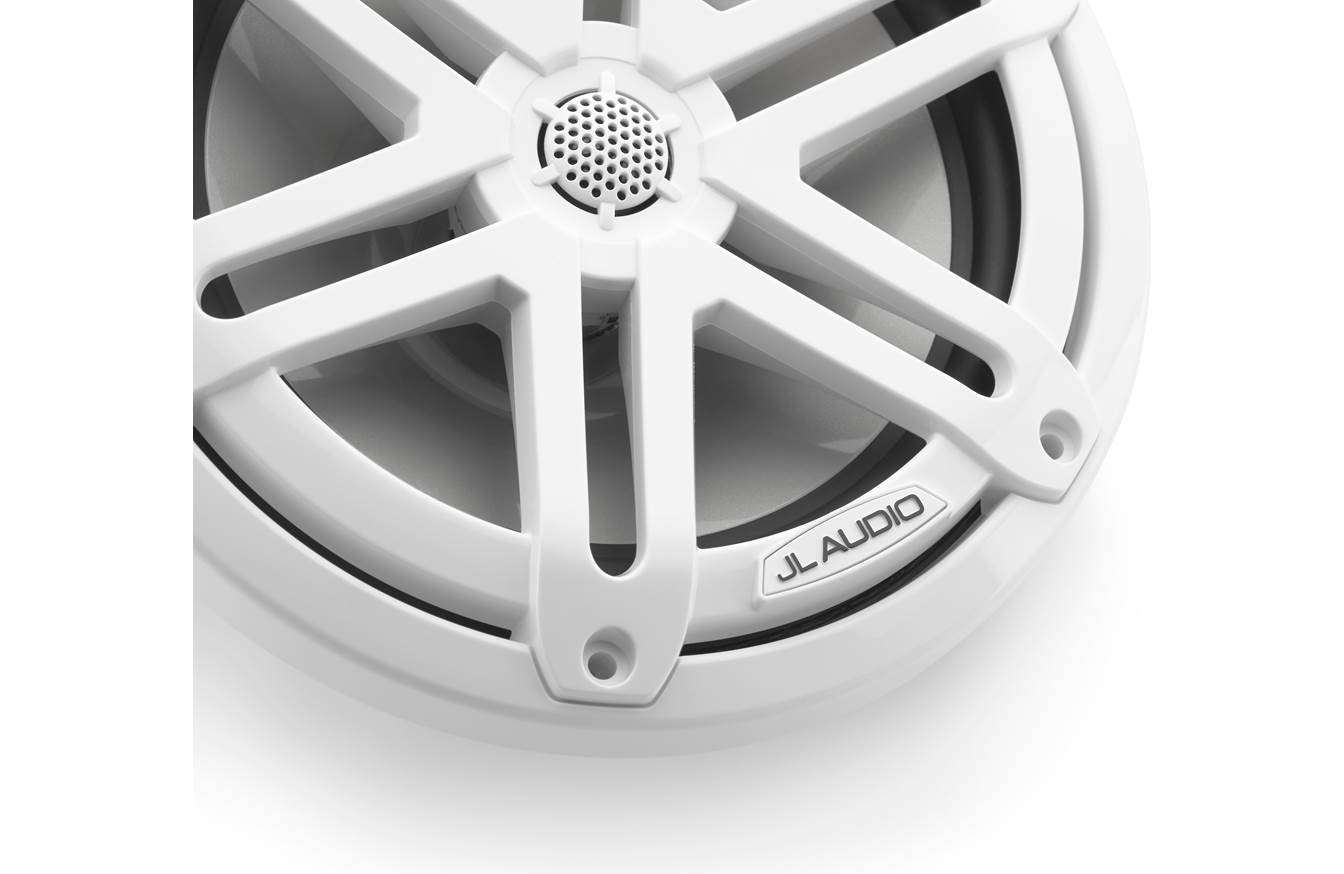

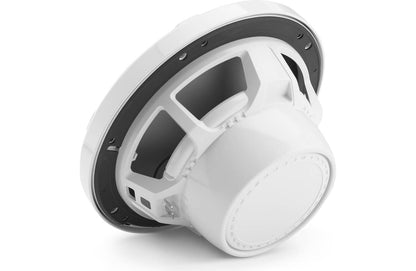

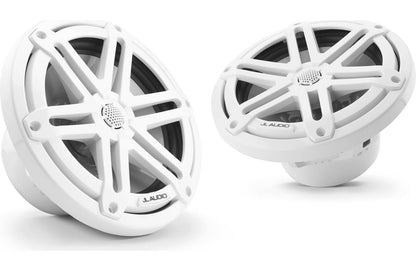

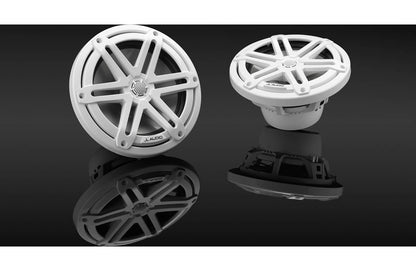

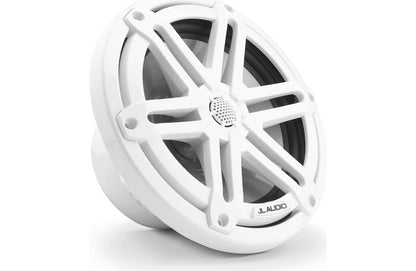

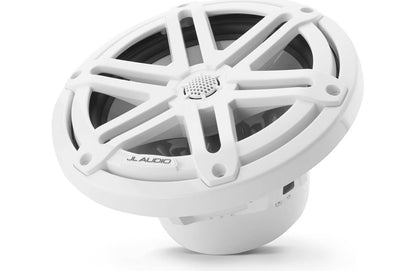

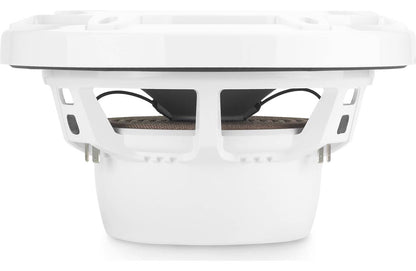

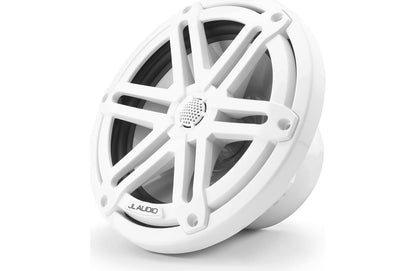

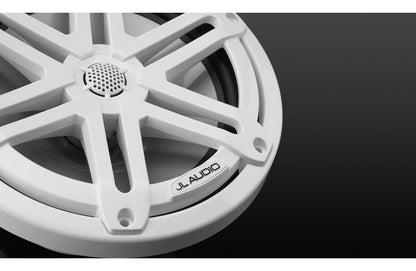

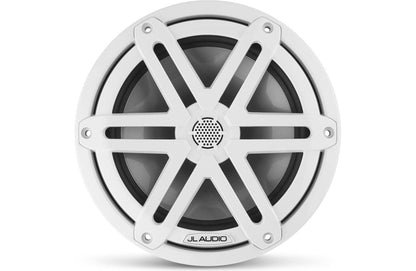

JL Audio M3-770X-S-Gw 7.7-inch Marine Coaxial Speakers, White Sport Grilles 93522
JL Audio M3-770X-S-Gw 7.7-inch Marine Coaxial Speakers, White Sport Grilles 93522
Couldn't load pickup availability
Part Number 010-03068-00
M3 7.7-inch Marine Coaxial Speakers (70 W, 4 Ω) - Gloss White Sport Grille
Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models.
The oversized 7.7-inch design of the M3-770X results in increased efficiency (more output for a given amount of power). This gives them the ability to play louder and cleaner at high volumes than smaller speakers.
The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.
A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics.
Although M3-770X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.
Sold as a pair.
General |
|
Size | 7.7" |
---|---|
Color | White Sport |
Physical dimensions (Diameter) | 7.7": (Classic/Sport): 7.70" (196 mm) |
Physical dimensions (Depth) | 7.7": (Sport): 4.27" (108 mm) |
Speaker type | Coaxial |
Continuous power handling (RMS) | 7.7": 70 W |
Sensitivity (SPL @ 1 W/1 m) | 7.7": 90.5 dB |
Frequency response (+/- 3 dB) | 7.7": 45Hz-25 kHz |
Nominal impedance | 4 Ω |
Recommended amplifier power (RMS) | 7.7": 20-140 W/Channel |
LED lighting | yes - RGB (selected Sport models only) |
LED supply voltage | 10-14.4 VDC |
LED Load Current @ 14.4 VDC (max) | 108 mA |
Cone material | Injection-molded, mica-filled polypropylene |
Tweeter type | Silk Dome |
Tweeter size | 0.75" (19 mm) |
Warranty | 3 years |
Connections |
|
Speaker connections | Spade Connectors |
---|---|
LED connection | Flying Lead with 4-conductor 22 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
Mounting depth clearance | 7.7": (Sport): 3.17" (81 mm) |
---|---|
Frontal grille protrusion | 7.7" (Sport): 1.10" (28 mm) |
Bolt hole circle | 7.7": 6.92" (176 mm) |
