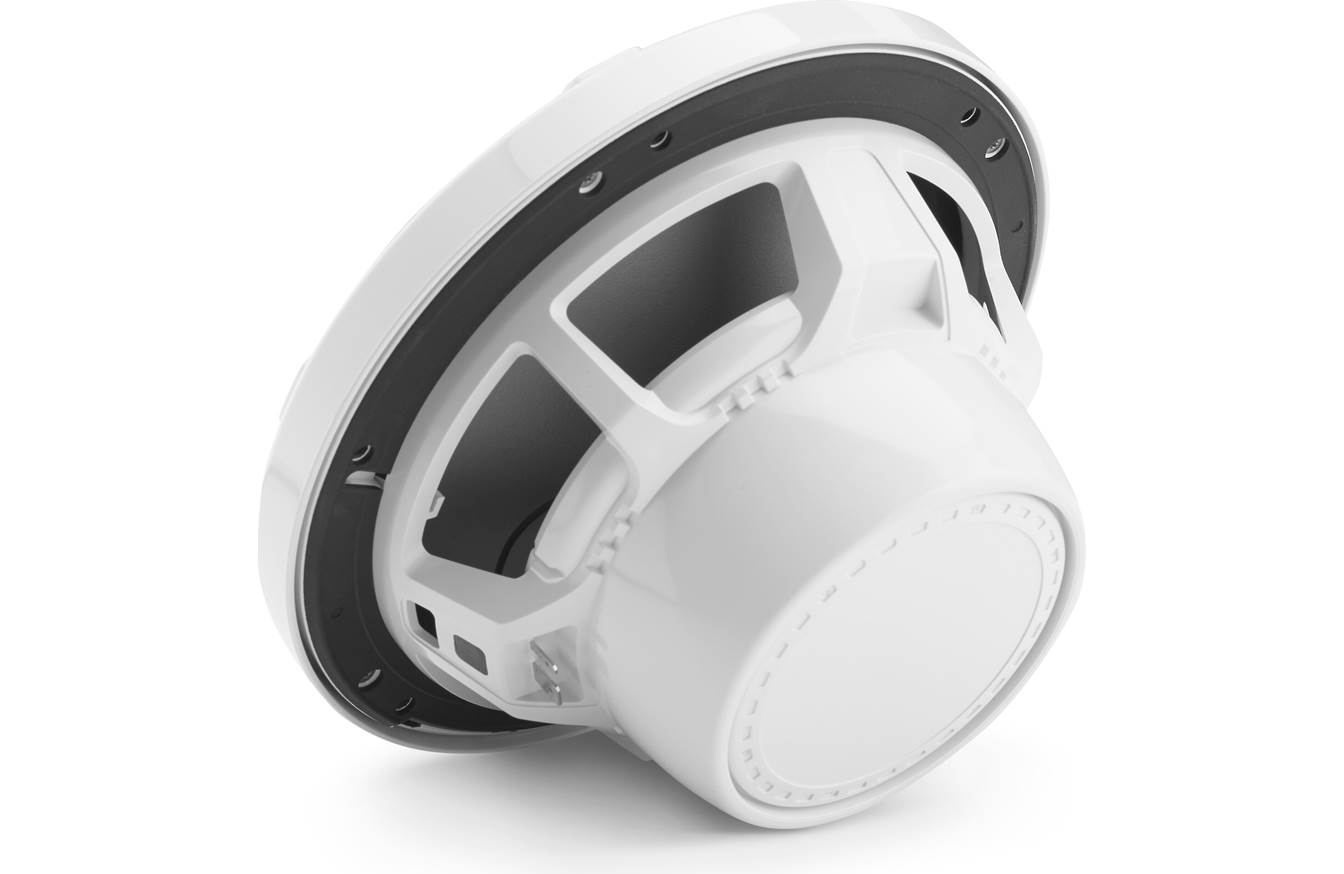

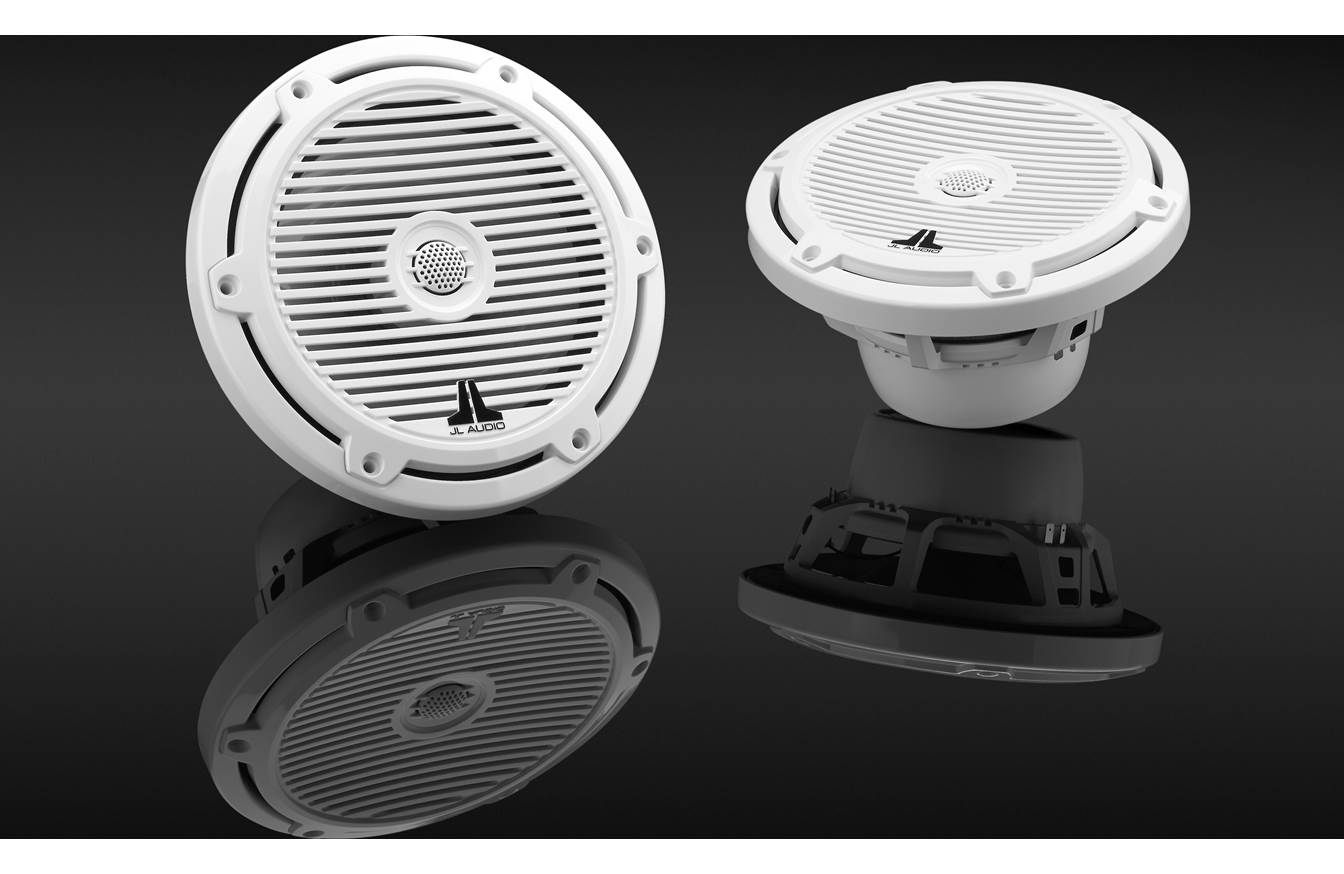

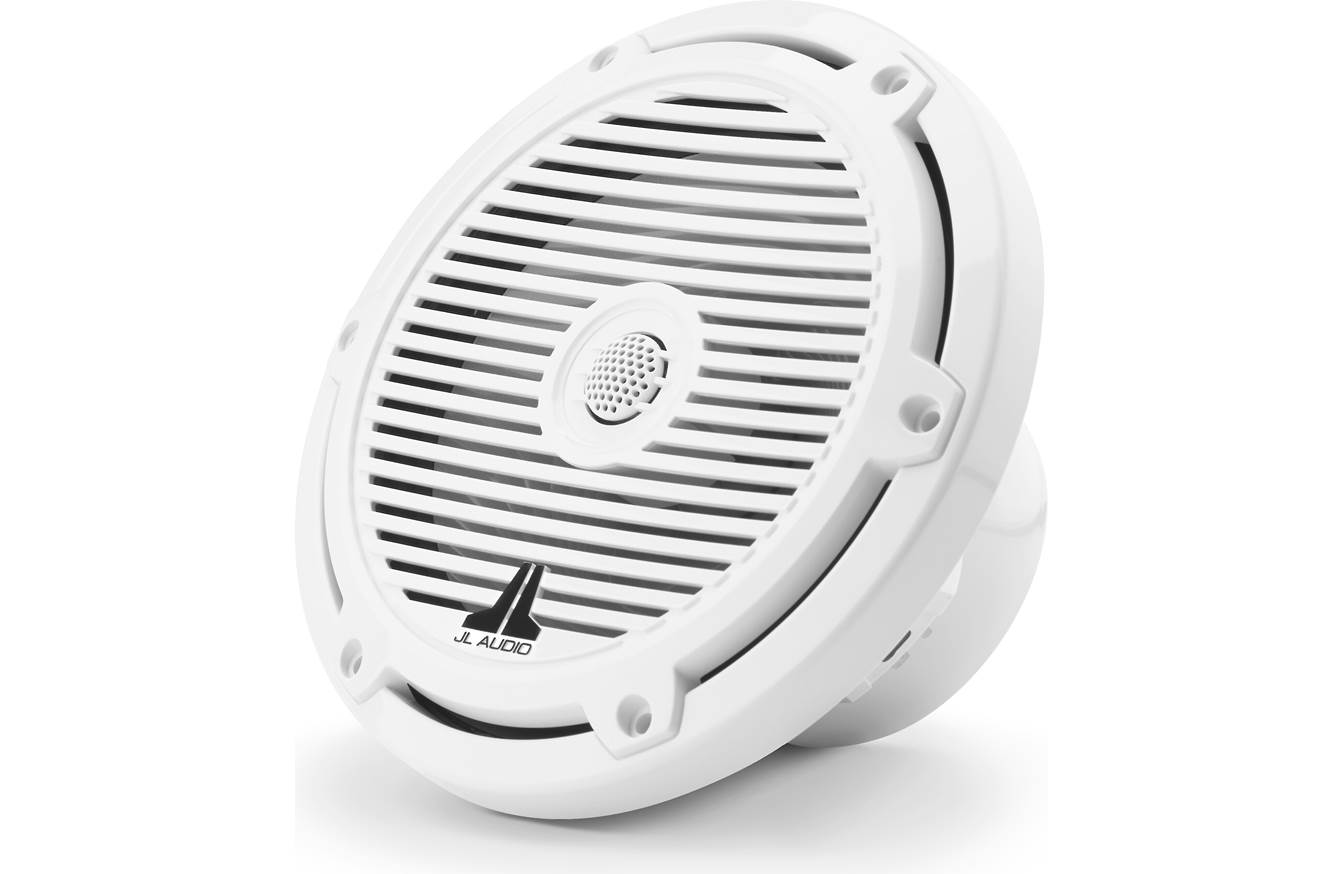

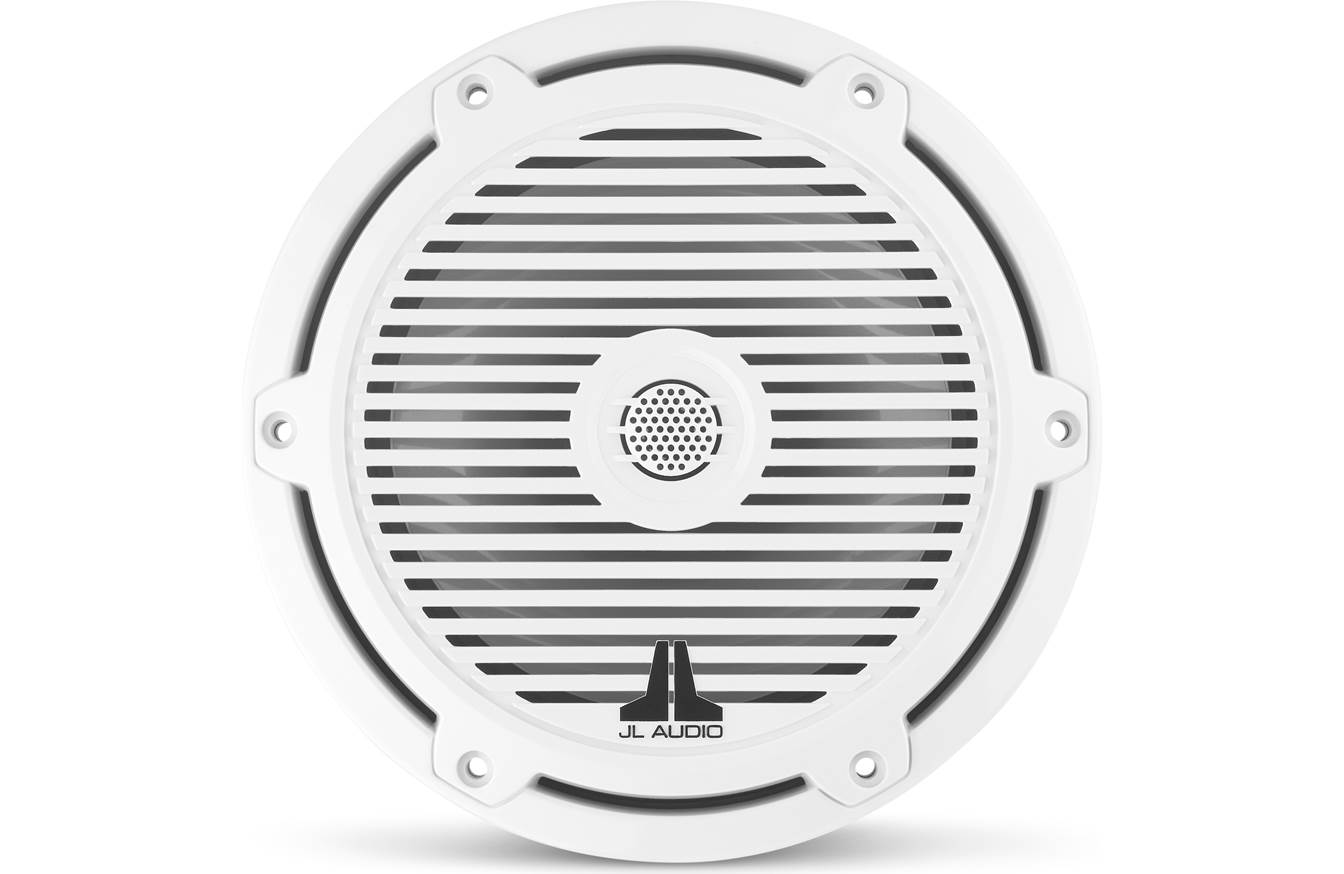

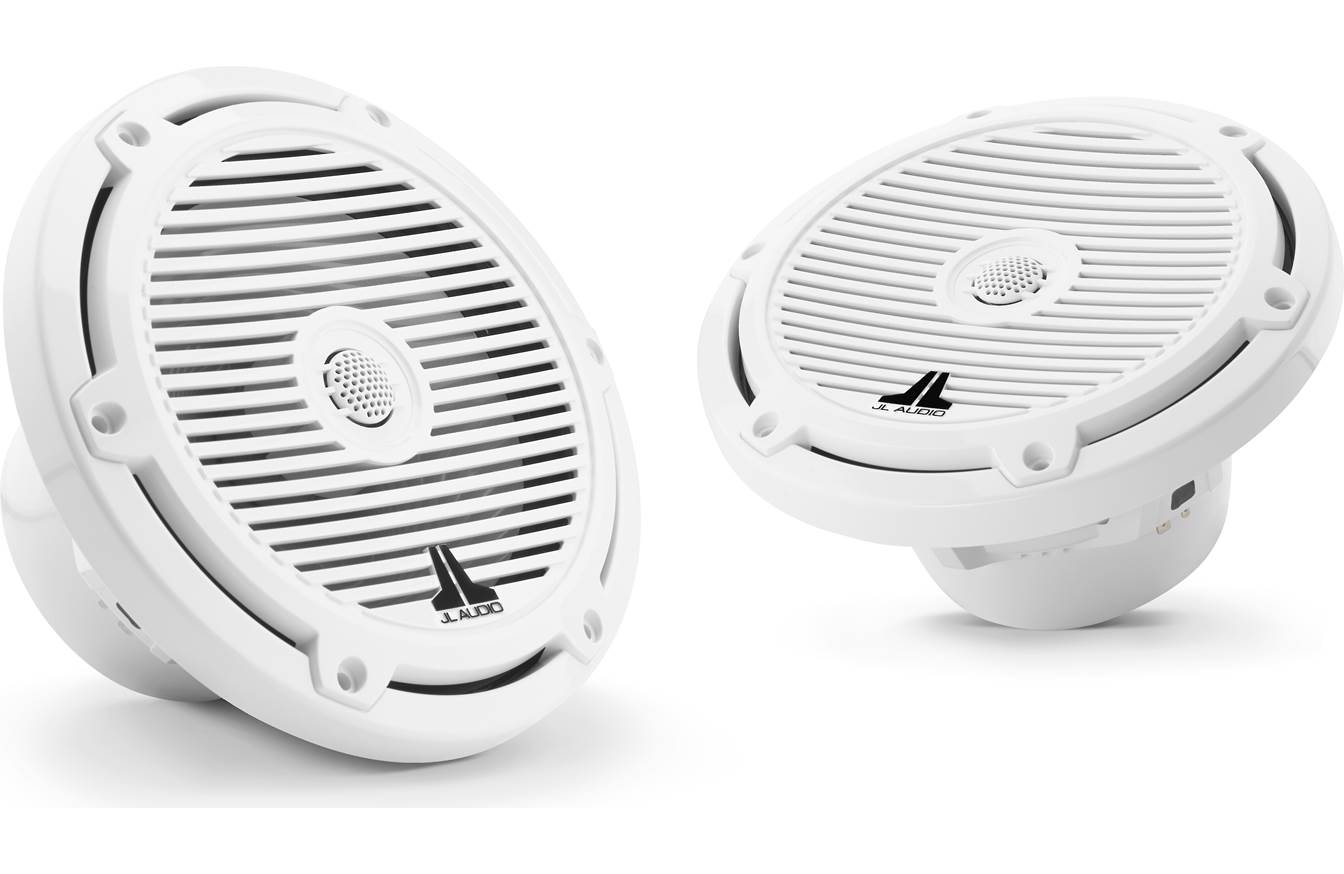

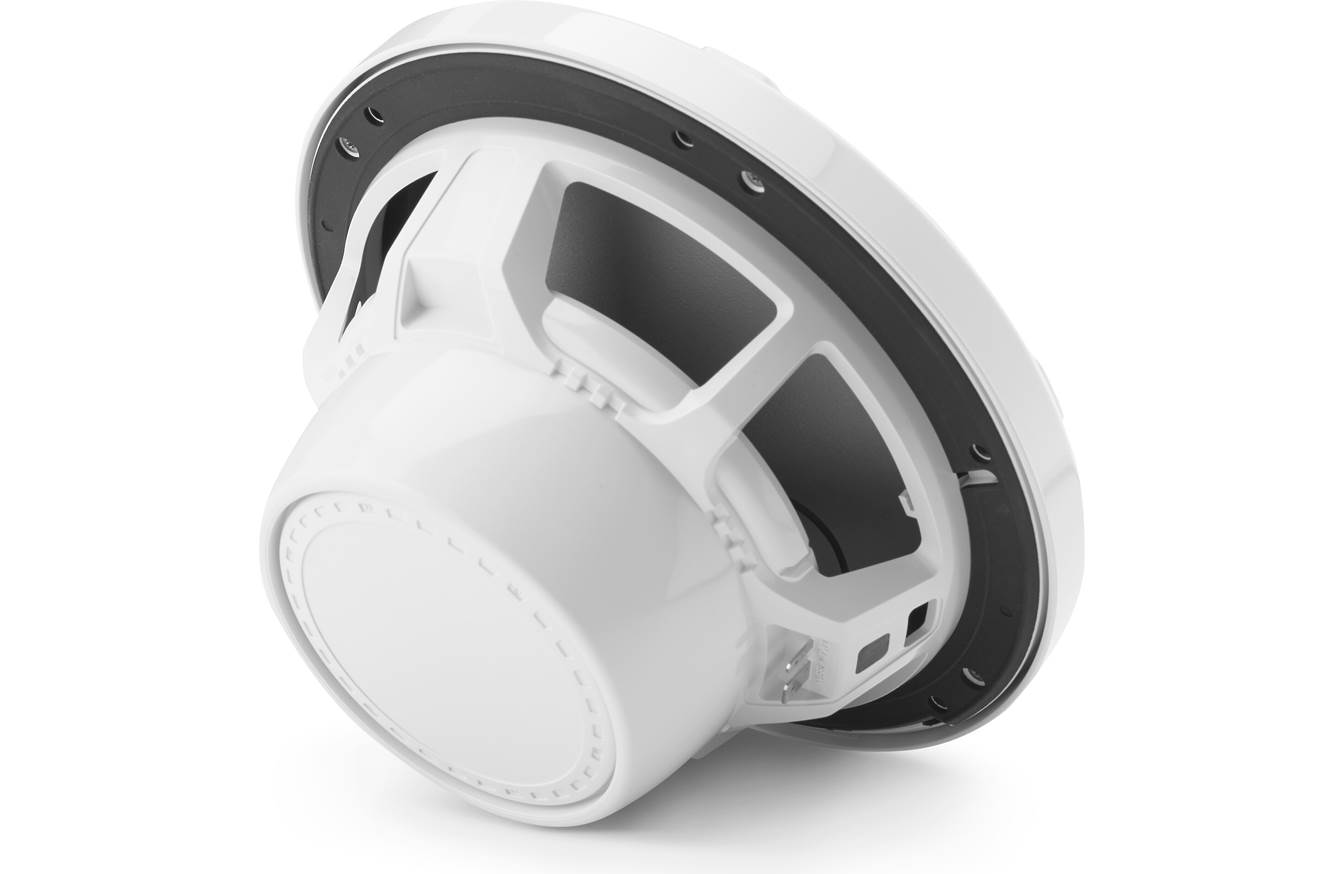

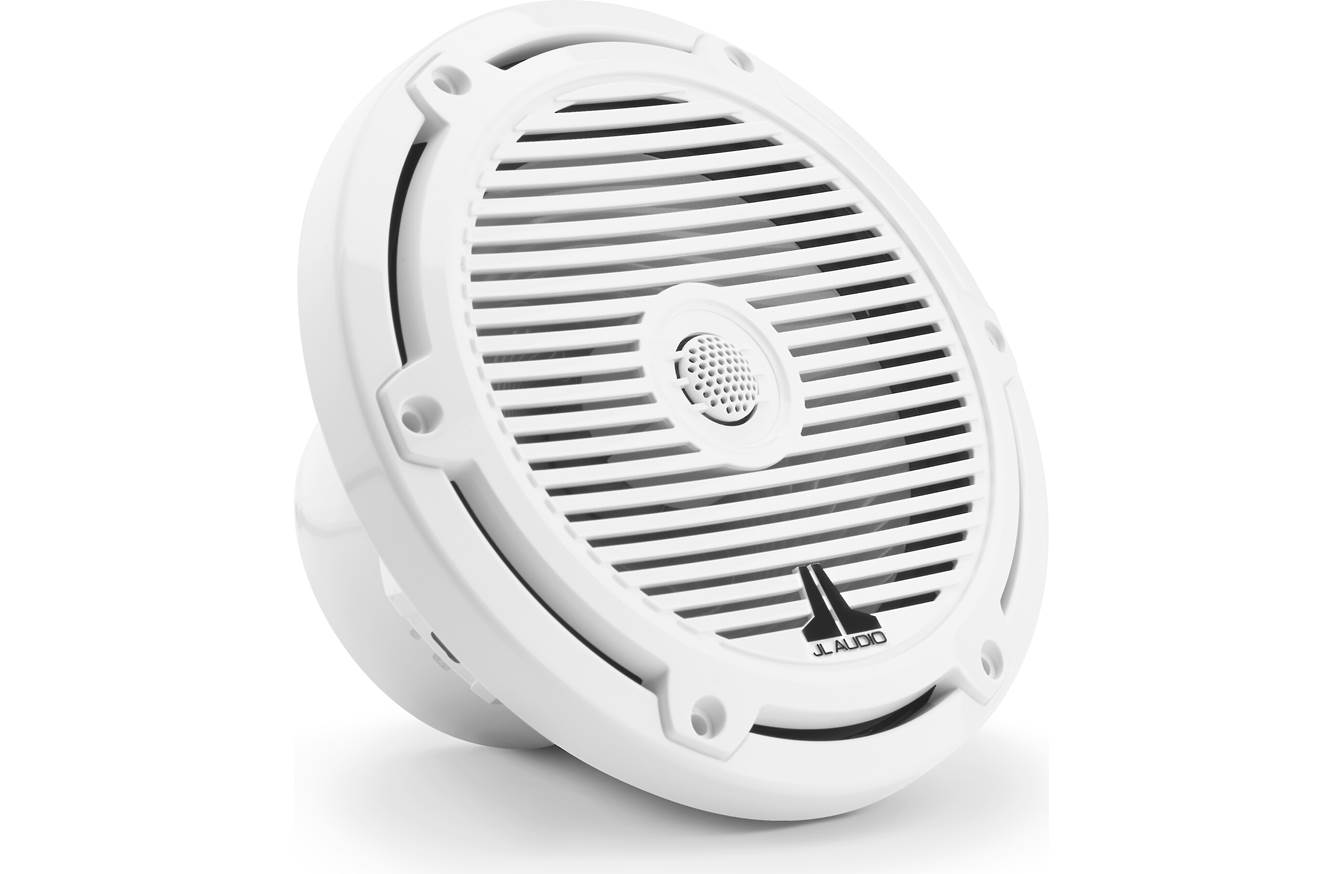

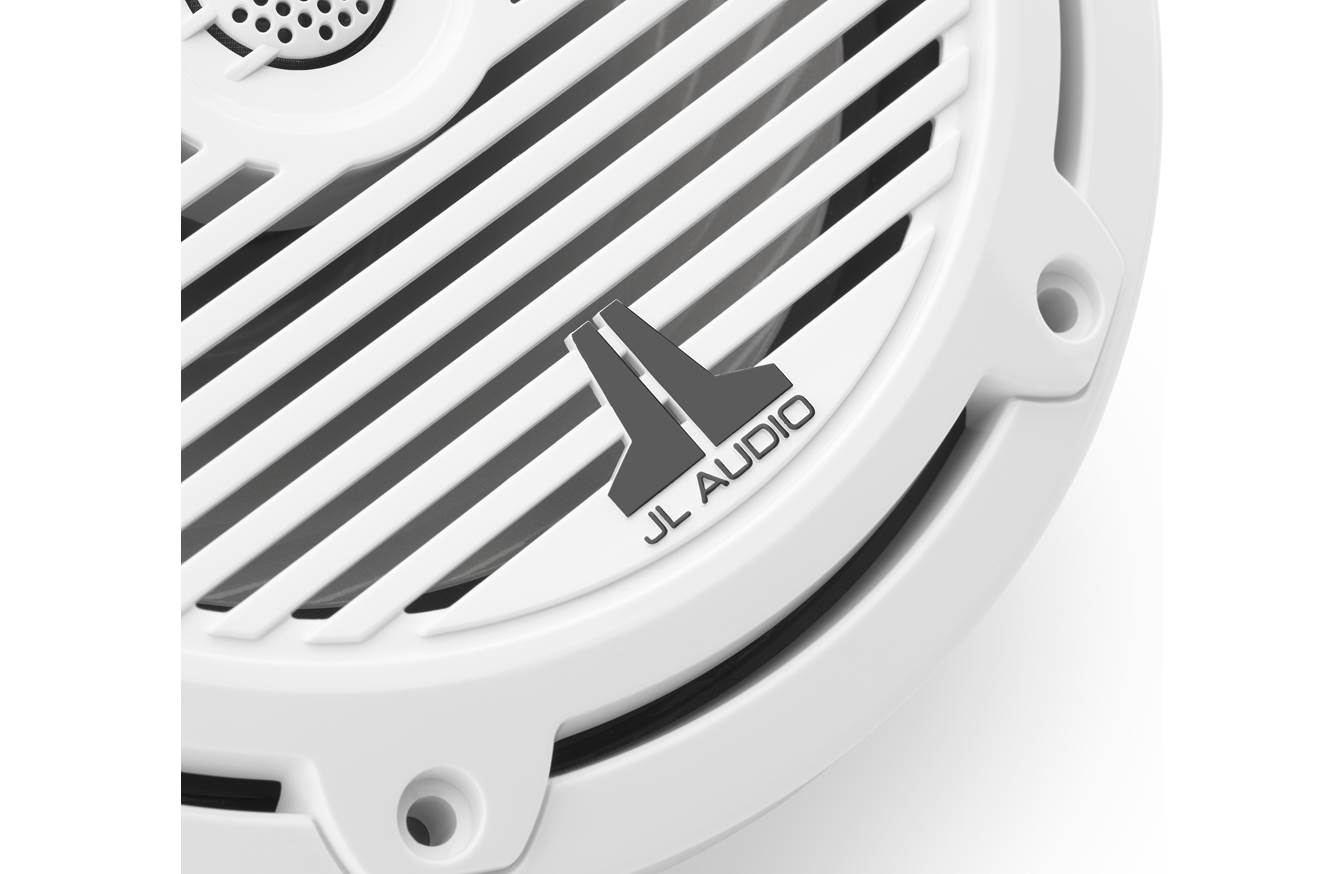

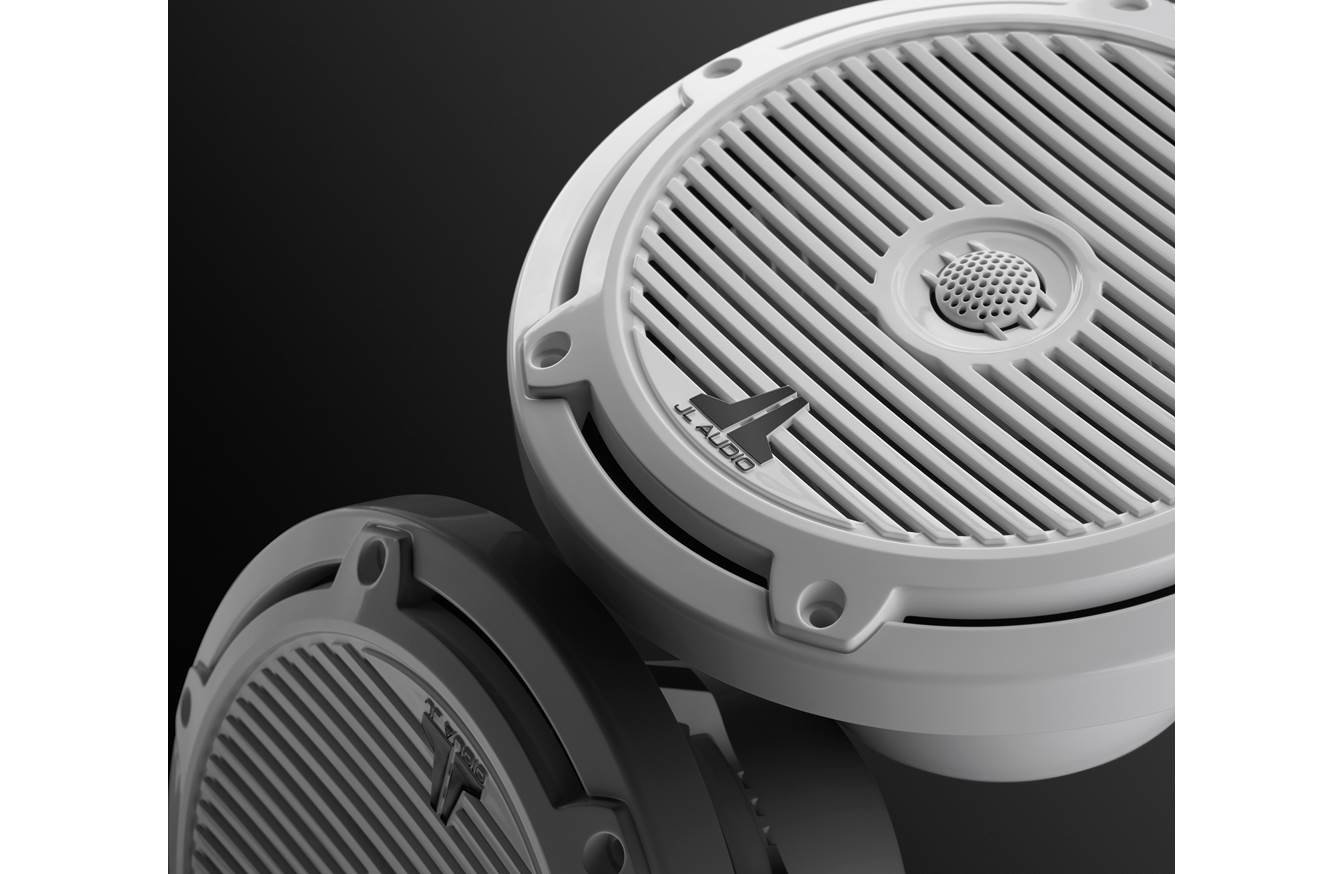

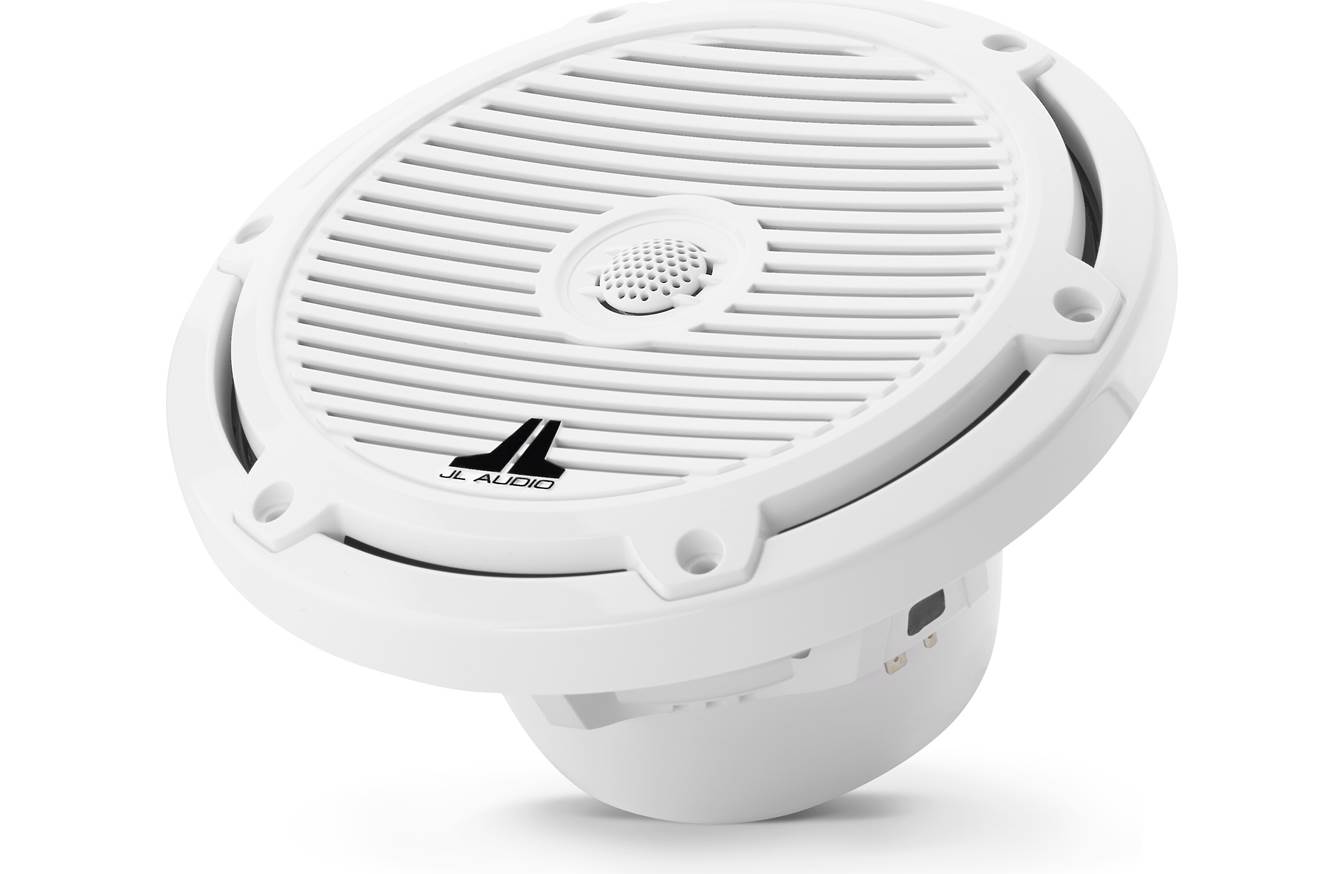

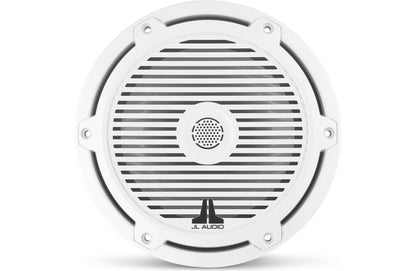

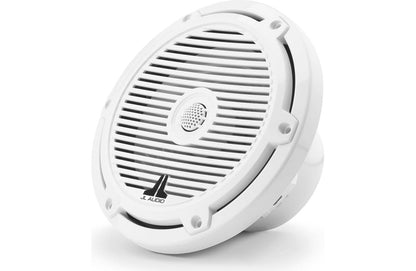

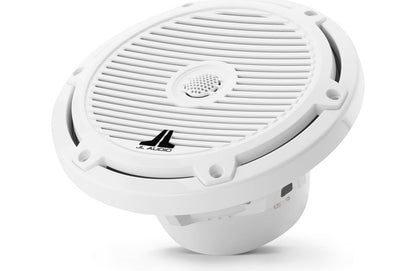

JL Audio M3-770X-C-Gw 7.7-inch Marine Coaxial Speakers, White Classic Grilles 93519

JL Audio M3-770X-C-Gw 7.7-inch Marine Coaxial Speakers, White Classic Grilles 93519

Regular price $369.99 USD
Regular price $369.99 USD Sale price $369.99 USD
Sale Sold out
Shipping calculated at checkout.
**This item has an additional 3 days handling time**

Part Number 010-03065-00

M3 7.7-inch Marine Coaxial System (70 W, 4 Ω) - Gloss White Classic Grille

Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models.

The oversized 7.7-inch design of the M3-770X results in increased efficiency (more output for a given amount of power). This gives them the ability to play louder and cleaner at high volumes than smaller speakers.

The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.

A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics.

Although M3-770X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.

Sold as a pair.

General

Sizes 7.7"
Color White Classic
Physical dimensions (Diameter) 7.7": Classic: 7.70" (196 mm)
Physical dimensions (Depth) 7.7": (Classic): 4.19" (106 mm)
Speaker type Coaxial
Continuous power handling (RMS) 7.7": 70 W
Frequency response (+/- 3 dB) 7.7": 45Hz-25 kHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 7.7": 20-140 W/Channel
LED supply voltage 10-14.4 VDC
LED Load Current @ 14.4 VDC (max) 108 mA
Cone material Injection-molded, mica-filled polypropylene
Tweeter type Silk Dome
Tweeter size 0.75" (19 mm)
Warranty 3 years

Connections

Speaker connections Spade Connectors
LED connection Flying Lead with 4-conductor 22 AWG wire (selected Sport models only)

Mounting Dimensions

Frontal grille protrusion 7.7" (Classic): 1.02" (26 mm)


Bolt hole circle 7.7": 6.92" (176 mm)
