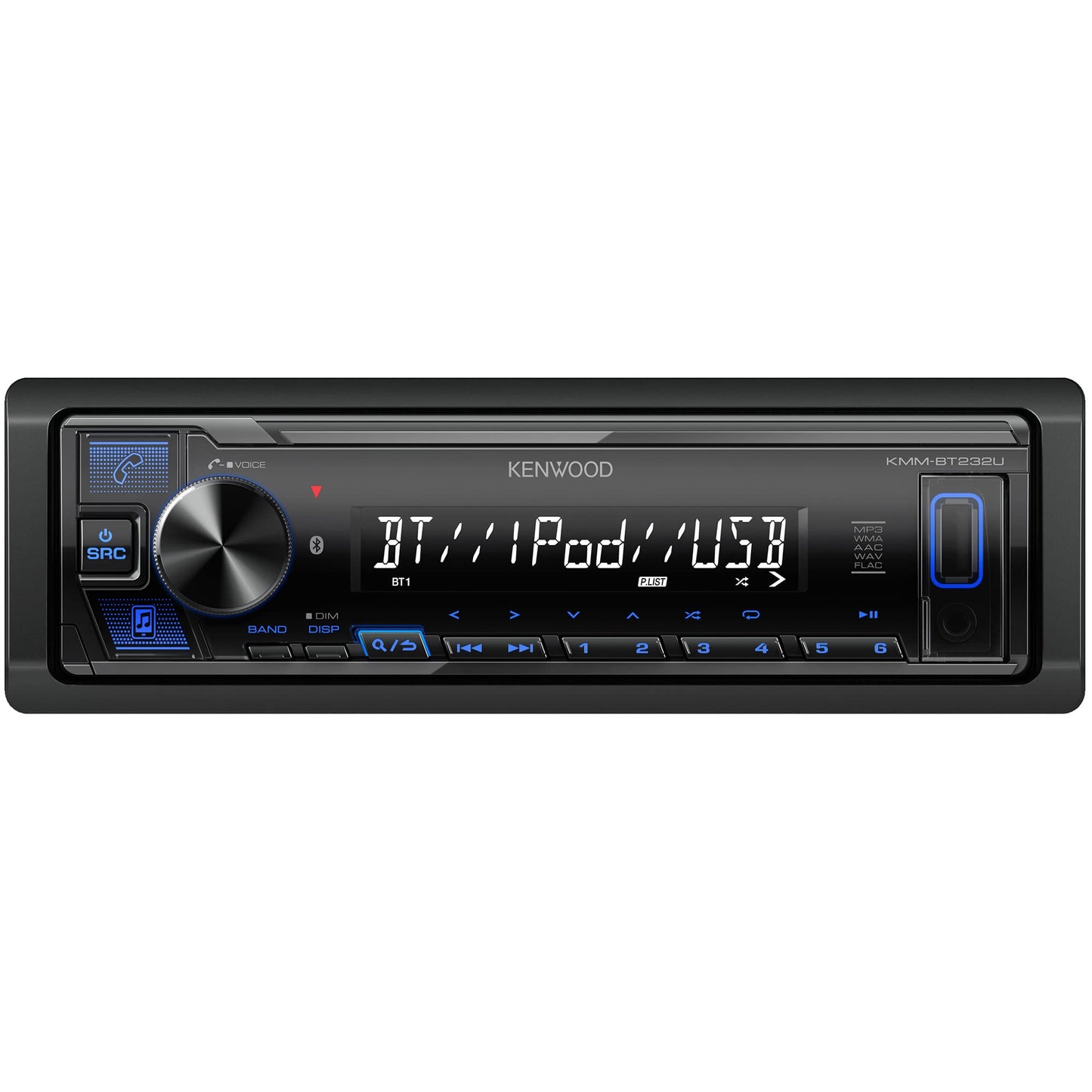

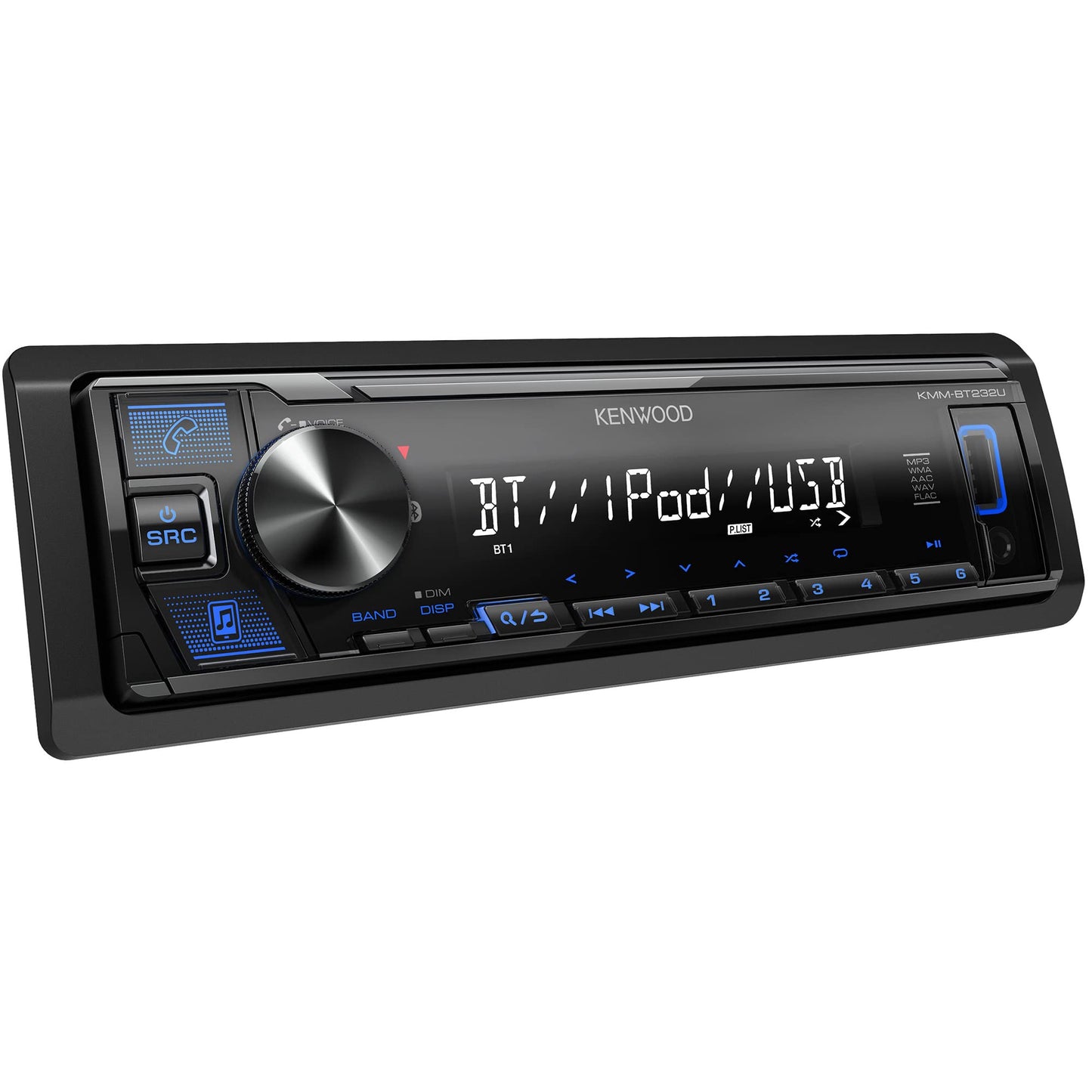

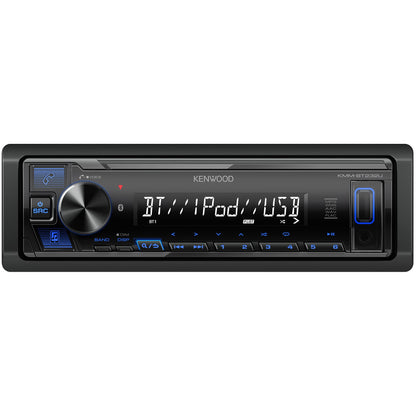

Kenwood KMM-BT232U Single-DIN Bluetooth USB AUX AM/FM Digital Media Receiver

The Kenwood KMM-BT232U is a single-DIN digital media receiver (no CD) built for straightforward AM/FM radio, reliable Bluetooth calling/streaming, and easy front-panel device connection through USB and AUX. It also includes core tuning tools—13-band EQ, Digital Time Alignment, and Drive Equalizer—plus a 2.5V RCA preout for adding an external amplifier or powered subwoofer.

Key Features

• Single-DIN digital media receiver (no CD mechanism)
• AM/FM tuner
• Bluetooth Direct Access button
• KENWOOD Music Mix (up to 5 Bluetooth devices paired)
• Dual Phone Connection
• Front USB and AUX inputs
• 13-band EQ and Digital Time Alignment (DTA)
• Drive Equalizer (Drive EQ)
• 1 RCA preout (2.5V)
• Short chassis design
• 205-segment 1-line text display
• Blue/White illumination

Connectivity & Integration

• Bluetooth: Built-in Bluetooth 4.2 for hands-free calling and audio streaming
• Dual Phone Connection: Switch between two paired phones from the receiver
• KENWOOD Music Mix: Pair up to 5 Bluetooth devices and switch streaming devices
• KENWOOD Remote App: Smartphone app control of basic receiver functions over Bluetooth (iPhone/Android)
• USB: Front USB 1.1 / 2.0 High Speed; FAT12/16/32; maximum supply current DC 5V / 1.5A
• AUX: Front AUX input (max input voltage 1000mV; input impedance 30kΩ)

Audio & System Control

• EQ: 13-band graphic EQ
• Time alignment: Digital Time Alignment (DTA)
• Drive EQ: Compensates for road noise by boosting selected frequencies

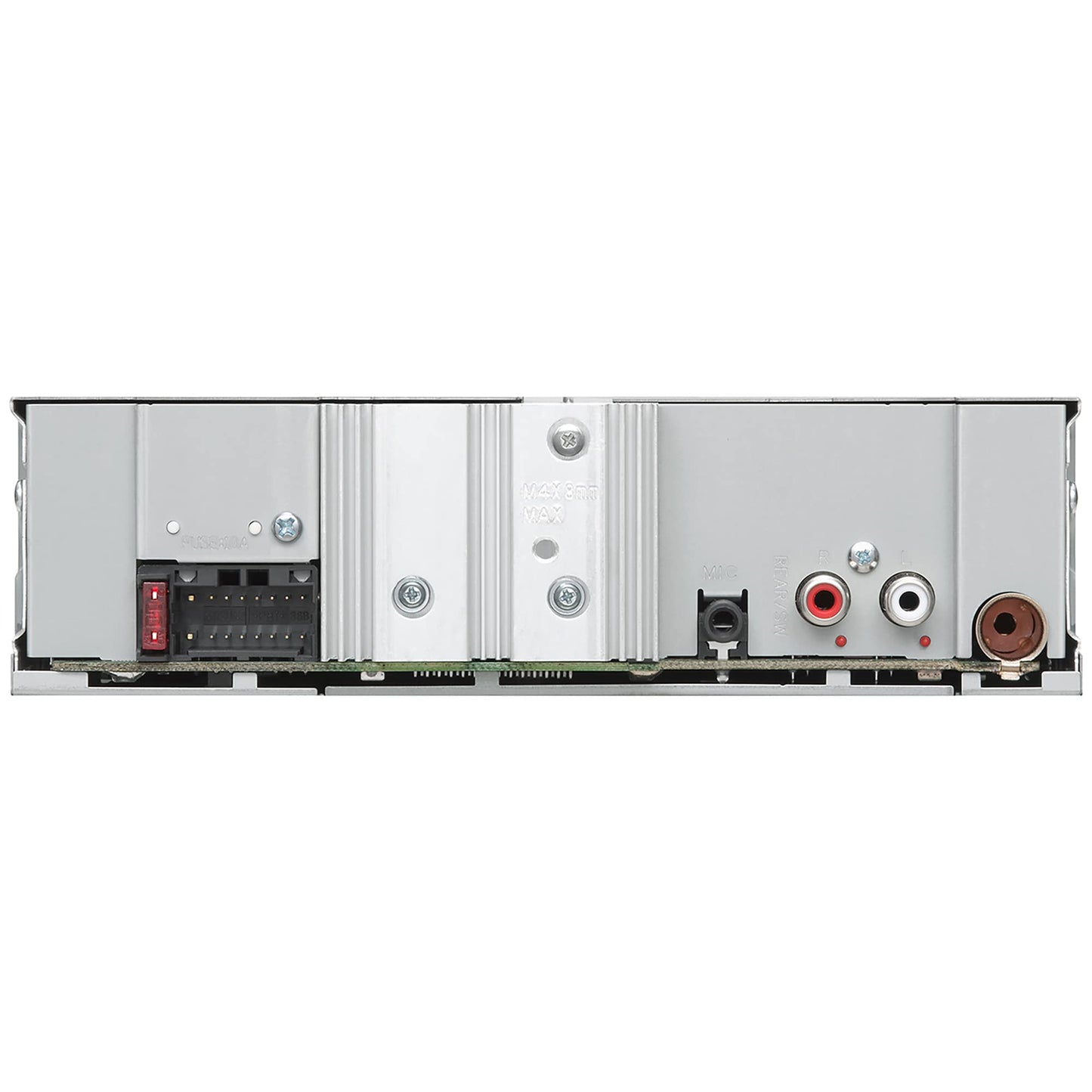

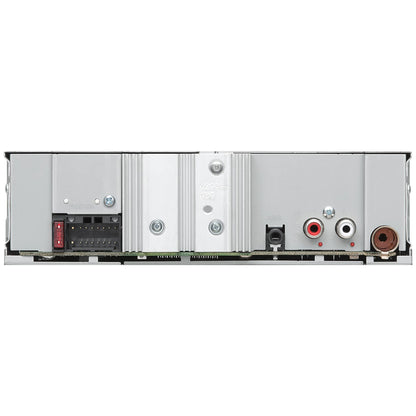

• Preamp outputs: 1 RCA preout; 2500mV / 10kΩ (preout impedance ≤600Ω)
• Internal amplifier: 50W x 4 max; 22W x 4 full bandwidth power (at less than 1% THD)

Installation & Fitment Notes

• Mounting type: Single-DIN (in-dash)
• Chassis: Short chassis design for improved installation clearance
• Dash kits, wiring interfaces, and antenna adapters are vehicle-specific and sold separately

Technical Specifications

• Model: KMM-BT232U
• Receiver type: Digital media receiver (no CD)
• Tuner: AM 530kHz–1700kHz (10kHz step); FM 87.9MHz–107.9MHz (200kHz step)
• Bluetooth: Version 4.2 (profiles: HFP 1.7.1, SPP, PBAP, A2DP, AVRCP 1.6.1)
• USB audio playback: FLAC (up to 96kHz/24-bit), WAV (up to 44.1kHz/16-bit), MP3 (up to 48kHz/320kbps), WMA (up to 48kHz/192kbps), AAC (up to 48kHz/320kbps)
• Display: 205-segment 1-line text display
• Preamp output: 1 preout; 2.5V class (2500mV / 10kΩ spec)
• Installation size (W x H x D): 182mm x 53mm x 100mm (7-3/16" x 2-1/16" x 3-15/16")
• Net weight: 0.6 kg (1.3 lb)

Identifiers & Packaging

• Manufacturer Part Number (MPN): KMM-BT232U
• UPC: 019048234001
• Sold As: Each

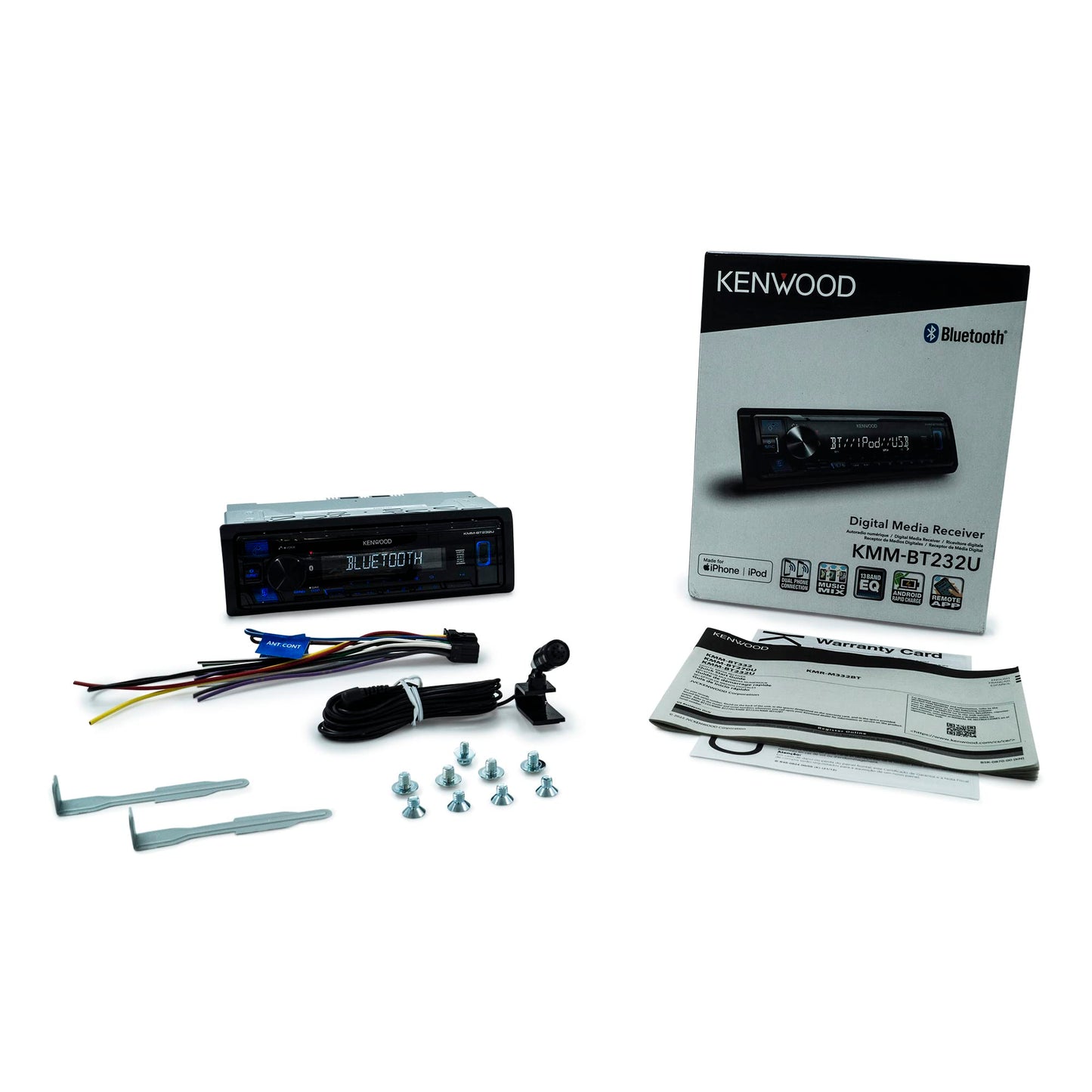

• Included Components: Receiver (trim plate and mounting sleeve included)

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Support for selecting the correct vehicle-specific dash kit, wiring, and antenna integration parts (sold separately)
• Install-focused guidance for clean fitment and reliable Bluetooth operation

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.

Authorized Kenwood Retailer

MCOR Automotive is an authorized Kenwood retailer for online and in-store sales. Products sold by MCOR Automotive are genuine and eligible for applicable manufacturer warranty coverage.
