iDatalink Maestro KIT-VW1 Radio Replacement Kit for Select 2017-2024 Volkswagen Vehicles

The iDatalink Maestro KIT-VW1 Radio Replacement Kit for Select 2017-2024 Volkswagen Vehicles is a complete vehicle-side dash and wiring foundation for select 2017-2024 Volkswagen vehicles in the exact factory-radio, screen, navigation, and amplifier configurations listed below. It is built to make a modern replacement radio look integrated while preserving the factory functions supported by the exact Maestro application.

At a Glance

• Vehicle-specific dash and wiring solution for the exact applications listed below
• Factory-grade fit and finish designed around the original dashboard opening
• Requires a compatible Maestro RR or RR2 interface, supported aftermarket radio, correct firmware, and application-specific accessories
• Radio-specific head-unit adapters are available for select Alpine, JVC/Kenwood, Pioneer, and Sony receivers
• Supports the current Atlas, Golf-family, Jetta-family, Taos, Tiguan, and other exact applications shown below
• Retains application-supported steering-wheel controls, climate display, vehicle settings, camera, and factory-amplifier functions
• Factory radio, screen, navigation, and amplified-audio qualifiers must match the table
• Factory 360-degree camera retention is application-dependent and must be verified

Vehicle Compatibility

Find the row that matches your vehicle and factory equipment. The year, make, and model must match, along with the listed factory radio, screen, navigation, amplifier/audio system, climate-control, or other qualifier. If your vehicle does not match a row exactly, contact MCOR before ordering.

Compatibility & What You Need

Important purchasing requirement: This dash kit is one part of a complete radio-replacement system. The current application must approve Maestro ADS-MRR or ADS-MRR2, and the module must be programmed for the exact vehicle and aftermarket radio. Add the compatible radio, the correct radio-specific head-unit adapter or approved wiring connection, and any antenna, satellite-radio, microphone, camera, USB, or other accessories called for by the current vehicle-specific guide. Required and retained functions vary by application.

Compatible & Related Products

Required interface choices:

• Maestro ADS-MRR radio-replacement interface - select the interface approved by the current vehicle application; sold separately
• Maestro ADS-MRR2 radio-replacement interface - select the interface approved by the current vehicle application; sold separately

Radio-specific plug-in adapters: choose only the adapter that matches the exact radio model and connector. These adapters are optional where direct wiring is allowed and are sold separately.

• Maestro Alpine head-unit adapter
• Maestro Kenwood/JVC head-unit adapter (KEN1)
• Maestro Kenwood/JVC head-unit adapter (KEN2)
• Maestro Kenwood/JVC head-unit adapter (KEN3)
• Maestro Pioneer head-unit adapter
• Maestro Sony head-unit adapter

Radio Fit & Installation Notes

• Supported radio format: Compatible double-DIN or supported modular aftermarket radio
• Verify radio chassis depth, screen size, screen position, USB requirements, camera inputs, and iDatalink Serial Port compatibility before ordering
• Retained, added, or lost functions are determined by the exact vehicle, factory equipment, selected Maestro module, programmed firmware, and replacement radio
• Professional installation is recommended; use the current English vehicle-specific guide generated during Weblink programming
• Factory radio, screen, navigation, and amplified-audio qualifiers must match the table
• Factory 360-degree camera retention is application-dependent and must be verified

Technical Specifications

What's Included

• Head-unit-adapter-ready T-harness
• Factory-finish radio bezel

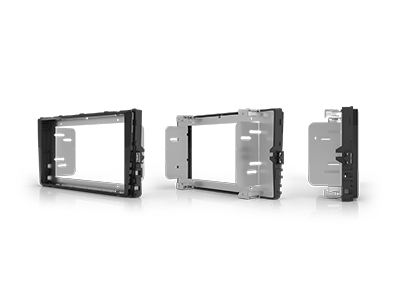

• Metal radio mounting brackets
• Antenna adapters
• Radio-removal tools

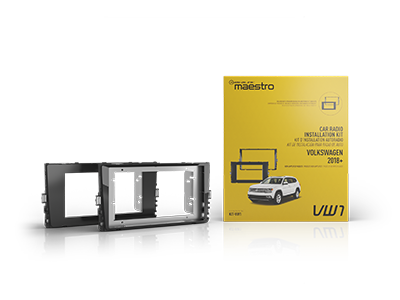

• One genuine iDatalink Maestro KIT-VW1 package
• Maestro interface module, aftermarket radio, radio-specific head-unit adapter, and application-dependent accessories are not included unless expressly listed above

Source Clarification

The current coverage CSV includes select 2017 model-year applications even though the short official product description says 2018+. The customer table is derived from the current source rows and preserves the exact qualifiers.

Fitment disclaimer: Compatibility is not determined by year and model alone. Verify the exact year, make, model, trim, factory radio, navigation, amplifier/audio package, screen, climate controls, camera equipment, replacement radio, required interface, firmware, and accessories before ordering. Product photos show the listed part; surrounding equipment may be pictured for application context and is not included. Contact MCOR Automotive through the chat button for application help.
