iDatalink Maestro KIT-MUS1 Dash Kit & T-Harness for 2010-2014 Ford Mustang without Navigation

The iDatalink Maestro KIT-MUS1 Dash Kit & T-Harness for 2010-2014 Ford Mustang without Navigation is a complete vehicle-side dash and wiring foundation for 2010-2014 Ford Mustang vehicles with the supported basic non-navigation factory radio. It is built to make a modern replacement radio look integrated while preserving the factory functions supported by the exact Maestro application.

At a Glance

• Vehicle-specific dash and wiring solution for the exact applications listed below
• Factory-grade fit and finish designed around the original dashboard opening
• Requires a compatible Maestro RR or RR2 interface, supported aftermarket radio, correct firmware, and application-specific accessories
• Radio-specific head-unit adapters are available for select Alpine, JVC/Kenwood, Pioneer, and Sony receivers
• Retains the supported secondary LCD display and USB functions
• Moves supported climate control and vehicle integration functions to the compatible replacement radio
• Factory navigation radio is not supported
• Replacement radio must support the required Maestro climate-control screen

Vehicle Compatibility

Find the row that matches your vehicle and factory equipment. The year, make, and model must match, along with the listed factory radio, screen, navigation, amplifier/audio system, climate-control, or other qualifier. If your vehicle does not match a row exactly, contact MCOR before ordering.

Compatibility & What You Need

Important purchasing requirement: This dash kit is one part of a complete radio-replacement system. The current application must approve Maestro ADS-MRR or ADS-MRR2, and the module must be programmed for the exact vehicle and aftermarket radio. Add the compatible radio, the correct radio-specific head-unit adapter or approved wiring connection, and any antenna, satellite-radio, microphone, camera, USB, or other accessories called for by the current vehicle-specific guide. Required and retained functions vary by application.

Compatible & Related Products

Required interface choices:

• Maestro ADS-MRR radio-replacement interface - select the interface approved by the current vehicle application; sold separately
• Maestro ADS-MRR2 radio-replacement interface - select the interface approved by the current vehicle application; sold separately

Radio-specific plug-in adapters: choose only the adapter that matches the exact radio model and connector. These adapters are optional where direct wiring is allowed and are sold separately.

• Maestro Alpine head-unit adapter
• Maestro Kenwood/JVC head-unit adapter (KEN1)
• Maestro Kenwood/JVC head-unit adapter (KEN2)
• Maestro Kenwood/JVC head-unit adapter (KEN3)
• Maestro Pioneer head-unit adapter
• Maestro Sony head-unit adapter

Radio Fit & Installation Notes

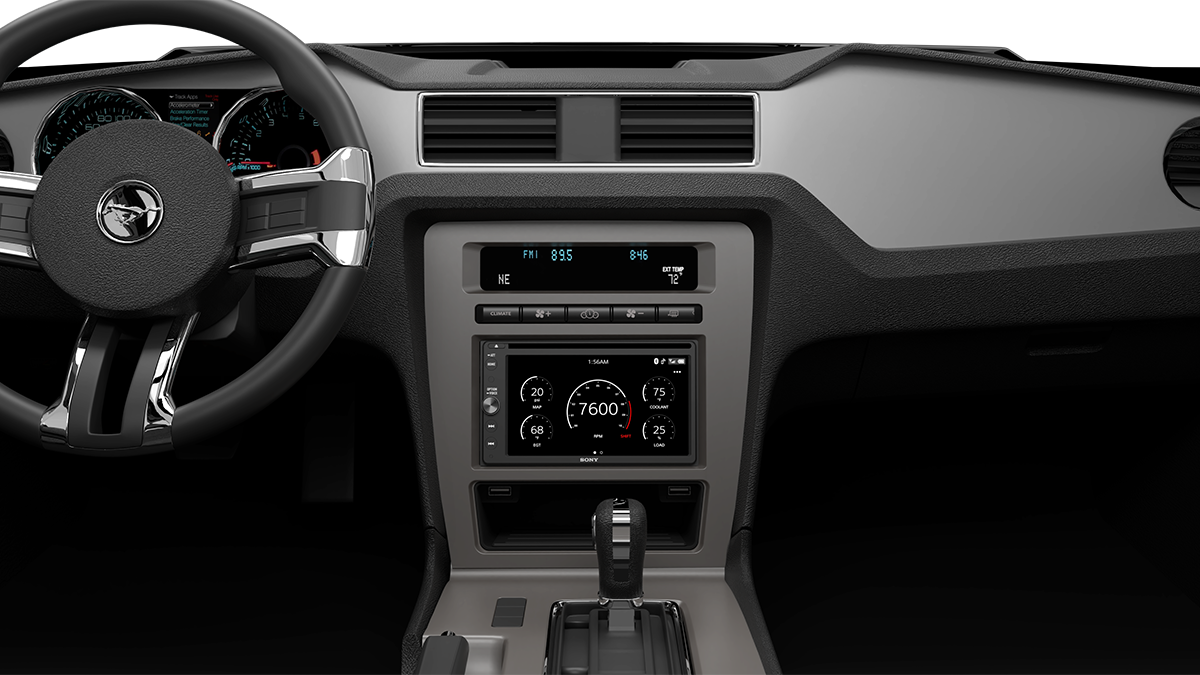

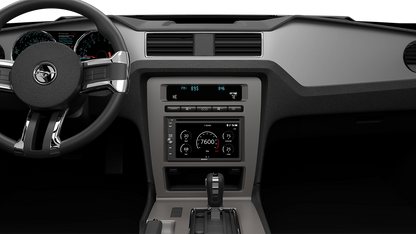

• Supported radio format: Compatible double-DIN iDatalink-ready radio with a supported on-screen climate-control interface
• Verify radio chassis depth, screen size, screen position, USB requirements, camera inputs, and iDatalink Serial Port compatibility before ordering
• Retained, added, or lost functions are determined by the exact vehicle, factory equipment, selected Maestro module, programmed firmware, and replacement radio
• Professional installation is recommended; use the current English vehicle-specific guide generated during Weblink programming
• Factory navigation radio is not supported
• Replacement radio must support the required Maestro climate-control screen

Technical Specifications

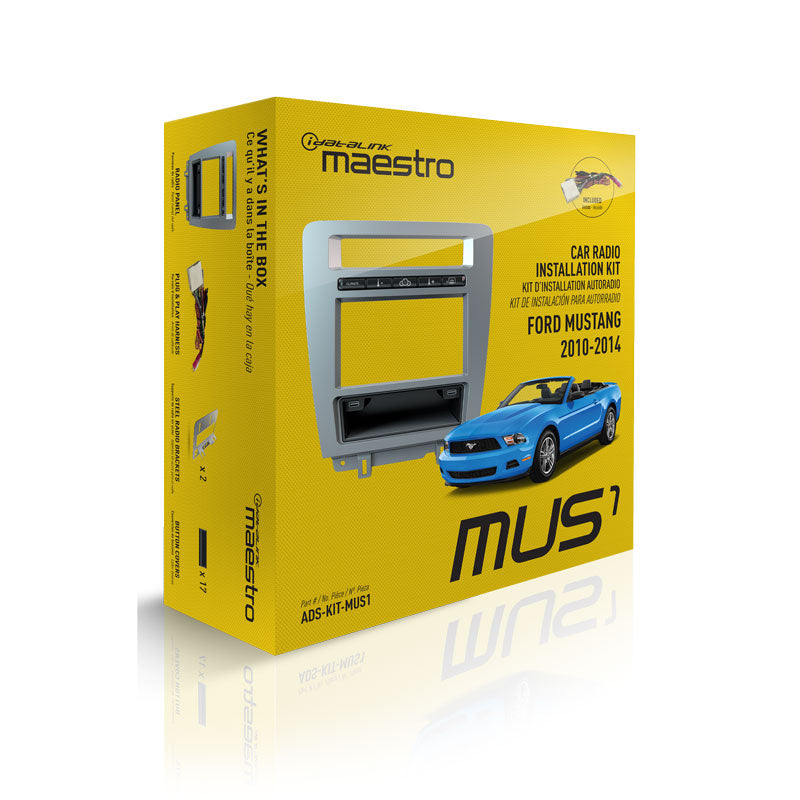

What's Included

• Head-unit-adapter-ready T-harness
• Factory-finish radio/climate panel
• Steel radio mounting brackets
• Storage pocket with USB access
• Customizable quick-access button pieces
• One genuine iDatalink Maestro KIT-MUS1 package
• Maestro interface module, aftermarket radio, radio-specific head-unit adapter, and application-dependent accessories are not included unless expressly listed above

Fitment disclaimer: Compatibility is not determined by year and model alone. Verify the exact year, make, model, trim, factory radio, navigation, amplifier/audio package, screen, climate controls, camera equipment, replacement radio, required interface, firmware, and accessories before ordering. Product photos show the listed part; surrounding equipment may be pictured for application context and is not included. Contact MCOR Automotive through the chat button for application help.
