iDatalink Maestro KIT-MFT1 Dash Kit & T-Harness for Ford MyFord Touch

***This item may have an additional 1–2 business days handling time***

iDatalink Maestro KIT-MFT1 is a dash kit and T-harness solution for select Ford and Lincoln vehicles equipped with the 8" MyFord Touch radio. It is designed to accept an iDatalink-compatible double-DIN aftermarket radio while retaining key factory features when used with a Maestro RR or RR2 interface and an iDatalink-ready head unit.

The package includes a replacement dash panel, steel radio brackets, a head-unit-ready T-harness, and a media hub replacement with USB and A/V connectivity. When installed with the appropriate Maestro module and compatible radio, the system can retain steering wheel audio controls, backup camera, factory amplifier functions, and vehicle settings access, depending on vehicle configuration.

Key Features

• Dash kit and T-harness for 8" MyFord Touch-equipped vehicles
• Supports iDatalink-compatible double-DIN aftermarket radios
• Replacement media hub with USB and A/V connections
• Includes radio panel, steel brackets, and head-unit-ready T-harness
• Engineered to retain factory functions with Maestro RR/RR2 (vehicle dependent)

Technical Specifications

Confirmed Vehicle Applications

For vehicles equipped with the 8" MyFord Touch radio, as listed by iDatalink for KIT-MFT1:

• Lincoln
  • MKX: 2011–2015
• Ford
  • C-Max (8" MyFord Touch): 2013–2018
  • Edge "MyFord Touch" (8" Screen): 2011–2014
  • Edge "MyFord Touch" (8" Screen, Sony amplified): 2011–2014
  • Edge (8" Screen, KIT-MFT1 and shallow radio, Sony amplified): 2015–2020
  • Edge (8" Screen, KIT-MFT1 and shallow radio, non-amplified): 2015–2020
  • Escape "MyFord Touch" (8" Screen, Sony amplified): 2013–2016
  • Escape "MyFord Touch" (8" Screen, without amplifier): 2013–2016
  • Escape "MyFord Touch" (8" Screen, without amplifier, with CD): 2017–2019
  • Escape "MyFord Touch" (8" Screen, without amplifier, no CD): 2017–2019
  • Expedition "MyFord Touch" (8" Screen, Sony amplified): 2015–2017
  • Expedition "MyFord Touch" (8" Screen, without amplifier): 2015–2019
  • Explorer (8" Screen, KIT-MFT1 and shallow radio, Sony amplified): 2011–2017
  • Explorer (8" Screen, KIT-MFT1 and shallow radio, without amplifier): 2011–2019
  • F-150 "MyFord Touch" (8" Screen, Sony amplified): 2013–2017
  • F-150 "MyFord Touch" (8" Screen, without amplifier): 2013–2020
  • F-250 "MyFord Touch" (8" Screen, Sony amplified): 2016–2019
  • F-250 "MyFord Touch" (8" Screen, without amplifier): 2017–2021
  • F-250 "MyFord Touch" (8" Screen, B&O amplified): 2019
  • F-250 (8" Screen, KIT-MFT1 and shallow radio or ACC-KIT-SD1, Sony amplified): 2013–2016
  • F-250 (8" Screen, KIT-MFT1 and shallow radio or ACC-KIT-SD1, without amplifier): 2013–2016
  • F-350 "MyFord Touch" (8" Screen, Sony amplified): 2017–2019
  • F-350 "MyFord Touch" (8" Screen, without amplifier): 2017–2021
  • F-350 "MyFord Touch" (8" Screen, B&O amplified): 2019
  • F-350 (8" Screen, KIT-MFT1 and shallow radio or ACC-KIT-SD1, Sony amplified): 2013–2016
  • F-350 (8" Screen, KIT-MFT1 and shallow radio or ACC-KIT-SD1, without amplifier): 2013–2016
  • F-450 "MyFord Touch" (8" Screen, Sony amplified): 2017–2019
  • F-450 "MyFord Touch" (8" Screen, without amplifier): 2017–2021
  • F-450 "MyFord Touch" (8" Screen, B&O amplified): 2019

Ideal Applications

• Replacing the OEM 8" MyFord Touch radio with a double-DIN aftermarket unit
• Retaining factory steering wheel controls, camera, and amplifier where supported
• Integrating modern CarPlay/Android Auto radios into Ford and Lincoln platforms

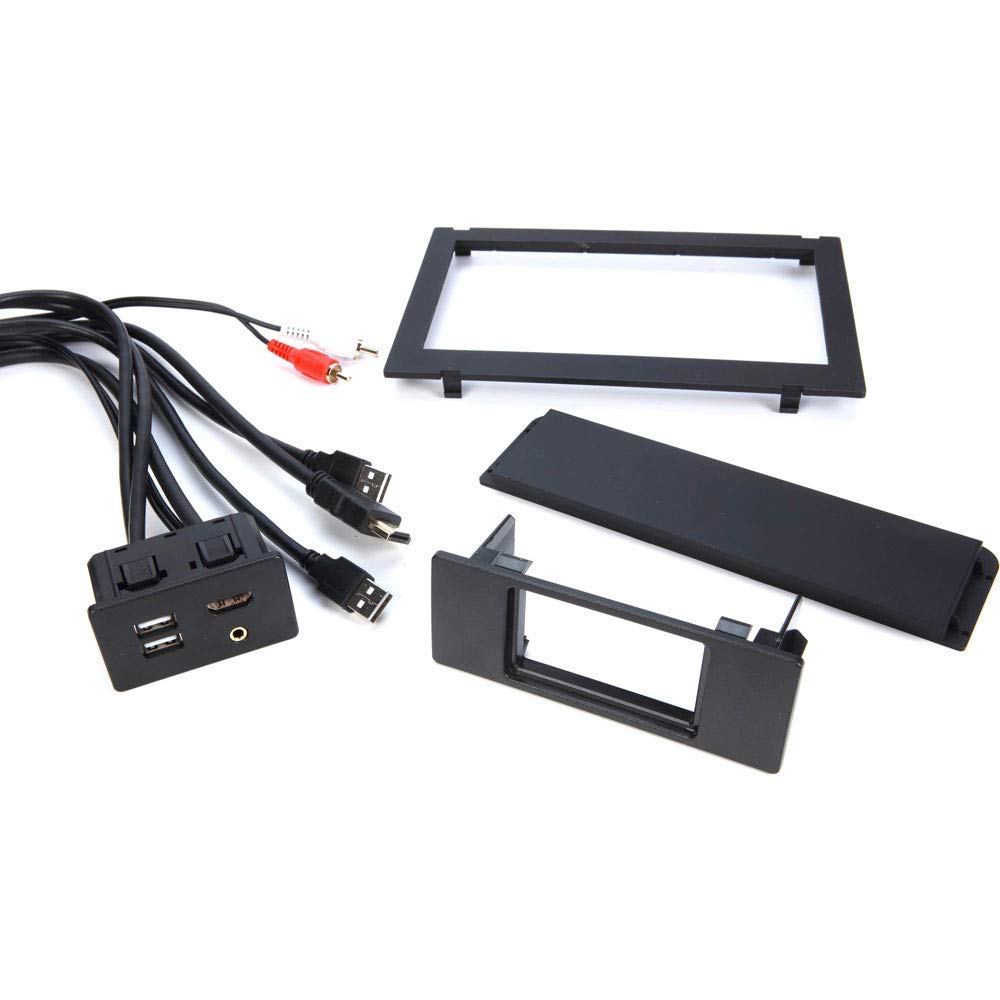

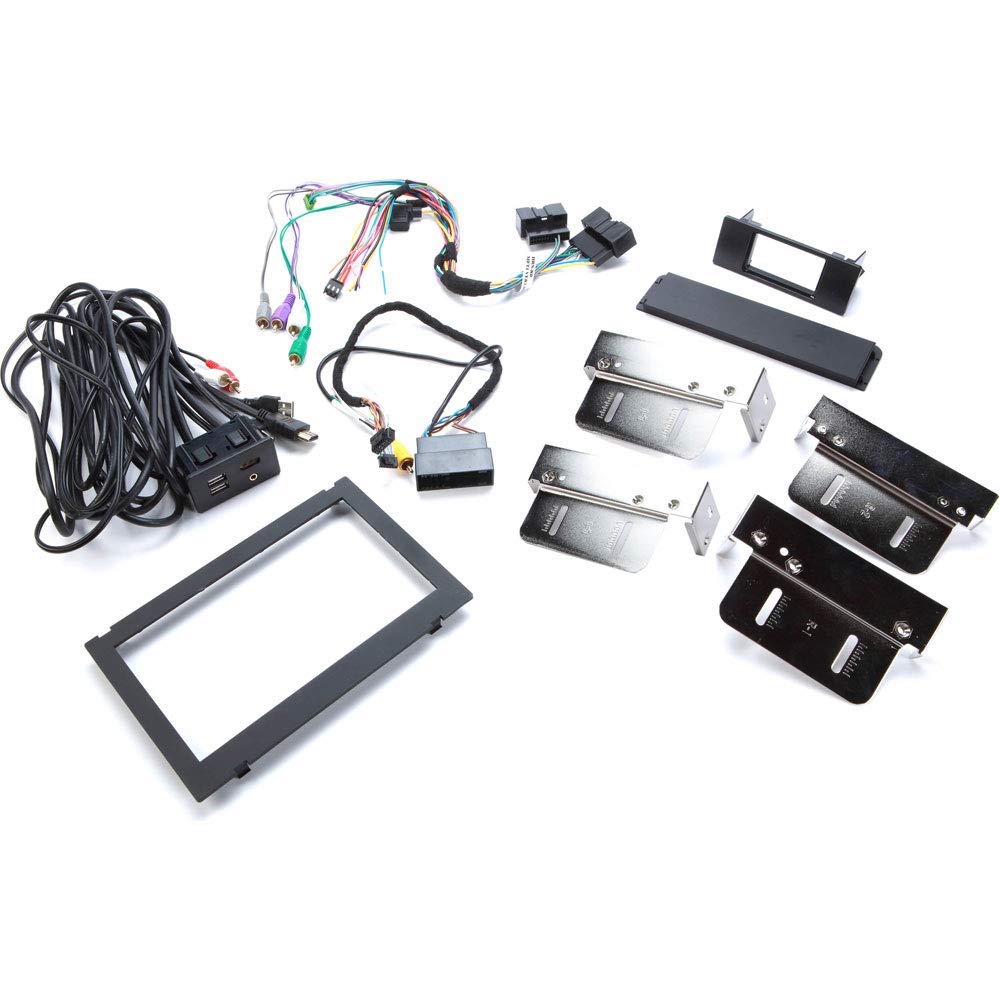

What’s Included

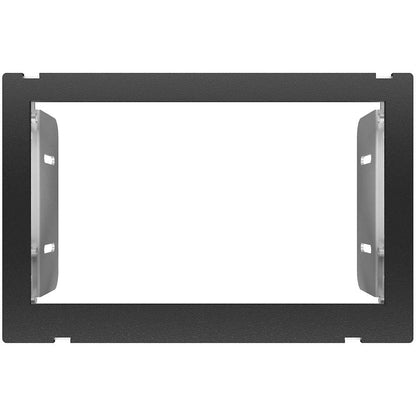

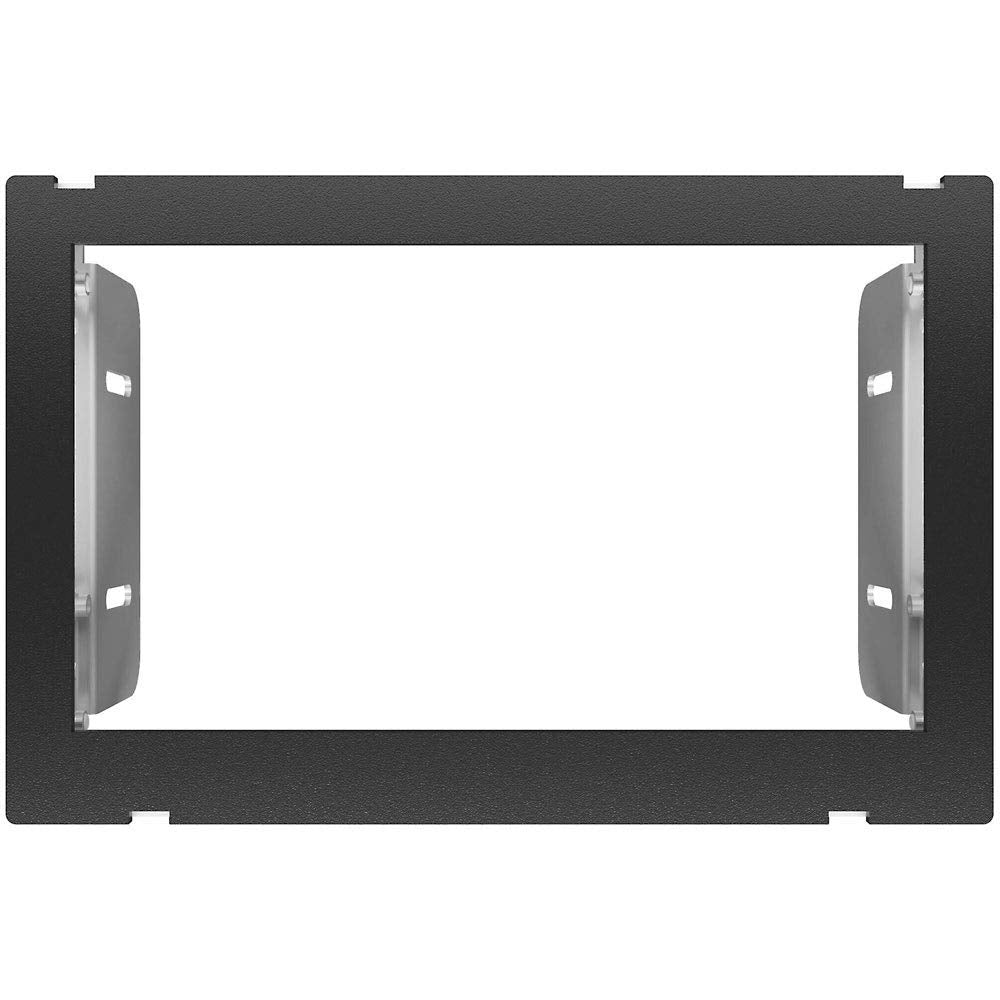

• KIT-MFT1 dash bezel panel
• T-harness and wiring
• Media hub replacement
• Steel radio brackets
• Mounting hardware and documentation
