iDatalink Maestro KIT-EXP1 Radio Replacement Kit for 2011-2019 Ford Explorer with 4.3-Inch Screen

The iDatalink Maestro KIT-EXP1 Radio Replacement Kit for 2011-2019 Ford Explorer with 4.3-Inch Screen is a complete vehicle-side dash and wiring foundation for select 2011-2019 Ford Explorer vehicles with the supported 4.3-inch factory display and equipment configuration. It is built to make a modern replacement radio look integrated while preserving the factory functions supported by the exact Maestro application.

At a Glance

• Vehicle-specific dash and wiring solution for the exact applications listed below
• Factory-grade fit and finish designed around the original dashboard opening
• Requires a compatible Maestro RR or RR2 interface, supported aftermarket radio, correct firmware, and application-specific accessories
• Radio-specific head-unit adapters are available for select Alpine, JVC/Kenwood, Pioneer, and Sony receivers
• Supports the exact 4.3-inch-screen Explorer applications in the current Maestro coverage
• Current application data identifies Maestro RR/RR2 as the required interface family
• Factory 4.3-inch screen required
• Manual-climate and Sync qualifiers must match the applicable table row

Vehicle Compatibility

Find the row that matches your vehicle and factory equipment. The year, make, and model must match, along with the listed factory radio, screen, navigation, amplifier/audio system, climate-control, or other qualifier. If your vehicle does not match a row exactly, contact MCOR before ordering.

Compatibility & What You Need

Important purchasing requirement: This dash kit is one part of a complete radio-replacement system. The current application must approve Maestro ADS-MRR or ADS-MRR2, and the module must be programmed for the exact vehicle and aftermarket radio. Add the compatible radio, the correct radio-specific head-unit adapter or approved wiring connection, and any antenna, satellite-radio, microphone, camera, USB, or other accessories called for by the current vehicle-specific guide. Required and retained functions vary by application.

Compatible & Related Products

Required interface choices:

• Maestro ADS-MRR radio-replacement interface - select the interface approved by the current vehicle application; sold separately
• Maestro ADS-MRR2 radio-replacement interface - select the interface approved by the current vehicle application; sold separately

Radio-specific plug-in adapters: choose only the adapter that matches the exact radio model and connector. These adapters are optional where direct wiring is allowed and are sold separately.

• Maestro Alpine head-unit adapter
• Maestro Kenwood/JVC head-unit adapter (KEN1)
• Maestro Kenwood/JVC head-unit adapter (KEN2)
• Maestro Kenwood/JVC head-unit adapter (KEN3)
• Maestro Pioneer head-unit adapter
• Maestro Sony head-unit adapter

Radio Fit & Installation Notes

• Supported radio format: Compatible double-DIN or floating-screen aftermarket radio
• Verify radio chassis depth, screen size, screen position, USB requirements, camera inputs, and iDatalink Serial Port compatibility before ordering
• Retained, added, or lost functions are determined by the exact vehicle, factory equipment, selected Maestro module, programmed firmware, and replacement radio
• Professional installation is recommended; use the current English vehicle-specific guide generated during Weblink programming
• Factory 4.3-inch screen required
• Manual-climate and Sync qualifiers must match the applicable table row

Technical Specifications

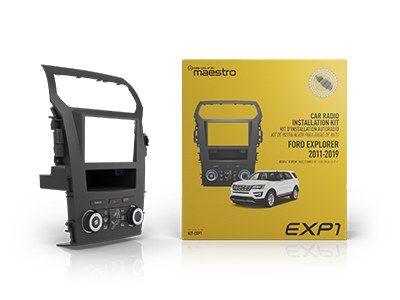

What's Included

• Head-unit-adapter-ready T-harness
• Factory-finish radio/climate panel
• Steel radio mounting brackets
• Vehicle-specific interface wiring and antenna connection pieces
• One genuine iDatalink Maestro KIT-EXP1 package
• Maestro interface module, aftermarket radio, radio-specific head-unit adapter, and application-dependent accessories are not included unless expressly listed above

Source Clarification

The current iDatalink product page and 2026-07-23 coverage data identify Maestro RR/RR2 for KIT-EXP1. An older myFirstech paragraph naming Maestro A2B was not used because it conflicts with the current application records.

Fitment disclaimer: Compatibility is not determined by year and model alone. Verify the exact year, make, model, trim, factory radio, navigation, amplifier/audio package, screen, climate controls, camera equipment, replacement radio, required interface, firmware, and accessories before ordering. Product photos show the listed part; surrounding equipment may be pictured for application context and is not included. Contact MCOR Automotive through the chat button for application help.
