Kenwood eXcelon KFC-XW800F 8" Car Subwoofer 600W Max 150W RMS 4-Ohm

The Kenwood eXcelon KFC-XW800F 8" shallow-mount car subwoofer is built for installs where mounting depth is limited but clean, usable bass still matters. Its carbon-glass fiber honeycomb cone, aluminum die-cast basket, and shallow profile make it a strong fit for trucks, compact custom enclosures, and space-conscious builds where a standard deep-frame subwoofer will not work.

For properly matched mono amplifiers and tight-space enclosure designs, the KFC-XW800F delivers 150 watts RMS handling, 4-ohm compatibility, and the controlled low-frequency performance expected from Kenwood’s eXcelon line.

Key Features

• 8" shallow-mount component subwoofer
• 600 watts peak power handling
• 150 watts RMS power handling
• Single 4-ohm voice coil
• Carbon-glass fiber honeycomb cone
• Rubber surround
• Aluminum die-cast basket
• Heat Transfer System for improved thermal management
• Designed for compact sealed enclosure applications

Sound & Subwoofer Design

• Cone: Carbon-glass fiber honeycomb cone
• Surround: Rubber
• Basket: Aluminum die-cast
• Magnet: Ferrite
• Nominal impedance: 4 ohms
• Sensitivity: 78 dB/W at 1m
• Frequency response: 40Hz - 500Hz
• Shallow profile helps add real bass in tighter mounting spaces than conventional deep-frame subwoofers

Installation & Fitment Notes

• Subwoofer size: 8"
• Shallow-mount design: Built for limited-depth enclosures and compact installs
• Cutout diameter: 7-5/16"
• Mounting depth: 2-3/4"
• Total depth: 3-9/16"
• Subwoofer enclosure is required and sold separately
• Final performance depends on correct enclosure design, amplifier matching, and installation quality

Technical Specifications

• Model: KFC-XW800F
• Subwoofer type: Shallow-mount component subwoofer
• Size: 8"
• Voice coil configuration: Single 4-ohm
• Peak power: 600W
• Rated input power (RMS): 150W
• Nominal impedance: 4 ohms
• Sensitivity: 78 dB
• Frequency response: 40Hz - 500Hz
• Overall dimensions: 8-7/8" x 8-7/8"
• Cutout diameter: 7-5/16"
• Mounting depth: 2-3/4"
• Weight without grille: 6.4 lbs

Identifiers & Packaging

• Manufacturer Part Number (MPN): KFC-XW800F
• UPC: 019048171436
• Sold As: Each

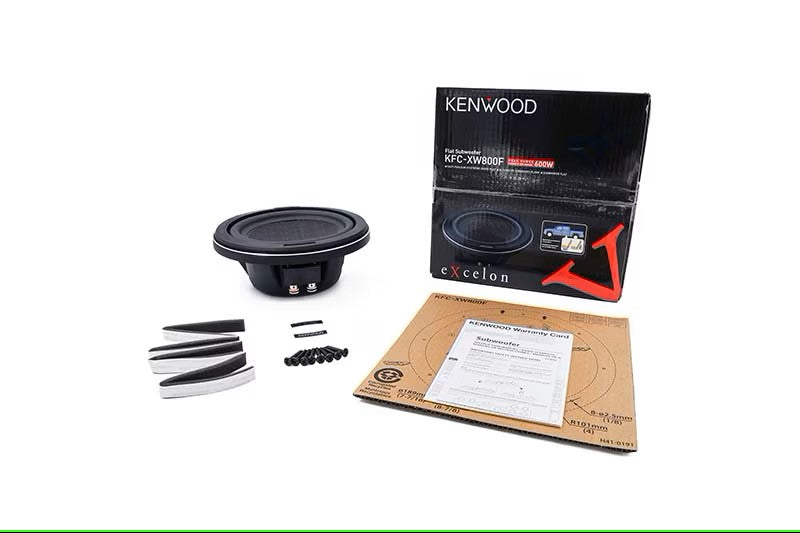

• Included Components: One subwoofer, removable trim ring, screw set, gasket, cushion, and manufacturer-supplied documentation as packaged by Kenwood

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Experienced in matching subwoofers, amplifiers, and enclosure-friendly system combinations
• Real product support before and after the sale

Subwoofer Fitment & System Matching Help

• Use the MCOR Automotive Vehicle Fit Guide to start with your vehicle details, or contact MCOR Automotive through the chat button for help matching this subwoofer with the correct enclosure, amplifier power, wiring, and installation approach.
• Subwoofer fitment depends on available space, enclosure type, power handling, impedance, amplifier match, and vehicle-specific installation requirements.
• Amplifiers, enclosures, wiring kits, sound treatment, and vehicle-specific installation parts are sold separately unless specifically listed.
