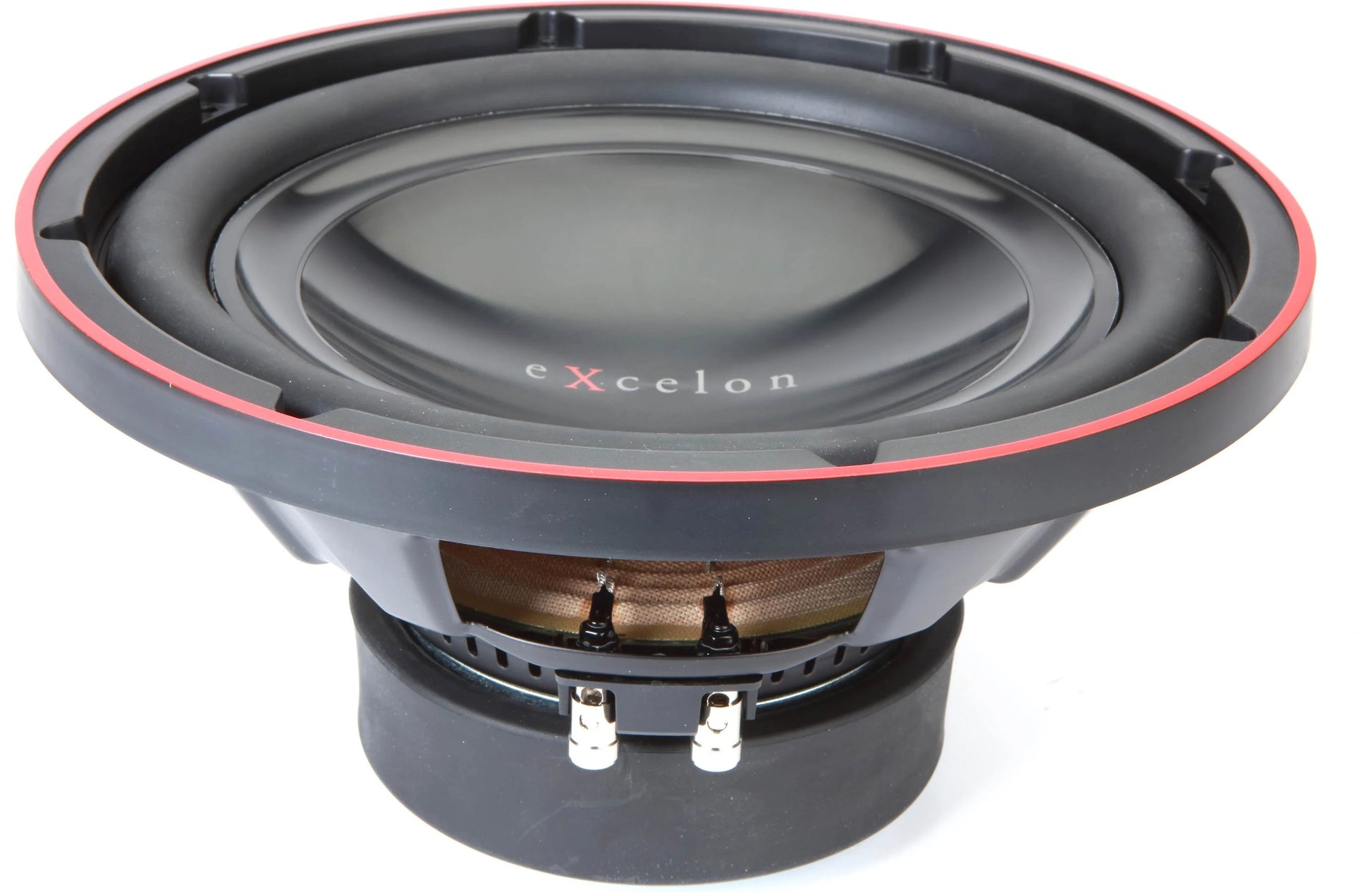

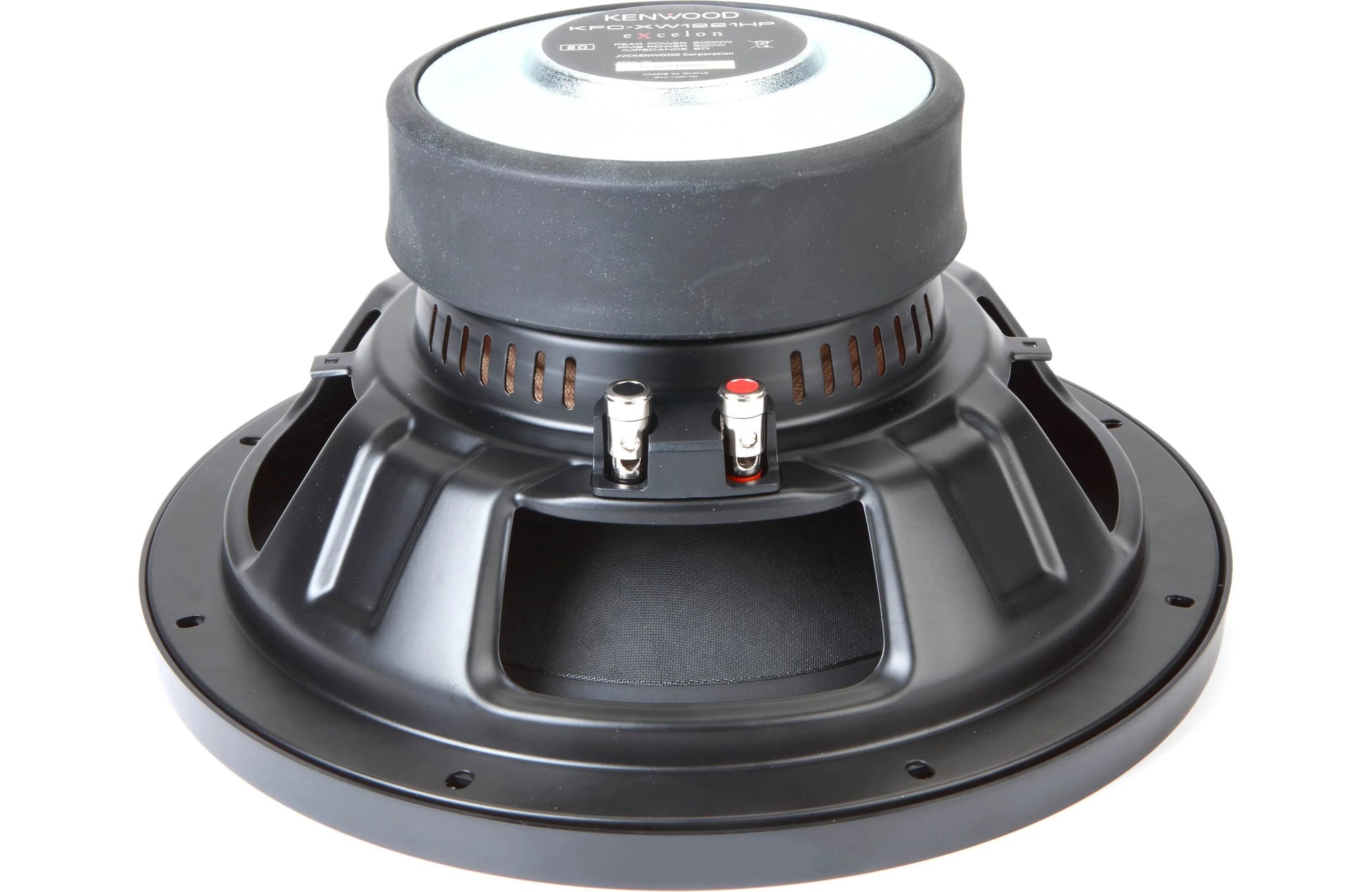

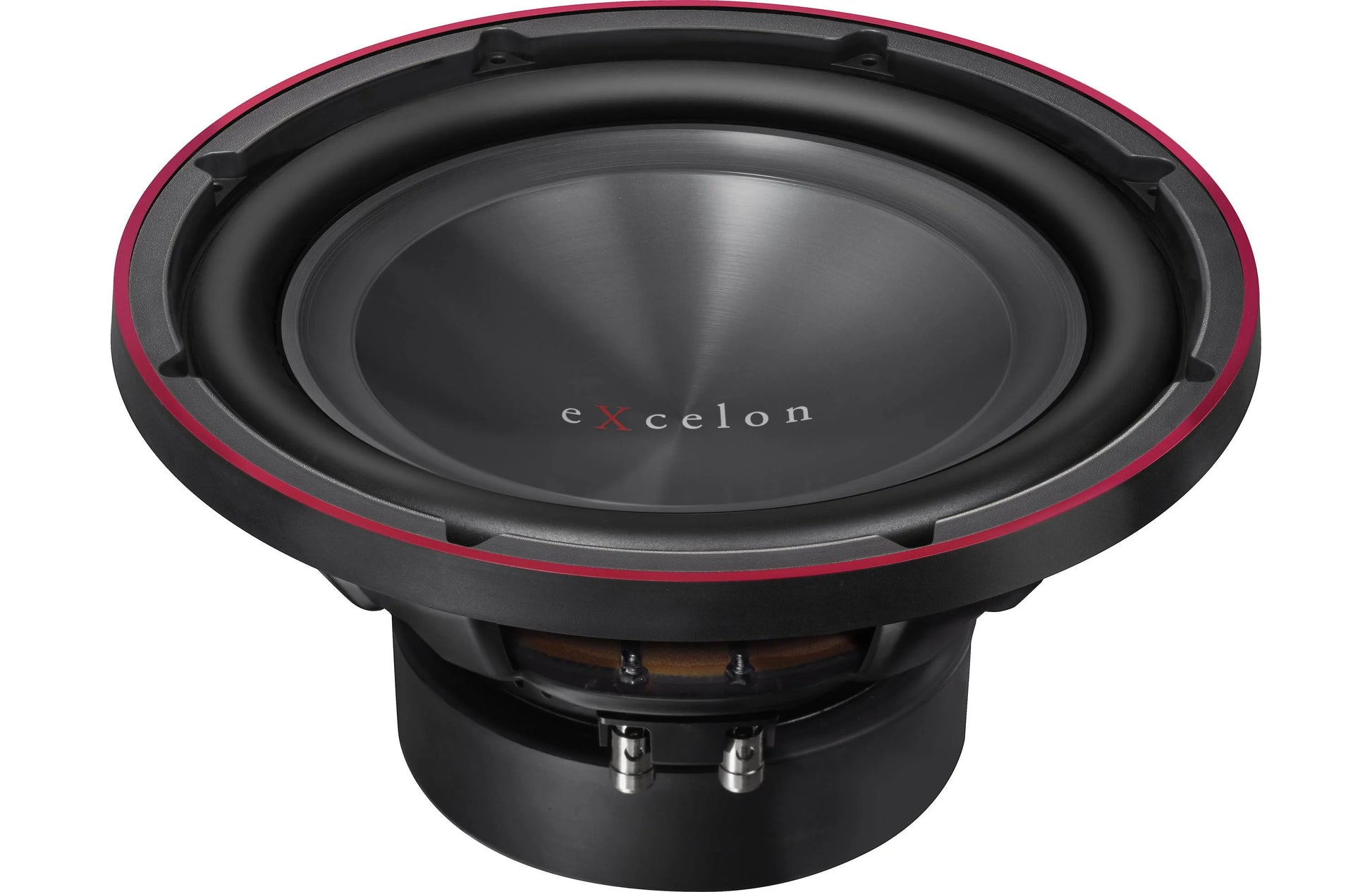

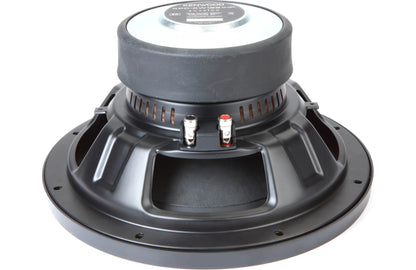

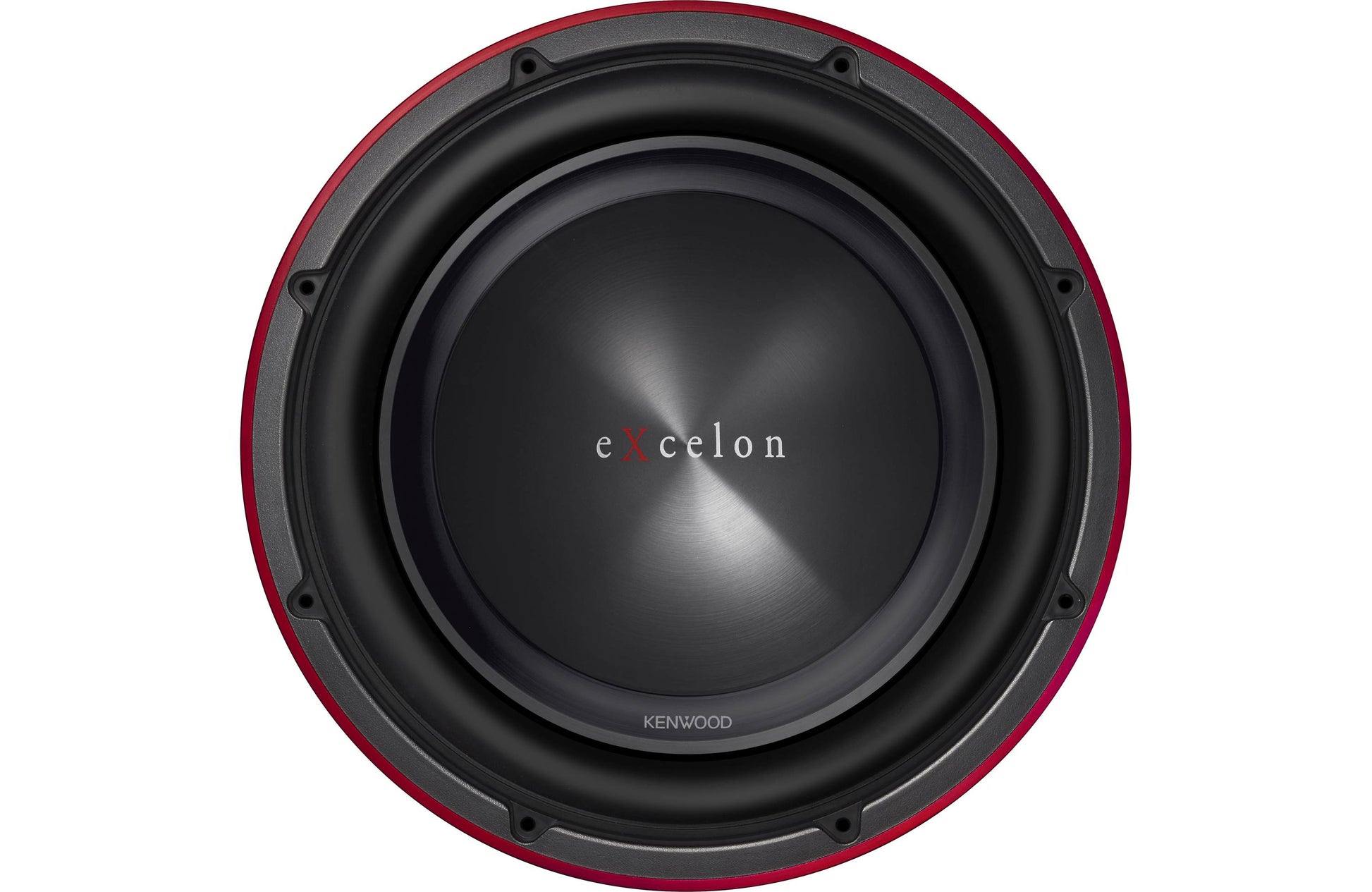

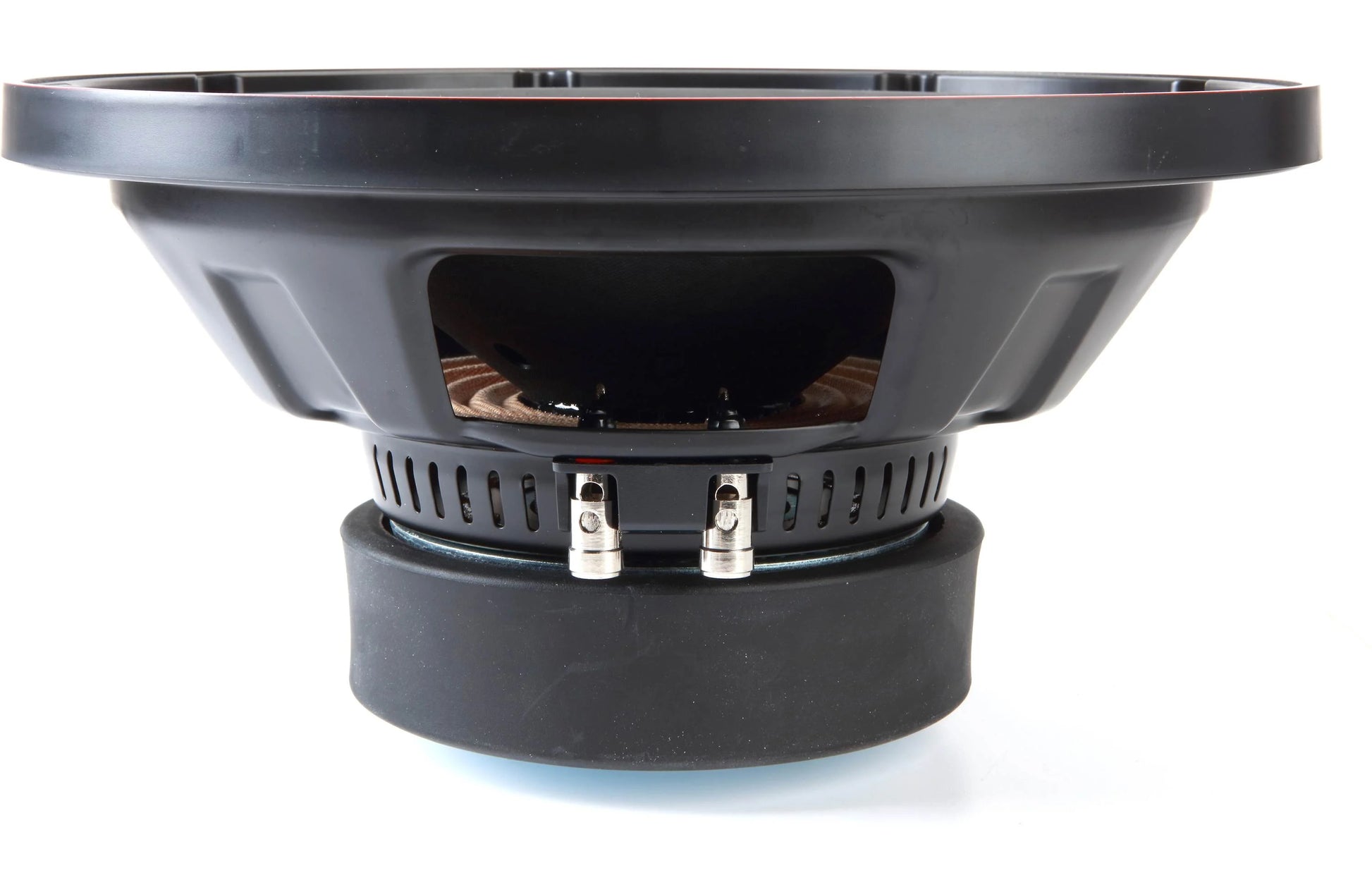

Kenwood eXcelon KFC-XW1221HP 12" Car Subwoofer 2000W Max 500W RMS 2-Ohm

***This Item requires an additional 3-5 Days Handling Time***

The Kenwood eXcelon KFC-XW1221HP 12" car subwoofer is built for buyers who want stronger low-frequency output, higher thermal durability, and real amplifier-ready power handling from a single 2-ohm woofer. Its high-power design uses a polypropylene cone with dual area cap, advanced airflow management, and a stress-controlled suspension to keep bass cleaner and more controlled when the system is pushed harder.

For properly matched mono amplifiers and enclosure-based system builds, the KFC-XW1221HP delivers serious 500-watt RMS handling with the durability and output expected from Kenwood’s eXcelon high-power subwoofer line.

Key Features

• 12" high-power component subwoofer
• 2000 watts max power handling
• 500 watts RMS power handling
• Single 2-ohm voice coil
• Polypropylene cone with dual area cap
• Rubber surround
• Closed yoke with advanced airflow control
• Aluminum bobbin for improved thermal management
• Stress Controlled Spider for improved mechanical durability

Sound & Subwoofer Design

• Cone: Polypropylene cone with dual area cap
• Surround: Rubber
• Basket: Steel
• Gasket: ABS
• Magnet: Ferrite
• Nominal impedance: 2 ohms
• Sensitivity: 81 dB at 1m
• Frequency response: 25Hz - 300Hz
• Built for stronger power handling and cleaner bass control than entry-level subwoofer designs

Installation & Fitment Notes

• Subwoofer size: 12"
• Cutout diameter: 11"
• Mounting depth: 5-13/16"
• Total depth: 6-1/2"
• Subwoofer enclosure is required and sold separately
• Grille is not included
• Final performance depends on correct enclosure design, amplifier matching, and installation quality

Technical Specifications

• Model: KFC-XW1221HP
• Subwoofer type: Component subwoofer
• Size: 12"
• Voice coil configuration: Single 2-ohm
• Maximum peak power: 2000W
• Rated input power (RMS): 500W
• Nominal impedance: 2 ohms
• Sensitivity: 81 dB at 1m
• Frequency response: 25Hz - 300Hz
• Overall dimensions: 12-13/16" x 12-13/16"
• Cutout diameter: 11"
• Mounting depth: 5-13/16"

Identifiers & Packaging

• Manufacturer Part Number (MPN): KFC-XW1221HP
• UPC: 019048230188
• Sold As: Each
• Included Components: One subwoofer and manufacturer-supplied documentation as packaged by Kenwood
