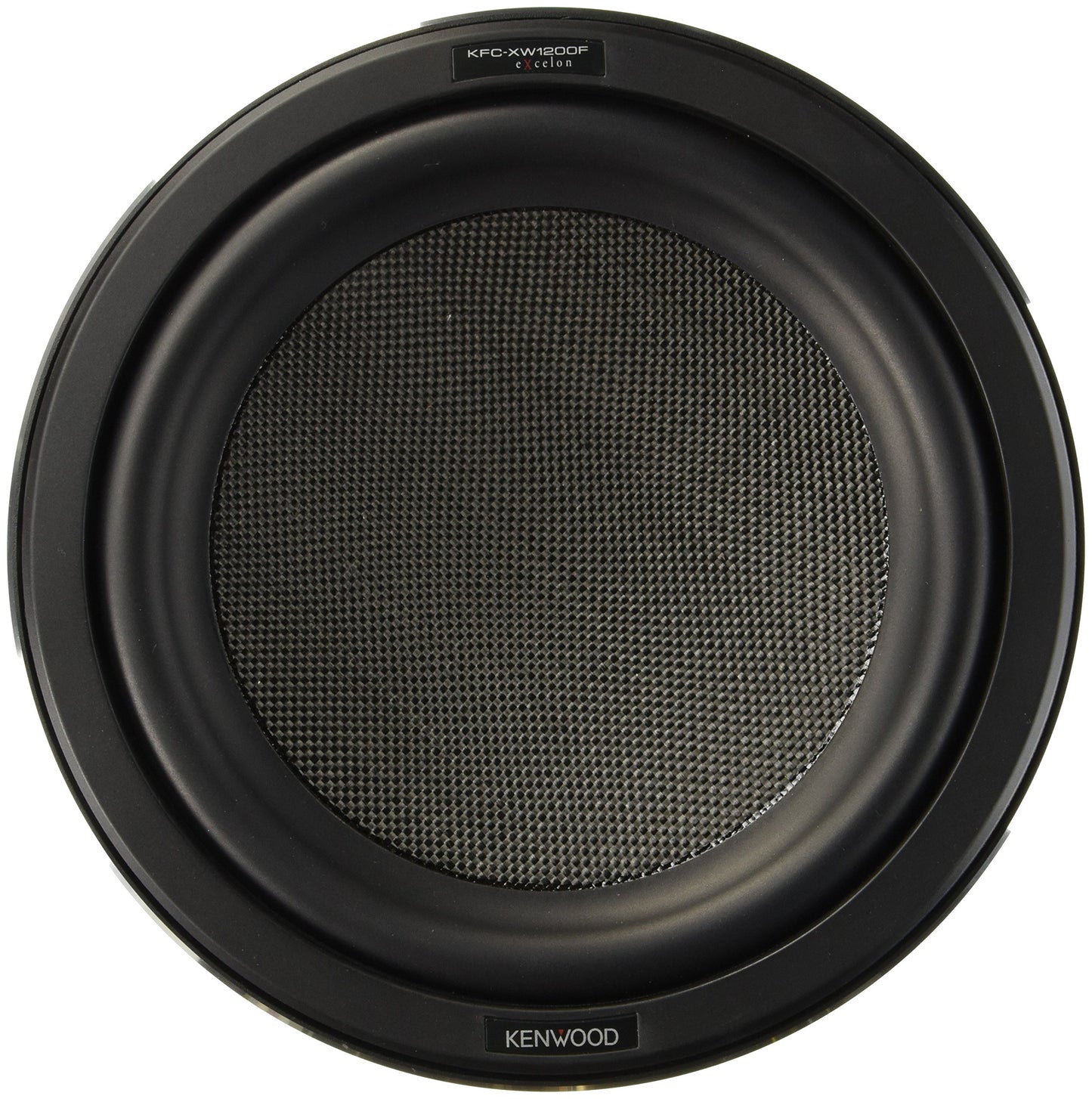

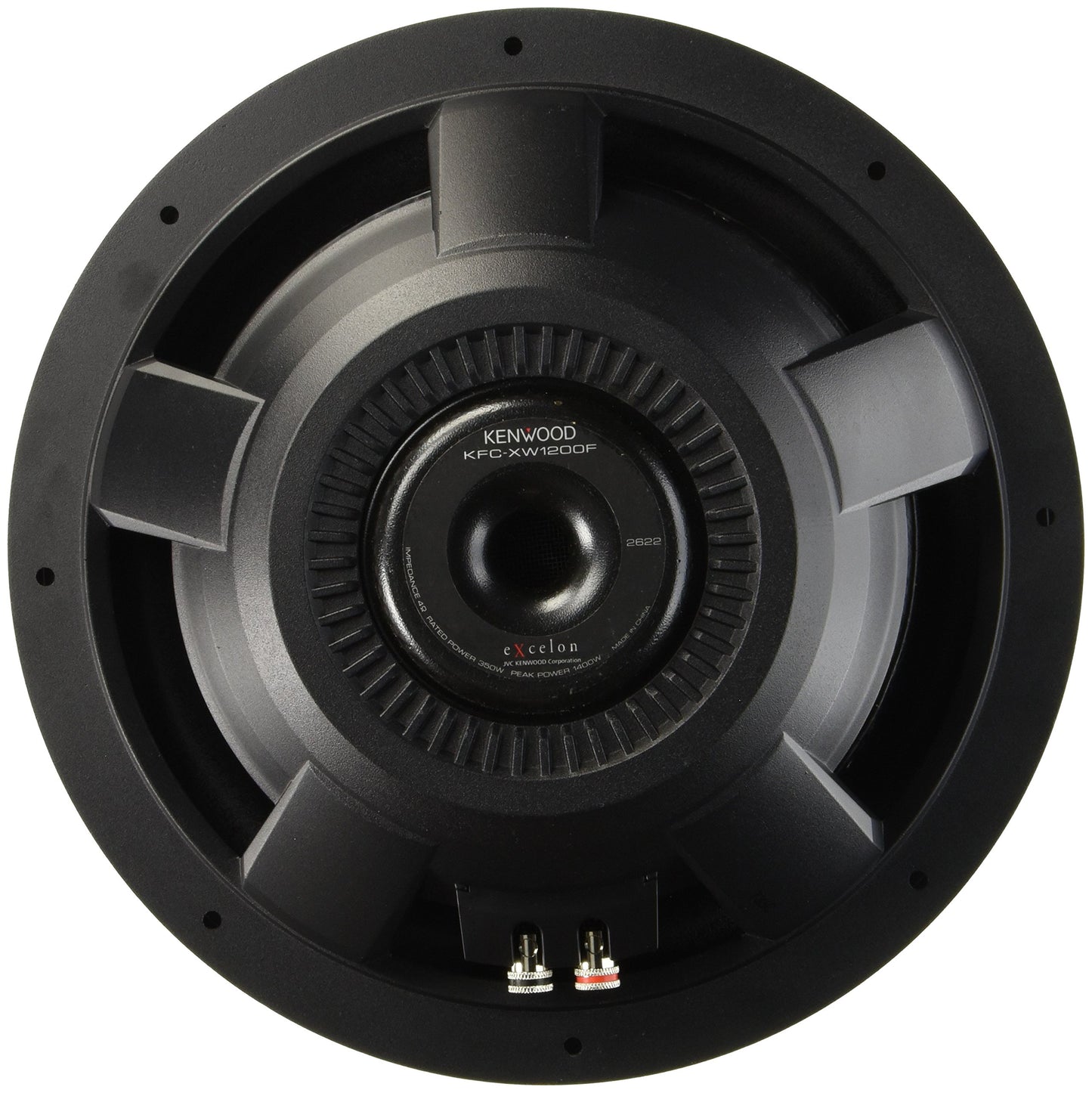

Kenwood eXcelon KFC-XW1200F 12" Car Subwoofer 1400W Max 350W RMS 4-Ohm

The Kenwood eXcelon KFC-XW1200F 12" shallow-mount car subwoofer is built for installs where mounting depth is limited but strong, real bass output still matters. Its carbon-glass fiber honeycomb cone, aluminum die-cast basket, and shallow profile make it a smart fit for trucks, space-conscious enclosures, and custom builds that need solid low-frequency performance without the depth of a traditional full-size subwoofer.

For properly matched mono amplifiers and enclosure-conscious system designs, the KFC-XW1200F delivers 350 watts RMS handling, 4-ohm compatibility, and the tighter control expected from Kenwood’s eXcelon line.

Key Features

• 12" shallow-mount component subwoofer
• 1400 watts peak power handling
• 350 watts RMS power handling
• Single 4-ohm voice coil
• Carbon-glass fiber honeycomb cone
• Rubber surround
• Aluminum die-cast basket
• Heat Transfer System for improved thermal management
• 8 AWG-capable push terminals

Sound & Subwoofer Design

• Cone: Carbon-glass fiber honeycomb cone
• Surround: Rubber
• Basket: Aluminum die-cast
• Magnet: Ferrite
• Spider: Super Linear / stress-free spider design
• Nominal impedance: 4 ohms
• Sensitivity: 91 dB/W at 1m
• Frequency response: 30Hz - 700Hz
• Shallow profile helps deliver usable bass in tighter mounting spaces than conventional deep-frame subwoofers

Installation & Fitment Notes

• Subwoofer size: 12"
• Shallow-mount design: Built for tighter enclosures and limited-depth installations
• Cutout diameter: 11"
• Mounting depth: 3-15/16"
• Total depth: 4-3/4"
• Subwoofer enclosure is required and sold separately
• Final performance depends on correct enclosure design, amplifier matching, and installation quality

Technical Specifications

• Model: KFC-XW1200F
• Subwoofer type: Shallow-mount component subwoofer
• Size: 12"
• Voice coil configuration: Single 4-ohm
• Peak power: 1400W
• Rated input power (RMS): 350W
• Nominal impedance: 4 ohms
• Sensitivity: 91 dB
• Frequency response: 30Hz - 700Hz
• Overall dimensions: 12-13/16" x 12-13/16"
• Cutout diameter: 11"
• Mounting depth: 3-15/16"
• Weight without grille: 15.4 lbs

Identifiers & Packaging

• Manufacturer Part Number (MPN): KFC-XW1200F
• UPC: 019048171450
• Sold As: Each
• Included Components: One subwoofer, two badges, screw set, gasket, cushion, and manufacturer-supplied documentation as packaged by Kenwood
