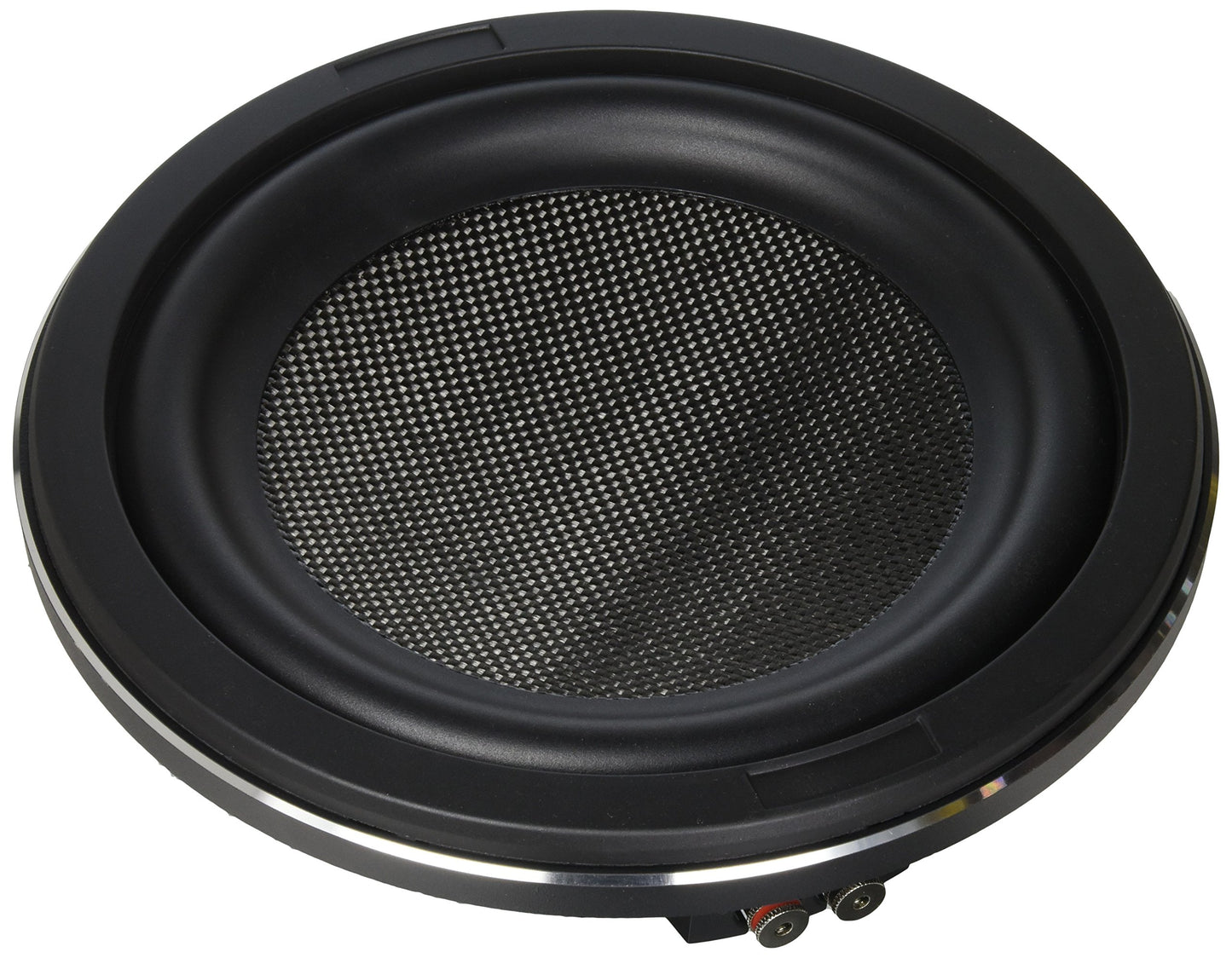

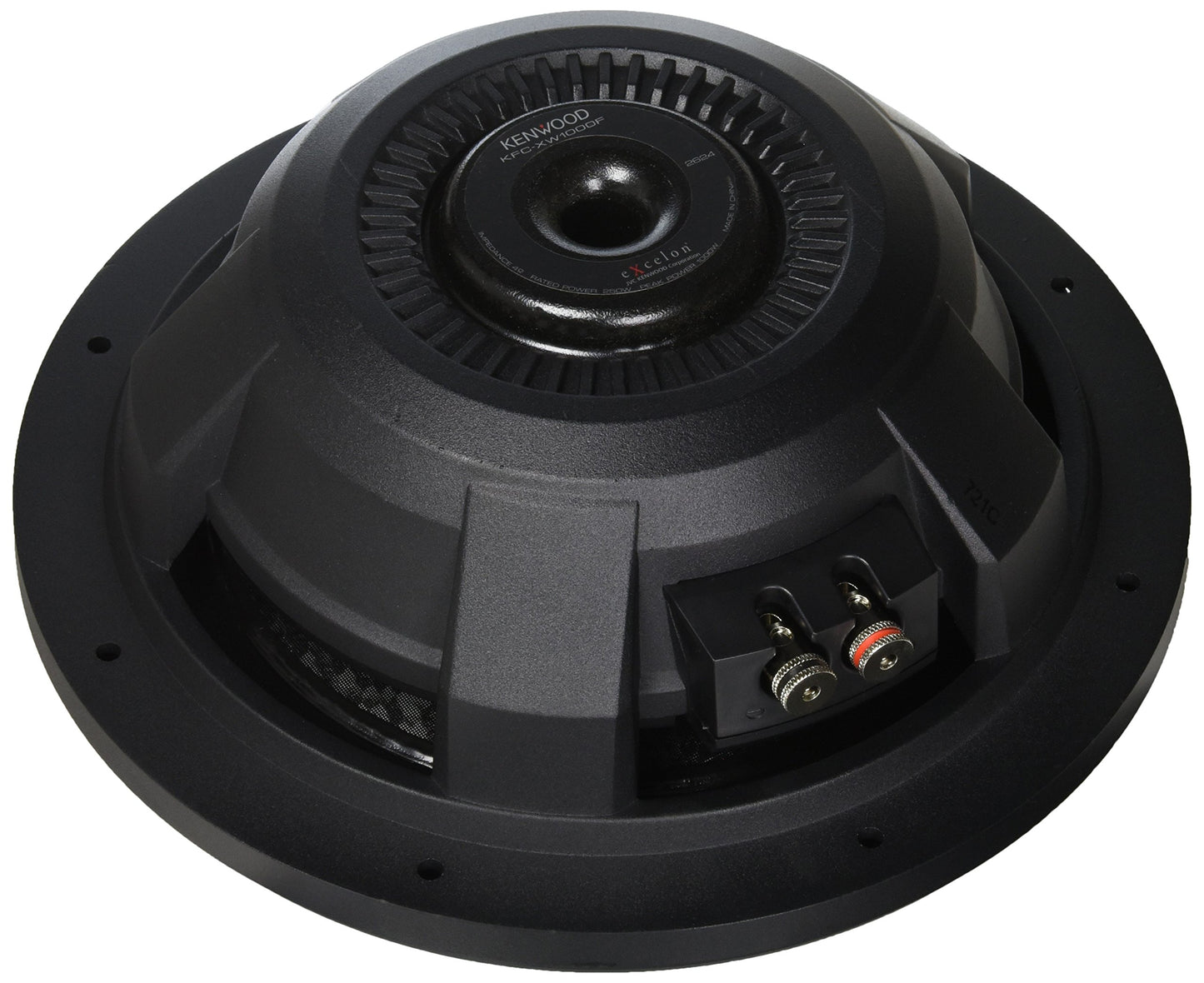

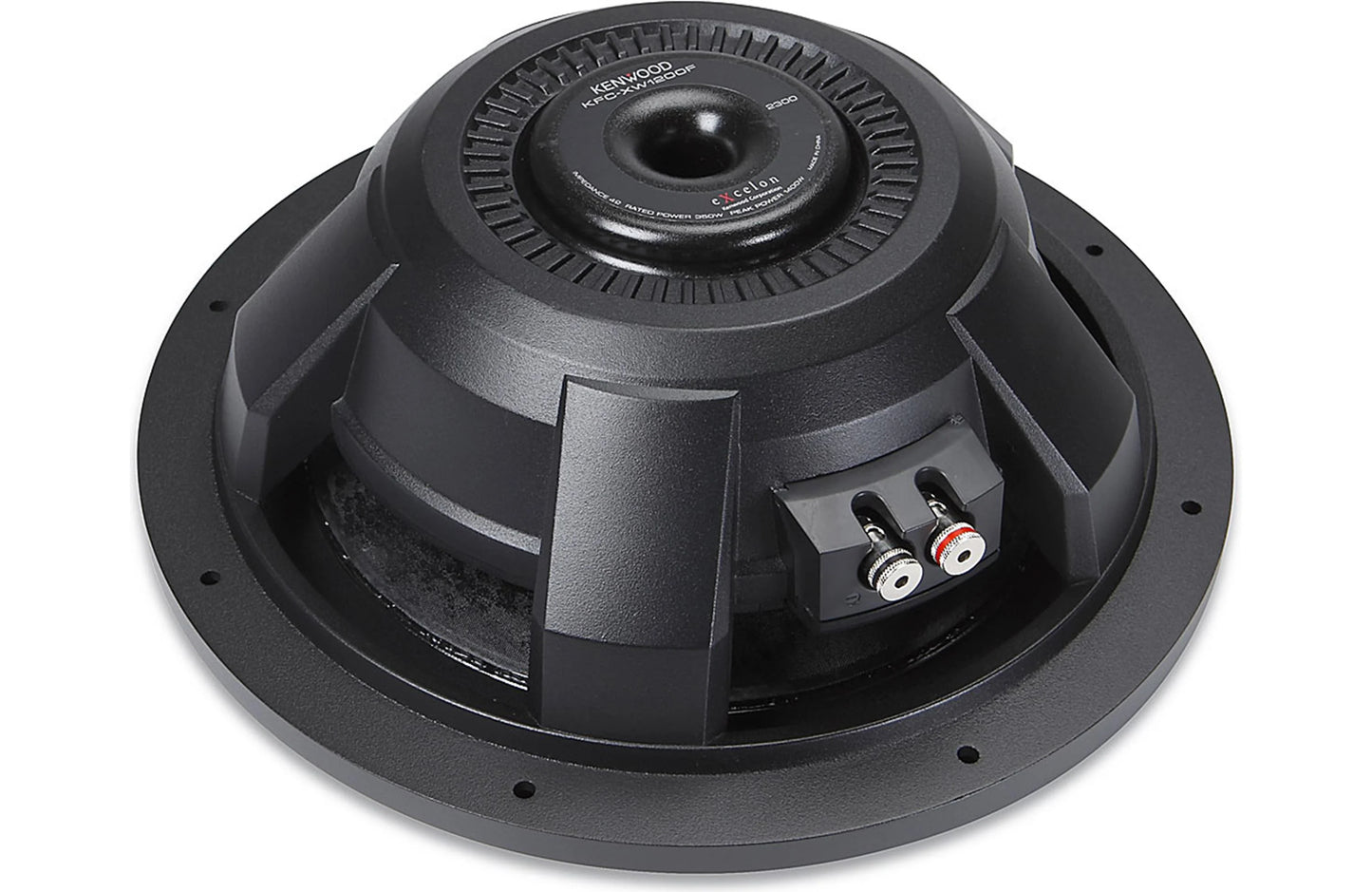

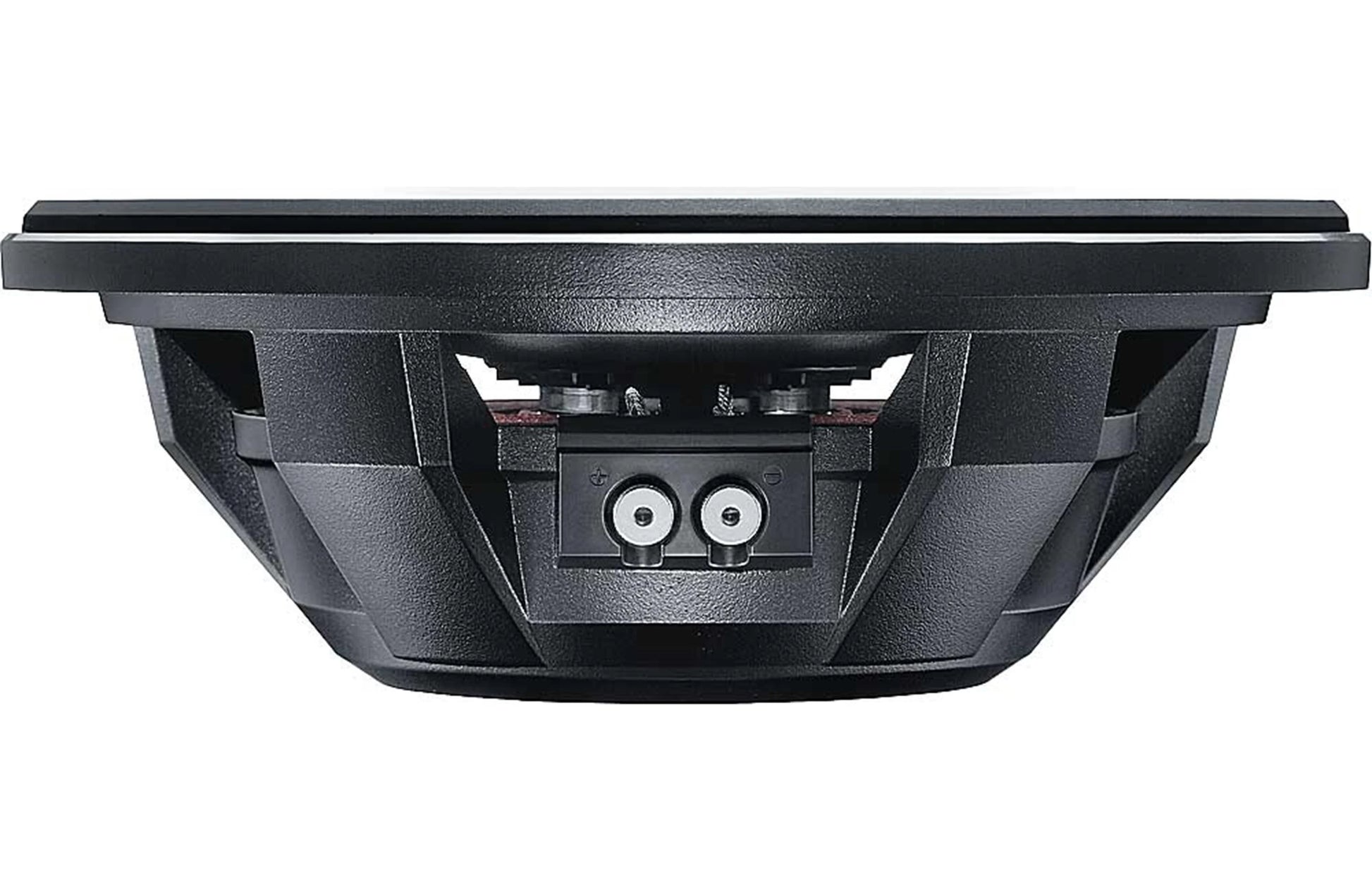

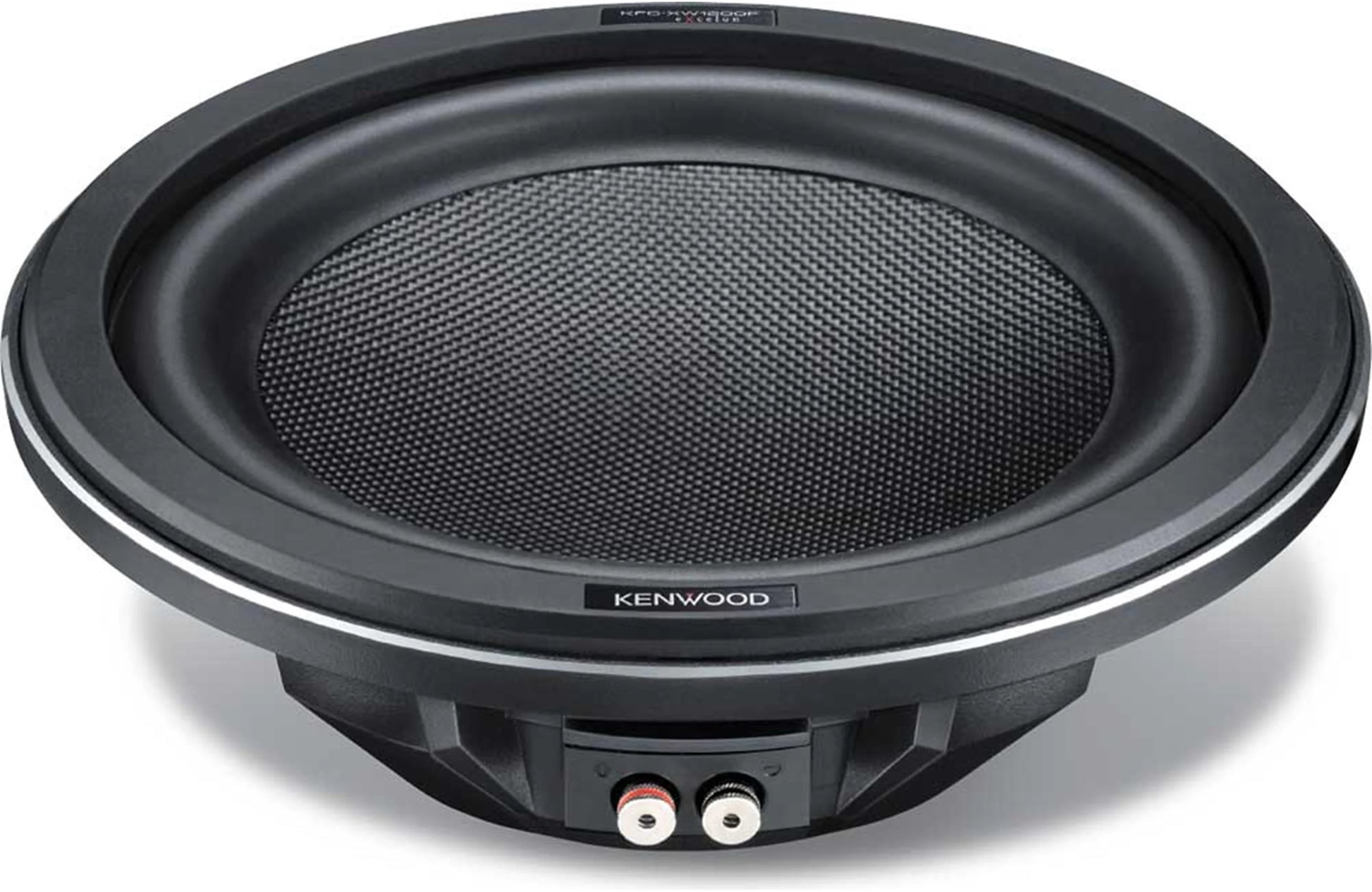

Kenwood eXcelon KFC-XW1000F 10" Car Subwoofer 1000W Max 250W RMS 4-Ohm

The Kenwood eXcelon KFC-XW1000F 10" shallow-mount car subwoofer is built for installs where mounting depth is limited but clean, usable bass still matters. Its carbon-glass fiber honeycomb cone, aluminum die-cast basket, and shallow profile make it a strong fit for trucks, under-floor builds, and custom enclosures where a standard deep-frame subwoofer will not work.

For properly matched mono amplifiers and space-conscious enclosure designs, the KFC-XW1000F delivers 250 watts RMS handling, 4-ohm compatibility, and the tighter control expected from Kenwood’s eXcelon line.

Key Features

• 10" shallow-mount component subwoofer
• 1000 watts peak power handling
• 250 watts RMS power handling
• Single 4-ohm voice coil
• Carbon-glass fiber honeycomb cone
• Rubber surround
• Aluminum die-cast basket
• Heat Transfer System for improved thermal management
• 8 AWG-capable push terminals

Sound & Subwoofer Design

• Cone: Carbon-glass fiber honeycomb cone
• Surround: Rubber
• Basket: Aluminum die-cast
• Magnet: Ferrite
• Spider: Super Linear / stress-free spider design
• Nominal impedance: 4 ohms
• Sensitivity: 90 dB/W at 1m
• Frequency response: 35Hz - 800Hz
• Shallow profile helps deliver usable bass in tighter mounting spaces than conventional deep-frame subwoofers

Installation & Fitment Notes

• Subwoofer size: 10"
• Shallow-mount design: Built for tighter enclosures and limited-depth installations
• Cutout diameter: 9-1/8"
• Mounting depth: 3-3/8"
• Total depth: 4-1/4"
• Subwoofer enclosure is required and sold separately
• Final performance depends on correct enclosure design, amplifier matching, and installation quality

Technical Specifications

• Model: KFC-XW1000F
• Subwoofer type: Shallow-mount component subwoofer
• Size: 10"
• Voice coil configuration: Single 4-ohm
• Peak power: 1000W
• Rated input power (RMS): 250W
• Nominal impedance: 4 ohms
• Sensitivity: 90 dB
• Frequency response: 35Hz - 800Hz
• Overall dimensions: 10-13/16" x 10-13/16"
• Cutout diameter: 9-1/8"
• Mounting depth: 3-3/8"
• Weight without grille: 10.4 lbs

Identifiers & Packaging

• Manufacturer Part Number (MPN): KFC-XW1000F
• UPC: 019048171443
• Sold As: Each
• Included Components: One subwoofer, two badges, screw set, gasket, cushion, and manufacturer-supplied documentation as packaged by Kenwood
