Kenwood KCA-RC01A Wired Bass Remote Level Control

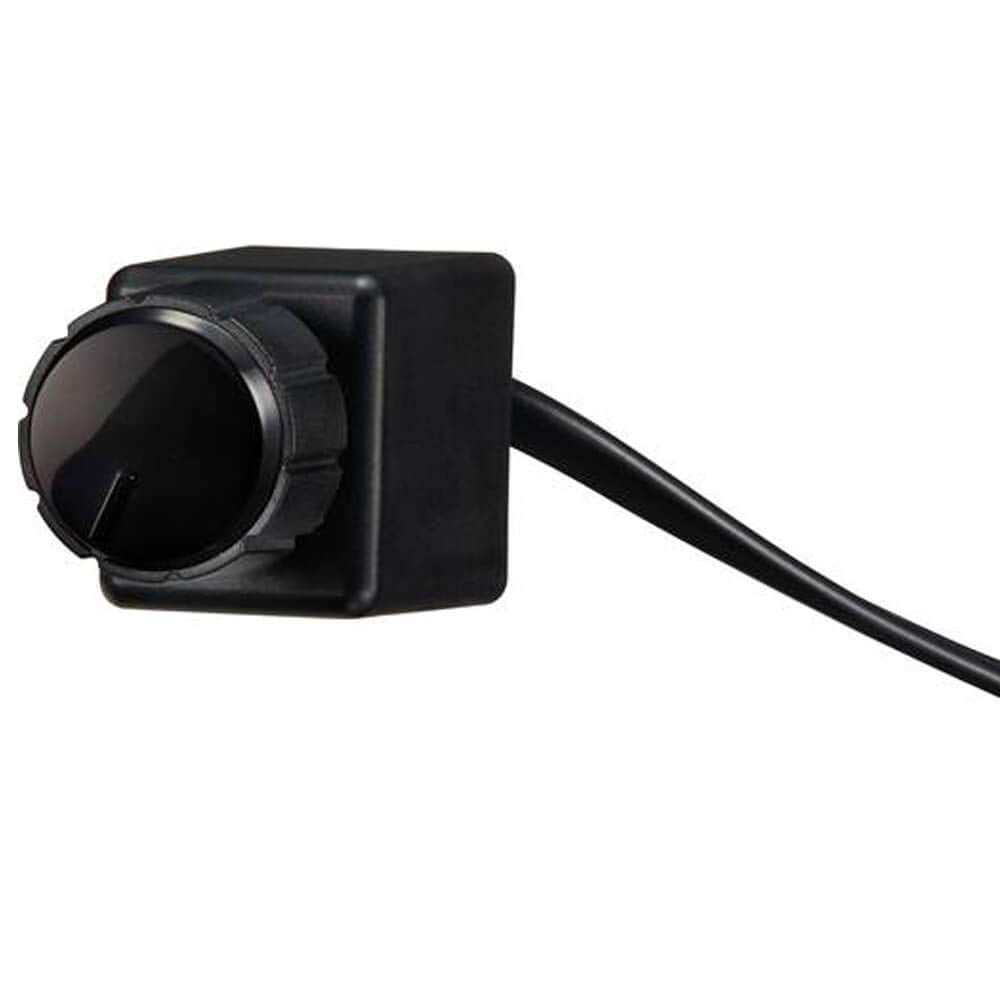

The Kenwood KCA-RC01A is a wired remote bass level control designed for select compatible Kenwood amplifiers. It gives you fast front-seat adjustment of subwoofer output, which is useful when different music tracks or listening situations call for more or less bass without having to reach the amplifier or reset system tuning.

Compatible with select Kenwood eXcelon amplifiers including the X502-1 and X802-5. Not required for models that already include a wired bass remote.

For systems using compatible Kenwood mono and 5-channel amplifiers, the KCA-RC01A provides a clean, simple way to fine-tune bass level on demand with a long connection cable for flexible installation.

Key Features

• Wired remote subwoofer level controller
• Adjusts bass output from the front of the vehicle
• Designed for select compatible Kenwood amplifiers
• 6 meter connection cable included
• Washer and hex nut included for mounting

Connectivity & Integration

• Function: Remote bass / subwoofer level adjustment

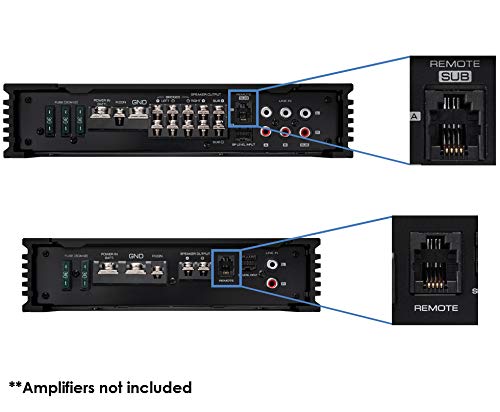

• Amplifier compatibility: Compatible with select Kenwood amplifiers including X502-1, X503-1, X802-5, and XM802-5
• Connection type: Wired connection to compatible amplifier remote-level input
• Cable length: 6m / 19.7 ft

Installation & Fitment Notes

• Designed to mount within reach of the driver for on-the-fly bass adjustment
• Requires a compatible Kenwood amplifier with remote level control support
• Mounting location and cable routing should be planned before installation
• This is an amplifier accessory, not a universal standalone bass processor

Technical Specifications

• Model: KCA-RC01A
• Product type: Wired remote level control
• Primary function: Control subwoofer output volume
• Cable length: 6m / 19.7 ft
• Application: For compatible Kenwood amplifiers

Identifiers & Packaging

• Manufacturer Part Number (MPN): KCA-RC01A
• UPC: 019048226334
• Sold As: Each

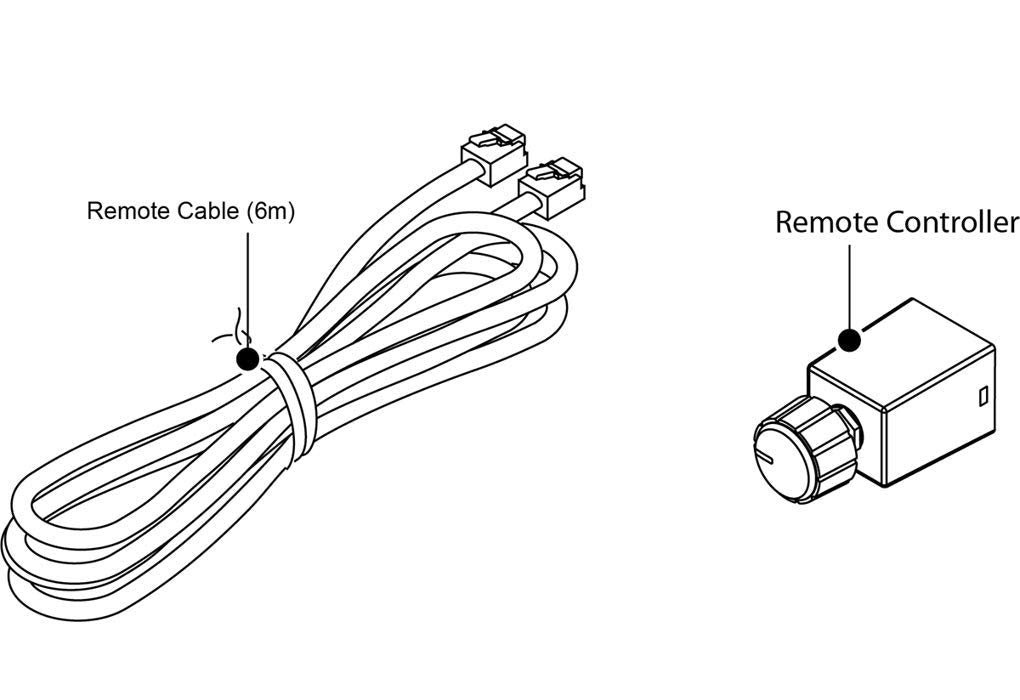

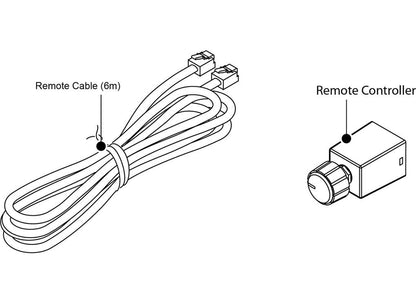

• Included Components: Wired remote level controller, 6m connection cable, washer, hex nut, and manufacturer-supplied documentation
