Kenwood KAC-D8105 5 Channel 1600 Watts Max Full-Range Car Amplifier

The Kenwood KAC-D8105 is a compact 5-channel full-range Class D car amplifier built to power an entire system from one chassis. It is a practical solution for vehicles that need clean power for front and rear speakers plus a dedicated subwoofer channel without using multiple amplifiers.

Its compact footprint, speaker-level integration, and variable crossover controls make it a strong fit for OEM-upgrade and aftermarket builds where space, output, and system simplicity all matter. With verified output of 75W x 4 + 500W x 1 RMS at 2 ohms, it gives a real single-amp path for full-system installs.

Key Features

• 1600 watts max power
• 5-channel Class D amplifier design
• 75W x 4 + 500W x 1 RMS at 2 ohms
• 50W x 4 + 300W x 1 RMS at 4 ohms
• Dedicated subwoofer channel for single-amp system builds
• Variable high-pass and low-pass crossovers
• Bass boost control
• Speaker-level input for integration with compatible factory systems
• Signal-sensing turn-on
• Compact chassis for tighter installation spaces
• Hi-Res Audio capable frequency response up to 50kHz

Connectivity & Integration

• Inputs: RCA line inputs and speaker-level inputs
• Factory integration: Speaker-level input supports use with compatible factory or aftermarket radios
• Signal sensing: Signal-sensing turn-on helps simplify installs where a conventional remote turn-on lead may not be available
• System layout: 5-channel configuration powers front speakers, rear speakers, and a subwoofer from one amplifier
• Application: Best suited for full-range plus subwoofer systems where space efficiency matters

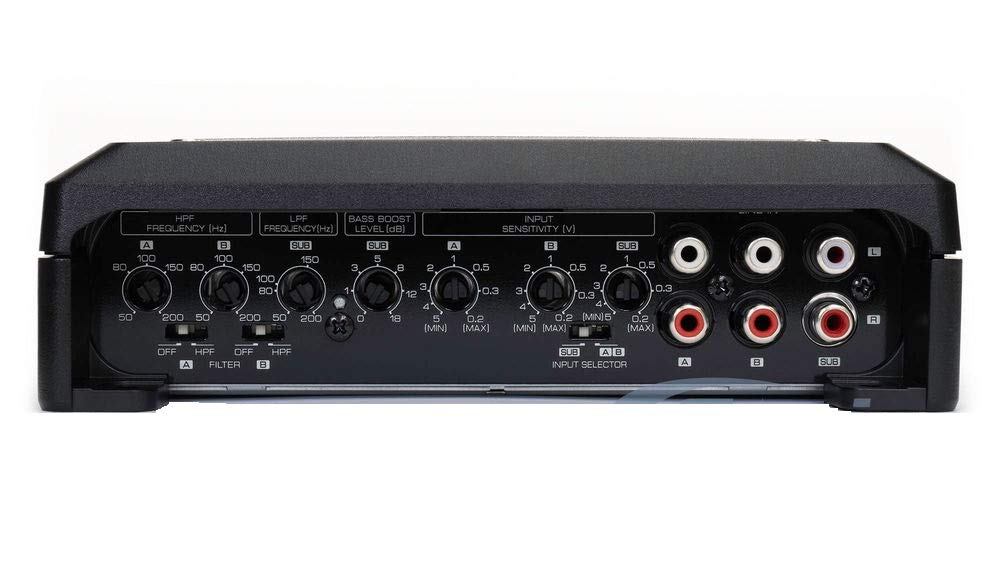

Audio & System Control

• RMS output at 4 ohms: 50W x 4 + 300W x 1
• RMS output at 2 ohms: 75W x 4 + 500W x 1
• High-pass filter: Variable 50Hz-200Hz
• Low-pass filter: Variable 50Hz-200Hz
• Bass boost: 0dB to +18dB at 40Hz
• Frequency response: 20Hz-50kHz
• Signal-to-noise ratio: 100dB
• Amplifier platform: Full-range Class D design for efficient power in a compact enclosure

Installation & Fitment Notes

• Chassis type: Compact amplifier chassis
• Mounting: Suitable for trunk, hatch, under-seat, or other reduced-space installs where clearance allows
• Integration note: Proper power wire, ground wire, fuse protection, RCA or speaker-level connections, and speaker/sub wiring are required and sold separately
• Vehicle-specific note: Mounting location, wire routing, and system configuration vary by vehicle and equipment
• Installer note: Final performance depends on correct gain setting, speaker impedance, and overall system matching

Technical Specifications

• Model: KAC-D8105
• Amplifier Type: Class D
• Channels: 5
• Max Power: 1600W
• RMS Power at 4 Ohms: 50W x 4 + 300W x 1
• RMS Power at 2 Ohms: 75W x 4 + 500W x 1
• Frequency Response: 20Hz-50kHz
• Signal-to-Noise Ratio: 100dB
• High-Pass Filter: 50Hz-200Hz
• Low-Pass Filter: 50Hz-200Hz
• Bass Boost: 0dB to +18dB at 40Hz
• Speaker-Level Input: Yes
• Signal-Sensing Turn-On: Yes

Identifiers & Packaging

• Manufacturer Part Number (MPN): KAC-D8105
• UPC: 019048226303
• Sold As: Each
• Included Components: Amplifier and manufacturer documentation
