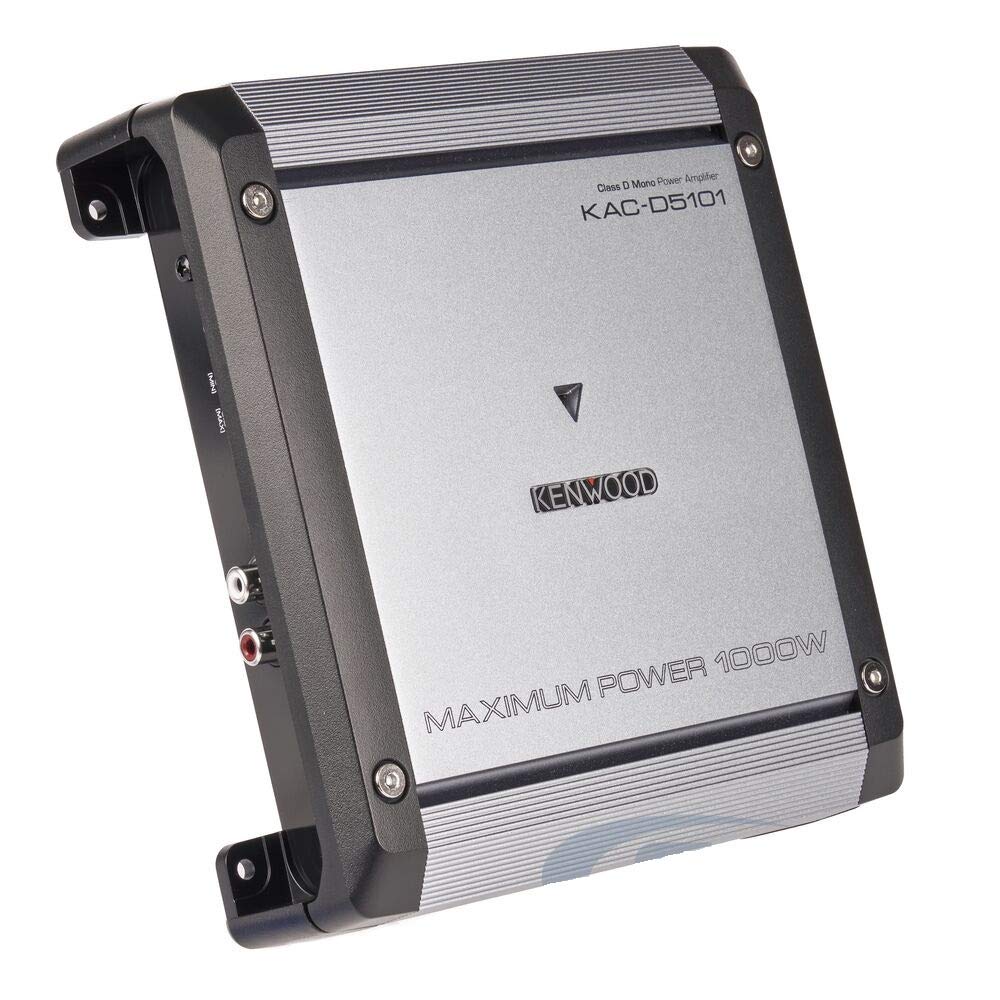

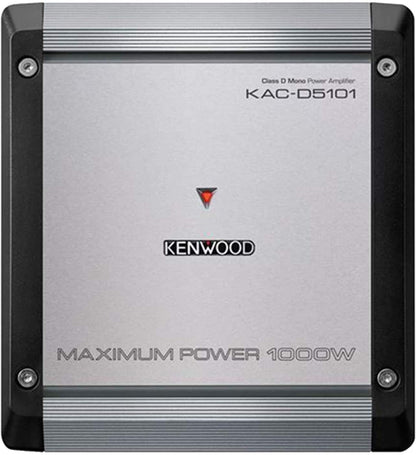

Kenwood KAC-D5101 1000W Max Power 4-Ohms Class D Mono Car Amplifier

The Kenwood KAC-D5101 is a compact Class D mono car amplifier built to deliver clean, efficient subwoofer power in vehicles where space is limited. It is a strong fit for single-subwoofer and compact bass system upgrades where you want real output without giving up much mounting space.

With 1000 watts max power, 300W RMS at 4 ohms, and 500W RMS at 2 ohms, the KAC-D5101 is designed for practical daily-use bass setups. Its variable low-pass filter, bass boost, speaker-level input, and signal-sensing turn-on also make it easier to integrate into both aftermarket and compatible factory-audio systems.

Key Features

• 1000 watts max power
• Class D mono amplifier design
• 300W RMS x 1 at 4 ohms
• 500W RMS x 1 at 2 ohms
• Variable low-pass filter
• Bass boost control
• Speaker-level input
• Signal-sensing turn-on
• Compact chassis for easier installation
• Designed for subwoofer applications

Connectivity & Integration

• Inputs: RCA line input and speaker-level input
• Factory integration: Speaker-level input supports use with compatible factory or aftermarket source units
• Turn-on method: Signal-sensing turn-on helps simplify installs where a conventional remote lead may not be available
• Application: Mono subwoofer amplifier for dedicated low-frequency system builds
• Best use case: Great for powering a single subwoofer or subwoofer load matched to rated impedance and power output

Audio & System Control

• RMS power at 4 ohms: 300W x 1
• RMS power at 2 ohms: 500W x 1
• Low-pass filter: Variable
• Bass boost: 0dB to +18dB at 40Hz
• Amplifier platform: Class D design for efficient output with reduced installation footprint
• Sound control note: Built for low-frequency subwoofer duty rather than full-range speaker amplification

Installation & Fitment Notes

• Chassis size: Compact amplifier design for tighter install locations
• Mounting options: Suitable for trunk, hatch, cargo-area, or other limited-space installs where clearance allows
• Integration note: Proper amplifier wiring kit, fuse protection, signal input wiring, ground connection, and subwoofer wiring are required and sold separately
• Vehicle-specific note: Final fitment depends on available mounting space, wire routing, and system design
• System note: Best performance depends on proper gain setting, impedance matching, enclosure choice, and subwoofer selection

Technical Specifications

• Model: KAC-D5101
• Amplifier Type: Class D Mono
• Channels: 1
• Max Power: 1000W
• RMS Power at 4 Ohms: 300W x 1
• RMS Power at 2 Ohms: 500W x 1
• Low-Pass Filter: Variable
• Bass Boost: 0dB to +18dB at 40Hz
• Speaker-Level Input: Yes
• Signal-Sensing Turn-On: Yes
• Dimensions: 6-11/16" x 2-3/16" x 7-3/8"
• Fuse Rating: 30A x 2

Identifiers & Packaging

• Manufacturer Part Number (MPN): KAC-D5101
• UPC: 019048226327
• Sold As: Each

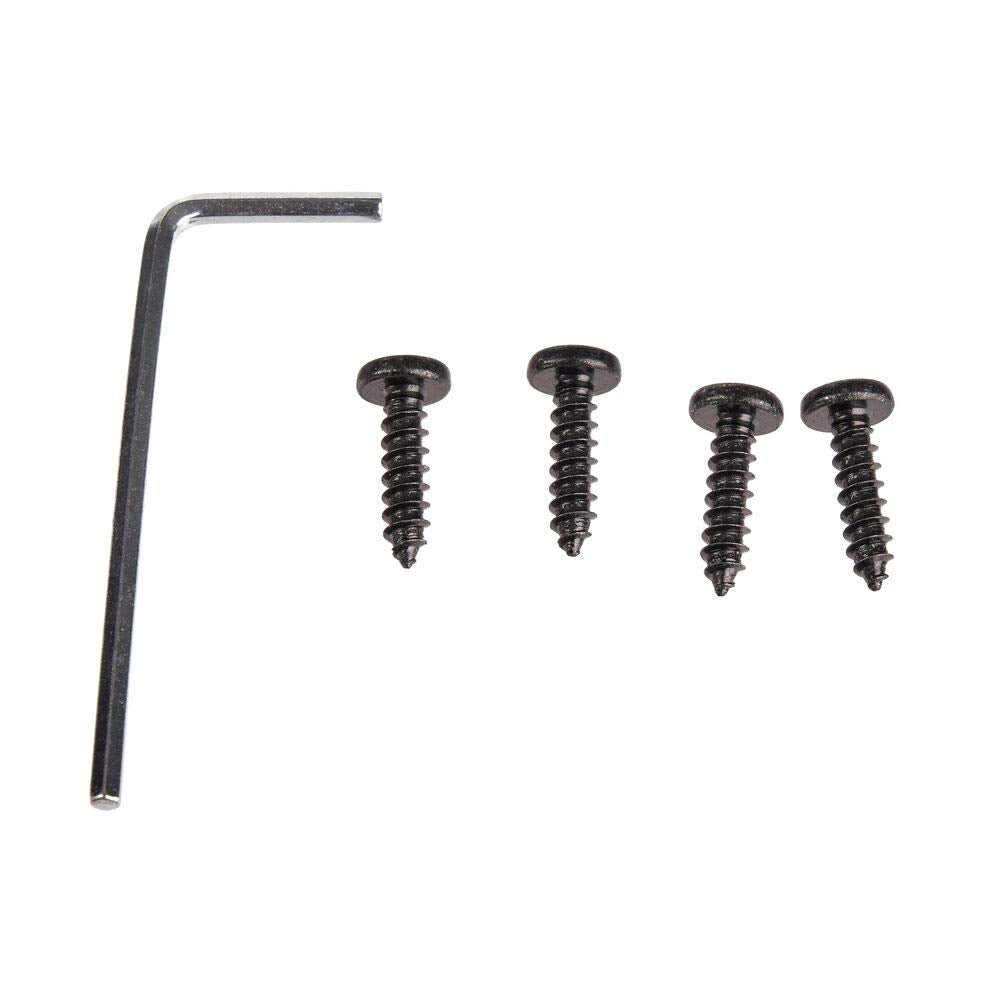

• Included Components: Amplifier and manufacturer documentation
