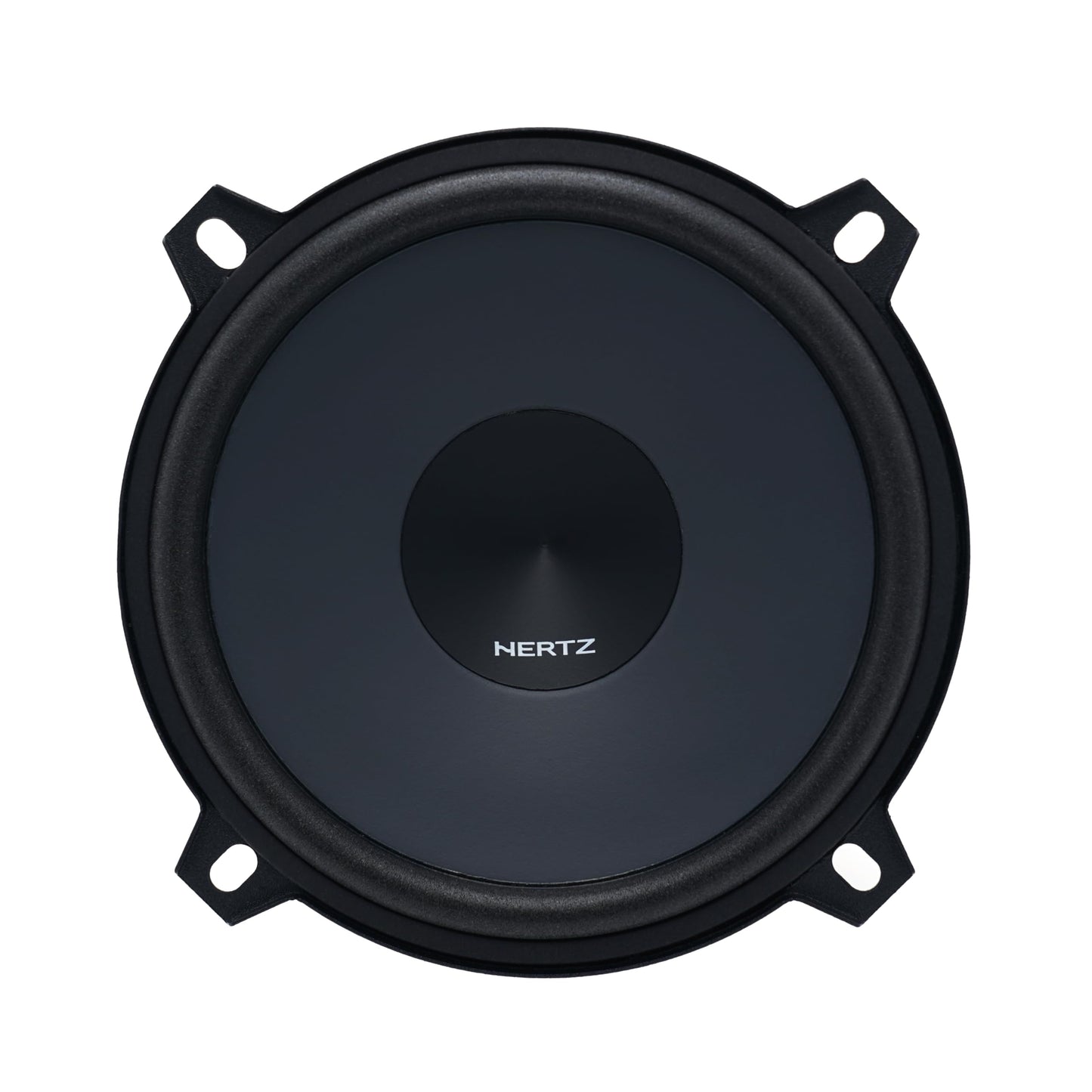

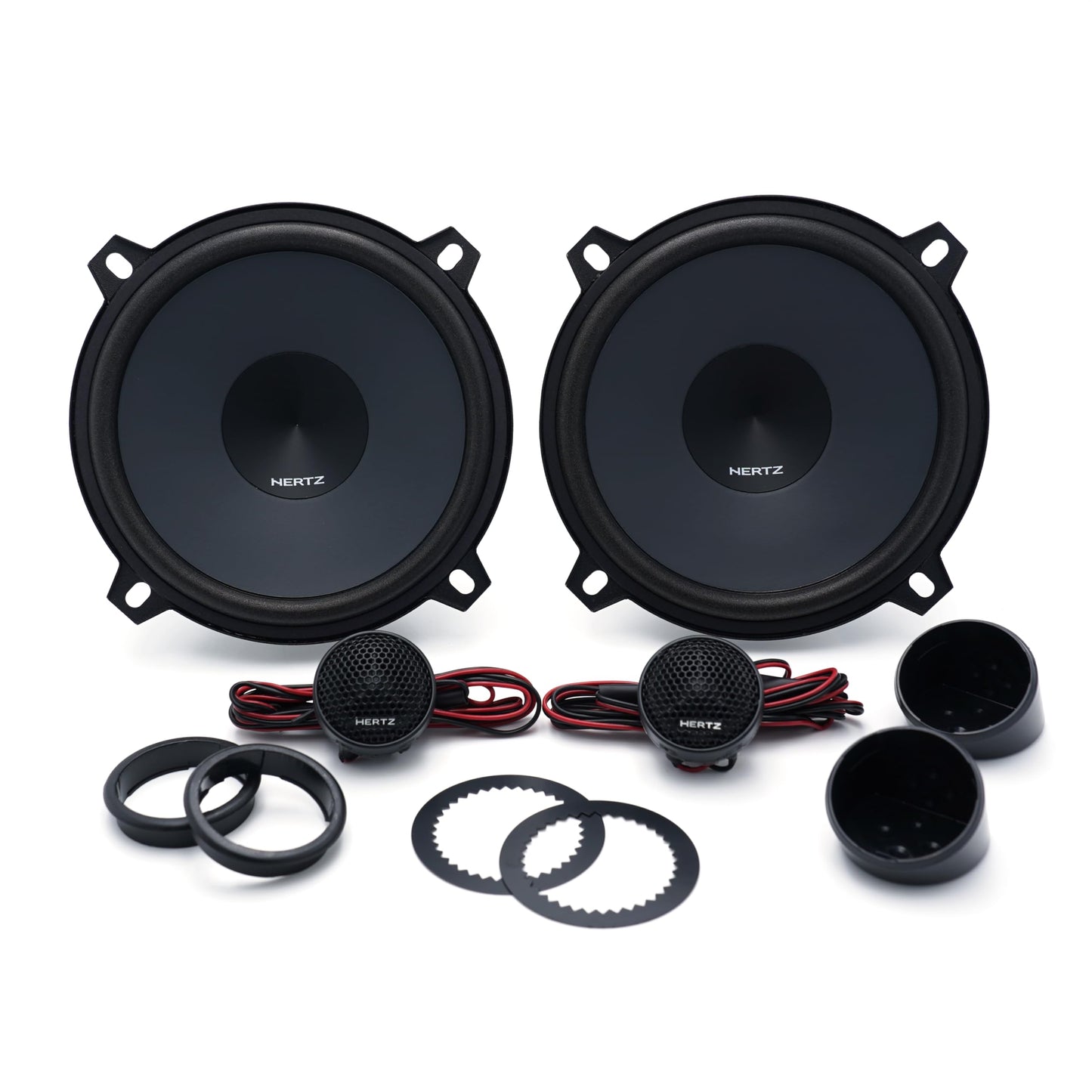

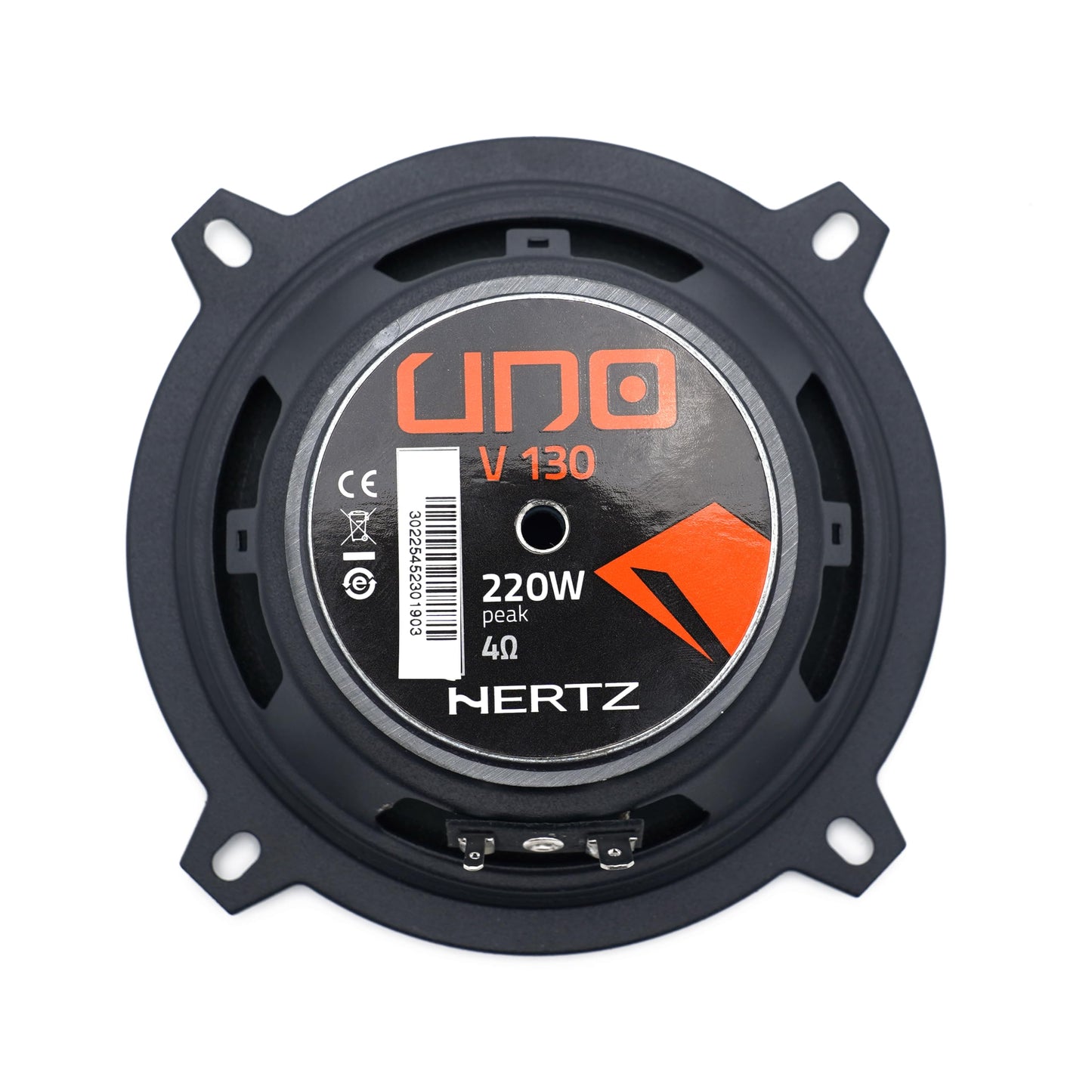

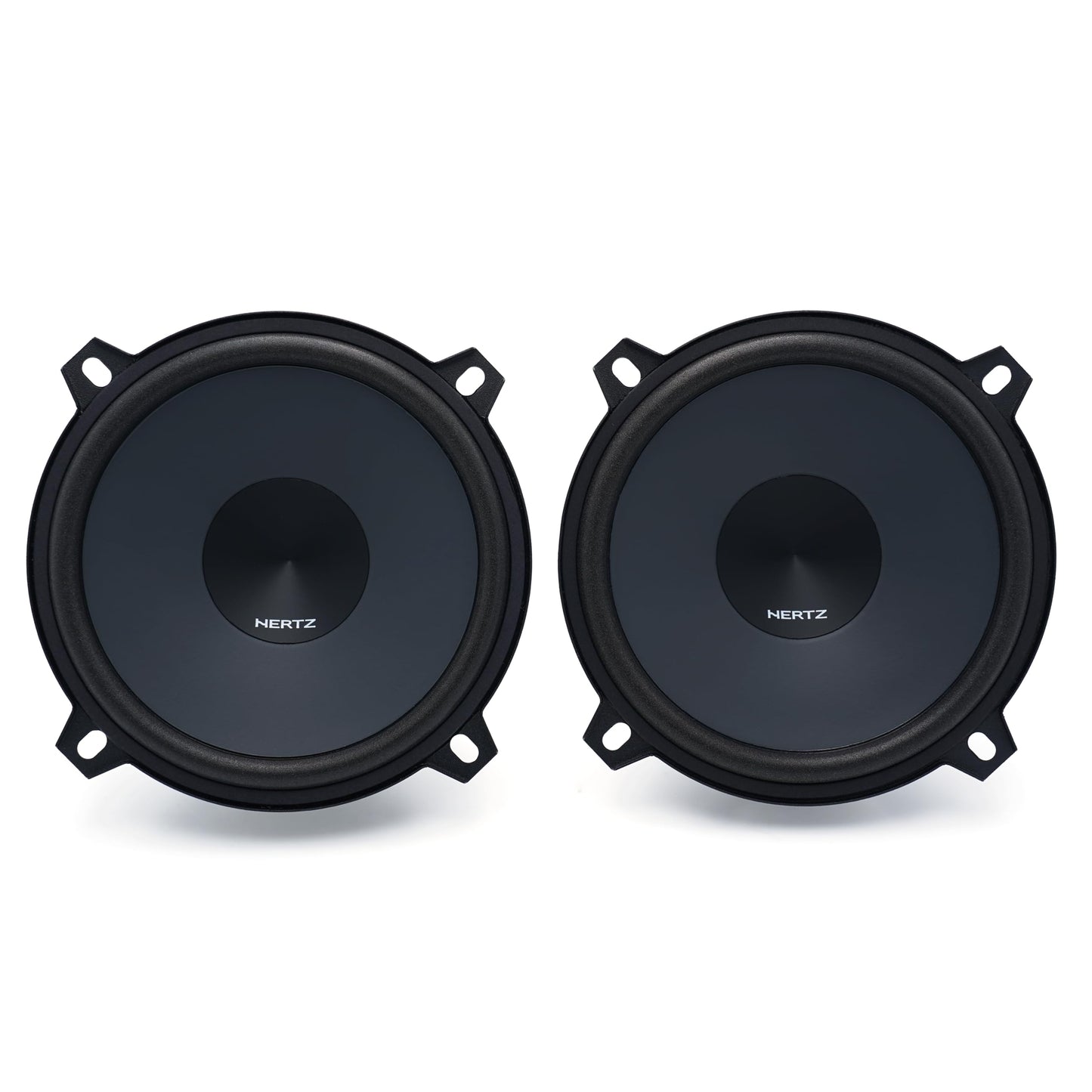

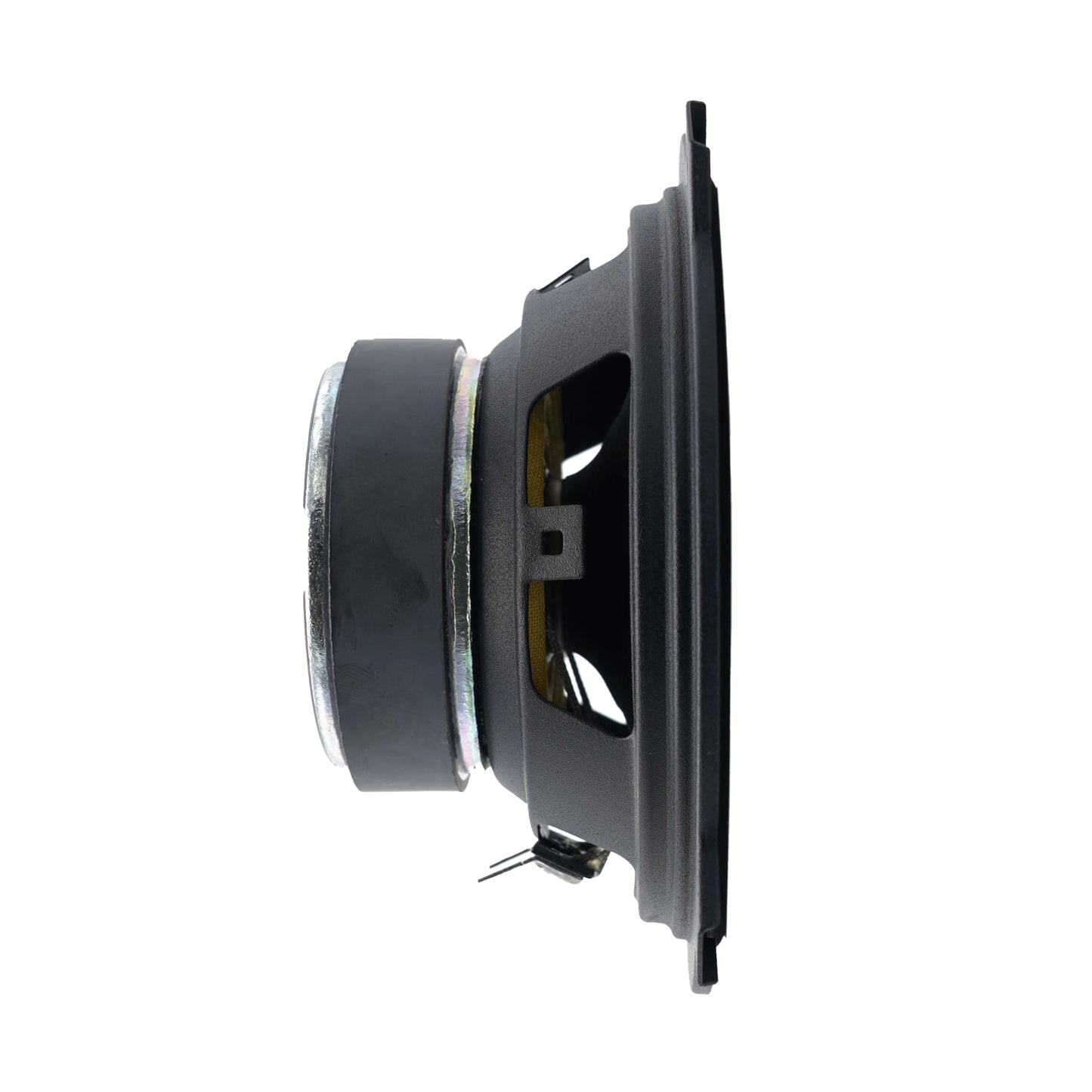

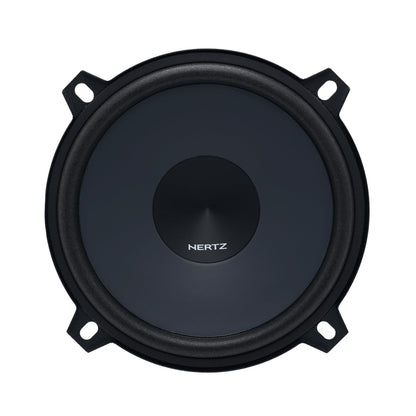

The K 130 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 5” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.

Technical Specs

Component	System

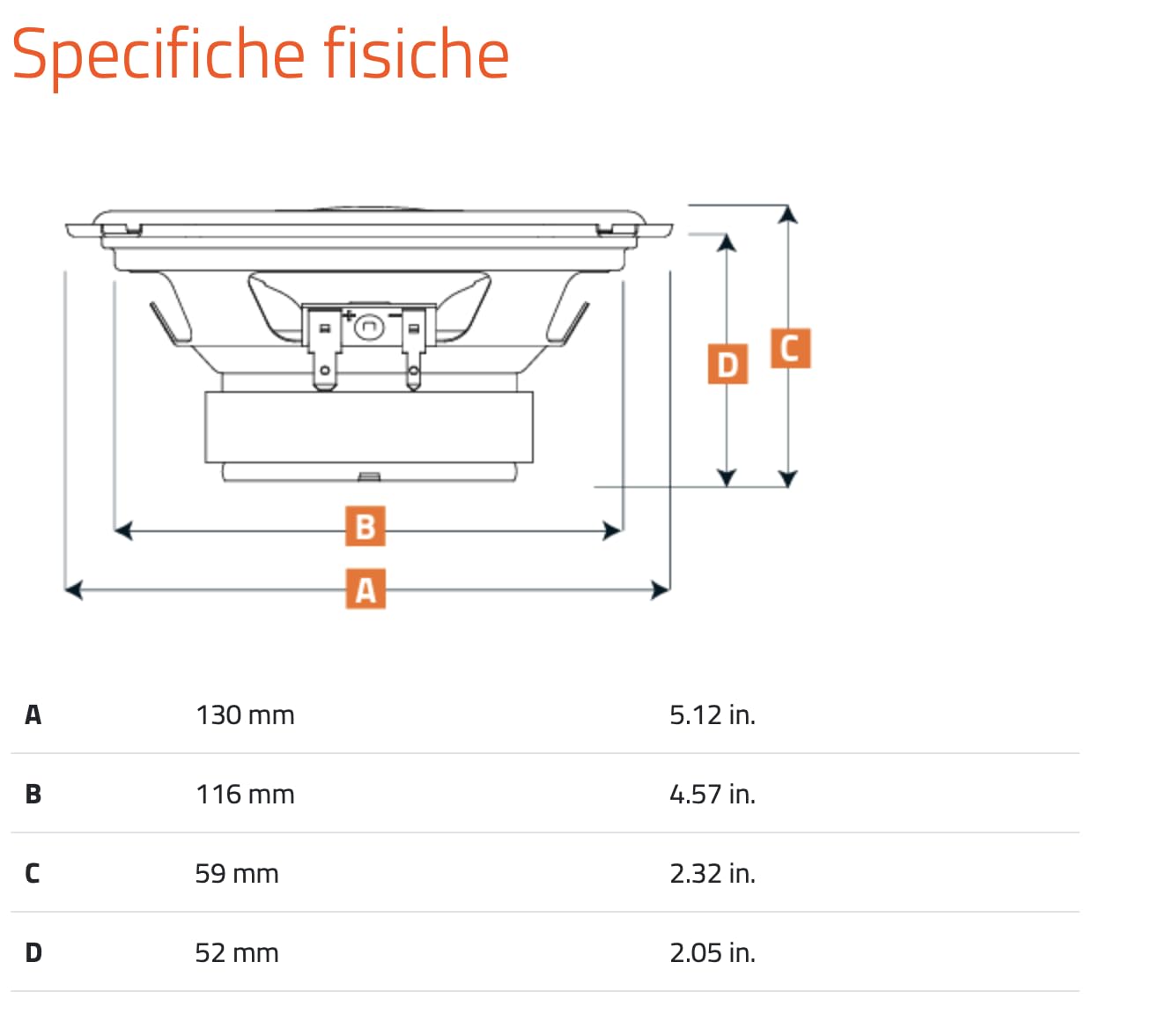

Size mm (in.)	130 (5)
Power Handling - Continuous W	55
Power Handling - Peak W	220
Impedance Ohm	4
Tweeter diaphragm mm (in.)	24 (0.9)
Woofer Voice Coil Ø mm (in.)	25 (1)
Tweeter Voice Coil Ø mm (in.)	14 (0.55)
Sensitivity dB SPL	93
Frequency Response Hz	55 ÷ 23k
Crossover Cut off	-
Crossover Type	6 dB/Oct tweeter integrated
Weight of one component - Woofer	0,53 (1.17)
Weight of one component - Tweeter kg (lb)	0,03 (0.07)
