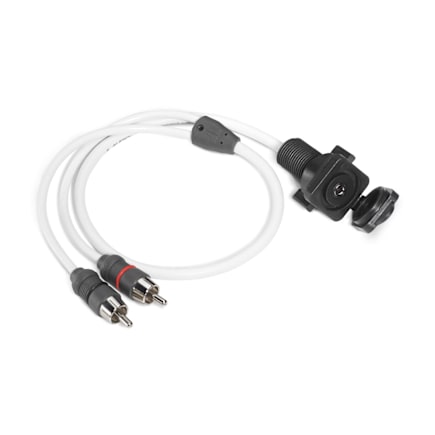

JL Audio Panel-mount Audio Connector, 3.5 mm Audio Jack for Panel-mounting (XMD-3.5MM-PNL) - 010-13564-00
JL Audio Panel-mount Audio Connector, 3.5 mm Audio Jack for Panel-mounting (XMD-3.5MM-PNL) - 010-13564-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio XMD-3.5MM-PNL — Add a permanent analog input access point with the JL Audio XMD-3.5MM-PNL panel-mount 3.5 mm audio jack. It keeps the connection accessible without leaving the receiving electronics exposed.
The jack installs through a 1.125-inch opening in a flat surface up to one inch thick, securing with a rear wing nut. A labeled rubber cover protects the port when not in use; the installation still needs a compatible auxiliary-input signal path.
Key Features
- Panel-mount 3.5 mm audio connection
- Labeled rubber port cover
- Rear wing-nut attachment
Technical Specifications
| Garmin Part Number | 010-13564-00 |
| UPC | 699440906975 |
| Mounting Hole | 1.125 inches |
| Maximum Surface Thickness | 1 inch |
| Connection | 3.5 mm analog audio |
Installation & System Requirements
Confirm rear clearance and compatible auxiliary-input connection. Source and receiving electronics are separate.
What’s Included
- One XMD-3.5MM-PNL accessory; connected audio equipment is sold separately
Why Buy From MCOR Automotive
MCOR is an authorized JL Audio / Garmin retailer. Contact us before ordering if you need help matching the accessory to your equipment or installation. Applicable manufacturer warranty coverage is subject to manufacturer guidelines.
