JL Audio XDM600/6 600W 6-Channel 24V Marine Amplifier 010-03120-00 (98620)
JL Audio XDM600/6 600W 6-Channel 24V Marine Amplifier 010-03120-00 (98620)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

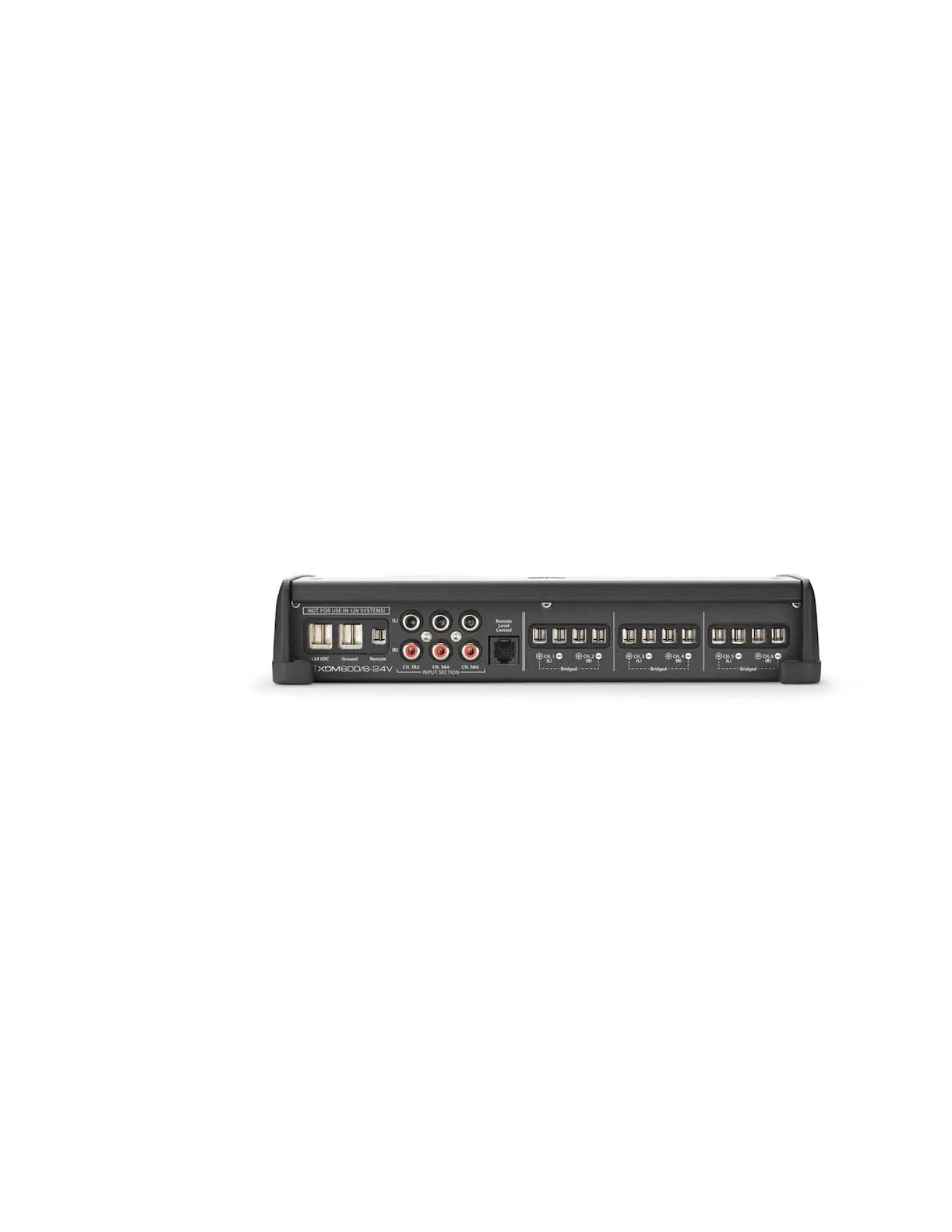

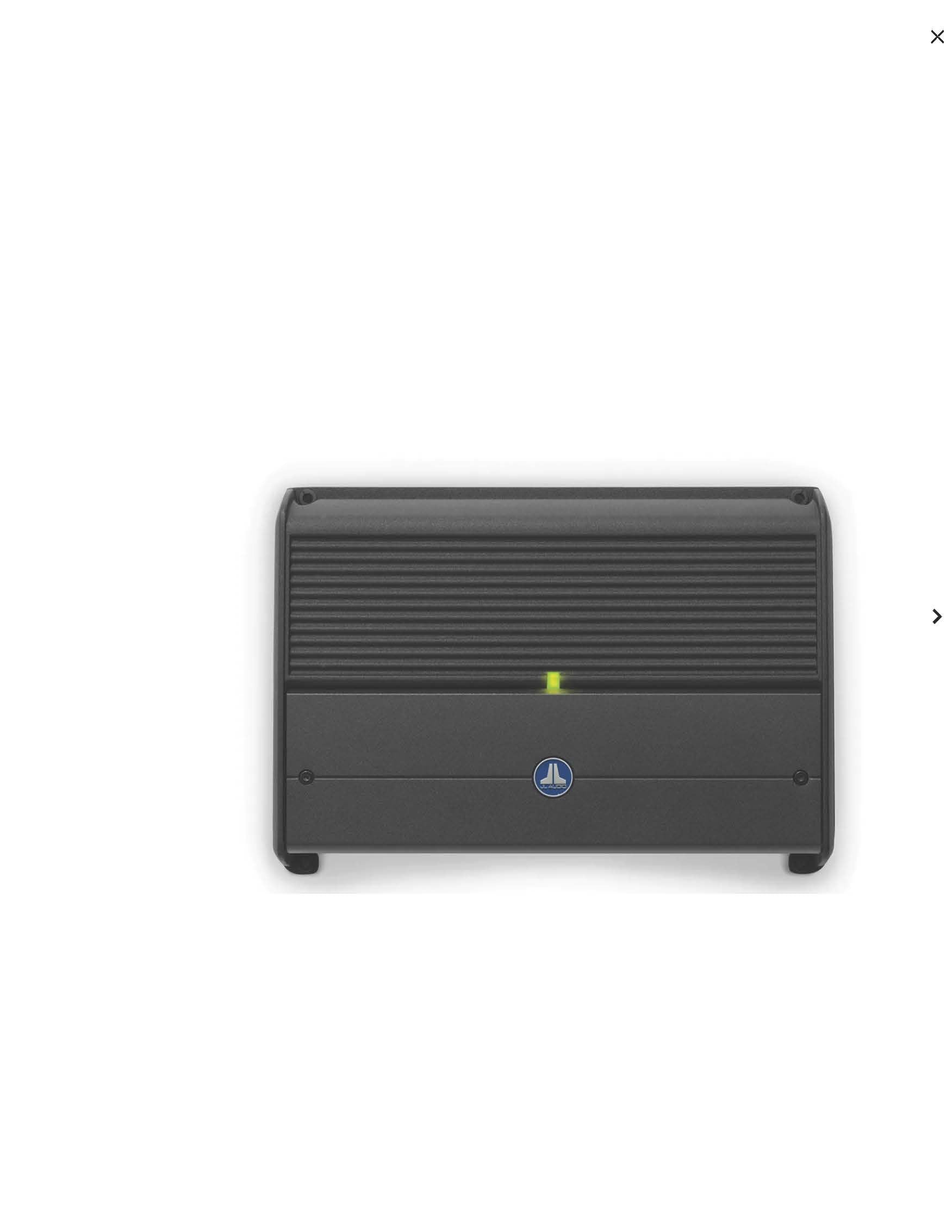

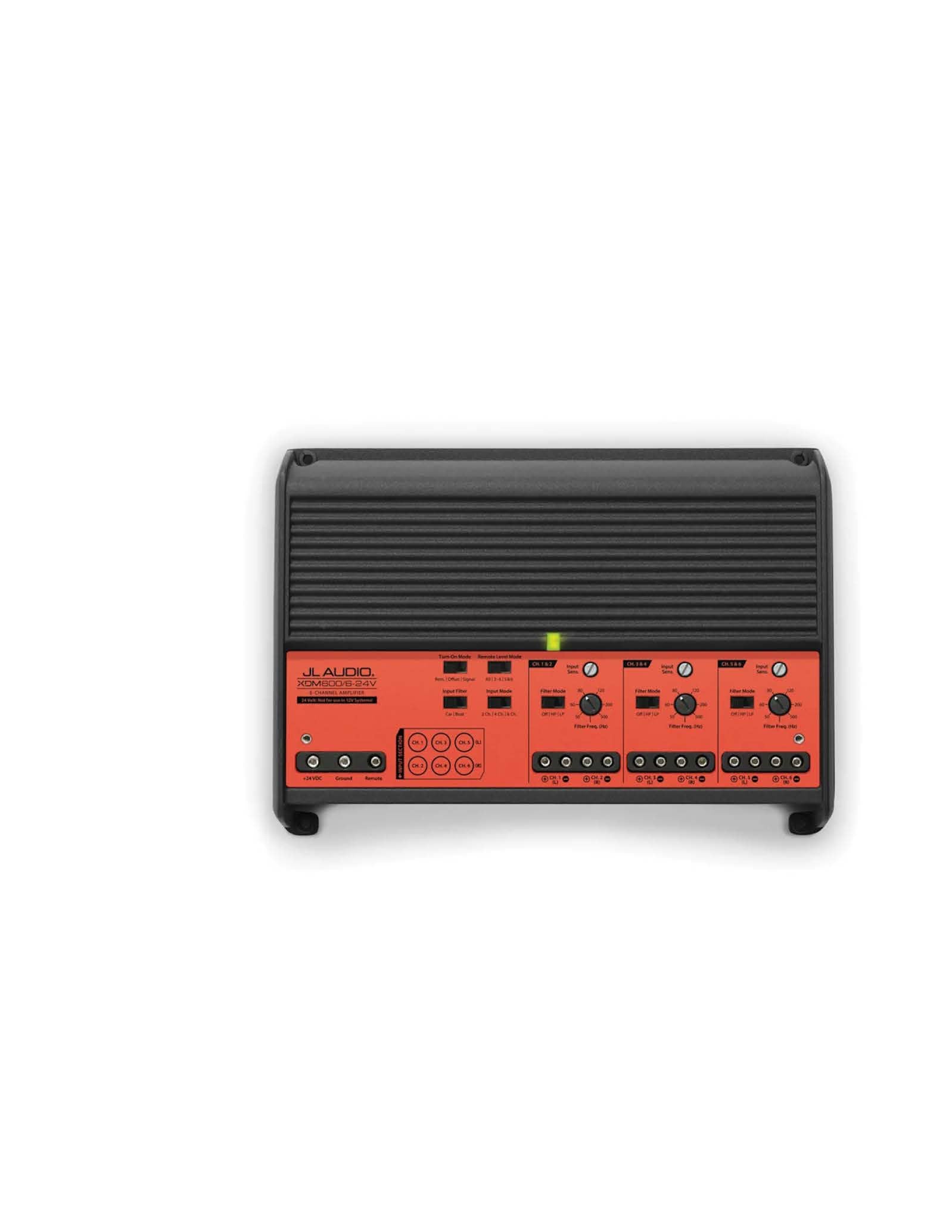

JL Audio XDM600/6 Marine 24 Volt Amplifier is a high-performance Class-D marine and powersports amplifier engineered for versatile multi-speaker system designs where full-range power matters. Delivering up to 600 watts total output, it balances compact footprint with robust thermal management, making it suitable for boats, off-road vehicles, and custom 24-volt audio installs where space and reliability count.
Using JL’s advanced NexD™ switching architecture, this amplifier supplies clean, stable power across six channels. It drives full-range speakers directly, supports bridged configurations for elevated sub or satellite power, and incorporates dual-mode input filters for noise-free performance. Weather-resistant construction and marine-friendly materials ensure durability in demanding environments.
Key Features
- 600 watts total rated power for marine and powersports audio systems
- Six channels of full-range Class-D amplification
- 75W RMS × 6 @ 4Ω; 100W RMS × 6 @ 2Ω load conditions
- Bridged power options (200W RMS × 3 @ 4Ω) for flexible system layouts
- Dual-mode input filter for clean signal in car/marine environments
- Automatic turn-on via high-level or DC offset sensing
- Compact, gasketed control cover with marine-grade hardware
Technical Specifications
| Model | XDM600/6 |
| Part Number | 010-03120-00 |
| Total Power Output | 600W |
| RMS Power @ 4Ω | 75W × 6 channels |
| RMS Power @ 2Ω | 100W × 6 channels |
| Bridged Power | 200W × 3 @ 4Ω |
| Class | Class-D with NexD™ switching |
| Input Filters | Dual-mode high-pass/low-pass |
| Turn-On | Signal sensing/DC offset sensing |
| Operating Voltage | 24 VDC typical system |
| Construction | Marine-grade materials with gasketed controls |
Ideal Applications
- Multi-speaker marine audio systems needing compact, high-power amplification
- Powersports and UTV audio installs with multiple zones
- Custom 12-volt systems requiring bridged sub or midrange power
- Full-range amplifier solution for boats and off-road audio rigs
What’s Included
- JL Audio XDM600/6 6-channel amplifier (010-03120-00)
- Mounting hardware and gasketed cover
- Owner’s manual and warranty information
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with accurate marine spec data
- Expert 24-volt system design and amplifier matching support
- Installation strategy for multi-zone, bridged and distributed systems
- 20+ years OEM-plus audio integration experience
