JL Audio MV700/5i 700W 5-Channel Marine DSP Amplifier 010-03340-00 (98650)
JL Audio MV700/5i 700W 5-Channel Marine DSP Amplifier 010-03340-00 (98650)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio MV700/5i is a marine-rated Class-D 5-channel amplifier with integrated digital signal processing (DSP), built to power complete multi-speaker marine and powersports systems with precise control and robust output. Its NexD2™ high-speed switching architecture delivers clean, efficient power across four full-range channels and a dedicated subwoofer channel, making it suitable for cabins, cockpits, and multi-zone audio layouts.
Engineered to drive four main speakers at reference-grade levels while also delivering substantial subwoofer output, the MV700/5i balances power and system flexibility. Onboard DSP with high- and low-pass crossover capabilities lets you configure filtering and routing via JL Audio TüN™ software, and the amplifier’s marine-grade construction ensures reliability in demanding environments.
Key Features
- Marine-rated Class-D amplifier with integrated DSP and NexD2™ architecture
- 700 watts total output for robust multi-speaker systems
- Four full-range channels plus dedicated subwoofer channel
- DSP control via JL Audio TüN™ software
- High-/low-pass filter settings for precise speaker and sub integration
- Bridged output options for flexible system design
- Corrosion-resistant marine build materials and hardware
Technical Specifications
| Model | MV700/5i |
| Part Number | 010-03340-00 |
| Total Power Output | ≈700 W total |
| RMS Power @ 4Ω | 75 W × 4 full-range channels |
| Subwoofer Power @ 2Ω | 300 W × 1 sub channel |
| Bridged Outputs | 200 W × 2 main channels @ 4Ω |
| Class | Class-D (NexD2™) |
| DSP | Integrated with crossover/filter control |
| Inputs | RCA and speaker-level |
| Marine Rating | Marine-grade corrosion-resistant construction |
Ideal Applications
- Marine and powersports multi-speaker audio systems
- Boats needing a DSP-ready 5-channel amp for cockpit, cabin, and sub channels
- Custom 12-volt installs where integrated DSP and flexible outputs are required

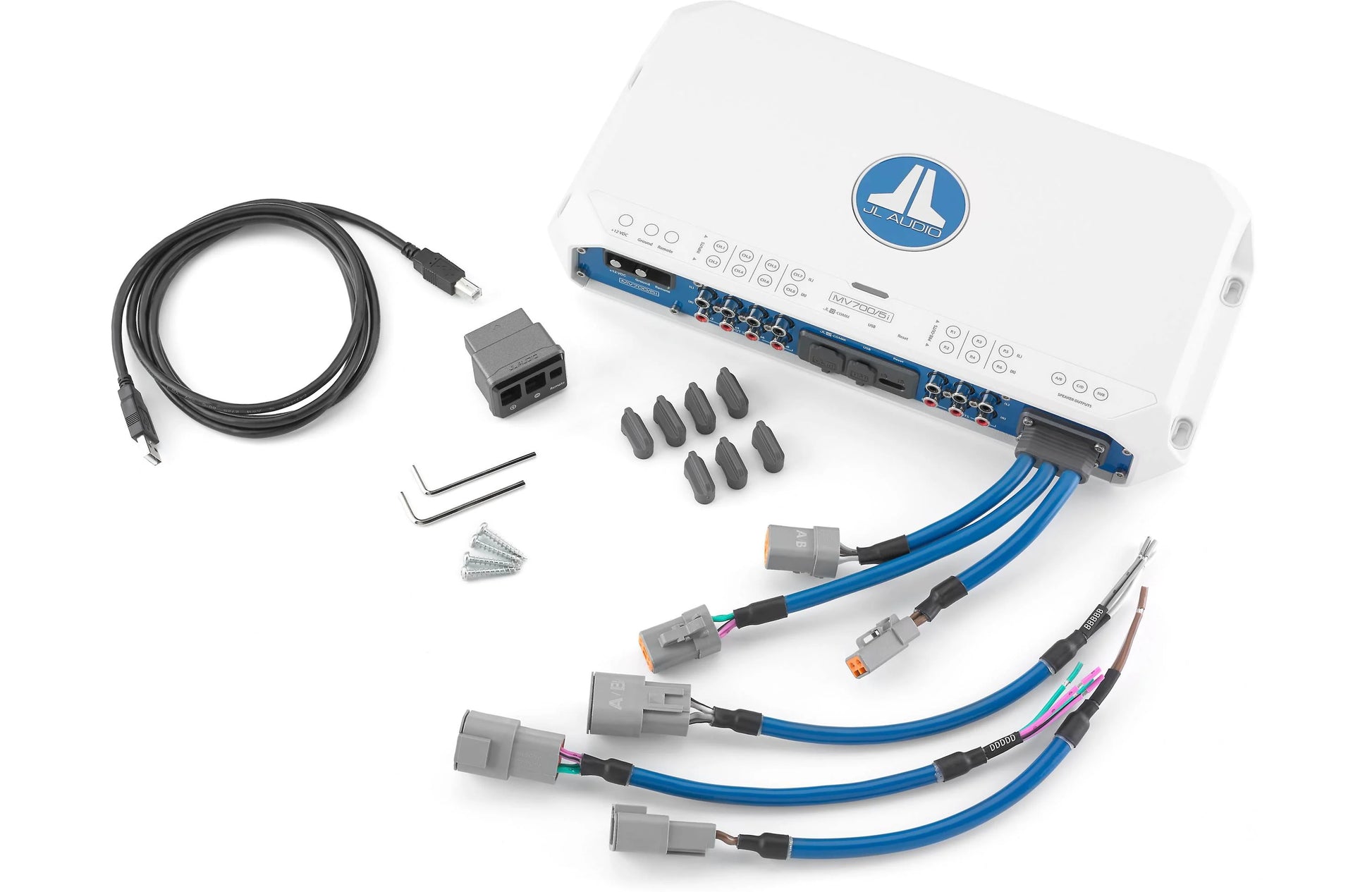

What’s Included
- JL Audio MV700/5i amplifier (010-03340-00)
- Power and speaker harnesses
- DSP configuration USB cable
- Mounting hardware and documentation
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with verified marine specs
- Expert multi-amp system design and tuning support
- Application-specific DSP integration guidance
- 20+ years in high-end 12-volt OEM-plus installations
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
