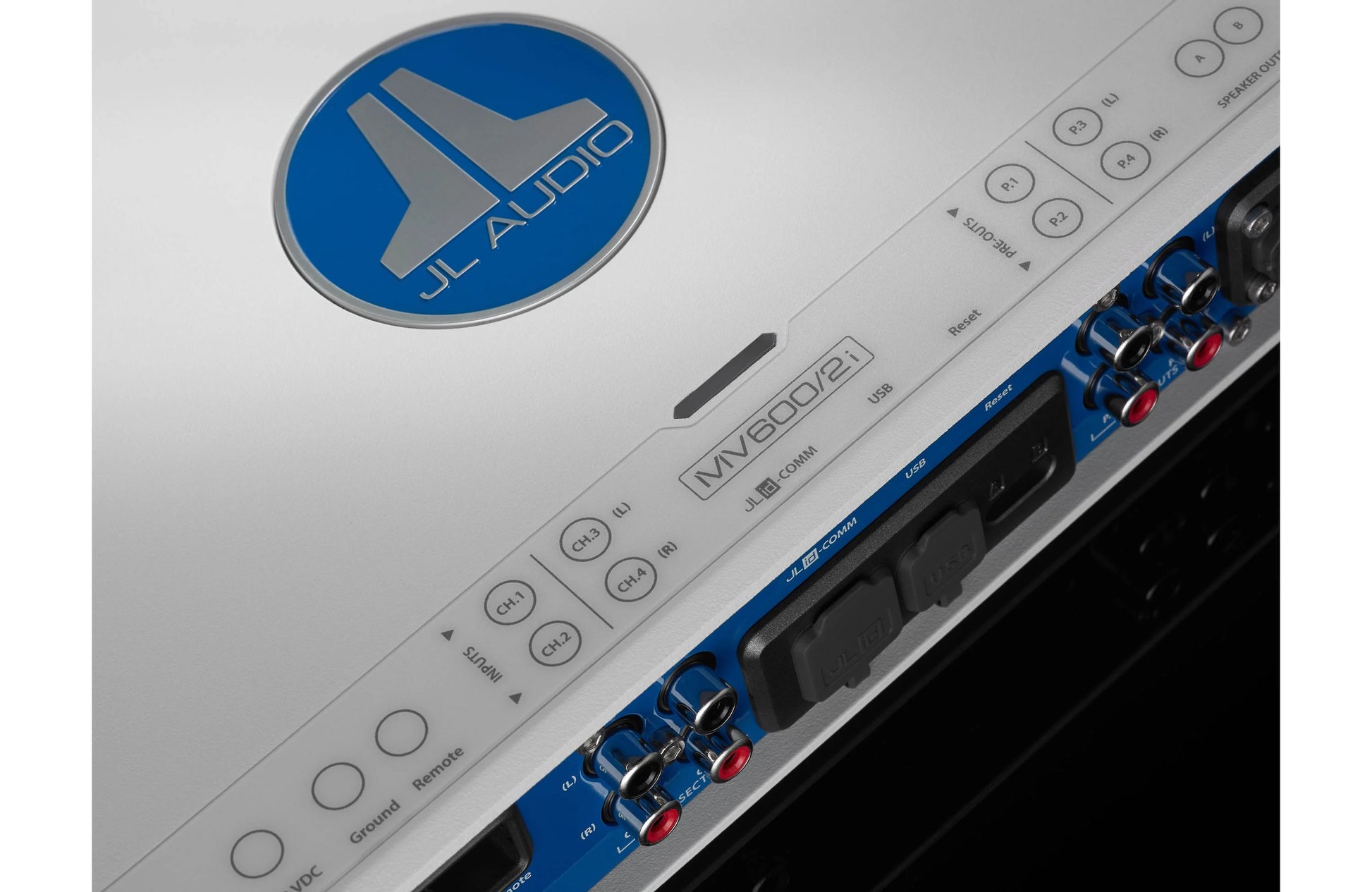

JL Audio MV600/2i 2-Channel Marine DSP Amplifier, 600W RMS Total 010-03336-00
JL Audio MV600/2i 2-Channel Marine DSP Amplifier, 600W RMS Total 010-03336-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio MV600/2i is a two-channel full-range marine amplifier with integrated DSP. At 14.4 V it delivers 180 W RMS per channel into 4 ohms, 300 W RMS per channel into 2 ohms, or 600 W RMS bridged into 4 ohms.
Built-in tuning puts equalization, delay, crossover routing and mixing in the amplifier. Free JL Audio TüN software handles setup and audio adjustment, while JLid supports communication with compatible optional control accessories. The two-channel architecture suits a high-output stereo pair or a correctly matched bridged load.
Key Features
- Two full-range channels with integrated DSP
- 300 W RMS x 2 at 2 Ω; 180 W RMS x 2 at 4 Ω
- NexD2 Class-D switching amplifier technology
- Marine construction tested for salt-fog and UV exposure
- JLid communication for compatible control accessories
- 4 AWG minimum copper power/ground wiring
Technical Specifications
| Model | MV600/2i |
| Garmin Part Number | 010-03336-00 |
| UPC | 699440986465 |
| Channels | Two full-range |
| DSP | Integrated |
| RMS Power at 14.4 V / 4 Ω | 180 W x 2 |
| RMS Power at 14.4 V / 2 Ω | 300 W x 2 |
| Bridged at 14.4 V / 4 Ω | 600 W x 1 |
| Rating Condition | <1% THD |
| Operating Voltage | 10–15 VDC |
| Recommended Fuse | 50 A |
| Minimum Copper Power/Ground Wire | 4 AWG |
| Dimensions (W x H x D) | 11.20" x 2.05" x 6.93" |
| Water Rating | IPX2 only when mounted vertically with connections downward |
Installation & System Matching
Use 4- or 2-ohm loads per channel, or a 4-ohm bridged load. Configure the DSP crossover, equalization and gain for the connected speakers or subwoofer; bridging does not make a below-rated load safe.
Provide fused battery power, correctly sized copper wiring, ventilation and a protected mounting location. IPX2 does not mean waterproof or safe for immersion. Remote controllers, network accessories, battery power wiring and external fusing are separate.

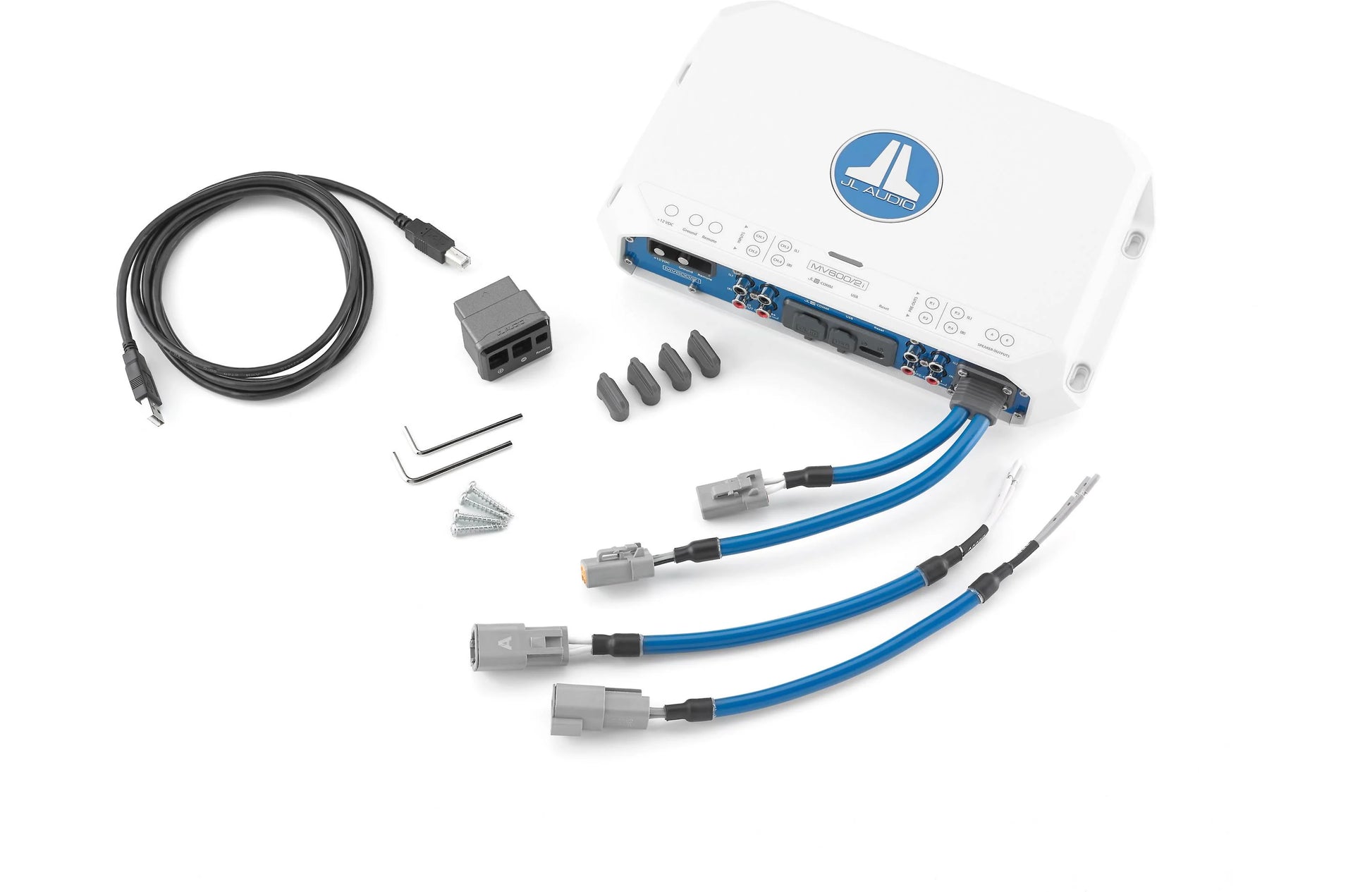

What’s Included
- MVi-series amplifier
- Power connector and speaker output harnesses
- 6-foot USB A/B cable
- Installed RCA terminal covers
- Four stainless steel mounting screws
- 2.5 mm and 3 mm Allen wrenches
