JL Audio MV1000/1 Monoblock Marine Subwoofer Amplifier, 1000W RMS at 2Ω 010-03335-00
JL Audio MV1000/1 Monoblock Marine Subwoofer Amplifier, 1000W RMS at 2Ω 010-03335-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

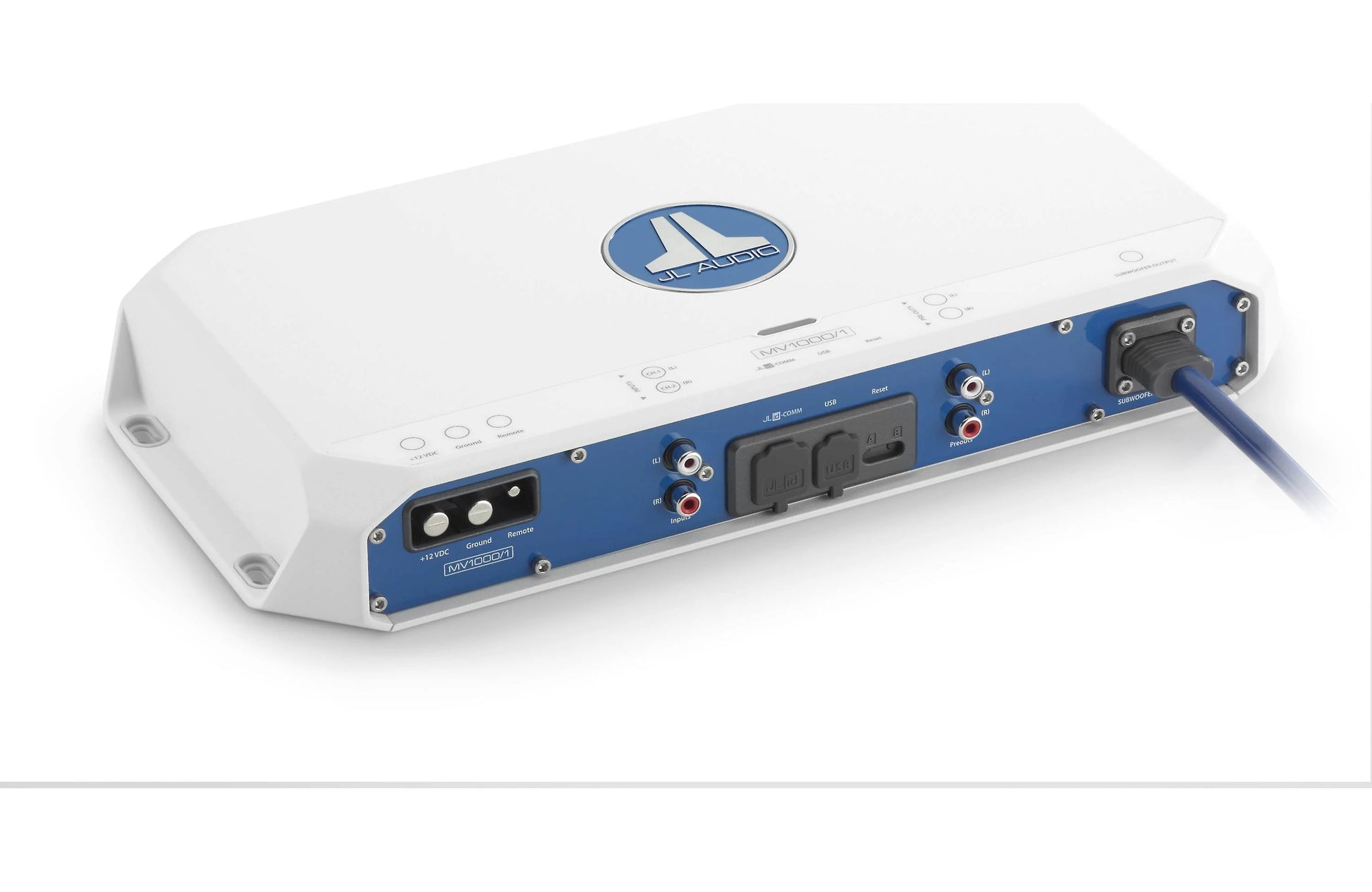

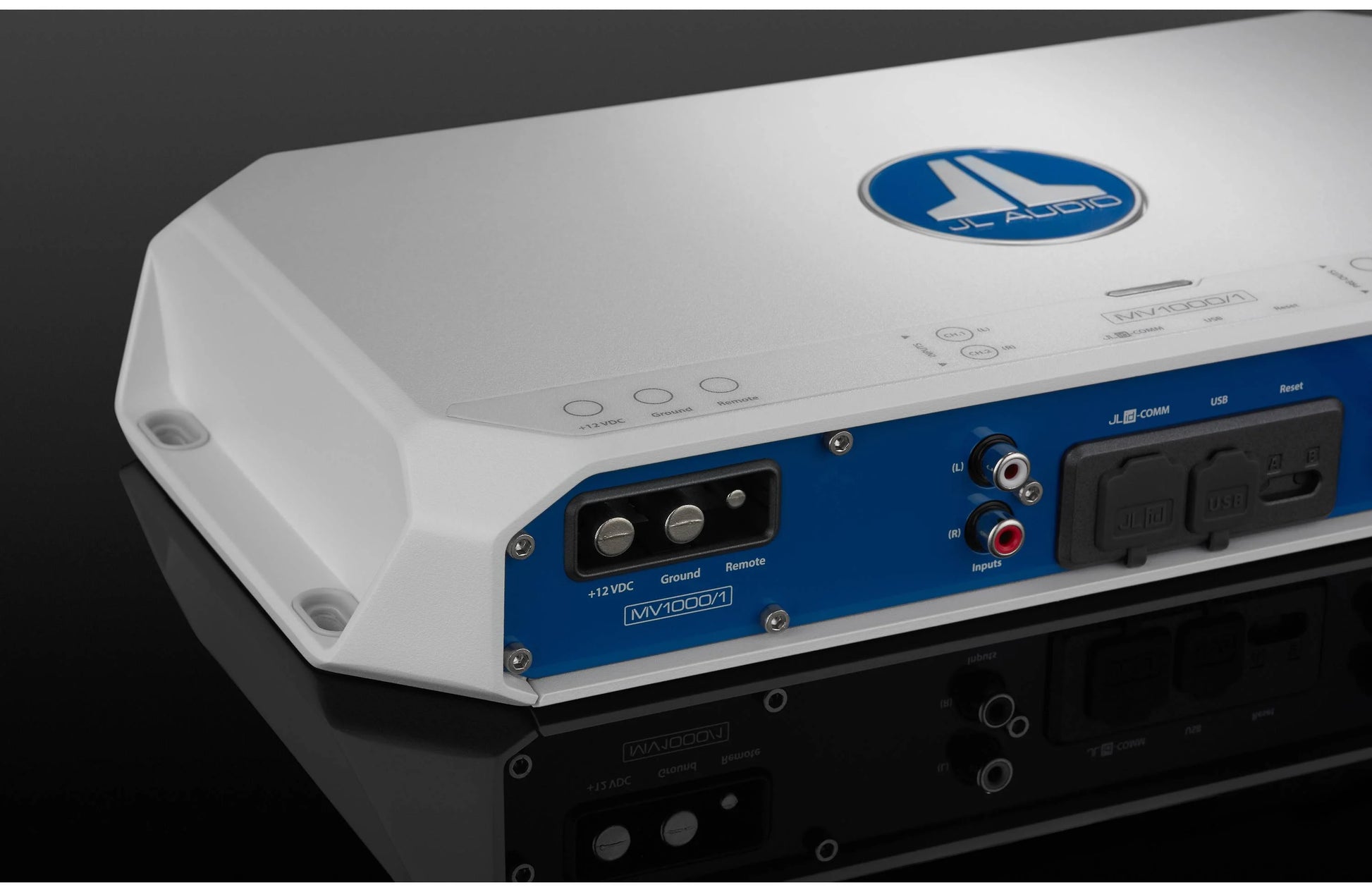

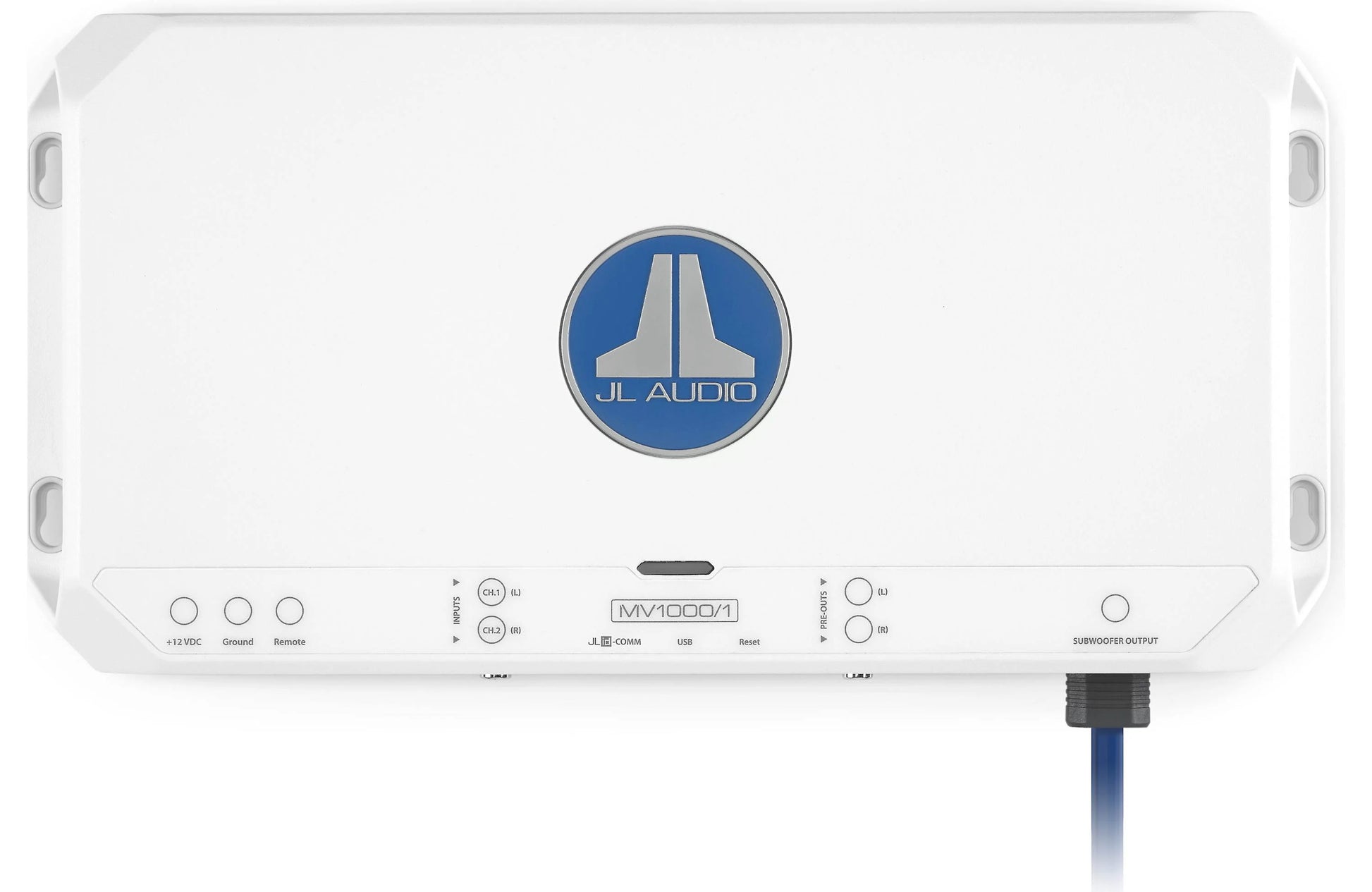

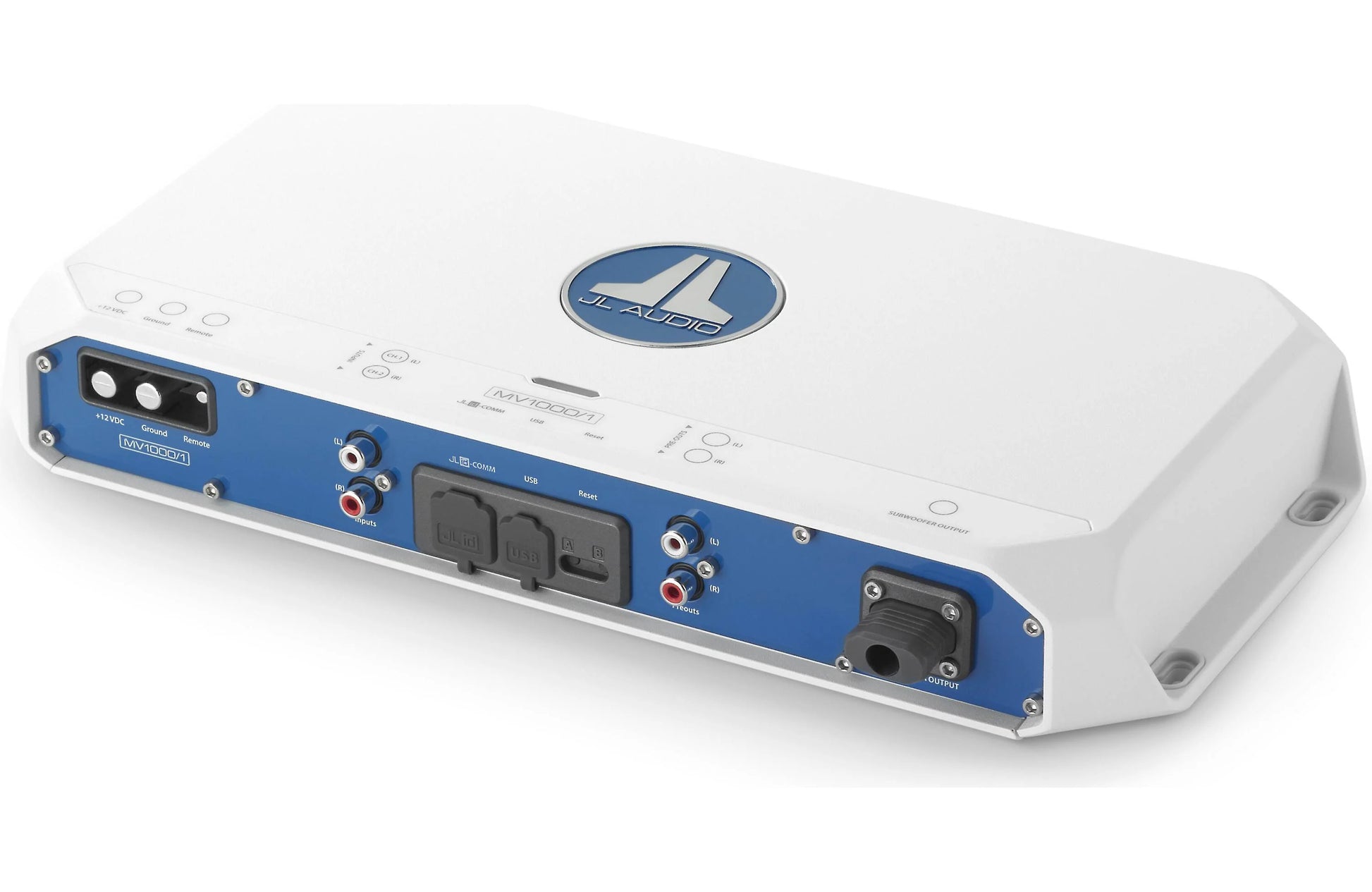

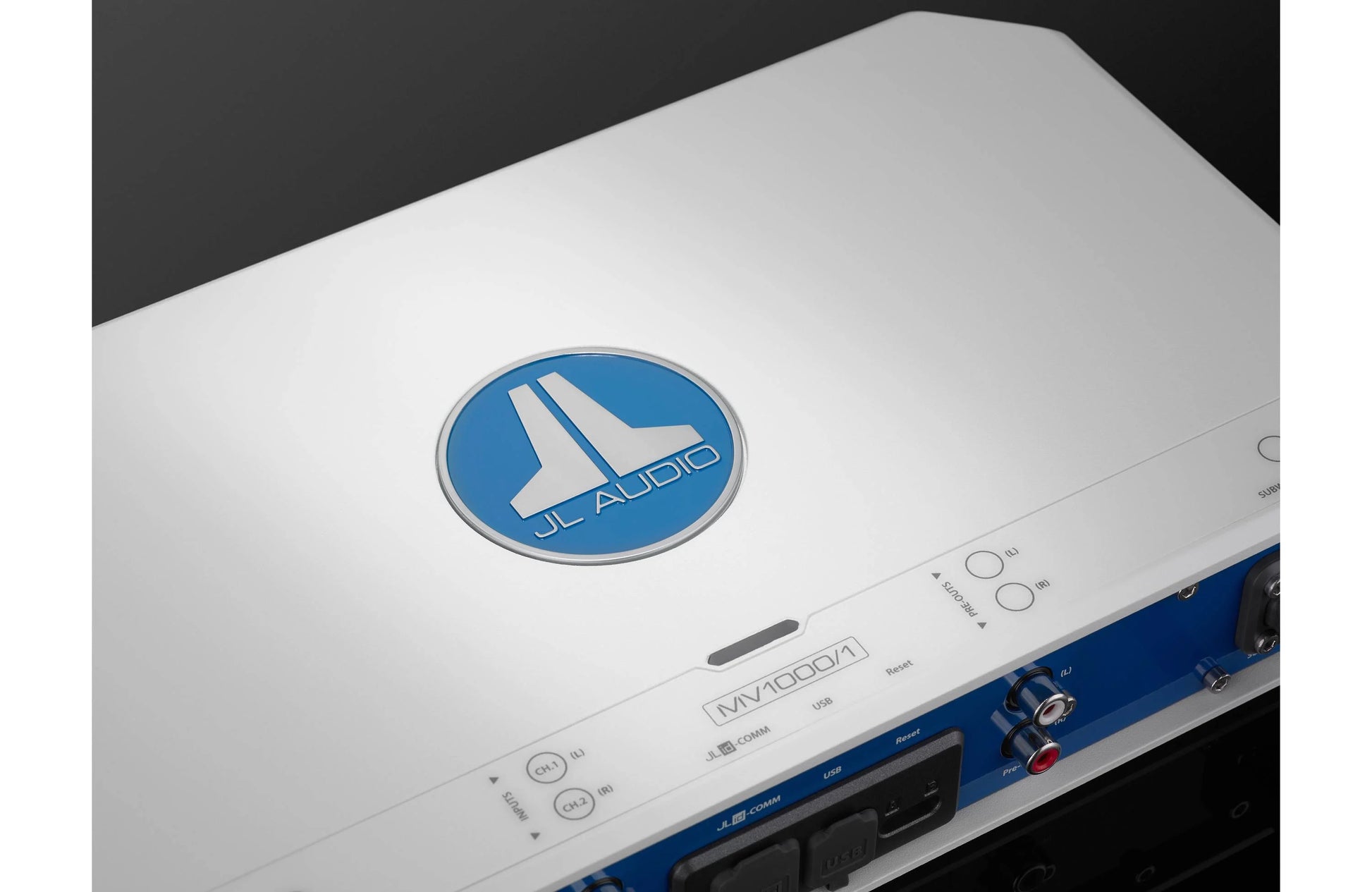

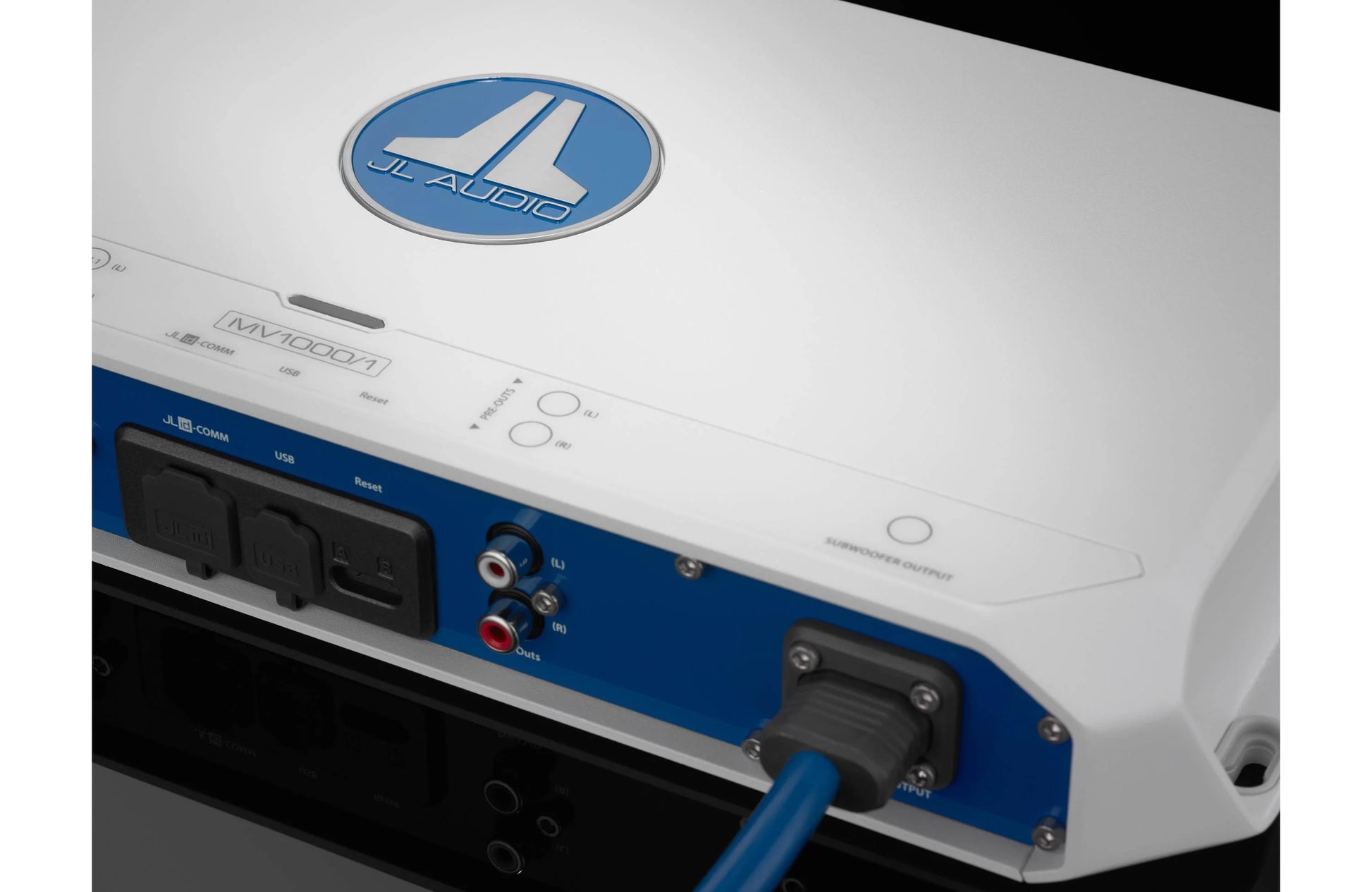

JL Audio MV1000/1 is a dedicated monoblock marine subwoofer amplifier, rated for 1000 W RMS into 2 ohms or 600 W RMS into 4 ohms at 14.4 V. It powers a subwoofer load; it is not a five-channel amplifier for cabin speakers and bass.
The non-DSP monoblock is intended to work with a properly processed input signal, including the preamp outputs of a full-range MVi amplifier. JL Audio’s NexD2 switching design supplies efficient dedicated bass power. Use the upstream signal processor for the required crossover and equalization rather than assuming this model contains the full-range MVi DSP package.
Key Features
- One subwoofer output channel; no onboard DSP
- 1000 W RMS x 1 at 2 Ω; 600 W RMS x 1 at 4 Ω

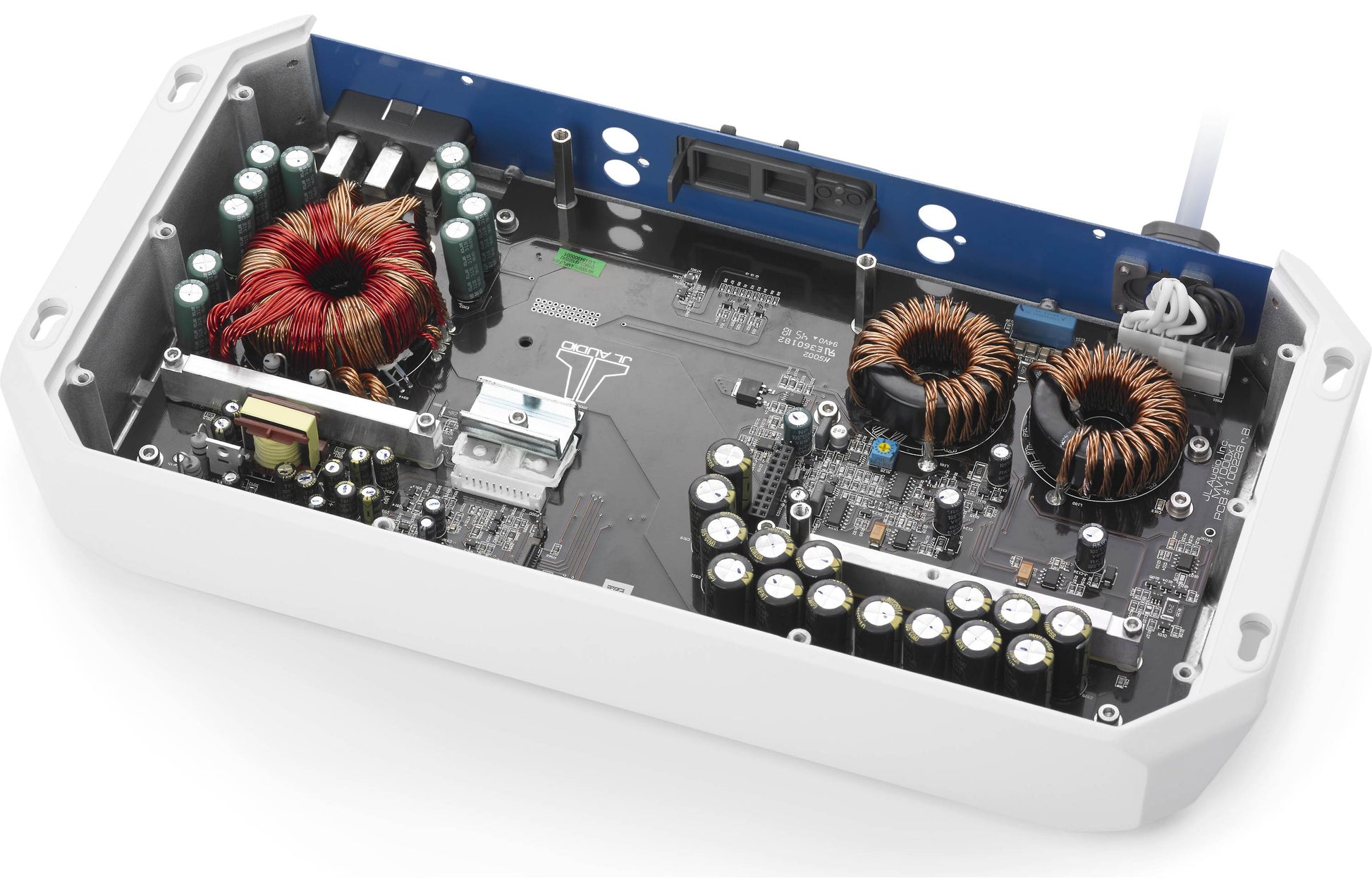

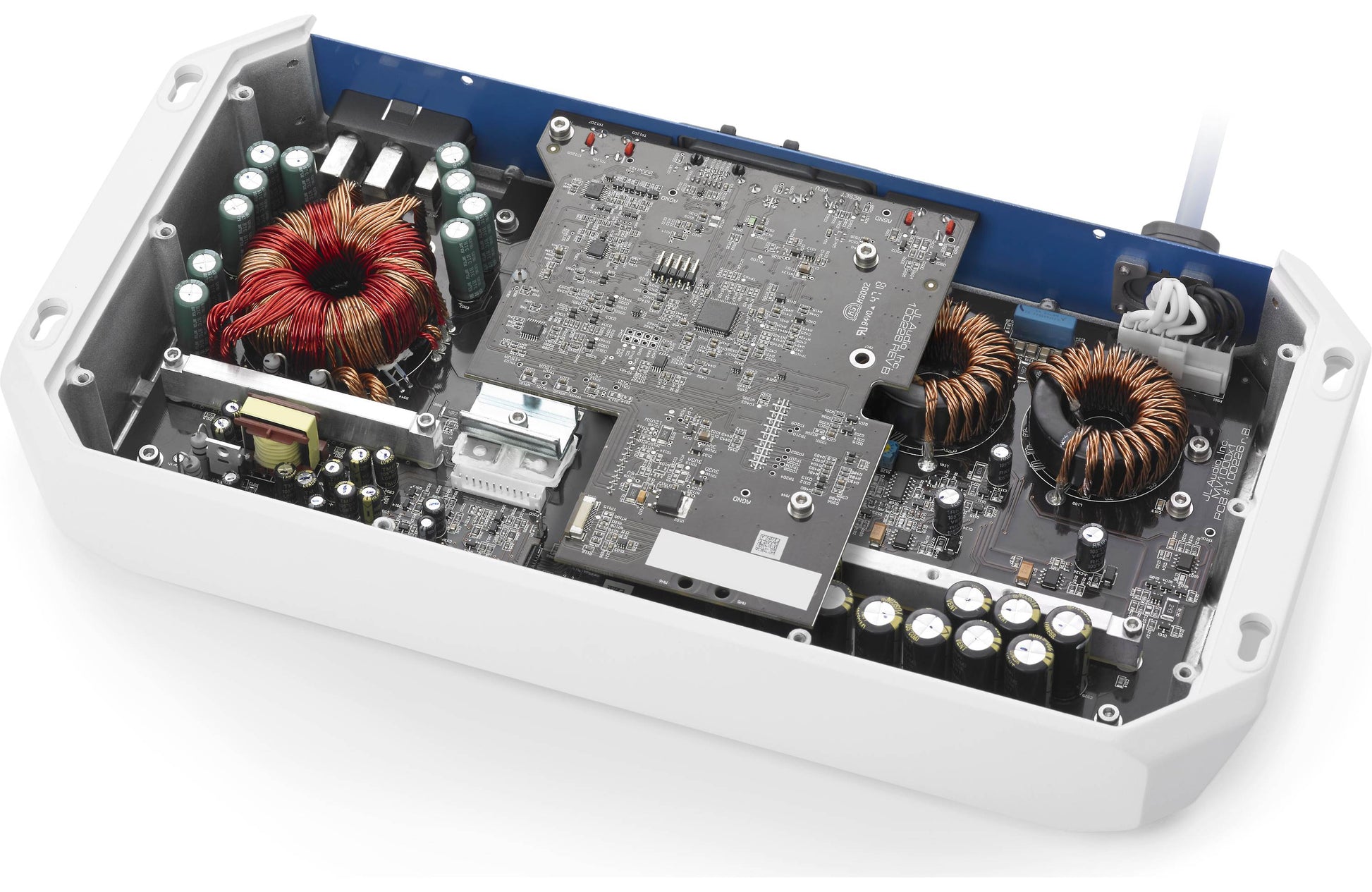

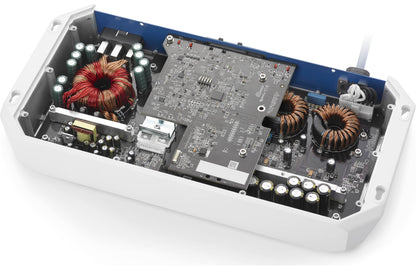

- NexD2 Class-D switching amplifier technology
- Marine construction tested for salt-fog and UV exposure
- JLid communication for compatible control accessories
- 4 AWG minimum copper power/ground wiring
Technical Specifications
| Model | MV1000/1 |
| Garmin Part Number | 010-03335-00 |
| UPC | 699440986458 |

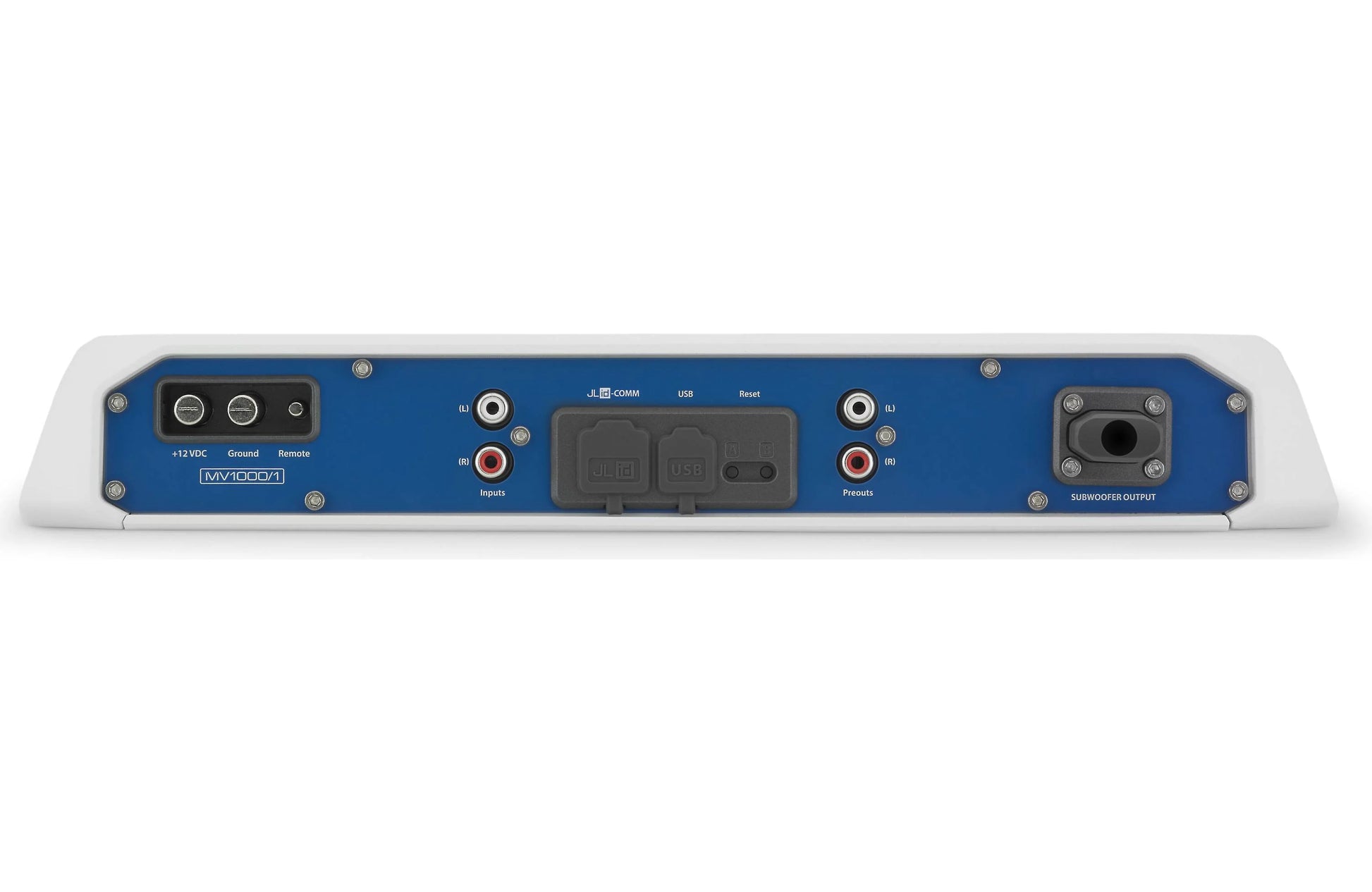

| Channels | Monoblock (one) |
| DSP | None; upstream signal processing required |
| RMS Power at 14.4 V / 4 Ω | 600 W x 1 |
| RMS Power at 14.4 V / 2 Ω | 1000 W x 1 |
| Bridged at 14.4 V / 4 Ω | Not applicable |
| Rating Condition | <1% THD |
| Operating Voltage | 10–15 VDC |
| Recommended Fuse | 80 A |
| Minimum Copper Power/Ground Wire | 4 AWG |
| Dimensions (W x H x D) | 13.96" x 2.05" x 6.93" |
| Water Rating | IPX2 only when mounted vertically with connections downward |
Installation & System Matching
Match the combined subwoofer impedance to the amplifier’s rated 2- or 4-ohm output. Do not connect a below-rated load, and set gain and source-side low-pass filtering for the subwoofer’s power handling.
Provide fused battery power, correctly sized copper wiring, ventilation and a protected mounting location. IPX2 does not mean waterproof or safe for immersion. Remote controllers, network accessories, battery power wiring and external fusing are separate.

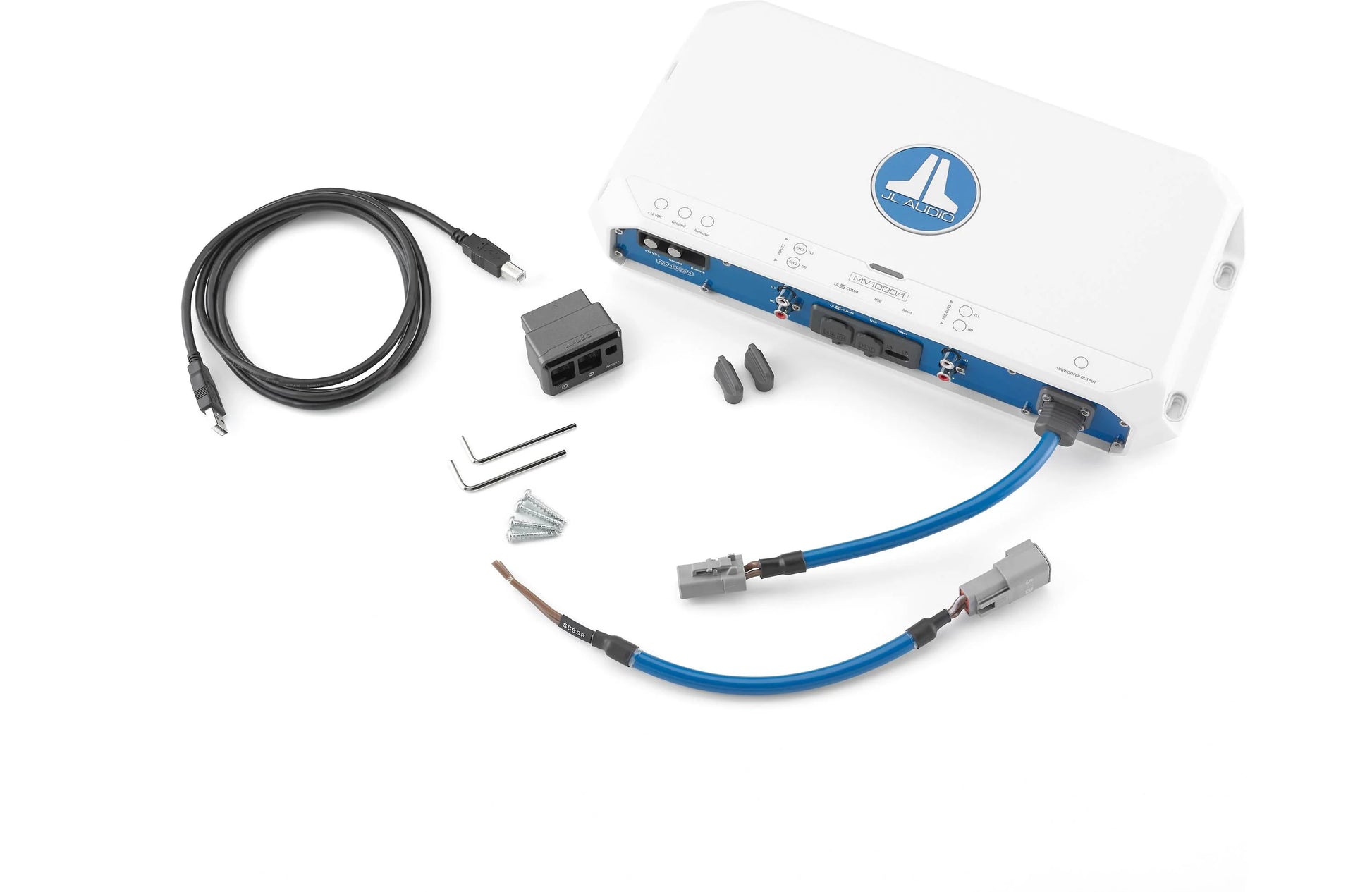

What’s Included
- MVi-series amplifier
- Power connector and speaker output harnesses
- 6-foot USB A/B cable
- Installed RCA terminal covers
- Four stainless steel mounting screws
- 2.5 mm and 3 mm Allen wrenches
