JL Audio CP106LG-W3v3 MicroSub 6" Ported Enclosed Subwoofer 150W 4Ω 010-03163-00 (933001)
JL Audio CP106LG-W3v3 MicroSub 6" Ported Enclosed Subwoofer 150W 4Ω 010-03163-00 (933001)
Couldn't load pickup availability

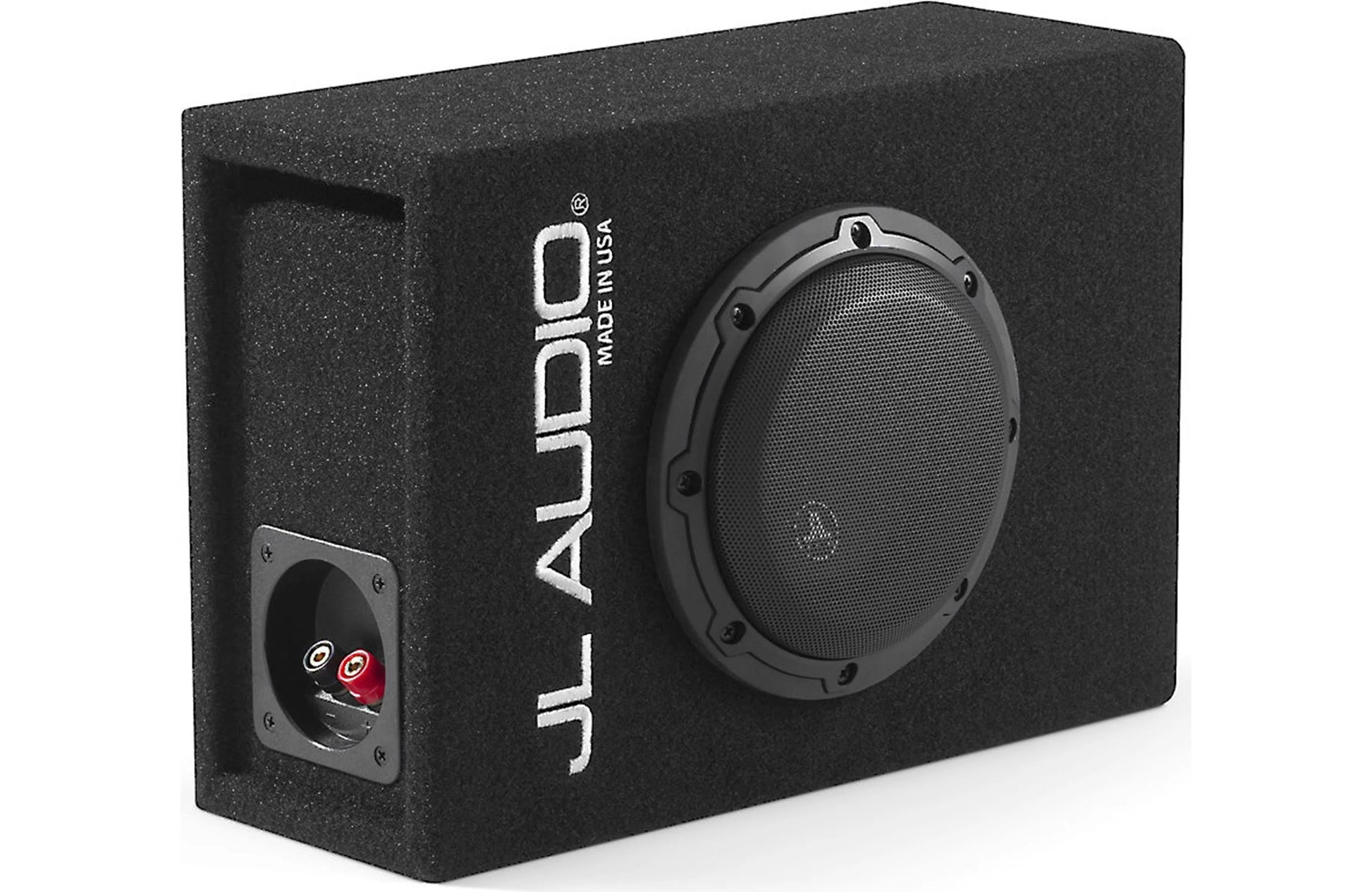

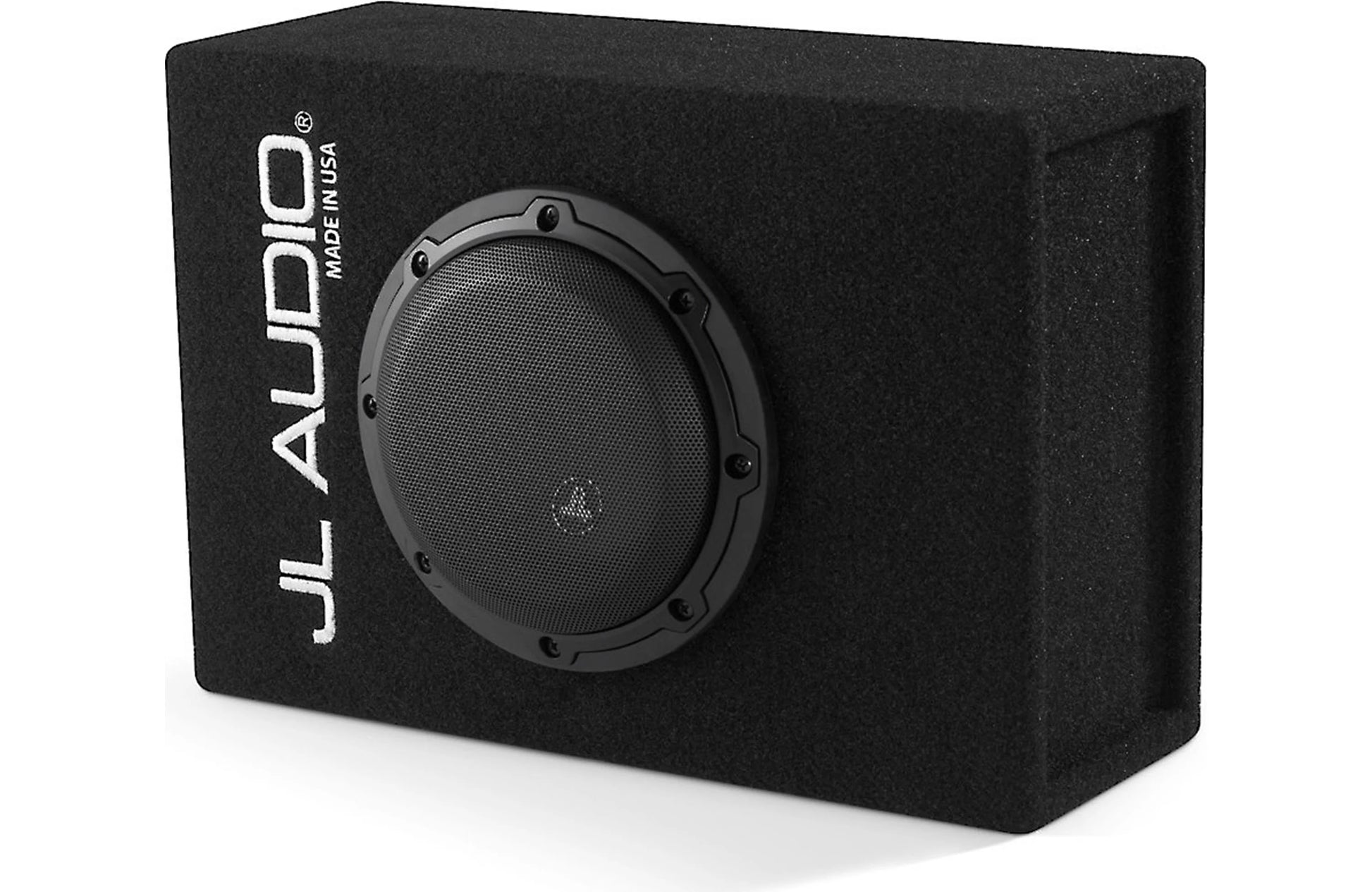

JL Audio CP106LG-W3v3 MicroSub™ 6" Enclosed Subwoofer is a compact, slot-ported loaded enclosure built around a single 6W3v3 subwoofer. The MicroSub™ design uses an efficient, precisely tuned port and extensive internal bracing to deliver bass output and extension normally associated with much larger enclosures, while keeping overall size and weight extremely manageable.
This system is rated for 150 W RMS and presents a nominal 4 Ω load, making it easy to drive with a wide range of mono and multi-channel amplifiers. The ported alignment and long-excursion W3v3 driver combine for surprisingly deep, musical low-frequency performance from a very small footprint, ideal for compact cars, trunks with limited space, or under-storage cavities where box volume is at a premium.
Key Features
- MicroSub™ slot-ported enclosure with a single 6W3v3 subwoofer
- Compact design engineered for high output from minimal space
- Continuous power handling: 150 W RMS
- Nominal 4 Ω impedance for flexible amplifier matching
- Efficient port tuning for extended low-frequency response
- 5/8" MDF construction with extensive internal bracing
- Black carpet finish with integrated steel-mesh grille
Amplifier Matching (Sold Separately)
- JL Audio JD250/1 — ideal power range for this enclosure at 4 Ω (set gain for clean output)
- JL Audio RD400/1 — compact, efficient option (gain-limited for ~150 W target)
- JL Audio RD500/1 — higher headroom option (run gain-limited for control and reliability)
Technical Specifications
| Model | CP106LG-W3v3 |
| Garmin PN | 010-03163-00 |
| UPC | 699440933001 |
| Subwoofer Size | 6.5" W3v3 subwoofer |
| Enclosure Type | Slot-ported MicroSub™ |
| Continuous Power (RMS) | 150 W |
| Nominal Impedance | 4 Ω |
| Frequency Response | 30–300 Hz |
| Construction | 5/8" MDF, black carpet, steel-mesh grille |
| Dimensions (W × H × D) | 14.25" × 9.75" × 5.25" (6.63" with grille) |
| Approx. Weight | ~14.9 lb (6.8 kg) |
| Warranty | 2 Years |
Ideal Applications
- Compact and sub-compact vehicles with very limited cargo space
- Installations where larger 8"/10"/12" enclosures will not fit
- Systems needing real low-frequency extension from a tiny footprint
- Upgrades from factory “bass modules” to true subwoofer performance
What’s Included
- JL Audio CP106LG-W3v3 MicroSub™ ported enclosure with 6W3v3 driver
- Integrated steel-mesh driver grille

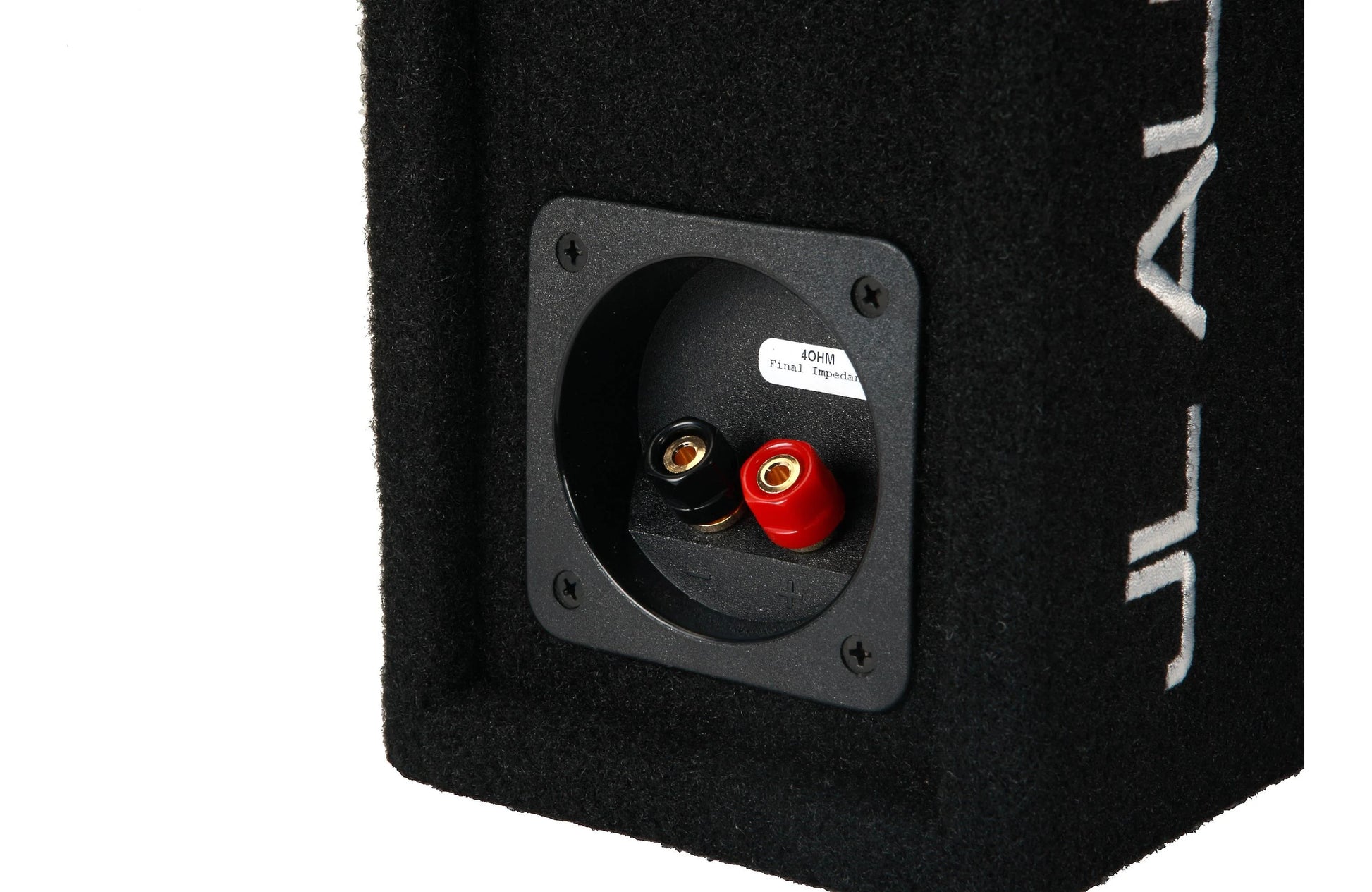

- Five-way binding-post terminal (pre-wired internally)
- Documentation / warranty information
