JL Audio TW1 10" Subwoofer 2-Ohm (PES110-TW1-2) – 010-03454-00 (929981)
JL Audio TW1 10" Subwoofer 2-Ohm (PES110-TW1-2) – 010-03454-00 (929981)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

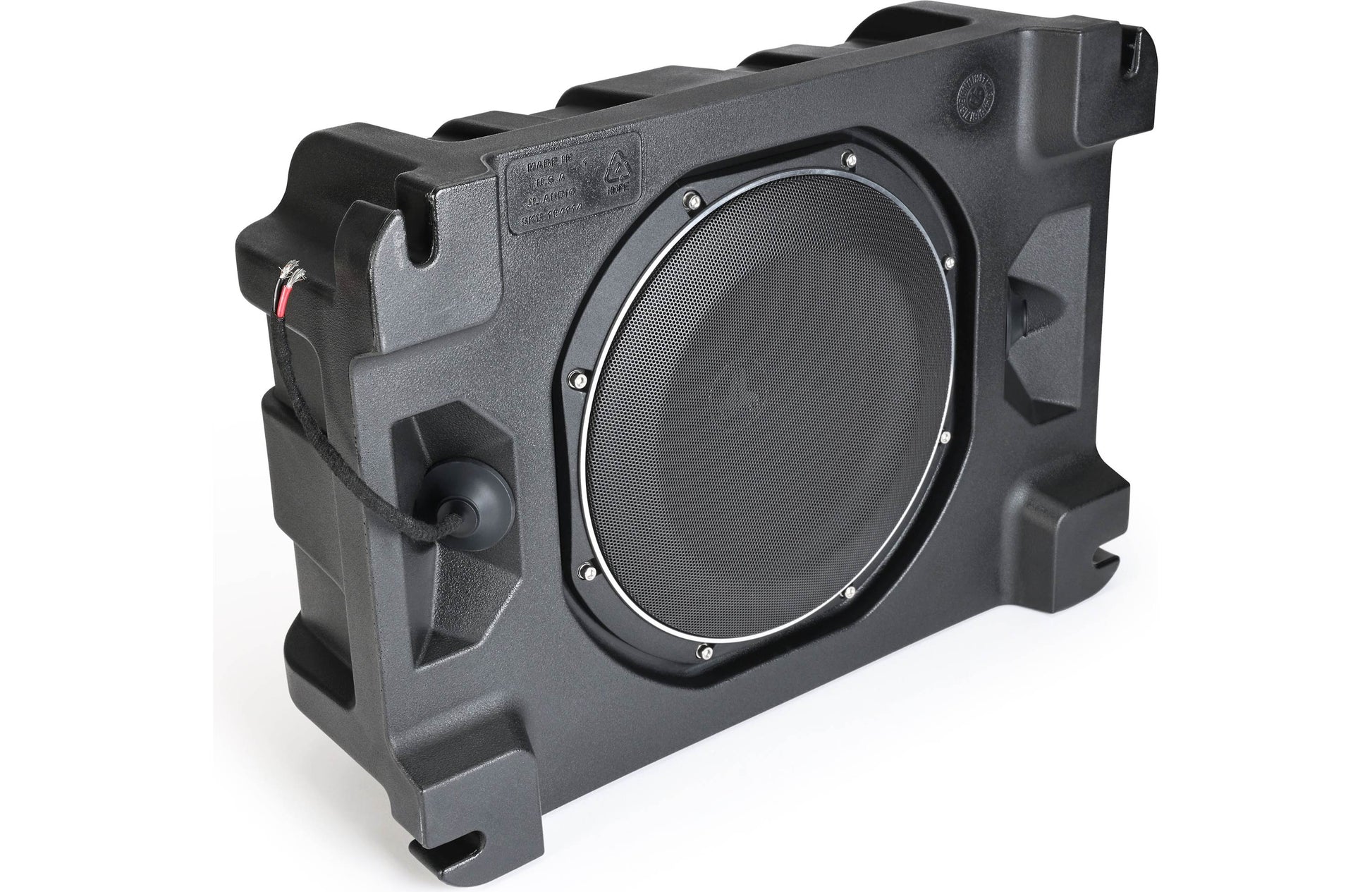

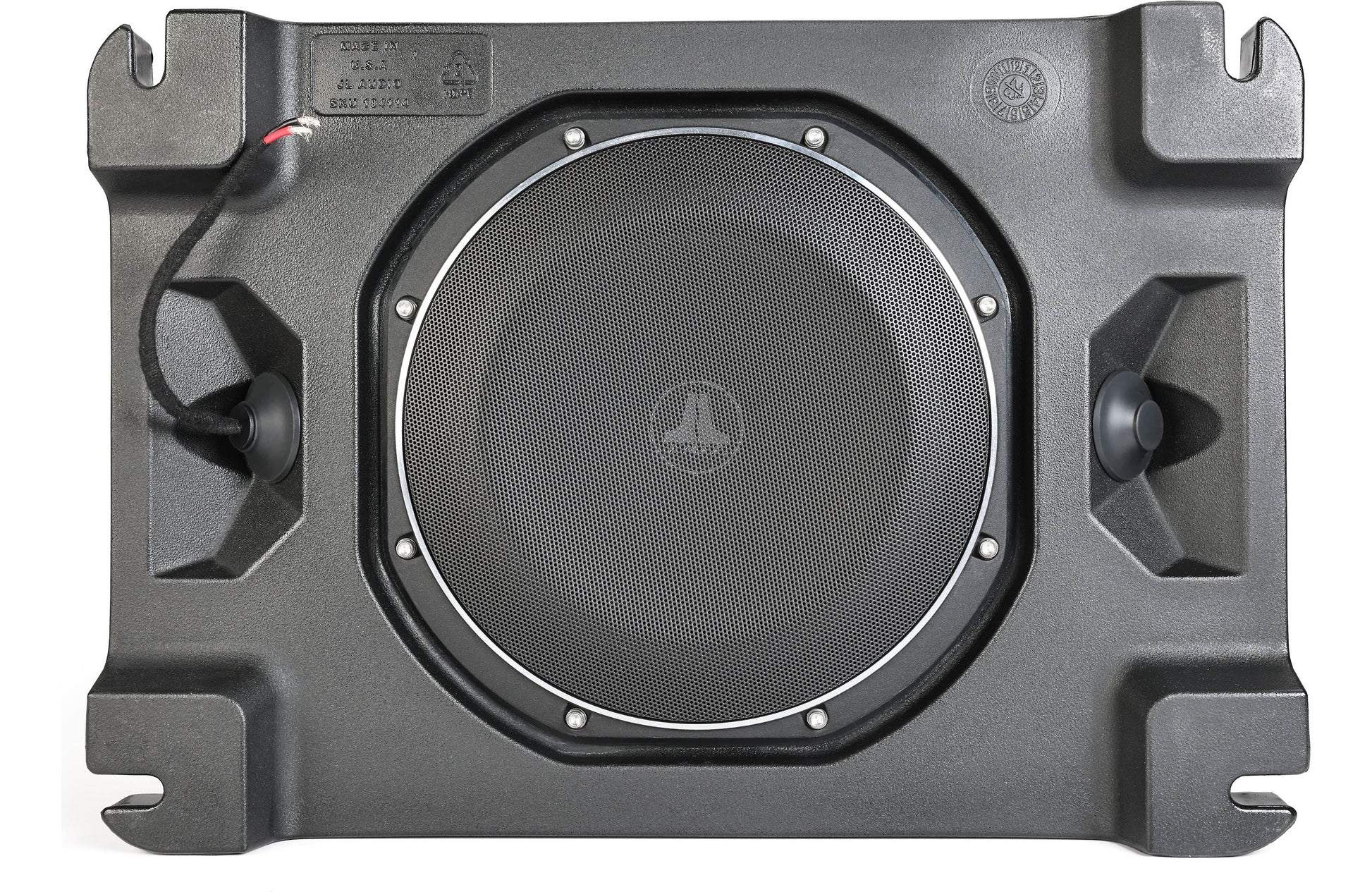

JL Audio PES110-TW1-2 is a preloaded, low-profile sealed enclosure featuring the TW1-2 shallow-mount 10" subwoofer. Engineered for vehicles with limited cargo depth, the TW1 motor architecture delivers long linear excursion and tight, controlled low-frequency performance in a compact footprint. This enclosure is optimized for sealed operation, allowing deep, accurate bass without boominess or distortion.
The TW1 series utilizes JL’s patented concentric motor design and DMA-optimized suspension geometry for consistent output across the driver’s excursion range. Paired with the sealed enclosure, the PES110-TW1-2 delivers high-quality bass suitable for audiophile OEM-plus builds, stealth installs, and modern vehicles with space constraints.
Key Features
- Preloaded sealed enclosure with TW1-2 10" shallow subwoofer
- 2-Ohm single voice coil for flexible amplifier matching
- Designed for tight-space vehicle applications
- Long excursion motor for deep bass in compact volumes
- Sealed box tuning for accuracy and transient control
- DMA-optimized motor geometry for low distortion
- Ideal for OEM+ and stealth bass upgrades
Technical Specifications
| Model Number | PES110-TW1-2 (010-03854-00) |
| Subwoofer | TW1-2 (10" shallow-mount) |
| Impedance | 2-Ohm SVC |
| Power Handling (RMS) | 300W RMS |
| Peak Power | 600W Peak |
| Frequency Response | 25Hz – 250Hz (vehicle dependent) |
| Enclosure Type | Sealed, acoustic suspension |
| Construction | MDF with black carpet wrap |
| Dimensions | 20.2" (W) × 13.6" (H) × 6.7" (D-max) × 4.4" (D-min) |
| Mounting Orientation | Horizontal or vertical depending on vehicle |
Ideal Applications
- OEM-plus factory audio upgrades
- SUVs, sedans, hatchbacks, trucks with limited cargo depth
- High-fidelity sealed bass tuning
- Stealth and discreet audio builds
Amplifier Matching
JL recommends 300W RMS at 2-Ohms for full dynamic performance. Compatible amplifiers include JL RD500/1, JD500/1, XD300/1v2, and VX600/1i (DSP).
What's Included
- PES110-TW1-2 preloaded sealed enclosure
- TW1-2 10" 2-Ohm subwoofer
- User documentation
