JL Audio SB-T-TACACG3/10TW3 10" 400W 2Ω Tacoma Access Cab 010-03681-00 (94658)
JL Audio SB-T-TACACG3/10TW3 10" 400W 2Ω Tacoma Access Cab 010-03681-00 (94658)
Couldn't load pickup availability

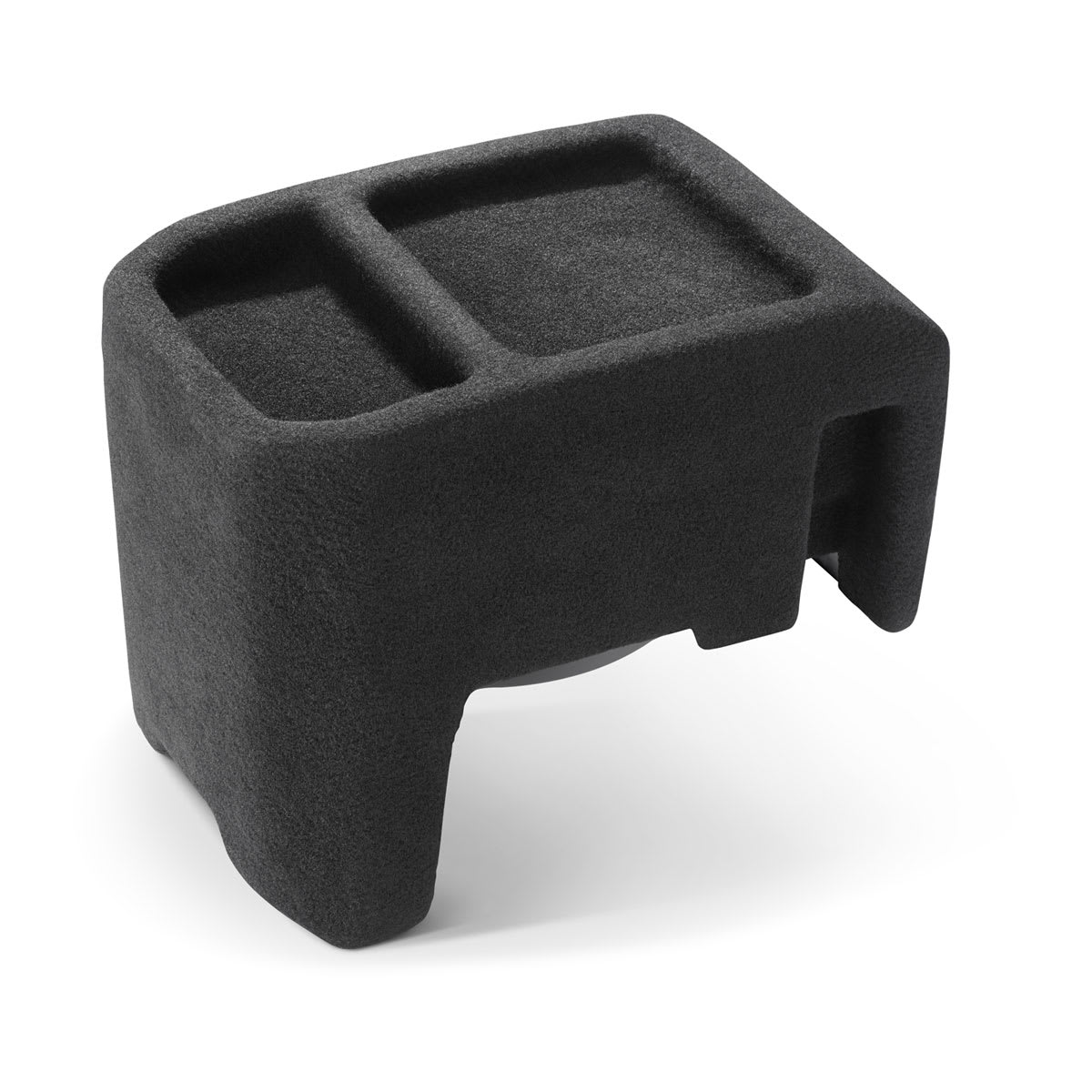

JL Audio SB-T-TACACG3/10TW3 Stealthbox is a vehicle-specific subwoofer system engineered for the 3rd generation Toyota Tacoma Access Cab (2016–Up). The custom fiberglass enclosure replaces the rear center console between the jump seats, delivering serious low-frequency output while maintaining a clean, OEM-like appearance and usable armrest surface.
Loaded with a single 10TW3-D4 10" thin-line subwoofer and wired to present a 2 Ω mono load, this Stealthbox is rated for 400 W RMS, giving Tacoma owners a tight, controlled bass upgrade that integrates cleanly with both factory and aftermarket front-stage systems.
Key Features
- Vehicle-specific Stealthbox subwoofer system for 2016–Up Tacoma Access Cab
- Custom-fit, dark gray sealed fiberglass enclosure

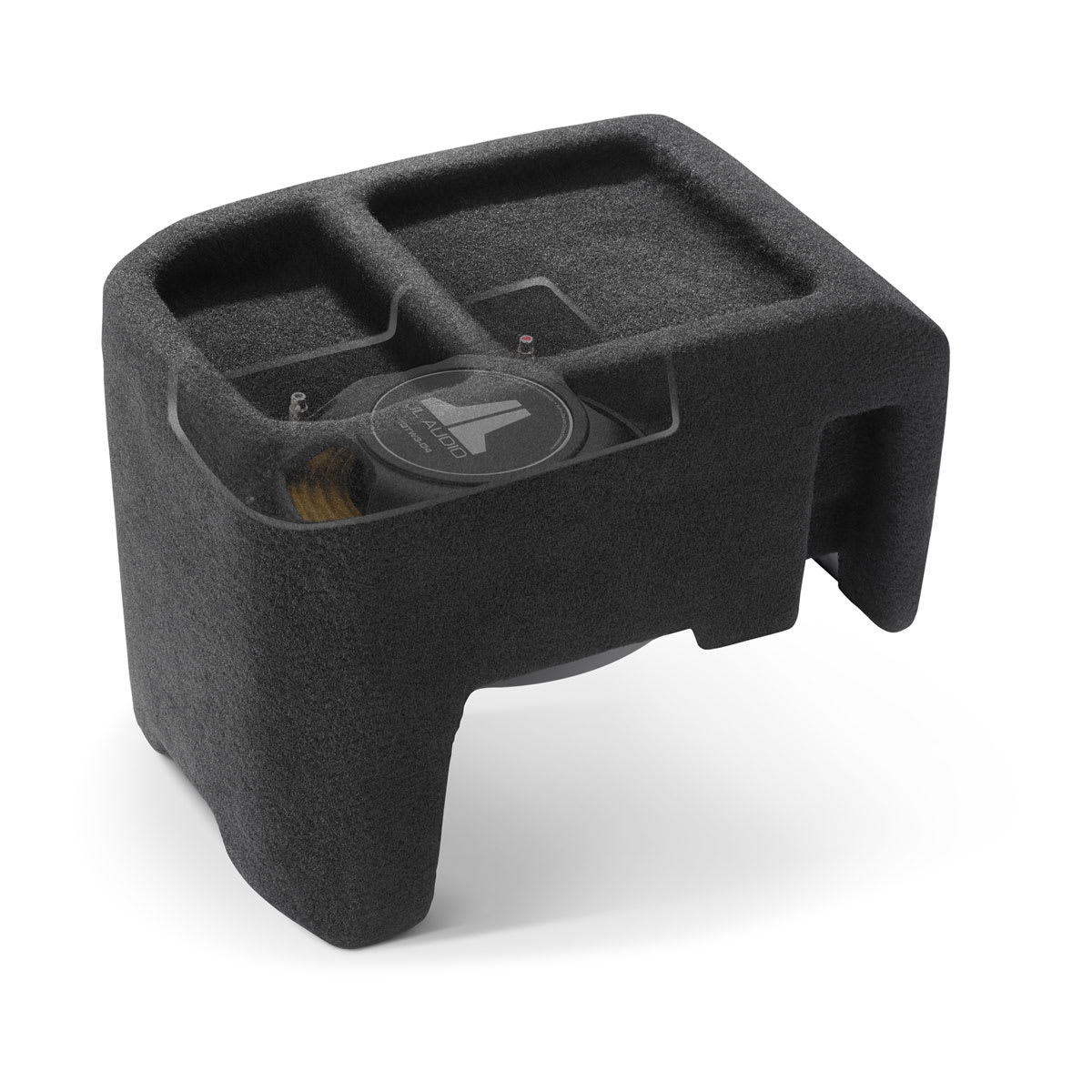

- Loaded with one JL Audio 10TW3-D4 10" thin-line subwoofer
- Wired for 2 Ω mono, rated up to 400 W RMS (800 W peak)

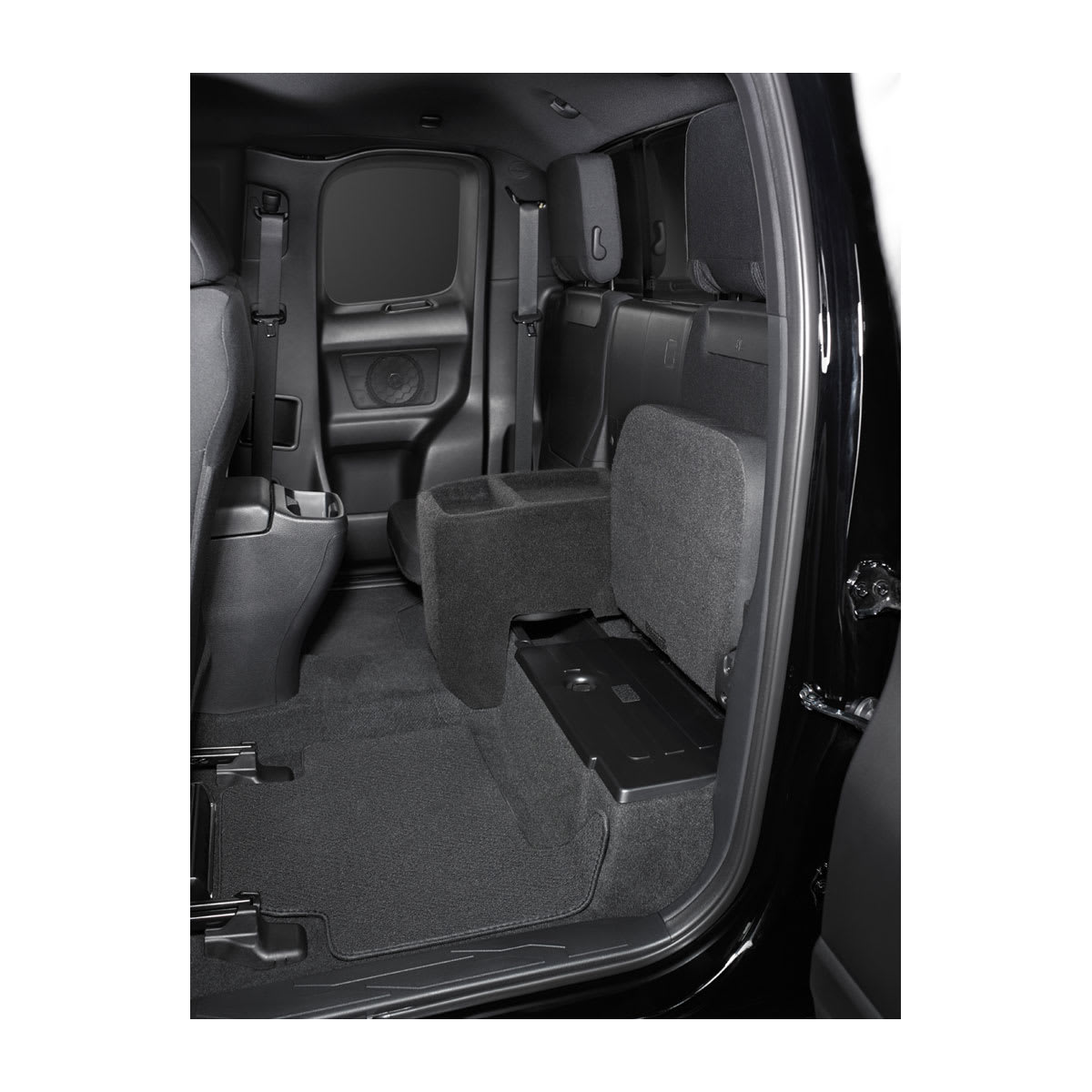

- Replaces the factory rear center console between the jump seats
- Down-firing design for solid, musical bass with good cone protection
- Preserves cabin usability while adding a significant low-bass foundation
Vehicle Compatibility
| Year | Make | Model | Notes |
| 2016 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2017 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2018 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2019 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2020 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2021 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2022 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2023 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2024 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2025 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
| 2026 | Toyota | Tacoma Access Cab | 3rd Gen Access Cab jump-seat layout; does not fit Double Cab models. |
2024 Toyota Tacoma Access Cab JL Audio Stealthbox Subwoofer Upgrade
This compatibility table lists exact year, make, and model applications for the SB-T-TACACG3/10TW3. It is built so shoppers and AI shopping tools can match vehicle-specific JL Audio Stealthbox fitment without relying only on broad “up” year ranges. Always verify trim, factory audio configuration, seat/cargo layout, and installation location before ordering.
Recommended Amplifier Matching (Sold Separately)
For best performance, pair this Stealthbox with a JL Audio monoblock amplifier capable of delivering clean power into a 2 Ω load, with gains set to keep real output near 400 W RMS:
- JL Audio JD500/1 – 500 W RMS @ 2 Ω, efficient Class D design
- JL Audio RD500/1 – up to 500 W RMS @ 2 Ω (set gains conservatively for headroom)
- JL Audio XDM600/1 – 600 W RMS @ 2 Ω (gain-limited to ~400 W for this Stealthbox)
- JL Audio VX600/1i – 600 W RMS @ 2 Ω with integrated DSP for advanced tuning
Technical Specifications
| Model | SB-T-TACACG3/10TW3 |
| Garmin PN | 010-03681-00 |
| JL Legacy PN | 94658 |
| Subwoofer | 10TW3-D4 thin-line subwoofer |
| Subwoofer Size | 10" (250 mm) |
| Continuous Power (RMS) | 400 W |
| Peak Power | 800 W |
| Nominal Impedance | 2 Ω mono |
| Enclosure Type | Sealed, fiberglass |
| Enclosure Location | Replaces rear center console between Access Cab jump seats |
| Vehicle Fitment | 2016–Up Toyota Tacoma Access Cab (does not fit Double Cab) |
| Finish | Dark gray, OEM-style texture |
| Warranty | 2 Years (when purchased from an authorized JL Audio dealer) |
Ideal Applications
- Daily-driven Tacoma Access Cab trucks needing real low-end authority
- Factory and aftermarket systems that need tight, musical bass
- Hidden, console-replacement subwoofer solutions
- Installations where floor and behind-seat space are already in use
What’s Included
- JL Audio SB-T-TACACG3/10TW3 Stealthbox loaded with one 10TW3-D4 subwoofer
- Vehicle-specific mounting hardware
- Installation documentation
Frequently Asked Questions
- Will this fit a 2024 Toyota Tacoma Access Cab? Yes. The compatibility table above lists 2024 Toyota Tacoma Access Cab as a fitment for this JL Audio Stealthbox. Verify trim, factory audio configuration, seat/cargo layout, and installation location before ordering.
- What amplifier should I use with this Stealthbox? Use the Recommended Amplifier Matching section above and match the amplifier to 400 W RMS at 2 Ω. Gain setting and tuning matter.
- Is this a complete audio system? No. This listing is for the vehicle-specific SB-T-TACACG3/10TW3 Stealthbox subwoofer system. A complete installation may require an amplifier, power wiring, signal integration, tuning, and installation accessories.
