JL Audio SB-H-PIO1K-10TW3 10" Stealthbox 400W 2Ω 2015-up Honda Pioneer 1000 010-03664-00 (94630)
JL Audio SB-H-PIO1K-10TW3 10" Stealthbox 400W 2Ω 2015-up Honda Pioneer 1000 010-03664-00 (94630)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm your exact year, model, factory equipment, and any required companion parts before ordering.
Check your vehicle in the MCOR Fit Guide- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

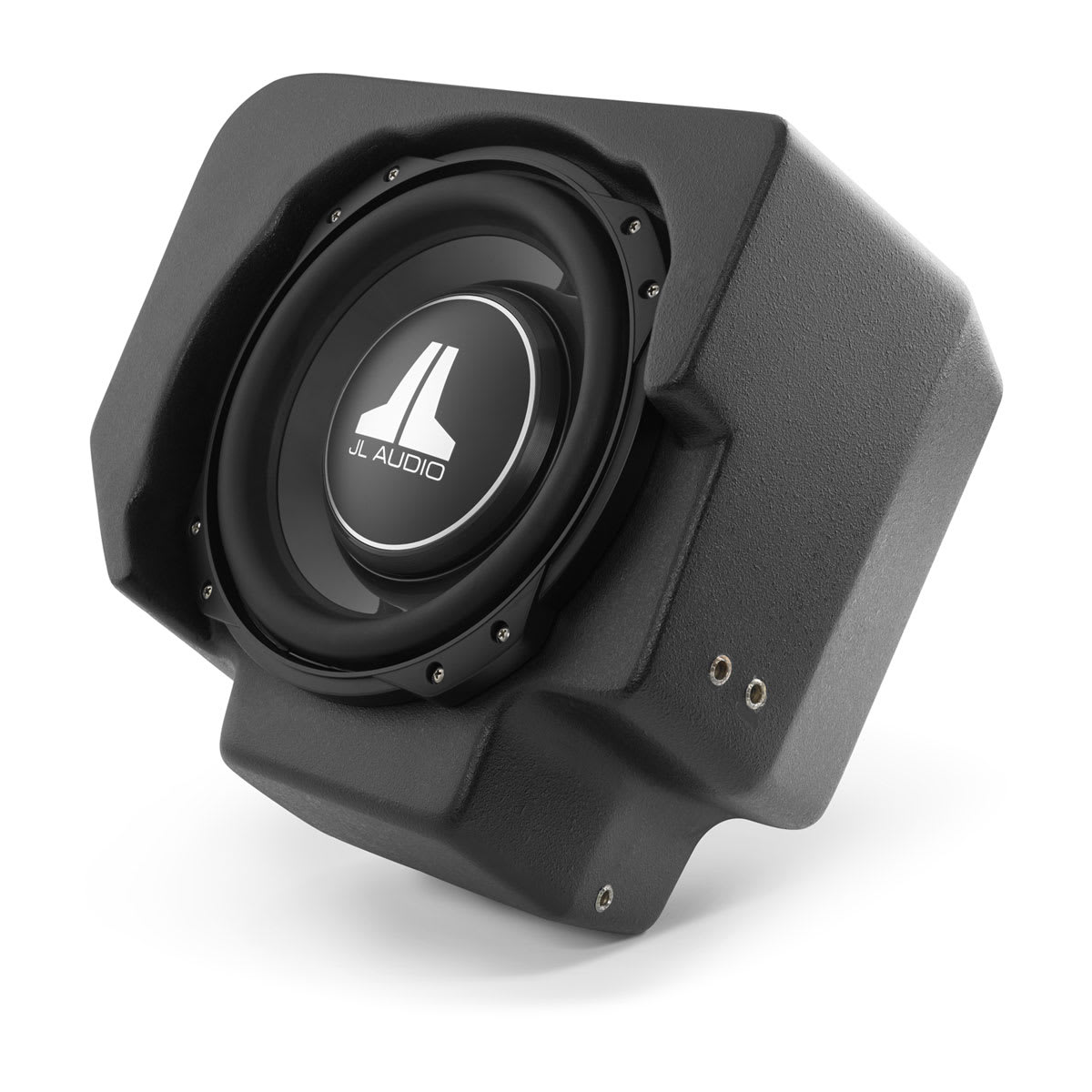

JL Audio SB-H-PIO1K-10TW3 is a vehicle-specific Stealthbox subwoofer system designed for 2015–present Honda Pioneer 1000 UTV models. This sealed fiberglass enclosure mounts under the driver’s seat and is loaded with a single JL Audio 10TW3-D4 10-inch thin-line subwoofer to deliver deep, accurate bass while preserving usable cabin space.
With 400 W RMS continuous power handling and a 2 Ω final wired load, this Stealthbox is designed to pair with a JL Audio monoblock amplifier that delivers clean power into 2 Ω.
Key Features
- Vehicle-specific Stealthbox subwoofer system for Honda Pioneer 1000

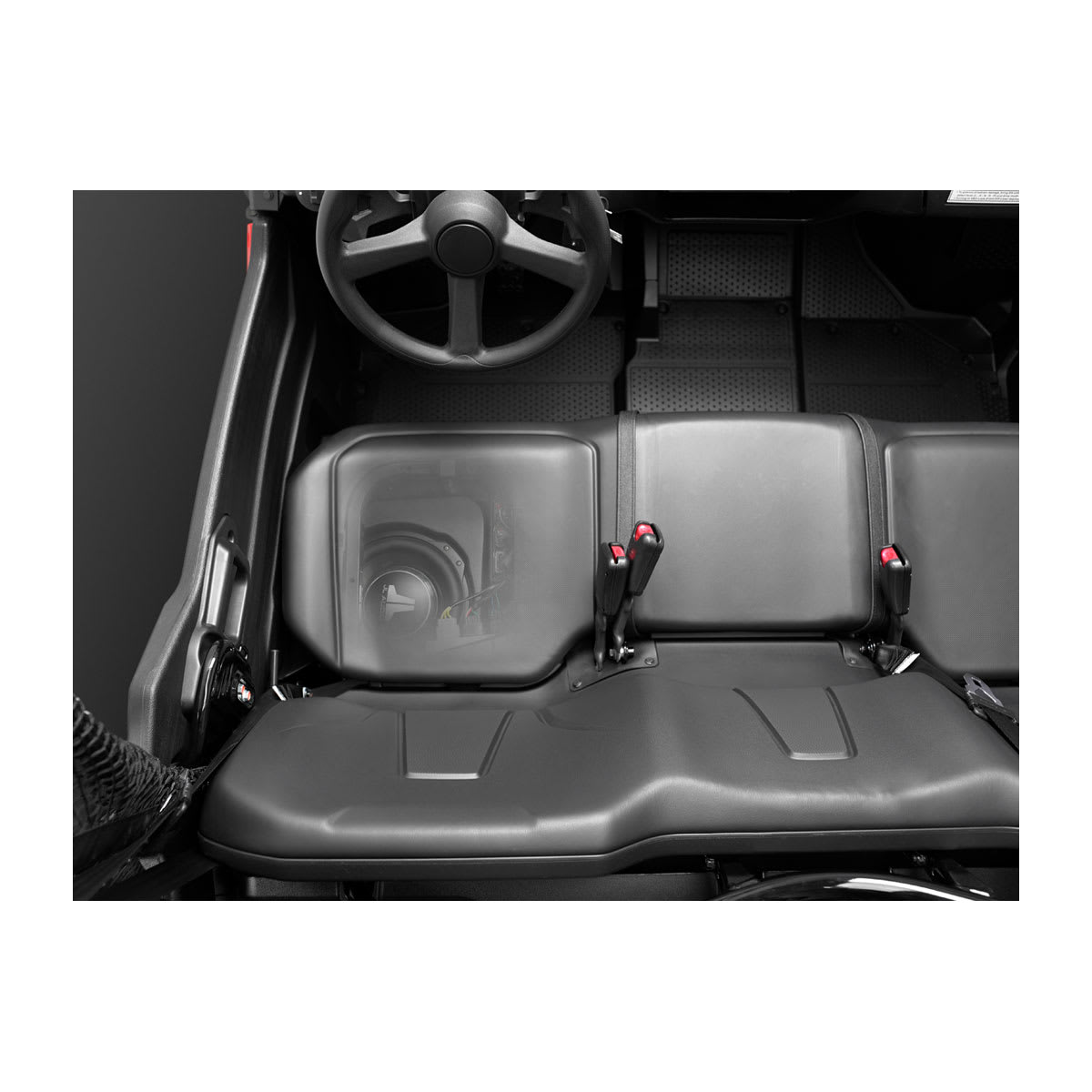

- Under-driver-seat mounting location
- Single 10" JL Audio 10TW3-D4 thin-line subwoofer
- 400 W RMS continuous power handling
- Sealed fiberglass enclosure design
Vehicle Compatibility
| Year | Make | Model | Notes |
| 2015 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2016 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2017 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2018 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2019 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2020 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2021 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2022 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2023 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2024 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2025 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
| 2026 | Honda | Pioneer 1000 | Under driver’s seat; verify Pioneer trim/seating configuration. |
2024 Honda Pioneer 1000 JL Audio Stealthbox Subwoofer Upgrade
This compatibility table lists exact year, make, and model applications for the SB-H-PIO1K-10TW3. It is built so shoppers and AI shopping tools can match vehicle-specific JL Audio Stealthbox fitment without relying only on broad “up” year ranges. Always verify trim, factory audio configuration, seat/cargo layout, and installation location before ordering.
Recommended Amplifier Matching (Sold Separately)
For best performance, pair this Stealthbox with a JL Audio monoblock amplifier capable of delivering clean power into a 2 Ω load:
- JL Audio RD500/1 – 500 W RMS @ 2 Ω (set gain appropriately for a 400 W system)
- JL Audio JD500/1 – 500 W RMS @ 2 Ω (set gain appropriately for a 400 W system)
- JL Audio XDM600/1 – 600 W RMS @ 2 Ω (set gain appropriately for a 400 W system)
- JL Audio VX600/1i – 600 W RMS @ 2 Ω with integrated DSP for advanced tuning (set output appropriately)
Technical Specifications
| Model | SB-H-PIO1K-10TW3 |
| Garmin PN | 010-03664-00 |
| JL Legacy PN | 94630 |
| Subwoofer | 10TW3-D4 |
| Subwoofer Size | 10" (250 mm) |
| Continuous Power (RMS) | 400 W |
| Nominal Impedance (Final Wired Load) | 2 Ω |
| Driver Voice Coils | Dual 4 Ω |
| Peak Power | 800 W |
| Enclosure Type | Sealed, fiberglass |
| Enclosure Location | Under driver’s seat |
| Net Weight | 25.00 lb |
| Vehicle Fitment | 2015–present Honda Pioneer 1000 |
| Warranty | 2 Years (when purchased from an authorized JL Audio dealer) |
Ideal Applications
- UTV / side-by-side bass upgrade
- High-output bass while preserving cabin space
- Off-road audio systems requiring vehicle-specific fitment
What’s Included
- JL Audio Stealthbox enclosure (loaded with subwoofer)
- Mounting hardware (as supplied by JL Audio)
Frequently Asked Questions
- Will this fit a 2024 Honda Pioneer 1000? Yes. The compatibility table above lists 2024 Honda Pioneer 1000 as a fitment for this JL Audio Stealthbox. Verify trim, factory audio configuration, seat/cargo layout, and installation location before ordering.
- What amplifier should I use with this Stealthbox? Use the Recommended Amplifier Matching section above and match the amplifier to 400 W RMS at 2 Ω. Gain setting and tuning matter.
- Is this a complete audio system? No. This listing is for the vehicle-specific SB-H-PIO1K-10TW3 Stealthbox subwoofer system. A complete installation may require an amplifier, power wiring, signal integration, tuning, and installation accessories.
