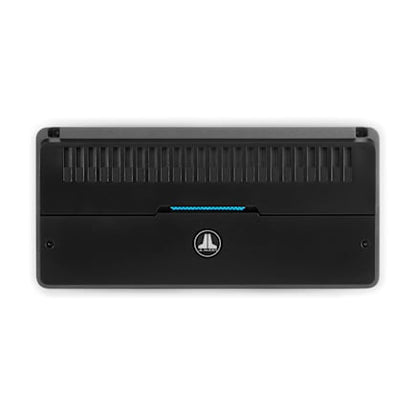

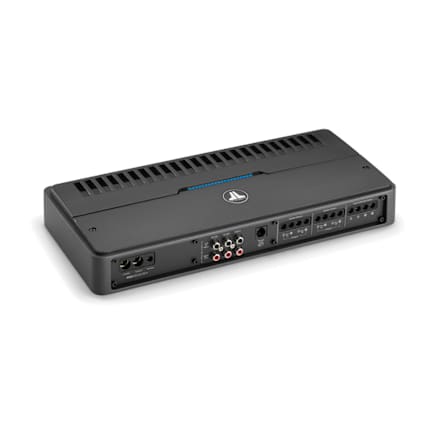

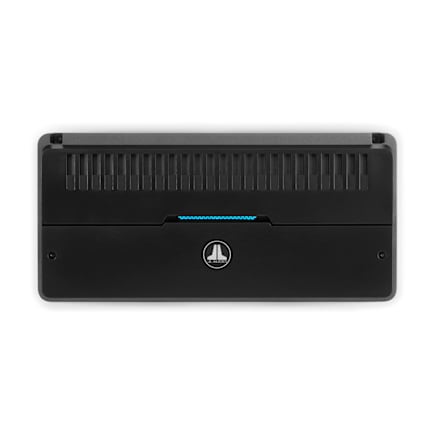

JL Audio RD900/5+ 5-Channel 900W Car Class-D System Amplifier 010-03884-00
JL Audio RD900/5+ 5-Channel 900W Car Class-D System Amplifier 010-03884-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio RD900/5+ — Drive four speakers and a dedicated subwoofer with the updated RD900/5+. This five-channel system amplifier includes filtering for passive or active system layouts, with onboard clipping indicators to simplify input-sensitivity setup.
NexD switching technology brings efficient Class-D power with reduced heat and current draw. Onboard LED clipping indicators help set input sensitivity, while differential-balanced RCA inputs support low- and high-level signal ranges. Remote-wire, signal-sensing and DC-offset turn-on options make the amplifier adaptable to different source and integration paths.
Plan the channels before buying. This is a five-channel speaker-and-subwoofer system amplifier with a dedicated subwoofer output and high-pass/band-pass options for the main channels. Speakers, signal integration and properly fused power wiring remain separate.
Key Features
- NexD Class-D amplification
- LED clipping indicators for gain setup
- Differential-balanced low/high-level RCA inputs
- Remote-wire, signal-sensing or DC-offset turn-on options
- Adjustable high-pass and band-pass filtering
- Dedicated low-pass subwoofer channel
Technical Specifications
| Manufacturer Part Number | 010-03884-00 |
| UPC | 699440983655 |
| Output at 4Ω | 70 W RMS x 4 + 225 W RMS x 1 subwoofer |
| Output at 2Ω | 100 W RMS x 4 + 500 W RMS x 1 subwoofer |
| Power rating conditions | 14.4 V, <1% THD |
| Input voltage | 10–15 VDC |
| Fuse recommendation | 80 A |
| Minimum copper power/ground wire | 4 AWG |
| Size (W x H x D) | 14.66 x 2.13 x 6.96 inches |
Installation & System Requirements
Speakers/subwoofer, fused copper power/ground wiring, signal cables and vehicle integration hardware are separate. Set gain and crossover filters for your exact speaker loads. Optional RBC-1 subwoofer level control is sold separately.
What's Included
- RD amplifier
- Manufacturer documentation
Product Identification
Manufacturer: JL Audio. Model: RD900/5+. Garmin part number: 010-03884-00. UPC: 699440983655.
Need help choosing matching components or verifying an application? Use the MCOR Vehicle Fit Guide or contact MCOR before ordering. Individual components remain available for separate purchase.
