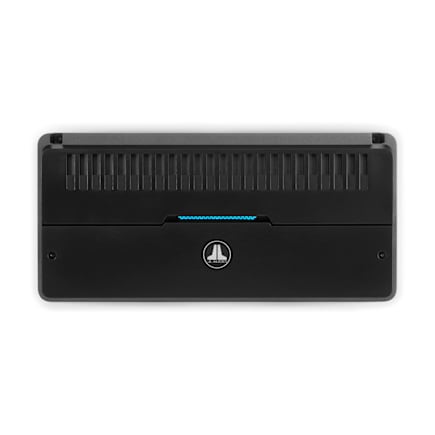

JL Audio RD800/6 6-Channel 800W Car Class-D System Amplifier 010-03885-00
JL Audio RD800/6 6-Channel 800W Car Class-D System Amplifier 010-03885-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio RD800/6 — Build a flexible multi-channel or active front-stage system with the RD800/6. Its higher-output fifth and sixth channels can serve demanding speakers or a properly configured bridged subwoofer.
NexD switching technology brings efficient Class-D power with reduced heat and current draw. Onboard LED clipping indicators help set input sensitivity, while differential-balanced RCA inputs support low- and high-level signal ranges. Remote-wire, signal-sensing and DC-offset turn-on options make the amplifier adaptable to different source and integration paths.
Plan the channels before buying. This is a six-channel amplifier with higher-output channels 5–6 and crossover routing suitable for a carefully configured active system. Speakers, signal integration and properly fused power wiring remain separate.
Key Features
- NexD Class-D amplification
- LED clipping indicators for gain setup
- Differential-balanced low/high-level RCA inputs
- Remote-wire, signal-sensing or DC-offset turn-on options
- Adjustable high-pass and band-pass filtering
- Three channel pairs with flexible crossover routing
Technical Specifications
| Manufacturer Part Number | 010-03885-00 |
| UPC | 699440983662 |
| Output at 4Ω | 75 W RMS x 4 + 150 W RMS x 2 |
| Output at 2Ω | 100 W RMS x 4 + 200 W RMS x 2 |
| Power rating conditions | 14.4 V, <1% THD |
| Input voltage | 10–15 VDC |
| Fuse recommendation | 80 A |
| Minimum copper power/ground wire | 4 AWG |
| Size (W x H x D) | 14.66 x 2.13 x 6.96 inches |
Installation & System Requirements
Speakers/subwoofer, fused copper power/ground wiring, signal cables and vehicle integration hardware are separate. Set gain and crossover filters for your exact speaker loads. A six-channel amplifier is not automatically a complete DSP processor; plan crossover and tuning requirements.
What's Included
- RD amplifier
- Manufacturer documentation
- 2.5 mm Allen wrench
- JL Audio badge
Product Identification
Manufacturer: JL Audio. Model: RD800/6. Garmin part number: 010-03885-00. UPC: 699440983662.
Need help choosing matching components or verifying an application? Use the MCOR Vehicle Fit Guide or contact MCOR before ordering. Individual components remain available for separate purchase.
