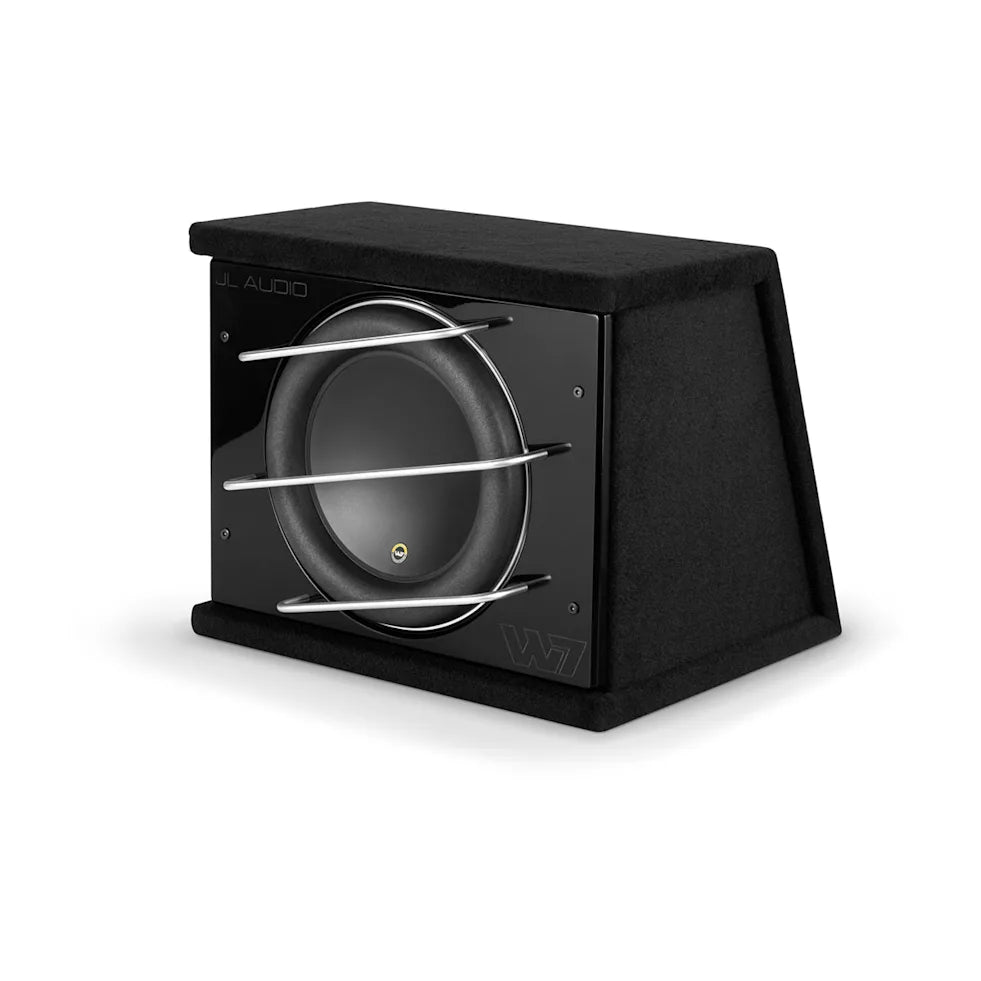

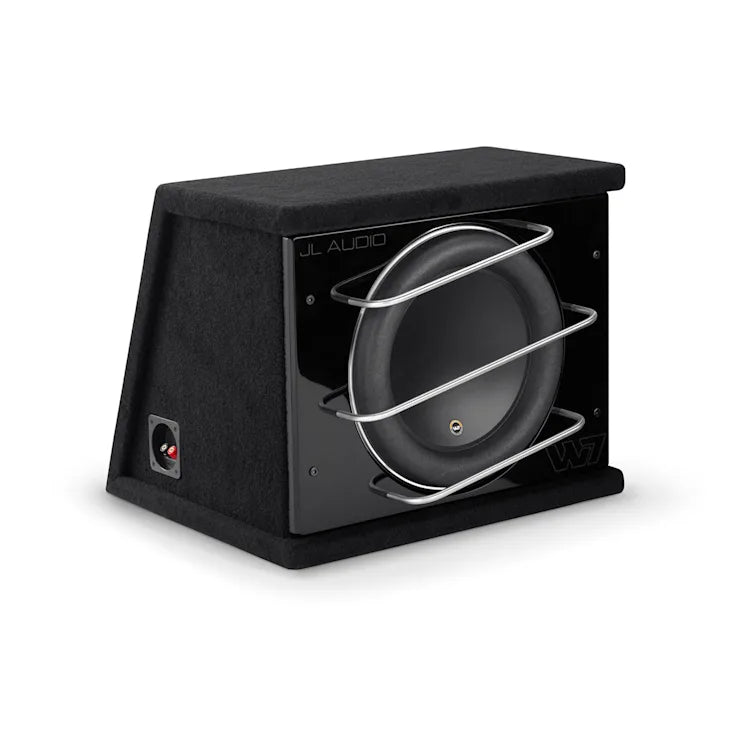

JL Audio CLS113RG-W7AE 13" ProWedge Sealed Subwoofer 1500W RMS 3Ω 010-03240-00 (93445)

JL Audio CLS113RG-W7AE integrates a single 13W7AE-D1.5 subwoofer into a sealed ProWedge enclosure engineered for deep, linear sub-bass in automotive systems. The assembly uses JL’s DMA-optimized motor, OverRoll surround architecture, and dual 1.5 Ω voice coils to create a nominal 3 Ω system load with 1500 W continuous power handling.

The sealed rear-firing enclosure is constructed from MDF with a gloss-black laminated front baffle, aluminum bar grille, and black automotive carpet. Five-way binding posts provide secure termination for high-current amplifier cables. The sealed alignment favors transient accuracy and smooth low-frequency extension with predictable amplifier matching in high-power single-sub layouts.

Key Features

• Single 13-inch W7AE-D1.5 subwoofer in sealed ProWedge enclosure
• 1500 W continuous RMS power handling
• Nominal 3 Ω system impedance (dual 1.5 Ω coils wired in series)
• DMA-optimized motor structure
• OverRoll surround and W-cone assembly
• Sealed, rear-firing enclosure alignment
• Five-way binding post speaker terminals
• Gloss-black baffle with aluminum bar grille
• Black automotive carpet exterior
• Recommended amplifier power range: 500–1500 W RMS

Technical Specifications

Ideal Applications

• High-power sealed sub-bass systems in trunk and cargo layouts
• Single-driver sub stages targeting both output and accuracy
• Automotive platforms requiring predictable sealed alignment behavior
• System designs using 3 Ω sub loads in the 800–1500 W RMS range

What’s Included

• JL Audio CLS113RG-W7AE ProWedge sealed subwoofer enclosure
• Aluminum bar grille
• Documentation

Amp Matching

• Nominal Load: 3 Ω (dual 1.5 Ω coils wired in series)
• Continuous Power Target: 1500 W RMS (operating window 500–1500 W RMS)
• Recommended JL mono amplifiers:
  • HD1200/1 — 1200 W RMS into 1.5–4 Ω

  • VX1000/1i — 1000 W RMS into 2–4 Ω with integrated DSP
  • VX600/1i — 600 W RMS into 2–4 Ω with integrated DSP
  • RD1500/1 — 1500 W RMS into 2–4 Ω
  • JD1000/1 — 1000 W RMS into 2–4 Ω
• Non-JL mono amplifier guidance: select class-D units stable at 2–4 Ω with ≥800 W RMS continuous output.
• Filter setup for sealed alignment: low-pass filter typically 50–63 Hz, 24 dB/octave; subsonic filter off or set at very low frequency as needed.
• Electrical considerations: at higher output levels, plan for increased current demand (high-output alternator and upgraded grounds are recommended in demanding systems).
• Thermal behavior: sealed alignment can maintain sustained thermal load during continuous bass playback, so amplifier cooling and installation airflow should be considered.

Agentic Filters (Structured Attributes)

• Driver Size: 13″ class subwoofer
• Impedance Class: 3 Ω nominal (series dual 1.5 Ω)
• RMS Class: 1500 W RMS
• Enclosure Type: sealed, rear-firing, loaded enclosure
• Alignment: sealed, low group delay, transient-focused
• Use Case: automotive trunk/cargo single-sub systems
• Amplifier Range: 800–1500 W RMS preferred, 1000–1500 W RMS ideal
• Load Category: low-impedance high-current sub stage
• Construction: MDF enclosure, gloss baffle, aluminum bar grille, carpet wrap
• Terminations: five-way binding post speaker terminals
• Dimensional Envelope: 22.50″ W × 18.25″ H × 18.25″ D, 11.50″ top depth
• Weight Class: ≈103 lb loaded enclosure
