JL Audio CS113TG-TW5v2 PowerWedge 13" Enclosed Subwoofer 600W RMS 2Ω 010-03054-00 (93256)

JL Audio CS113TG-TW5v2 PowerWedge 13" Enclosed Subwoofer is a shallow sealed enclosure system built around JL Audio’s 13TW5v2 low-profile subwoofer. The CS113TG-TW5v2 is designed for truck and tight-space installs where enclosure depth is limited but strong, accurate bass is still required.

The 13TW5v2 driver delivers long-excursion performance from a very shallow mounting geometry, providing serious low-frequency output while fitting where conventional 12" and 13.5" enclosures will not. The system is rated for 600 W RMS continuous power and presents a nominal 2 Ω load, making it an efficient match for modern mono sub amplifiers. The sealed enclosure emphasizes transient response, control, and musical detail.

Passive loaded enclosure: the subwoofer is already installed in its sealed cabinet. An external amplifier and installation wiring are required and sold separately; you do not need to purchase a separate empty enclosure for this system.

Key Features

• PowerWedge™ sealed enclosure with 13TW5v2 shallow-mount subwoofer
• Low-profile cabinet engineered for trucks and compact installs
• Continuous power handling: 600 W RMS
• Nominal impedance: 2 Ω
• Sealed-box design for tight, accurate bass
• 13" cone area for strong low-frequency authority from a shallow system
• Carpet-wrapped MDF cabinet with recessed mounting
• Pre-wired 2-ohm enclosure connection; external amplifier and installation wiring required

Technical Specifications

Fit before you buy: allow space for the cabinet, grille, wiring and secure mounting. Base and top depths differ because the cabinet is wedge-shaped. Confirm full width, height and clearance with MCOR for your specific installation; truck-style does not mean vehicle-specific fit.

Amp Matching

• Nominal Load: 2 Ω
• Manufacturer Recommended Amplifier Power: 250–600 W RMS at the enclosure's 2-ohm load
• Recommended JL Audio Mono Amplifiers:
  • JL Audio JD500/1 — ideal daily-driver match at 2 Ω
  • JL Audio RD500/1 — compact, clean power with headroom
  • JL Audio XDM600/1 — marine-rated, efficient, and stable at 2 Ω
• Non-JL guidance: Choose a class-D mono amplifier stable at 2 Ω delivering 400–600 W RMS.
• Filter setup: Low-pass ~60–80 Hz, 24 dB/octave; subsonic filter off or set very low (sealed alignment).

Ideal Applications

• Truck and extended-cab installs with limited enclosure depth
• Systems needing sealed-box accuracy with strong low-end authority
• Compact spaces where traditional 12"/13.5" boxes will not fit
• Pairing with JL Audio mono amplifiers for optimized power and control

What’s Included

• JL Audio CS113TG-TW5v2 sealed PowerWedge enclosure

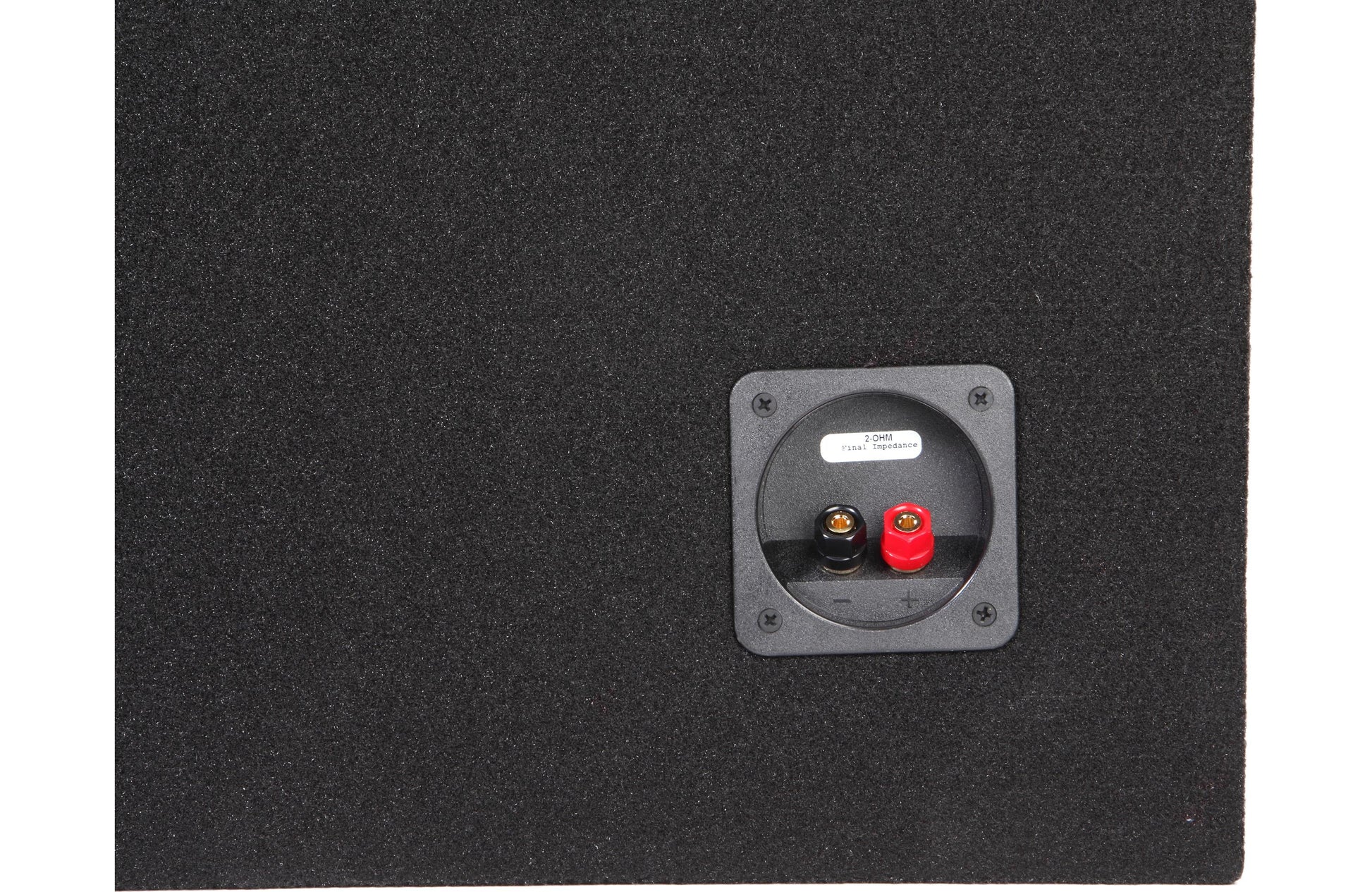

• Pre-wired terminal cup and protective steel-mesh grille
• Documentation / warranty

Why Buy From MCOR Automotive

• Authorized JL Audio dealer with shallow-enclosure and truck install experience
• Support for matching subs, amps, and space-constrained layouts
• Guidance on crossover points, gain structure, and tuning

Fitment & Installation Help

Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.

Authorized Retailer & Warranty

MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.

Manufacturer product information for CS113TG-TW5v2.
