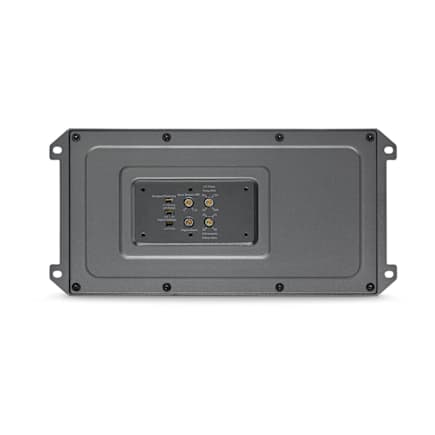

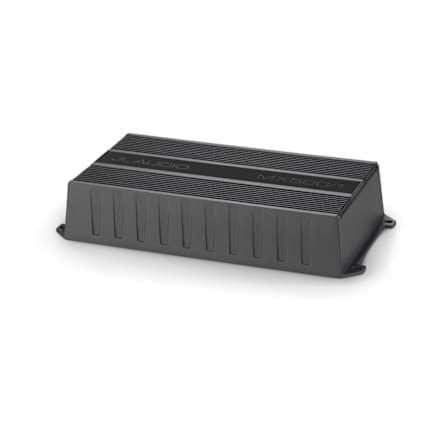

JL Audio MX500/1 Monoblock Marine & Powersports Class-D Amplifier 010-03325-00
JL Audio MX500/1 Monoblock Marine & Powersports Class-D Amplifier 010-03325-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio MX500/1 — Bring amplified sound to a space-limited boat or powersports installation with the JL Audio MX500/1. Its compact, IPX7-rated design combines Class-D efficiency with adjustable filtering.
Small footprint, practical system flexibility. The Class-D design keeps the chassis compact, while adjustable onboard filters let the installer tailor the operating range to the connected speakers or subwoofer. Compare the 4Ω and 2Ω output figures below rather than choosing by the model’s headline wattage alone.
Marine and powersports use still requires proper wiring. The IPX7 rating applies to the amplifier assembly, but installation splices, fusing, ground connections and cable routing must be protected and installed correctly. The amplifier does not supply an audio source, speakers or an installation wiring kit.
Key Features
- Compact Class-D marine/powersports amplifier
- IPX7 water rating
- Onboard adjustable crossover filtering
- Power/signal pigtails for connection
- 12-volt electrical-system application
Technical Specifications
| Manufacturer Part Number | 010-03325-00 |
| UPC | 699440984072 |
| Channels | 1 |
| Output at 4Ω | 300 W RMS x 1 |
| Output at 2Ω | 500 W RMS x 1 |
| Power rating conditions | 14.4 V, <1% THD |
| Input voltage | 11–15 VDC |
| Fuse recommendation | 50 A |
| Minimum copper power/ground wire | 4 AWG |
| Size (W x H x D) | 9.33 x 1.77 x 4.50 inches |
Installation & System Requirements
Speakers/subwoofer, properly fused copper power/ground wiring and audio signal connection are separate. Protect all splices and follow the installation manual. Optional RBC-1 subwoofer level control is sold separately.
What's Included
- MX amplifier with power/signal pigtails
- Four 1-inch self-tapping screws
Product Identification
Manufacturer: JL Audio. Model: MX500/1. Garmin part number: 010-03325-00. UPC: 699440984072.
